What Dirac Live Room Correction Is—and Why These New Integrations Matter
Dirac Live room correction is a digital audio calibration system that analyzes how speakers interact with a listening space and applies precise magnitude, phase, and low-frequency adjustments to improve clarity, imaging, and bass consistency for home theater optimization and immersive audio setup users. Its latest expansion into two 16-channel AV processors marks a turning point. miniDSP’s Tide16 includes Dirac Live Room Correction, Dirac Live Bass Control, and the newer Dirac Live Active Room Treatment (ART), bringing a full optimization suite into a flexible multi-channel hub. Tonewinner’s AT-600 adds Dirac Live Room Correction and Bass Control at launch, with ART scheduled later, making it the first Chinese OEM-developed and branded device to integrate Dirac Live. Together, these platforms signal that high-end AV processor calibration is no longer reserved for boutique installations; it is becoming a standard feature across more accessible, DIY-friendly systems.

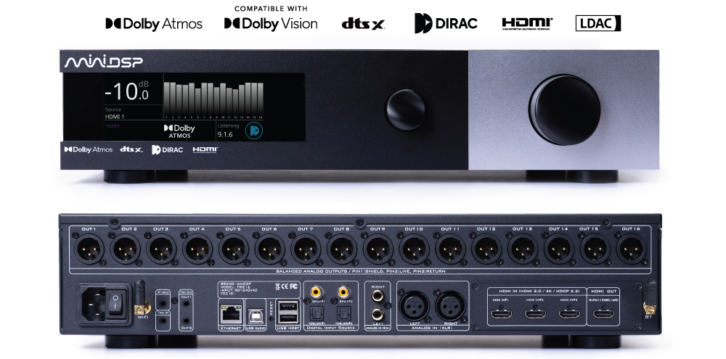

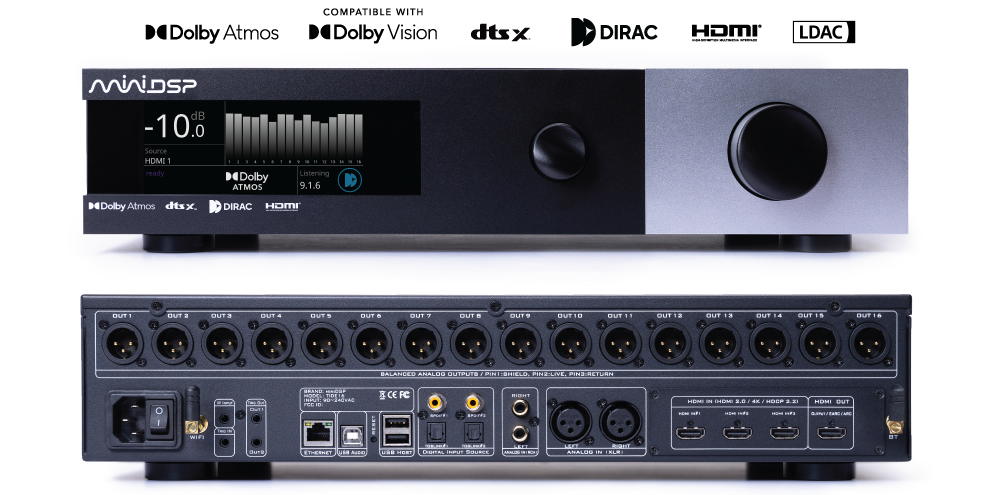

Tide16: A 16-Channel Hub for Advanced Home Theater Optimization
miniDSP’s Tide16 targets users who need flexible AV processor calibration for both stereo and immersive audio setup designs. With up to 16 configurable output channels, it can support layouts such as 9.1.6 and beyond, allowing serious enthusiasts and integrators to build complex home theater optimization projects from a compact processor. The Tide16’s connectivity covers HDMI, Toslink, USB Audio, and both balanced XLR and unbalanced RCA stereo analog inputs, feeding 16 balanced XLR outputs. Wireless audio via Bluetooth and support for a calibrated microphone (sold separately) further align it with modern installation needs. According to miniDSP, the unit ships with Dirac Live Room Correction, Dirac Live Bass Control, and Dirac Live Active Room Treatment licenses included, so users can apply full-band and low-frequency room correction out of the box without extra software purchases or complex licensing steps.

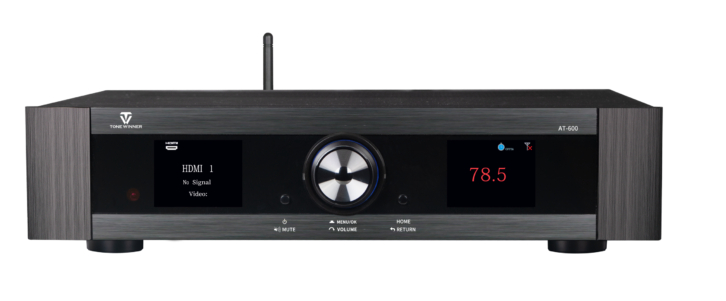

Tonewinner AT-600: Immersive Processing with Dirac Live at a Competitive Price
The Tonewinner AT-600 extends Dirac Live room correction into a 16-channel AV processor aimed at high-performance home cinema environments, while staying at a competitive price point of USD 2299 (approx. RM10,800). It supports Dolby Atmos and DTS:X, with channel configurations up to 9.3.4 or 7.3.6, aligning it with current immersive audio setup standards. HDMI 2.1 connectivity and 8K video passthrough, plus support for Dolby Vision and HDR10+, position the AT-600 as a central unit for modern systems. At launch, the processor includes Dirac Live Room Correction to address magnitude and phase distortions, along with Dirac Live Bass Control to co-optimize subwoofers and speakers. Dirac Live ART is planned for a later update, which will turn all speakers and subwoofers into a coordinated low-frequency control network, reducing resonances and shortening decay times for smoother, more even bass.
From Boutique Tool to DIY Staple: ART, Bass Control, and Surround Calibration
Dirac’s room optimization suite—Room Correction, Bass Control, and Active Room Treatment—was once associated with high-budget theaters and heavy physical treatment. Now, miniDSP and Tonewinner are placing the same algorithms into processors that appeal to both custom integrators and advanced DIY installers. Powered by MIMO processing, Dirac Live ART treats every speaker as part of a cooperative acoustic network, managing low-frequency resonances to deliver cleaner, tighter, more balanced bass across multiple seats. Dirac Live Bass Control goes further by using machine learning to coordinate subwoofers and speakers for consistent low-end performance in surround and immersive configurations. These tools help reduce the reliance on specialized acoustic training, since measurement-driven filters and target curves guide users through AV processor calibration step by step, turning professional-grade room treatment into a software-driven process that is accessible from a laptop and calibrated microphone.
Multi-Processor Support and the Future of Accessible Calibration
Dirac’s appearance in both the Tide16 and AT-600 highlights an important trend: multi-processor support is spreading the same core room correction across different ecosystems and price points. Enthusiasts can now choose between a highly configurable audio-centric platform like the Tide16 or a full-featured AV processor like the AT-600, without losing access to Dirac Live room correction or its advanced modules. This flexibility matters for long-term system growth; users can upgrade speakers, add channels, or reconfigure their immersive audio setup while keeping familiar calibration workflows. For integrators, a shared toolset across brands shortens learning curves and simplifies support. For DIY users, it means professional room treatment techniques are no longer locked behind boutique services. As more processors adopt Dirac Live, consistent, repeatable home theater optimization becomes a realistic baseline rather than an aspirational luxury.
