What a DIY Steam Controller Adapter Puck Does

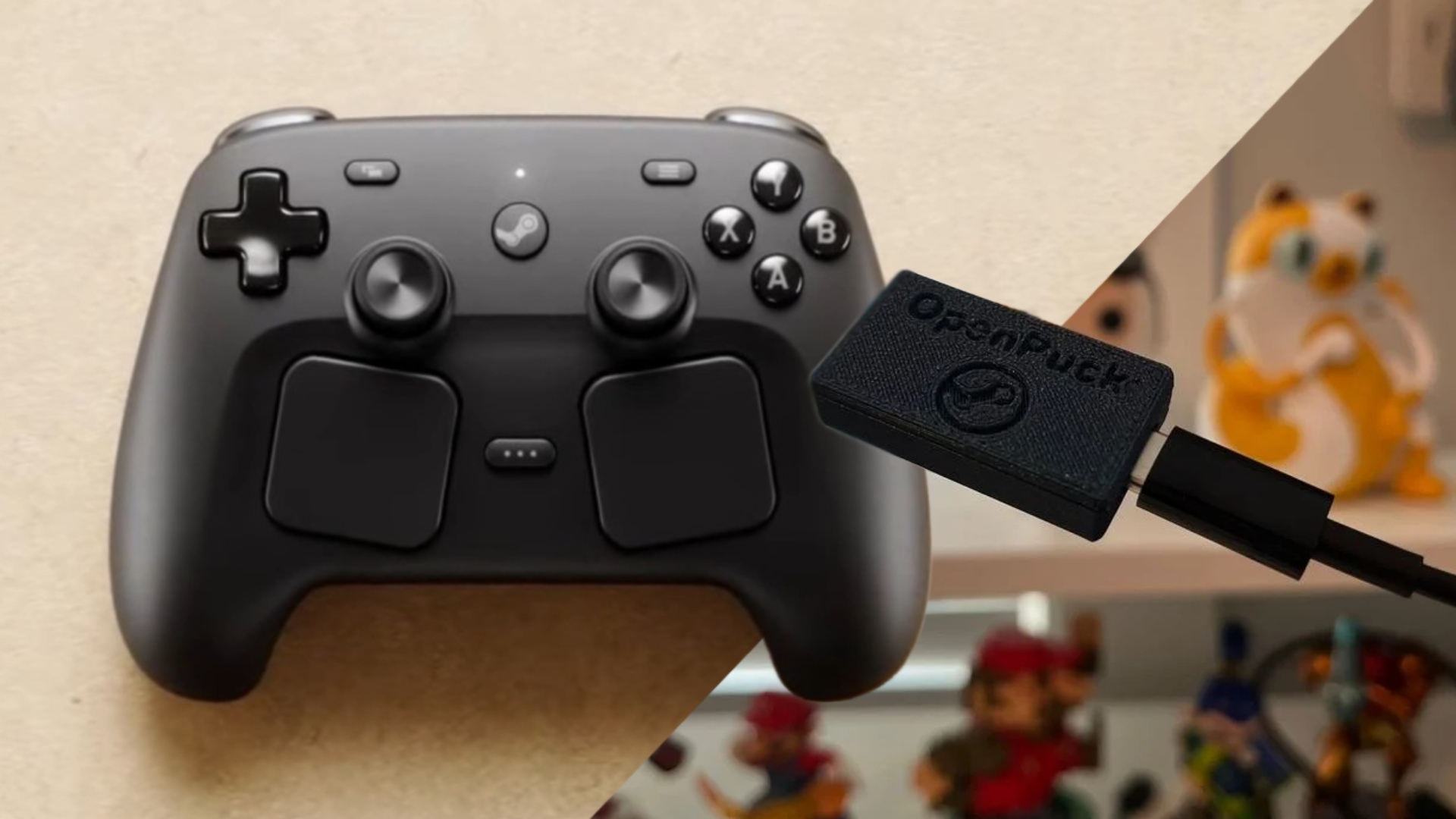

A DIY Steam Controller adapter puck is a small, plug-in device built around an open-source design that lets your Steam Controller appear as different types of gamepads so it can work on modern consoles like PS5, Xbox, and Nintendo Switch without relying on Valve’s original proprietary receiver or Steam running in the background.
If you love the Steam Controller’s trackpads, gyro, and flexible layouts, an OpenPuck-style build lets you carry that feel between systems instead of swapping controllers every time you change platforms. OpenPuck is a fan-made, open-source project that recreates Valve’s wireless puck but adds console support, so your controller can connect to PS5, Xbox, and Nintendo Switch as if it were a native pad. In practice, that means you plug the puck into a console, pair the Steam Controller to it, and select the appropriate mode with a button combo so it presents itself as an Xbox, PlayStation, or Switch controller. You should try this if you are comfortable with a basic electronics project and want one controller to follow you between PC and console without commercial adapters.
What You Need for an OpenPuck-Style DIY Build

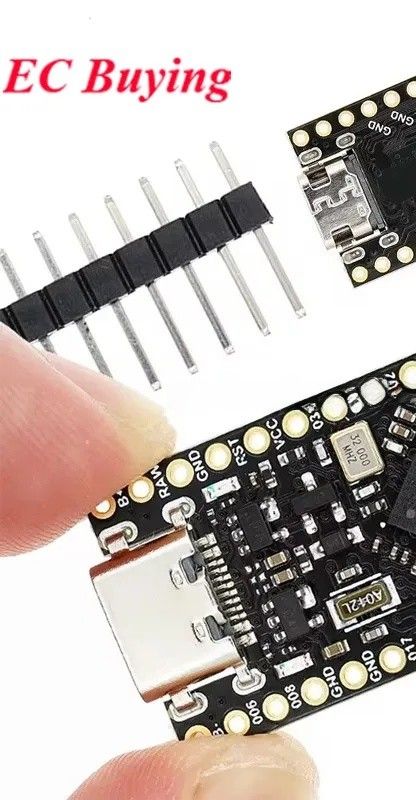

Before you think about steps, lock in the parts. The heart of this Steam Controller adapter is a Pro Micro NRF52840 microcontroller board, which acts like Valve’s wireless receiver once flashed with the custom firmware. According to one report, this board costs under USD 10 (approx. RM46) and is enough to recreate the core wireless link to the controller. Around that, the community design uses a 3D-printed enclosure that makes the finished puck look close to the official accessory while keeping costs low.
On the software side, OpenPuck’s code is available for free, turning the microcontroller into a Steam Controller-compatible receiver that can also translate inputs so consoles see it as a supported gamepad. The project includes a web-based configuration interface where you can switch USB modes and tweak mappings without deep firmware tools. There is one notable limitation: the DIY puck does not provide wireless charging for the controller, unlike Valve’s original, though the developer lists charging support as a planned feature and you can still charge the controller through its own USB-C port.
Step-by-Step: From Bare Board to Working Cross-Platform Puck
Think of the build as three phases: prepare the hardware, flash the firmware, and then configure modes. None of this demands exotic tools, but you do need to be methodical and patient so you do not damage the microcontroller or misconfigure the USB profiles. The payoff is a cross-platform controller mod that keeps your Steam Controller useful on almost anything with a USB port.
- Gather the Pro Micro NRF52840 board, a USB cable, and a 3D-printed case based on the community OpenPuck design.
- Download the OpenPuck open-source firmware and flashing instructions from the project repository so your board can behave like the Steam Controller receiver.
- Connect the Pro Micro NRF52840 to your PC over USB and flash the OpenPuck firmware, following the project’s documented method for entering bootloader mode.
- Place the flashed board into the 3D-printed enclosure, making sure the USB plug lines up so it can fit directly into your console or dock.
- Plug the finished puck into a console or PC, pair your Steam Controller to it, and use the web-based interface to confirm USB mode and basic button response.
- Use the controller’s built-in shortcuts to switch profiles: for example, press back-4 + X for Xbox mode or back-4 + Y for Switch mode with gyro and haptics.
- Test the adapter on PS5, Xbox, and Nintendo Switch, ensuring each platform recognizes it as a supported controller and that your preferred features work as expected.
The subtle trap is configuration: the puck can present itself as several controller types, so picking the wrong mode for a given console can make it look broken when it is only mis-set. Always confirm which shortcut you used and double-check the USB mode in the web interface before assuming the hardware failed. Another point to remember is that advanced Steam Input features are now handled by OpenPuck’s translation layer instead of Steam on PC, which is what solves the Steam Controller’s usual limitations with Game Pass and other non-Steam titles.
How It Feels in Use and Why the Mod Community Matters
Once the OpenPuck-style Steam Controller adapter is built, daily use is straightforward: plug the puck into your console, wake the controller, and pick the right mode combination. On Nintendo Switch, the console treats it like a wired controller, with gyro and haptics supported, so motion aiming and feedback remain available. On other modern consoles, matching the correct profile lets the Steam Controller stand in for native gamepads, which solves one of its biggest limitations outside Steam’s own ecosystem.
The project is a clear example of the mod community extending the life of niche hardware. OpenPuck is described as an open-source project built by a community developer, and reports highlight it as “another example of community modding done correctly.” Multiple builders have produced working pucks from the same design, showing that the approach is practical rather than experimental. With the Steam Controller’s unique controls otherwise locked to PC, this cross-platform controller mod turns it into a long-term, console-friendly gamepad instead of something that gathers dust when you switch away from Steam.
Is Building an OpenPuck-Style Adapter Worth It?
If you already own a Steam Controller and prefer its feel over standard pads, an OpenPuck DIY build is an efficient way to use it far beyond a single system. With an inexpensive Pro Micro NRF52840 board and a 3D-printed case, you gain a Steam Controller adapter that behaves like Valve’s official puck while adding support for PS5, Xbox, and Nintendo Switch. The missing wireless charging is a compromise, but you can charge via USB-C and keep playing across devices.
The main things to watch are build accuracy and correct profile selection on each platform. Treat the firmware flashing and configuration steps with care, and label or memorize the console shortcuts so you do not confuse modes in the middle of a game session. If that level of tinkering sounds fun rather than annoying, this project can turn a once PC-focused controller into a flexible part of your gaming setup for years, backed by a modding community that continues to refine and extend the design.
