What Modular Amplifier Design Means for Home Listening
Modular amplifier design describes audio electronics built from swappable or expandable building blocks, so listeners can tailor power, connectivity, and streaming features to their rooms without replacing the entire system. Instead of buying a fixed, all-in-one receiver, users combine dedicated modules—amplifiers, streamers, and control units—that can be upgraded or rearranged over time. This approach speaks directly to modern listening habits, where one household might need discrete music zones, strong TV integration, and support for both vinyl and high-resolution streaming. Modularity turns the audio rack into a flexible platform rather than a locked box, helping systems grow from a simple stereo setup into a whole-home, multi-zone streaming amp solution. As NAD and Emotiva show, this shift is pushing consumer audio toward scalable systems that adapt to changing technologies and room layouts.
Inside the NAD Modular Series: Scalable Power and Streaming

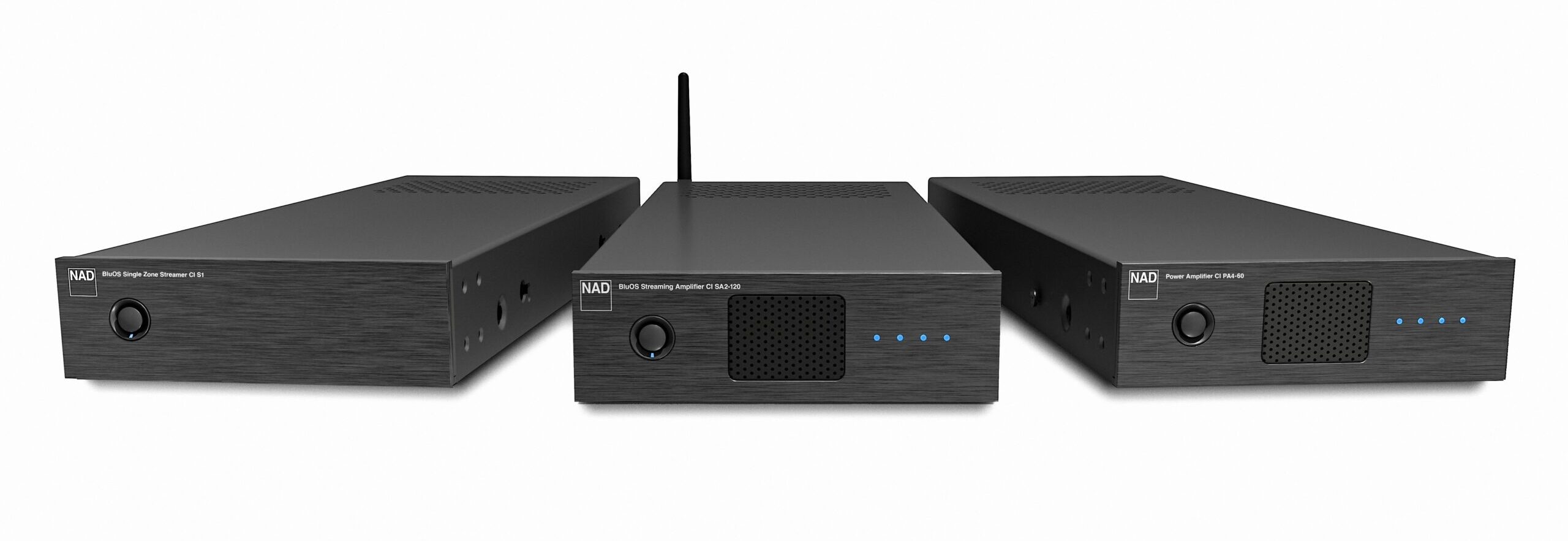

NAD’s Modular Series brings this philosophy into custom-friendly hardware, centered on compact components built for efficiency and scalability. The NAD CI PA4-60 is a 4-channel power amplifier aimed at flexible distribution, while the CI SA2-120 BluOS Streaming Amplifier adds a powerful multi-zone streaming amp option. The SA2-120 can run as a single-zone amplifier delivering 120 watts per channel, or operate as a two-zone player with 60 watts per channel in each zone, letting installers match output to room size. Alongside these, the CI S2 Music Streamer offers a 2-zone streaming solution for clean, high-resolution playback. All three sit in the BluOS ecosystem, sharing the same control interface for multi-zone management. According to NAD Electronics, the Modular Series is designed “to meet the latest demands of audio system design, in any size or type of project.”
Emotiva’s XSP-2 Preamplifier: Modularity for Two-Channel Purists

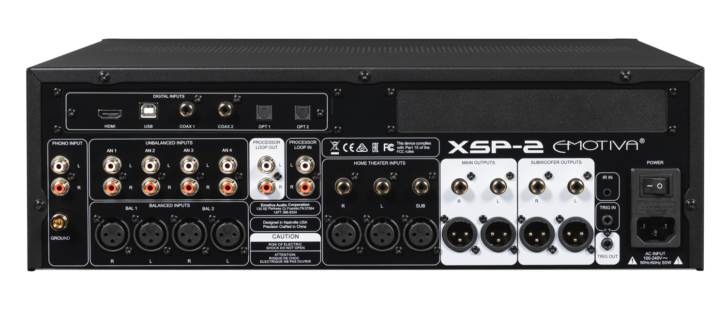

Where NAD focuses on distributed audio, Emotiva applies modular thinking to the stereo control center with its XSP-2 Differential Reference preamplifier. The XSP-2 updates the XSP-1 by adding greater connectivity and future expandability. It is a fully differential, fully balanced analog stereo control hub with bass management for 2.1 or 2.2 systems, offering high-pass and low-pass filter options at 40, 60, 80, or 100 Hz plus stereo or summed mono subwoofer outputs. An onboard MM/MC phono stage supports turntables, while a dedicated headphone output uses a current-mode feedback amplifier for precise listening. On the rear panel, two expansion slots allow hardware upgrades; it ships with a fully balanced ESS-based DAC module that adds HDMI-ARC, USB, coaxial, and optical digital inputs. Careful shielding isolates the digital board from the pure analog signal path, keeping noise low and detail intact.
From One-Size-Fits-All to Customizable Audio Systems
Together, NAD’s Modular Series and Emotiva’s XSP-2 show how modular amplifier design replaces monolithic receivers with customizable audio systems that scale over time. A home can start with a stereo zone built around a preamplifier like the XSP-2 and add more amplification or streaming capabilities only when needed. Multi-zone components such as the SA2-120 and S2 Music Streamer let integrators carve out separate listening areas—kitchen, living room, office—without duplicating full stacks of hardware. Expansion slots and compact form factors mean features can be added or swapped instead of forcing a full replacement cycle. This trend favors future-proof planning: as streaming standards, connection types, or room uses change, homeowners upgrade modules rather than entire systems. For listeners, that means better alignment between gear, space, and habits, and less waste along the upgrade path.
