What 3D printer self-replication means for makers
3D printer self-replication is the practice of using an existing 3D printer to create most of the structural parts, panels, and fixtures needed to assemble another fully functional 3D printer, reducing dependence on factory-made frames and specialized machining. This approach is gaining ground in maker 3D printer builds because it turns a single tool into a small-scale factory. Builders print frames, motion mounts, and even housings, then add off-the-shelf electronics, rails, and screws. The result is a printed frame printer that can be rebuilt, upgraded, or copied with minimal external tooling. Paired with open-source CAD files and shared bills of materials, these DIY CoreXY printer projects are turning hobby workshops into experimental labs where printers evolve rapidly from one generation to the next.
Encore CoreXY: a printed printer with real capability

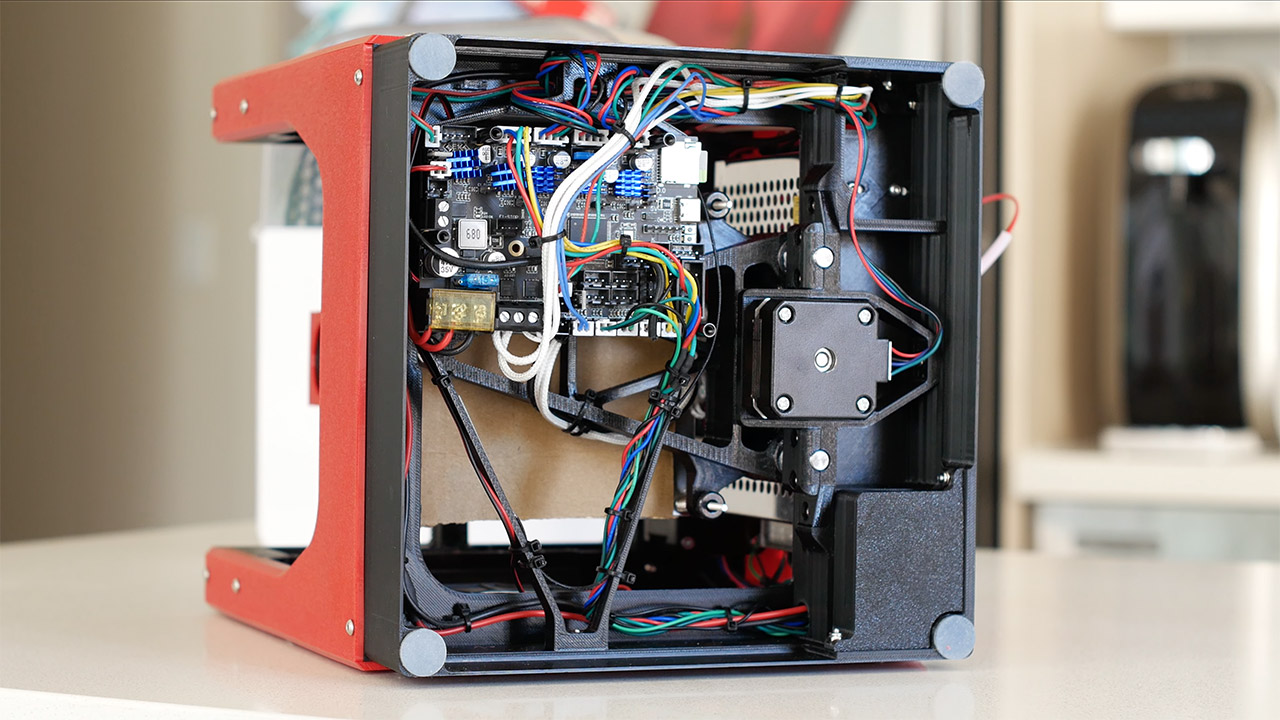

Alex Yu’s Encore is a compact DIY CoreXY printer designed around printed printer components instead of metal frames. Encore measures about 219 x 221 x 262 millimeters, yet delivers a 120 x 120 x 120 millimeter build volume, making it roughly the size of a filament box while remaining useful for functional parts and prototypes. Its 1.5-millimeter-thick printed panels form the outer shell and structural skeleton, with the horizontal axes bolted directly to those panels, removing the need for aluminum extrusions. “All of the printed elements are made on a standard 225 millimeter build plate, so almost anyone with a capable 3D printer can create all of the parts.” Modularity is central: the gantry, Z stage, and outer panels are separate assemblies, so owners can replace or upgrade sections as they experiment with new ideas.
Iterating a printed frame printer for speed and stability
Encore shows why 3D printer self-replication pairs well with rapid iteration. The machine uses MGN9C linear rails and a CoreXY belt layout for fast motion, driven by two compact motors and a lightweight gantry. When early tests showed the hotend cooling was not enough for high-speed PLA, Yu swapped the blower, redesigned the shroud for better airflow angles, and added two more blowers at the build area sides. Because the shell and mounts were printed, these upgrades were a matter of reprinting parts instead of machining new brackets. Bed vibration at speed was fixed by printing mounts for stronger 8-millimeter Z rods instead of 6-millimeter ones, improving layer consistency and reducing ringing. Encore’s project files, STLs, and CAD archives on GitHub and major model sites make it a reference design other makers can fork and refine.
Wooden frames challenge metal-first assumptions
Not all self-built machines stay within plastic. Maker Mitsu Makes spent six months constructing a 3D printer with a frame made primarily from thick solid wood stock, testing whether careful design could let wood stand in for aluminum or steel. He milled custom frame pieces on a CNC machine, then spent about seven hours hand sanding to achieve a tight, flex-free fit before gluing and clamping the structure for several days to prevent warping. Steel backing plates were laser cut and pre-drilled to stiffen the points where linear rails meet thin wooden sections around 3 millimeters thick. The printer uses a cross-gantry layout with two stepper motors for X and Y and a third for the Z axis, giving 110 millimeters of vertical travel with automatic bed tramming. Mitsu reports that the wood frame runs impressively quiet because it damps vibrations better than many metal frames.
Lower barriers, higher creativity in maker 3D printer builds
Together, Encore and Mitsu’s wooden machine show why printed printer components and unconventional frames matter. A printed frame printer reduces reliance on custom metal work, so someone with a mid-range machine and standard 225 millimeter bed can print most structural parts at home. Wooden frames, reinforced with laser-cut plates, prove that alternative materials can meet alignment and stiffness needs if the design is thoughtful. This lowers the barrier to entry for experimental maker 3D printer builds: changing belt layouts, testing new hotend mounts, or rethinking Z stages becomes a matter of editing CAD and reprinting instead of commissioning machining. It also feeds a loop where each printer builds the next, and every iteration informs the design after it. Printers stop being static tools and turn into evolving platforms for learning, customization, and self-replication.
