E‑Ink Gaming Stops Being a Thought Experiment

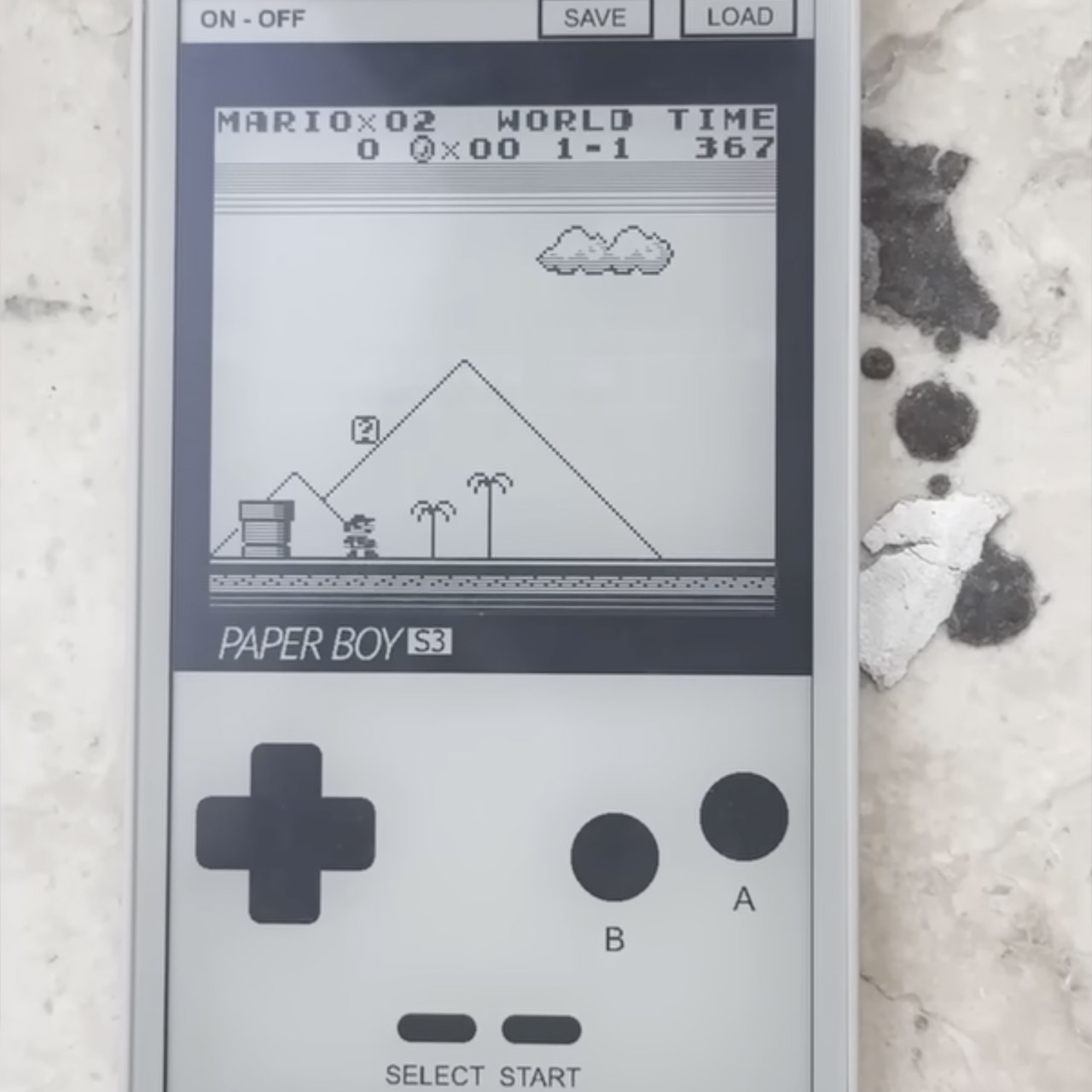

Game Boy emulation on e‑ink refers to running classic Game Boy software at full 60 frames per second on an e‑ink display, using custom drivers and optimized emulators to overcome the technology’s slow refresh limitations and deliver visually acceptable, responsive gameplay on low‑power hardware. That is no longer a hypothetical challenge: YouTuber and developer Wenting Zhang has turned the M5PaperS3 development board into a handheld that runs original Game Boy software on a 4.7‑inch, 960×540 e‑ink touchscreen at a steady 60 FPS using an ESP32‑S3 processor. The project, dubbed Paper Boy S3 or PaperboyS3 depending on where you look, attacks the long‑standing belief that e‑ink is too sluggish for gaming and wins convincingly. Instead of treating the display as a page‑turning appliance, Zhang treats it as a real‑time surface and shows that with the right driver and careful use of the ESP32 e‑ink gaming stack, retro titles like Pokémon Blue can look surprisingly good.
The M5PaperS3 and ESP32‑S3: Why This Combo Works
The key insight behind this e‑ink display emulator is that the hardware was always more capable than its default drivers allowed. The compact M5PaperS3 board carries an ESP32‑S3 processor, a 4.7‑inch 960×540 e‑ink touchscreen, a simple buzzer, and a microSD slot, which Zhang repurposed as a handheld Game Boy system. ESP32 e‑ink gaming is not new; the chipset already powers DIY e‑readers and open‑source smartwatches, so it is proven in low‑power, always‑on scenarios. What is new is pushing that same platform to a steady 60 FPS. According to one report, “He turned the whole package into a handheld that runs original Game Boy software at a steady 60 frames per second.” The modest 160×144 pixel resolution of the original Game Boy helps: even when scaled threefold with slight dithering, the active game window occupies only part of the e‑ink panel, leaving static touchscreen controls at the bottom that do not need constant refreshing.
Cracking the Refresh‑Rate Problem With a Custom Driver
E‑ink displays are notorious for slow full‑screen refreshes and ghosting, because charged particles take hundreds of milliseconds to drift into place and often leave faint afterimages. Zhang’s contribution is to reject those constraints and go pixel‑level. He created a bespoke driver that talks directly to the panel’s low‑level parallel interface and maintains a compact four‑bit state record per pixel. Instead of triggering expensive global wipes, the driver updates only the pixels that need to change, every sixtieth of a second, nudging them with carefully timed voltage patterns. This makes the usual global lock, where the whole panel must finish a cycle before accepting new commands, unnecessary. The ESP32‑S3’s two cores divide the work: one core runs the Game Boy emulator, while the other processes display updates and sends data via DMA aligned to a vertical sync signal, preserving a strict 60 Hz rhythm even when game workloads fluctuate. The result is Game Boy emulation e‑ink that looks fluid on video and feels surprisingly natural in motion.
From Emulator Core to Sound and Controls

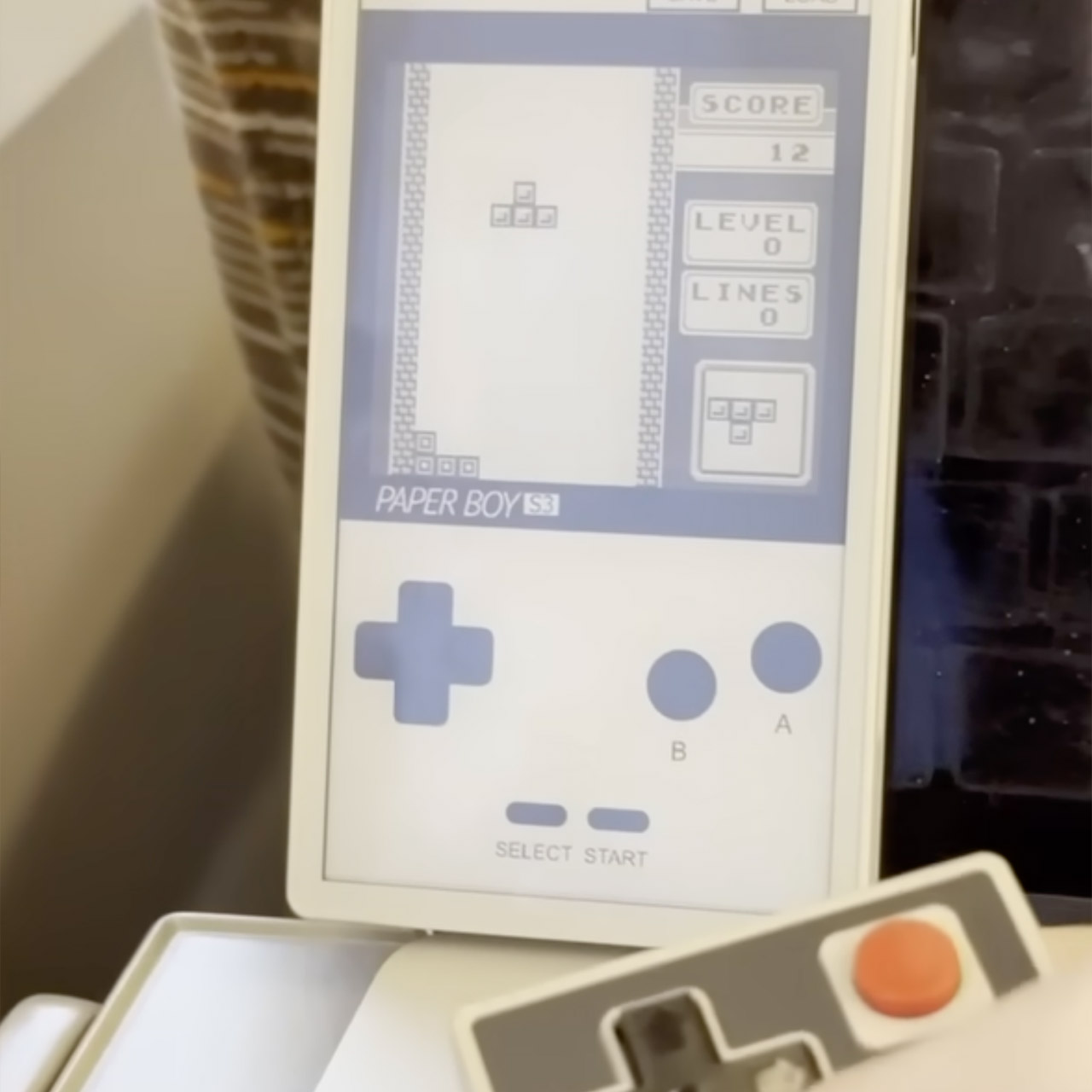

Driving the screen at 60 FPS is only half of the story; the rest is about running games convincingly on constrained hardware. Zhang experimented with several Game Boy emulator cores before settling on CrankBoy, an optimized fork of Peanut GB that delivered the best balance between speed and compatibility on the ESP32‑S3. Most original Game Boy titles run close to full speed, with occasional frame skips to keep input and sound timing perfect under load. Game Boy Color remains out of reach for now because of roughly doubled processing demands, which would push this setup beyond comfortable limits. Audio is handled by a single‑tone buzzer, which Zhang drives by rapidly cycling between crude approximations of the four Game Boy audio channels, producing recognizable chiptune‑style music without extra hardware. The touchscreen itself hosts a static D‑pad and action buttons at the bottom of the display, and there is basic Bluetooth LE controller support for players who prefer physical buttons.
What This Means for the Future of E‑Ink Gaming
The Paper Boy S3 project matters because it overturns a lazy assumption: that e‑ink is forever limited to static text and slow page turns. Over the past few years, various e‑ink tablets and monitors have used software tricks to chase higher refresh rates, often at the cost of heavy ghosting and stutter. Zhang’s work shows a different path, where careful driving and realistic workloads make 60 FPS not only possible but visually acceptable on the right hardware. It also proves the practical viability of retro gaming on low‑power e‑ink devices: the same ESP32 platform already powers tiny DIY e‑readers and open‑source smartwatches, so gaming is a logical, battery‑friendly extension. There are caveats. The M5PaperS3 has reached end‑of‑life and is no longer sold at its original USD 59 (approx. RM280) price, with remaining units trading at more than twice that on resale sites. Zhang has uploaded the Paper Boy S3 firmware and stays hopeful that a replacement or successor board will arrive, and other developers have even shared JIT recompilers that hint at future speedups. For now, this e‑ink display emulator stands as a clear proof: e‑ink gaming is no longer theoretical; it is working, playable, and ready for anyone with the right hardware to try.
