GPU Sagging Under Its Own Weight: Why It Matters and How to Fix It

What GPU Sag Is and Why You Should Care

GPU sag is the downward bending of a graphics card over time, caused by the card’s weight pulling on the unsupported end of the PCB and PCIe slot, and it matters because this droop can crack the PCB, loosen components, and degrade electrical contact, which increases resistance, heat, and the chance of sudden failure in your most expensive PC part. If you run a heavy card like an RTX 5090, which can weigh between 4 and 6.8lbs depending on the vendor, the PCIe slot alone is not designed to carry that load indefinitely. Left alone, the far end of the card sags, stressing the connector and motherboard, and what starts as a cosmetic issue can become a real reliability problem over months or years.

This is worth your attention if you own a large, multi‑fan GPU or a glass‑panel case where the card sits horizontally and you can clearly see it drooping. Even relatively light cards can develop a loose PCIe connection, which raises electrical resistance and can shorten lifespan without obvious warning signs. According to one report, cracked PCBs have already appeared on several RTX 30‑ and 40‑series cards due to weight and poor support. The upside: GPU sag prevention is cheap and straightforward once you know your options, and you can choose between simple graphics card support brackets and more involved vertical GPU mounting, depending on your case and how you want your build to look.

Common GPU Sag Mistakes (Beyond "It Just Looks Bad")

The first mistake many people make is treating GPU sag as a cosmetic issue instead of a hardware problem. If the GPU is not fully seated in the PCIe slot, sag can worsen the angle of the connector and raise resistance in the electrical contacts, which can damage components over time. Another mistake is trusting that a backplate or a few screws at the rear I/O are enough to support a multi‑kilogram card; they only stabilize one end, while the far side can still flex and pull on the PCB.

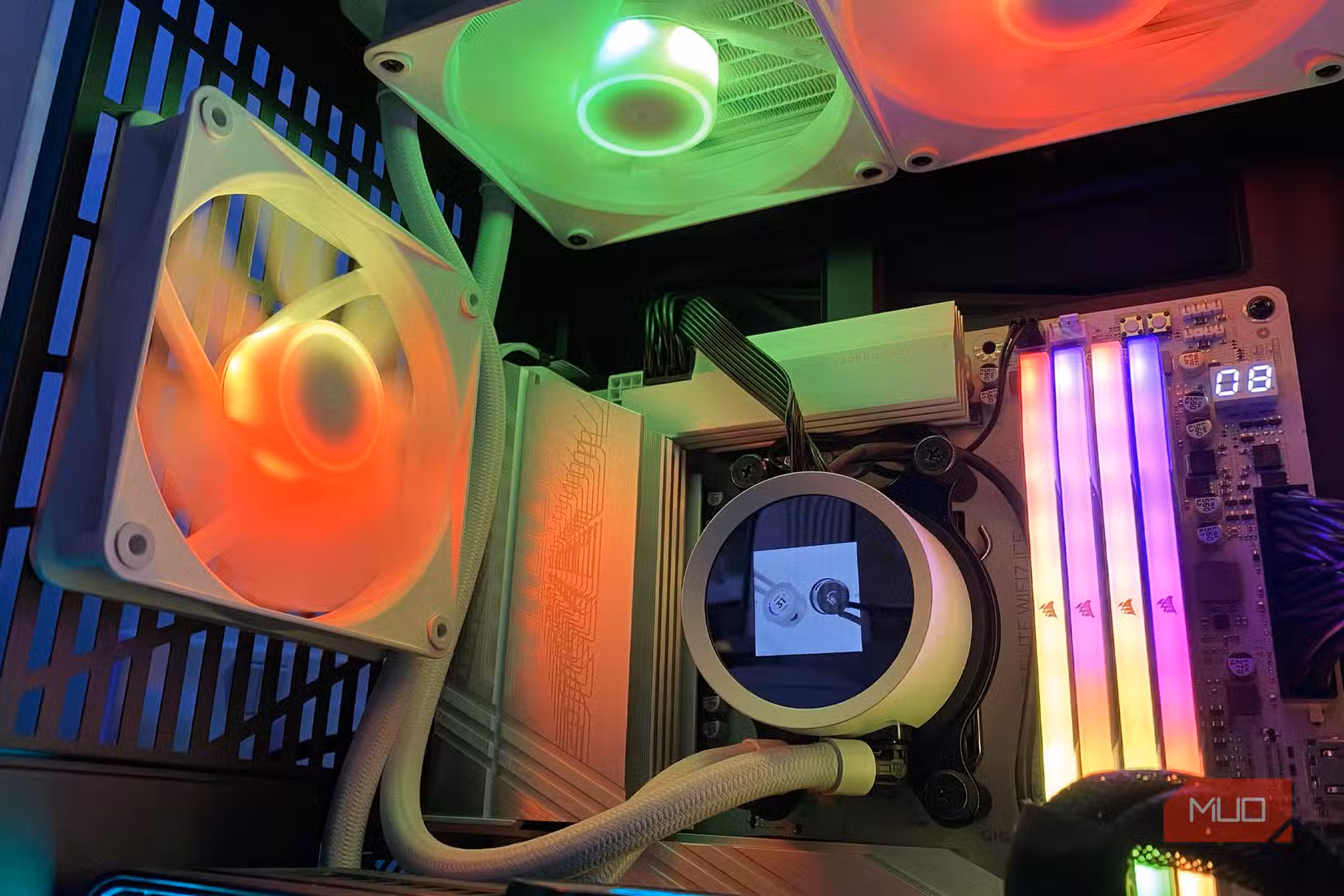

A second, very common error is rushing into vertical GPU mounting without checking clearances. One builder found that a vertical mount in an m‑ATX case forced them to remove a larger CPU cooler because the GPU and brackets simply would not fit together. They had to swap to a stock cooler to make space, and even then had trouble attaching display cables because the card was now closer to the glass panel and recessed deeper into the case. Not thinking through airflow is another trap: moving a large card close to the side panel restricts intake, raising average temperatures and fan noise.

Step-by-Step: Installing a Vertical GPU Mount to Eliminate Sag

Vertical GPU mounting removes droop entirely by changing how the card is supported and displayed: instead of hanging outward from the motherboard, it stands parallel to the side panel so gravity no longer pulls on the PCIe connector in the same way. It looks great and frees up expansion slots, but you pay for that with tighter clearances, warmer temperatures, and fussier cable access. Here’s a practical way to go about GPU bracket installation and riser cable routing in a typical tower, based on real-world experience with a vertical graphics card holder kit.

1. Power down your PC, unplug it from the mains, and remove the side panel so you can access the motherboard and GPU area.
2. Remove the existing horizontal GPU: unscrew it from the rear I/O bracket, release the PCIe slot latch, and lift the card straight out.
3. Dry-fit the vertical GPU bracket in your case to check clearance for the CPU cooler, front drives, and side panel; in tight m‑ATX layouts, you may need to swap to a lower-profile CPU cooler to make space.
4. Attach or position the vertical GPU bracket. If the supplied fixture is too large for your case, you may need to remove some attachments or temporarily secure the bracket in another way, such as using double-sided tape when screws are impossible.
5. Connect the PCIe riser cable: plug one end into the top PCIe slot on the motherboard, then fold or route the cable so its other end points cleanly toward the vertical mount without sharp kinks.
6. Seat the GPU into the vertical bracket’s PCIe connector, align its rear with any mounting holes, and screw the card in firmly so it cannot wobble or lean.
7. Reconnect display cables to the now vertically-mounted GPU, even if this means partially disassembling the case or threading cables one at a time to reach recessed ports.
8. Put the side panel back on, reconnect power and peripherals, then boot the system and make any necessary BIOS tweaks; if installed correctly, your system should run as before, with sag eliminated.

When done properly, a vertical mount makes GPU sag a non‑issue and can even free up PCIe slots for additional expansion cards. One builder reported that after screwing in the GPU and reconnecting everything, a single restart and a few BIOS adjustments were enough for the machine to run without any noticeable functional changes. The big gotcha is thermals: bringing the card close to the glass panel restricts airflow, so you may see higher average temperatures and more frequent fan spin‑ups, with the side panel feeling warmer to the touch during gaming. Treat those changes as a signal to review case fans and ensure your cooling setup matches the new layout.

Alternative Graphics Card Support Options and Trade-Offs

Vertical GPU mounting is not the only way to handle sag, and for most people it may be more than they need. GPU sag prevention can be as simple as adding a graphics card support bracket that props up the far end of the card so the PCIe connector isn’t bearing all the weight. Many recent cards ship with their own anti‑sag brackets, though some designs are more cosmetic than structural, especially PCI slot‑mounted pieces that support the GPU only from underneath.

An adjustable support pillar tends to work best because you can move the contact point along the length of the card and match your case’s layout. This spreads the load across the PCB and frame instead of concentrating it near the slot. For owners of huge cards like an RTX 5090, which needs massive heatsinks and three‑ or four‑fan coolers to handle power and heat draw, this extra support can prevent the downward bend that threatens connectors and lifespan. Your choice between a pillar, an integrated case brace, or a vertical mount should reflect your case size, airflow pattern, and how much you care about seeing the front of the card through a window.

Is Fixing GPU Sag Worth the Effort?

Protecting a heavy GPU from sag is worth doing even if the card hasn’t misbehaved yet. Cracked PCBs, loose capacitors, and damaged PCI slots have all been linked to prolonged sag on recent high‑end cards, and manufacturers often treat this kind of damage as user negligence when you try to claim a replacement. For around $15, you can avoid damaging your PC’s most expensive component by choosing a proper anti‑sag bracket that gives real structural support instead of decoration.

If you enjoy tinkering and want a more dramatic visual upgrade, a vertical GPU mounting kit can solve sag completely and make your build look cleaner, as well as freeing up PCIe slots under the card. But go into it knowing you might have to rethink CPU cooling, cable routing, and airflow. In other words, a vertically-mounted GPU can be useful in certain niche situations, while for the vast majority of builders, a traditional horizontal mount with solid graphics card support is more than enough. Whichever path you choose, the goal is the same: support the card so the PCIe slot doesn’t carry the full load, and your GPU can run for years without being dragged down by its own weight.
