Start Here: The One Best GPU Pair for Most Ryzen Gamers

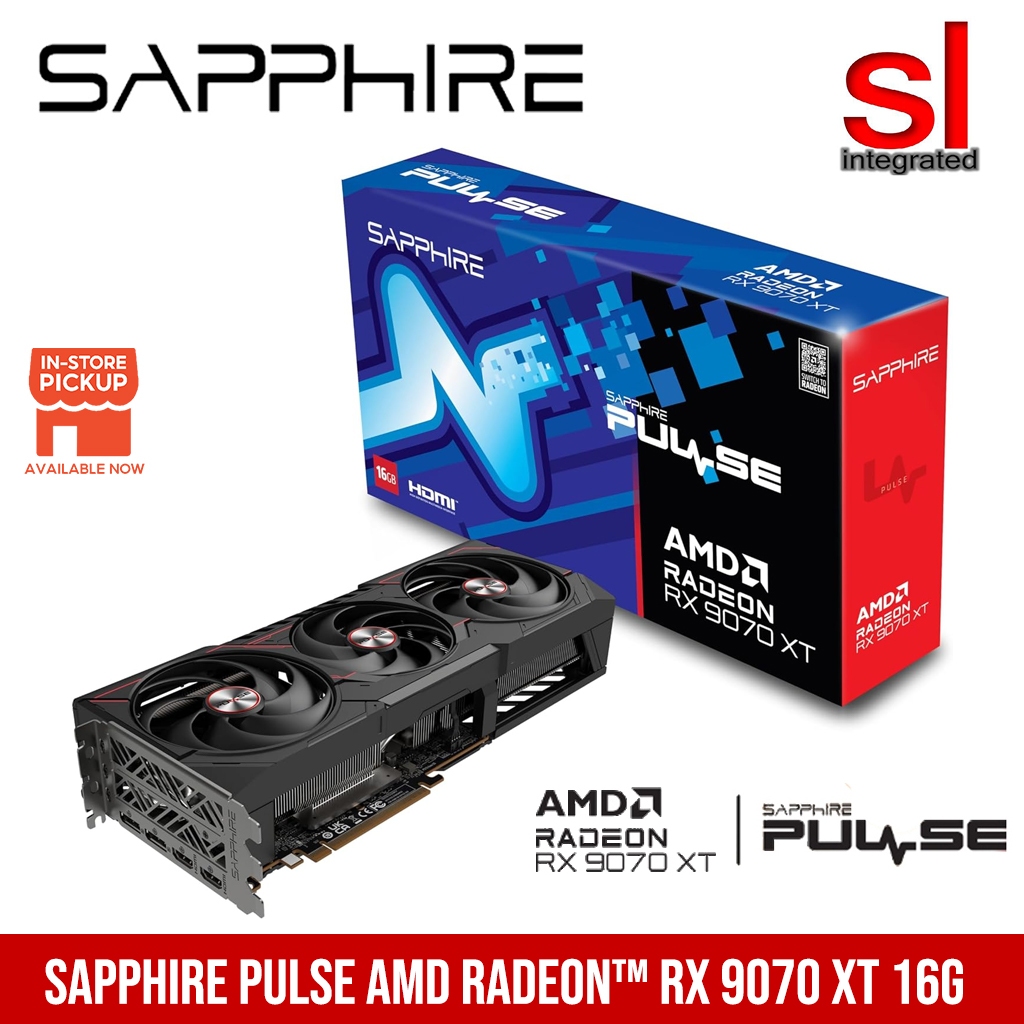

An AMD Ryzen GPU pairing guide is a structured reference that matches specific Ryzen processors with the most suitable graphics cards based on gaming resolution, performance targets, and hardware limits, so PC builders can avoid CPU bottlenecks and pick balanced systems instead of overpaying for mismatched components. For most gaming-focused builders using a Ryzen 7 7800X3D or planning a similar high-end system, the Sapphire PULSE Radeon RX 9070 XT is the single best starting point. It delivers excellent 1440P performance, capable 4K gaming, and a generous 16GB GDDR6 framebuffer that keeps modern titles smooth and future-proof. AMD’s newer Ryzen 7 9800X3D is faster overall, but the 7800X3D remains an excellent gaming processor and is fully capable of driving the RX 9070 XT or even higher-tier GPUs without meaningful bottlenecks. If you want a high-refresh-rate 1440P system that still handles 4K well, this is the pairing you should buy with confidence.
High-End Pairings: Ryzen 7 7800X3D and 9800X3D
The Ryzen 7 7800X3D and 9800X3D are both excellent gaming CPUs in 2026 and can be matched with the fastest GPUs available. If you want an uncompromising 4K, high-refresh-rate system with heavy ray tracing, VR, and creator or AI workloads, the PNY GeForce RTX 5090 Epic-X ARGB OC is the right call. It runs at a 2625MHz boost clock, includes 32GB of GDDR7 VRAM, draws 600W, and demands a 1000W power supply, but it is the fastest gaming GPU in this guide with outstanding ray tracing and DLSS support. The downside is obvious: it is extremely expensive, large, and power-hungry, and overkill for most 1440P builds. Paired with the 7800X3D, this card is best suited to gamers who care about absolute performance above all else and are building top-tier 4K machines without concern for cost or power draw.
| Spec | PNY RTX 5090 Epic-X ARGB OC | Sapphire PULSE RX 9070 XT |
|---|---|---|
| Boost / Game Clock | 2625MHz boost | 2400MHz game / 2970MHz boost |
| VRAM | 32GB GDDR7 | 16GB GDDR6 |
| Length | 329mm | 320mm |
| Power / PSU | 600W TDP, 1000W PSU | 750W PSU recommended |
Balanced Choices for Ryzen 5 5600 and 5600X on AM4

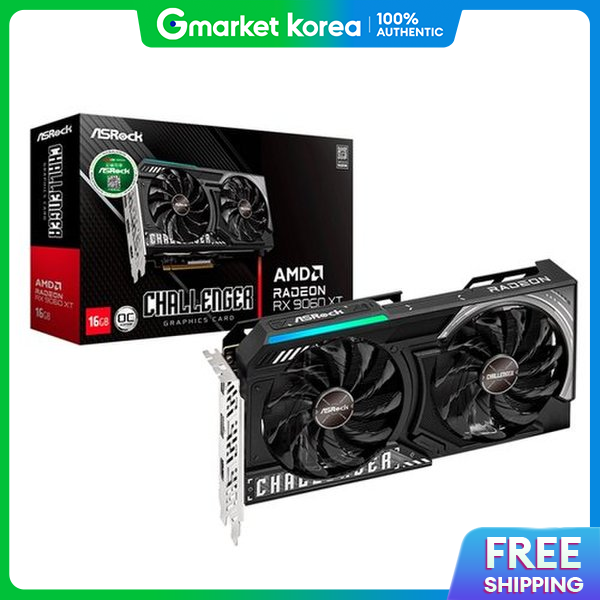

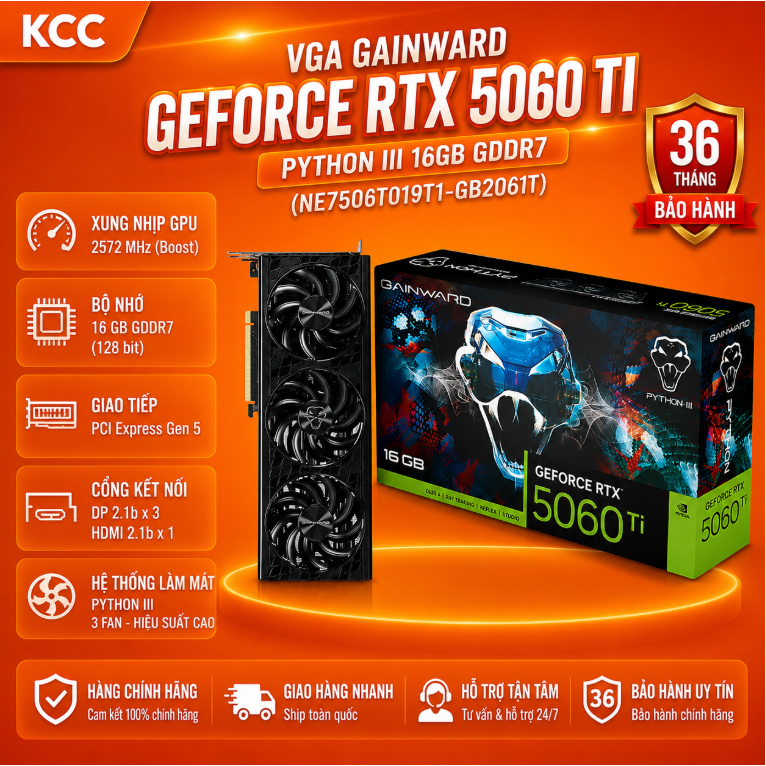

The Ryzen 5 5600 and 5600X may be older six-core, 12-thread Zen 3 CPUs, but they still make a lot of sense for budget gaming PCs and AM4 upgrades when matched with the right GPU. Lower platform cost on AM4—motherboard and DDR4 memory—means you can put more of your budget into the graphics card that most strongly affects gaming performance. For most Ryzen 5 5600(X) owners, the 16GB Radeon RX 9060 XT is the best-balanced option, delivering strong 1080P and 1440P results without pushing this CPU beyond sensible limits. If you prefer NVIDIA’s ecosystem, the RTX 5060 Ti 16GB is the better fit thanks to its DLSS and ray-tracing support, while the RTX 5070 is a reasonable choice for demanding 1440P gaming as long as you accept that the CPU may limit maximum frame rates in some titles. AM4 still offers upgrade paths to chips like the 5800X3D later, making these GPU choices even more attractive.
Mid-to-High-End Pairings for Ryzen 5 7600X and 9600X
The Ryzen 5 7600X and 9600X are still excellent gaming processors and can be paired with everything from budget 1080P GPUs to high-end cards aimed at 1440P high refresh or 4K gaming. For most builds focused on gaming, the Sapphire PULSE RX 9070 XT is the high-end GPU to check first. It delivers excellent 1440P performance and capable 4K results, helped by 16GB of GDDR6 VRAM that provides plenty of headroom for high-resolution textures and modern engines. According to the guide, "Ultimately, if your primary goal is gaming performance and the RX 9070 XT is noticeably cheaper than the RTX 5070 Ti, this is the high-end GPU we’d pair with the Ryzen 5 7600X or 9600X." AMD’s RDNA 4 architecture brings stronger raster performance and better ray-tracing hardware, with FSR 4 AI-powered upscaling supported, though NVIDIA still leads in very heavy ray-tracing workloads. This pairing is ideal if you want a system you won’t need to upgrade for several years.
Key Criteria and the RTX 5070 as a Flexible NVIDIA Option

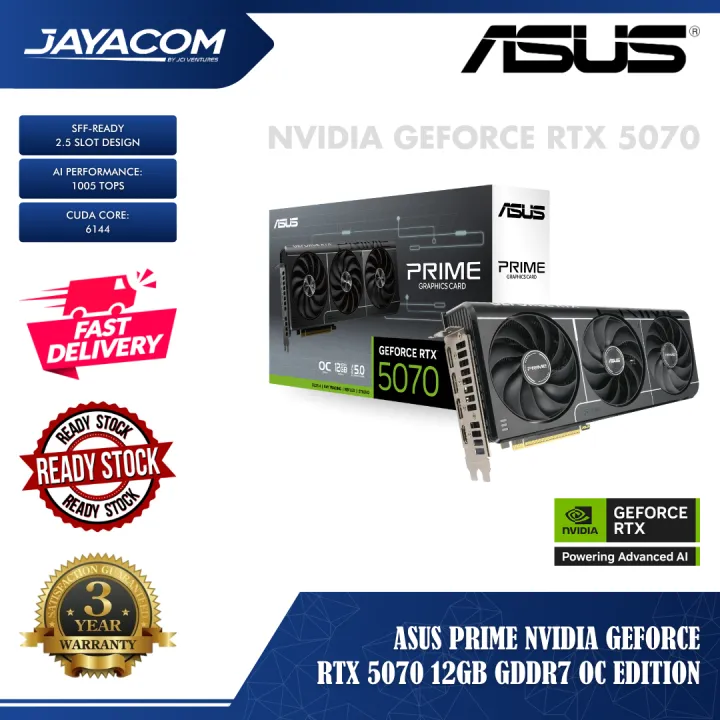

No matter which Ryzen CPU you use, your gaming GPU selection should be driven by a handful of criteria: resolution and refresh rate, VRAM capacity, performance, power requirements, and the physical dimensions your case can accept. You also need to ensure your power supply has the right capacity and connectors before upgrading. Across Ryzen generations, the ASUS RTX 5070 Prime stands out as a flexible NVIDIA option for 1440P. It offers excellent 1440P performance with strong ray tracing and DLSS support, plus a 2.5-slot design that fits small-form-factor cases, driven by a 2512MHz boost clock, 12GB of GDDR7 VRAM, and a 304mm length with a 750W PSU recommendation. The trade-offs are that it can be limited by older CPUs like the Ryzen 5 5600(X) at very high frame rates and its 12GB VRAM pool is modest at its tier. Choose this card if you game mainly at 1440P and want a strong NVIDIA pairing that still makes sense on midrange Ryzen chips.
- Buy the Sapphire PULSE RX 9070 XT if you run a Ryzen 7 7800X3D, 9800X3D, 7600X, or 9600X and want excellent 1440P plus capable 4K gaming with 16GB of VRAM.
- Skip the Sapphire PULSE RX 9070 XT if you play only at 1080P on a tight budget where a cheaper GPU would deliver similar results.
- Buy the PNY RTX 5090 Epic-X ARGB OC if you demand the fastest possible 4K performance, heavy ray tracing, and use your Ryzen 7 7800X3D for VR or creator workloads.
- Skip the PNY RTX 5090 Epic-X ARGB OC if you care about efficiency, case compatibility, or value, because it is extremely expensive, large, and power-hungry.
- Buy the ASUS RTX 5070 Prime if you game primarily at 1440P and want strong NVIDIA ray tracing and DLSS in a 2.5-slot, SFF-friendly design.
- Skip the ASUS RTX 5070 Prime if you are sensitive to CPU bottlenecks on older Ryzen 5 5600(X) systems or need more than 12GB of VRAM at this performance tier.
- Buy the Radeon RX 9060 XT or RTX 5060 Ti 16GB if you own a Ryzen 5 5600 or 5600X and want a balanced 1080P–1440P experience without overspending on the CPU platform.
- Skip the Radeon RX 9060 XT or RTX 5060 Ti 16GB if you plan to upgrade quickly to a higher-core-count Ryzen and chase ultra-high-refresh 1440P or 4K where stronger GPUs shine.
