What This Flagship GPU Comparison Is About
This flagship GPU comparison examines how ASUS’s no-compromise ROG Matrix RTX 5090 stacks up against NVIDIA’s more attainable RTX 5080, helping enthusiasts decide which graphics card better balances extreme RTX 5090 performance, RTX 5080 benchmarks, thermals, and long-term value for 4K gaming and demanding creative workloads. ASUS positions the Matrix RTX 5090 as its most ambitious custom design to date, pushing the RTX 5090 silicon to the limit with huge power budgets and a bold cooler. NVIDIA’s RTX 5080, on the other hand, represents the second-tier Blackwell option aimed at high-end gamers who still care about power draw, case compatibility, and total system cost. Both cards target 4K and heavy workloads, but they approach that goal with very different design philosophies, making the choice less about raw frames and more about how much premium you are willing to pay for every last bit of performance.
Architecture and Design Philosophy: Excess vs Efficiency
Under the hood, both GPUs are based on NVIDIA’s new Blackwell architecture with GDDR7 VRAM, but their execution could not be more different. The RTX 5080 sticks to a more balanced spec sheet with 16GB of GDDR7, a 256‑bit memory bus, 10,752 CUDA cores, 88 RT cores, and 336 Tensor cores, drawing 360W according to NVIDIA’s figures. The ASUS ROG Matrix RTX 5090, built on the 5090 baseline, doubles down on everything: 32GB of GDDR7 across a 512‑bit bus, 21,760 CUDA cores, 170 RT cores, and 680 Tensor cores. ASUS pushes the silicon even further, enabling boosts up to 2.76GHz and power consumption up to 800W. ASUS treats the Matrix as a no‑ceiling halo product, while NVIDIA’s Founders Edition RTX 5080 is engineered as a fast but space‑ and power‑sensible flagship for more typical builds.
Cooling, Form Factor, and Thermals

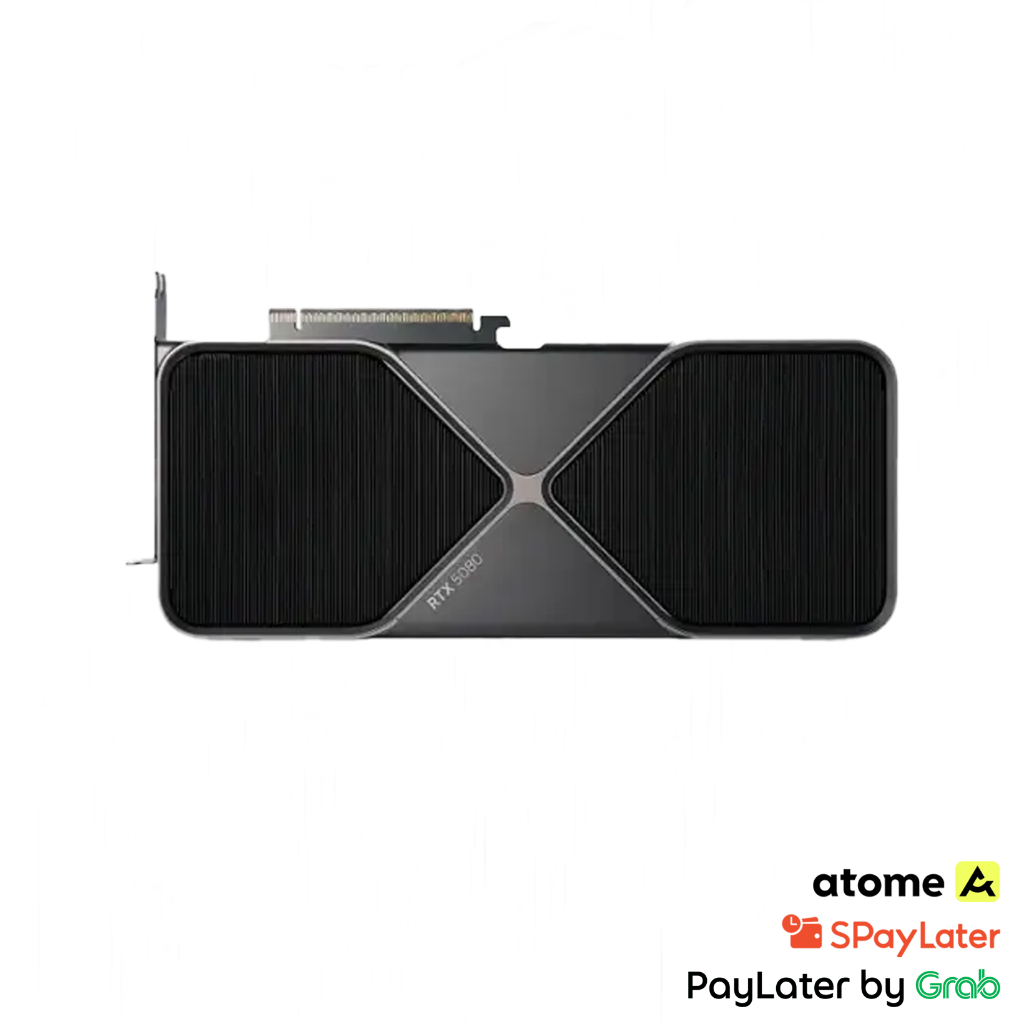

Premium custom designs versus reference specifications show their biggest differences in cooling and size. The RTX 5080 Founders Edition embraces a more compact, two-slot design that uses NVIDIA’s flow‑through cooler, sending air directly across the PCB and fin stack to maintain acceptable thermals despite its 360W power rating. NVIDIA has deliberately moved away from the oversized 3000‑ and 4000‑series coolers, making the RTX 5080 easier to fit in modern cases. ASUS goes the opposite direction with the ROG Matrix RTX 5090, creating a near four‑slot behemoth measuring 370.3 x 150.5 x 77.3 mm and recommending 1200W+ power supplies to feed up to 800W draw. That massive cooler, dual BIOS with Performance and Quiet modes, and aggressive power delivery are all geared toward sustaining very high boost clocks, but they also demand serious planning for PSU capacity, airflow, and chassis clearance.
Real-World RTX 5090 Performance vs RTX 5080 Benchmarks
On paper, the RTX 5090’s core counts and memory subsystem place it in a different league from the RTX 5080, and real RTX 5090 performance follows suit, especially at 4K with ray tracing and heavy texture loads. The Matrix’s 32GB of GDDR7 on a 512‑bit bus gives it far more headroom for demanding games and content creation pipelines than the RTX 5080’s 16GB on a 256‑bit bus, a gap that will only widen as asset sizes grow. Meanwhile, RTX 5080 benchmarks focus on efficiency: it keeps up admirably at 4K in many scenarios and benefits from DLSS 4 and its Multi Frame Generation, powered by up to 1801 AI TOPS according to NVIDIA. In practice, the RTX 5080 targets strong 4K playability and workstation competence, while the Matrix RTX 5090 aims for chart‑topping frame rates regardless of power and thermal cost.
Pricing, Value, and Which GPU You Should Buy
Price separates these cards as much as performance. NVIDIA sets the RTX 5080 at USD 999.99 (approx. RM4,600), the same as the RTX 4080 SUPER, making it a more approachable way to build a 4K‑capable PC. The standard RTX 5090 Founders Edition carries an MSRP of USD 1,999.99 (approx. RM9,200), while the ASUS ROG Matrix RTX 5090 leaps to USD 3,999.99 (approx. RM18,400), more than quadruple the 5080’s MSRP. For most enthusiasts, the RTX 5080 offers the stronger balance of RTX 5080 benchmarks, power draw, and system cost; it delivers high‑end 4K without extreme demands on your PSU and case. The Matrix RTX 5090 suits a small subset of buyers: overclockers, showcase builds, and users who value absolute RTX 5090 performance above all else and are ready to pay and design their system around that priority.
