Fix Wi‑Fi Dead Zones for Under $50 Without New Gear

What a Wi‑Fi dead zone fix really involves (and who should bother)

A Wi‑Fi dead zone fix means removing spots in your home where wireless devices lose connection or slow to a crawl by rearranging your router, mesh nodes, and cabling so that radio signals can travel through fewer walls, less clutter, and more direct paths instead of buying new hardware.

If parts of your home or garden have no signal, or your mesh system feels broken even though it is new, this guide is for you. You do not need to be a networking expert; you only need to be willing to move some boxes and run a cable. One writer found that “sometimes, a cheap Ethernet cable and an old router you already have lying around are more than enough to get the job done.” Another discovered that moving existing mesh nodes “just a few feet” brought an “astronomical performance jump without spending any money.” The main caveat: this helps when layout and placement are the problem, not when hardware has failed.

What you need for a budget Wi‑Fi coverage upgrade

Before changing anything, gather what you already own. For many homes, budget Wi‑Fi coverage upgrades are possible with hardware that is sitting in a drawer. One homeowner fixed backyard dead zones by adding a second access point using an old ISP‑provided router and a long Ethernet cable. Since the goal was to keep costs at zero, the spare router was “the lucky break” they needed.

• Your existing main router or mesh kit (even an older Wi‑Fi 5 box can be enough for coverage, if not top speed).
• Any old router from your provider that you kept; it can often be turned into a secondary access point.
• A long Ethernet cable; one person used a 100‑foot Cat 6 cable bought for under USD 20 (approx. RM92). This supported gigabit networking and more.
• Power outlets near where you want better coverage (hallways, halfway up stairs, near the backyard wall, or on a landing).
• A phone, tablet, or laptop you can carry around to test where the signal improves.

If you already have a mesh system, you might not need the old router or cable at all. The bigger win could come from smarter mesh node placement and removing excess nodes that only create interference instead of coverage.

Step‑by‑step: optimize router position and mesh node placement

Here is the core sequence to fix dead zones with placement and a minimal spend. Follow it in order; each step builds on the last instead of moving the dead zone around the house.

1. Start from the center: Place your main router or primary mesh node near the physical center of your living space, not in a far corner or in the room where the ISP cable enters. Avoid cabinets and metal TV units.
2. Elevate and clear obstacles: Put the router or node on an open shelf or table, higher than desk height, so its antennas (internal or external) radiate outwards and slightly downwards without furniture blocking them.
3. Avoid corner placement traps: If your router sits in a corner because that is where the wall jack is, run a short Ethernet cable so you can pull it away from the wall; diagonal signals through multiple walls mimic a thick concrete barrier.

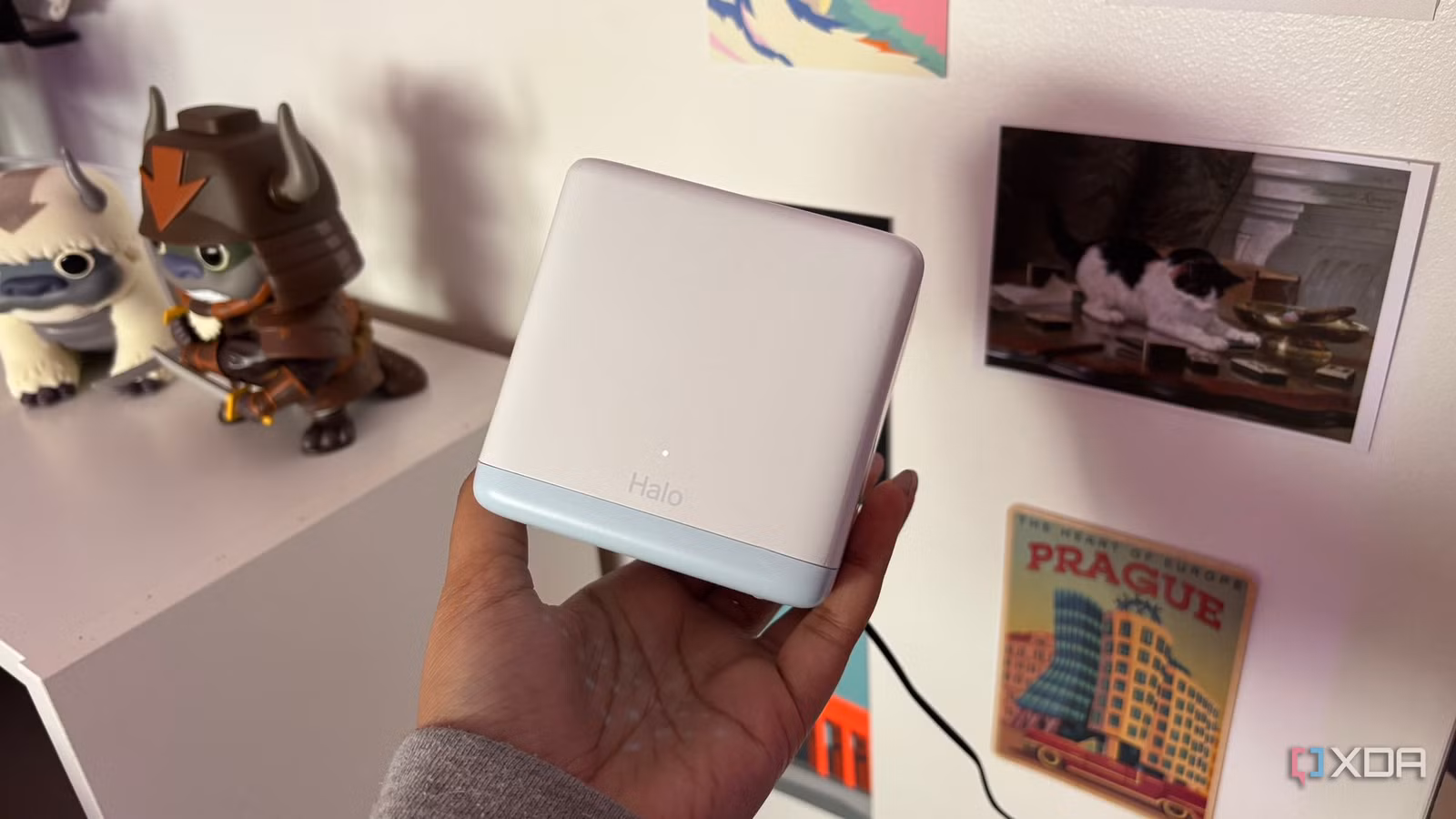

4. Spread mesh nodes, do not cluster them: If you have a mesh system, place nodes where signal from the previous node is still strong, not in the dead zone itself. Keep them several meters apart to avoid nodes “screaming over one another” on the same channel.
5. Unhide the hardware: Move nodes out of cabinets and off the floor. When setting up mesh nodes, avoid hiding them behind entertainment centers or thick furniture so they are not forced to work around oblique angles.
6. Fix overlap and overkill: If two nodes cover the same small area, remove one or move it farther away. Too many nodes in a tight space cause co‑channel interference and can trigger ping‑pong roaming and latency spikes.

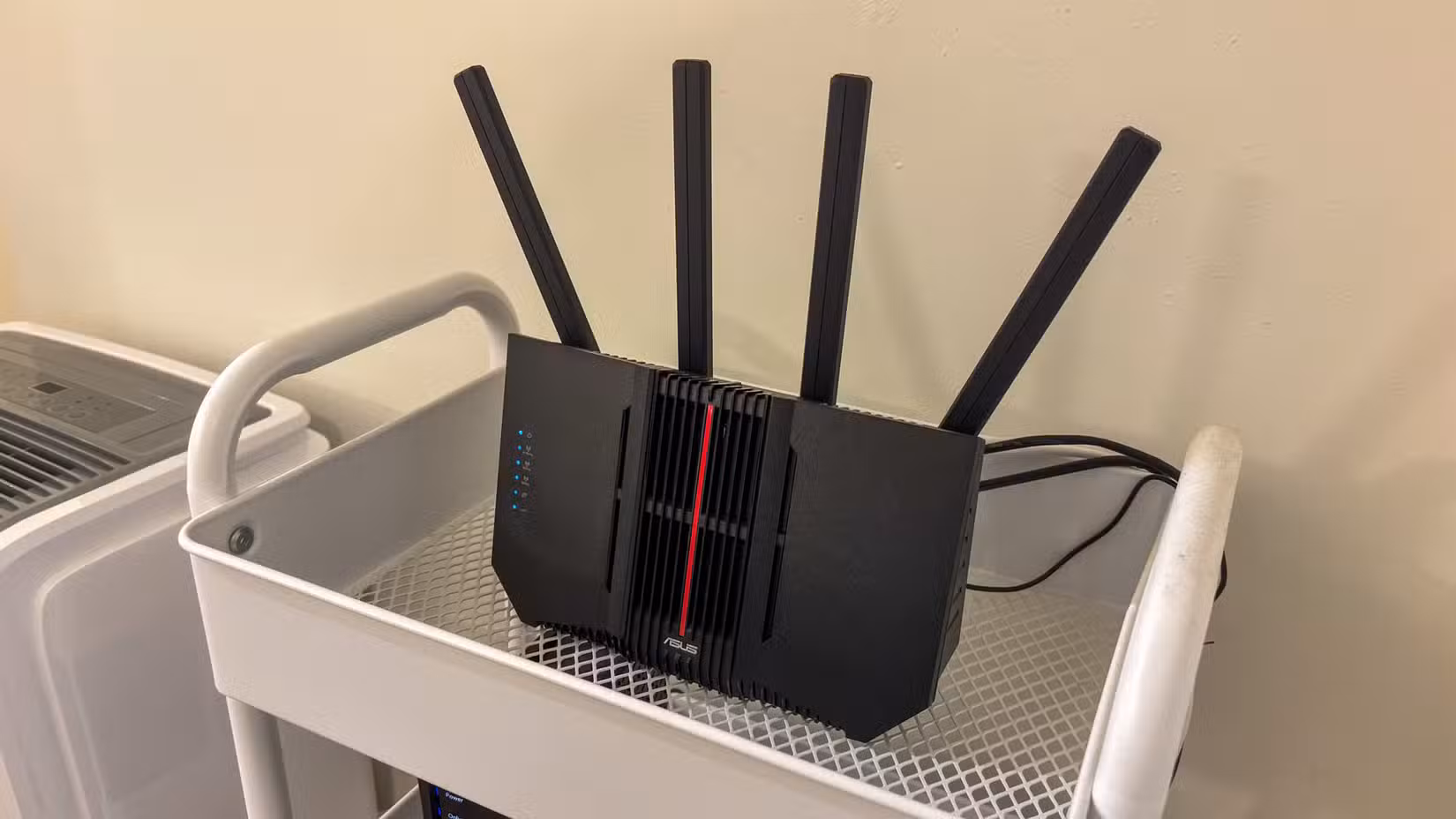

7. Angle or position for the target area: For single routers with external antennas, start with some vertical and some horizontal, then move the whole router toward the side of the home that faces your problem area—but stay close enough to keep the rest of the house covered.
8. Test after each move: After every change, walk with your phone through the usual dead zone. Load a few sites or videos and note where the signal drops. If one area improves while another gets worse, roll back or try a smaller adjustment instead of a large move.

A common mistake is dragging the main router toward the backyard and declaring victory when the garden improves, only to discover the downstairs living room now has a new dead zone. Another is clustering many nodes in one part of the house, assuming overlapping signals will create an “impenetrable blanket” of Wi‑Fi, when it actually raises interference and slows everything. Small, measured moves, with testing in between, are far more effective than dramatic relocations.

When a cheap cable and old router beat a new mesh kit

Sometimes you hit a hard limit: a thick wall, an outbuilding, or a second structure that blocks radio waves no matter how you tweak mesh node placement. One example was a two‑story home with a second empty house between the main living space and the backyard. The router in the upstairs center delivered strong coverage upstairs and acceptable coverage downstairs but nearly no signal in the backyard, even after moving the router closer to that side and raising it on a high shelf.

In that case, the true Wi‑Fi dead zone fix was to add a second access point with wired backhaul instead of buying an expensive mesh kit. The owner plugged one end of a long Ethernet cable into the main router, routed it through an existing hole in the wall to the second building, and placed the old ISP router near the wall facing the backyard. Thanks to the wired link, the second router provided strong and reliable Wi‑Fi in the garden for calls, messages, and watching video with only occasional buffering. The only cash outlay was the cheap 100‑foot Ethernet cable, and the work took about an hour.

What success looks like (and when to stop tweaking)

If you have done this well, your experience changes more than the speed test numbers. One mesh owner found that after repositioning nodes in line with signal physics, dead zones vanished and speeds improved across the whole home without any new purchase. Another was relieved that their parent could finally enjoy the backyard without missing calls or messages, because the signal there was now strong and reliable.

You know you have gone far enough when you can walk through all the rooms and typical outdoor spots without watching pages spin forever or video collapse into a blur. At that point, stop moving things; over‑tuning can reintroduce interference or move the dead zone somewhere less obvious, such as a room you rarely visit. Not every networking issue is a hardware problem that needs more money. For many homes, careful router and mesh node placement plus a sub‑USD‑20 (approx. RM92) Ethernet cable is the sweet spot between cost and comfort.
