From Spectacular Demos to Manufacturing Reality
Additive electronics manufacturing has long promised to print circuits directly where they are needed, freeing designers from flat circuit boards. Early projects, heavily backed by defense research agencies in the late 1990s, pushed researchers to print fine-feature electronics—resistors, capacitors, inductors, antennas and even batteries—on unconventional substrates like paper, at low temperatures and with 10-micron line widths. The results were often visually impressive, but they rarely translated into robust, repeatable production. Materials were immature, performance lagged expectations, and the technology had to compete with decades of optimization in conventional electronics manufacturing rather than a clean slate. As nScrypt CEO Ken Church puts it, the “cool factor” carried the field only so far. The turning point has come from recognizing that circuit printing technology must complement, not replace, established processes, and win adoption one tightly defined application at a time.
Solving the Integration Puzzle: Printed Circuits Inside Parts
Instead of trying to replicate entire devices, companies like nScrypt now focus on printed circuit integration wherever traditional boards create “real pain points.” Their multi-material “Factory in a Tool” platforms combine structural 3D printing, precision dispensing and pick-and-place in a single workflow, enabling electronics to be built directly into complex geometries. This is particularly powerful for 3D printed electronics production on curved or flexible surfaces, or where space and weight are at a premium. Embedding conductive traces, passives and antennas into housings simplifies assembly and can improve durability by eliminating connectors and cables. Church describes the strategy as “eating the elephant one bite at a time”: targeting niches where flat boards simply cannot perform. The result is a more pragmatic phase for additive electronics manufacturing, where integration into existing production lines and design toolchains matters as much as breakthrough demonstrations.
Robotics and Space Systems Prove Real-World Viability
Robotics is emerging as a flagship use case showing that additive electronics is ready for real-world deployment. A recent project led by the Danish Technological Institute and partners developed a 3D printed electronic “smart skin” for robots on space missions. The additively manufactured shell incorporates wearable electronics to tackle thermal management, dust protection and human-robot interaction, while also routing data and power lines through a bespoke scaffold. By embedding sensors directly into the skin, the team improved the robot’s motion control and overall durability, illustrating how 3D printed electronics production can create multifunctional structures that conventional wiring cannot match. Computational design and compliant mechanism synthesis were used to tune flexibility rather than stiffness, highlighting a new design language that exploits circuit printing technology. Crucially, the same concepts are being evaluated for terrestrial robots operating in harsh environments such as wet fields, recycling sites and remote industrial locations.
Materials and Precision Push Additive Electronics Toward Cost Competitiveness

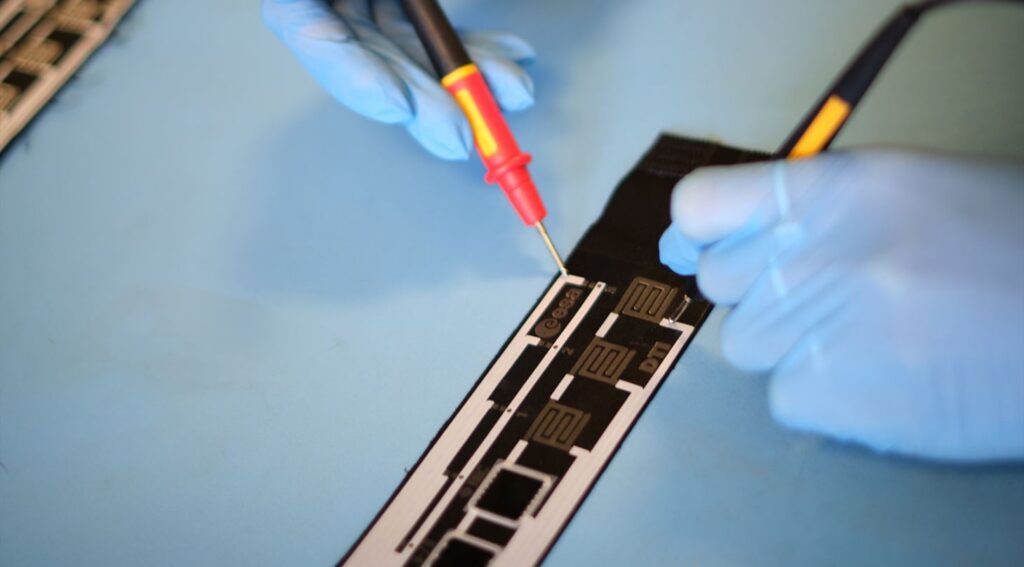

One of the historic barriers to additive electronics manufacturing has been a mismatch between available materials and industry expectations. Conventional electronics are built around copper, with design rules and performance models deeply tied to its conductivity and behavior. Early printed electronics relied heavily on silver-based inks, which resist oxidation but behave differently and are more expensive, leading engineers to judge additive solutions against standards they were never designed to meet. Progress in conductive inks, substrates and high-precision deposition, however, is narrowing that gap. Modern systems can reliably print fine features with tight tolerances, while multi-material workflows reduce part counts and assembly steps, improving overall cost competitiveness against traditional methods. As designers learn to specify electronics for integrated, three-dimensional structures rather than flat boards, additive approaches shift from novelty to practical option—especially where weight reduction, complex routing, or environmental robustness justify a different manufacturing paradigm.
