From Drawer Sketch to Working Prototype
The new MIT zipper design has its roots in an idea first sketched in 1985 by engineer Bill Freeman. Originally conceived as a fastener that could let chairs, tents, or bags shift seamlessly between slack and rigid states, the concept stalled for decades because manufacturers could not precisely produce three matching strips and a complex slider. The drawings were effectively shelved, waiting for the right fabrication technology. Decades later, researchers at MIT’s Computer Science and Artificial Intelligence Laboratory revisited the concept with a fresh toolkit: advanced 3D printing robotics workflows and accessible design software. Additive manufacturing finally provided the accuracy and repeatability needed to bring the intricate fastener geometry to life, turning a once-impractical idea into a tangible hardware platform that can be printed, tested, and iterated rapidly.
How the Y-Zipper Turns Flexible Strips into a Rigid Beam

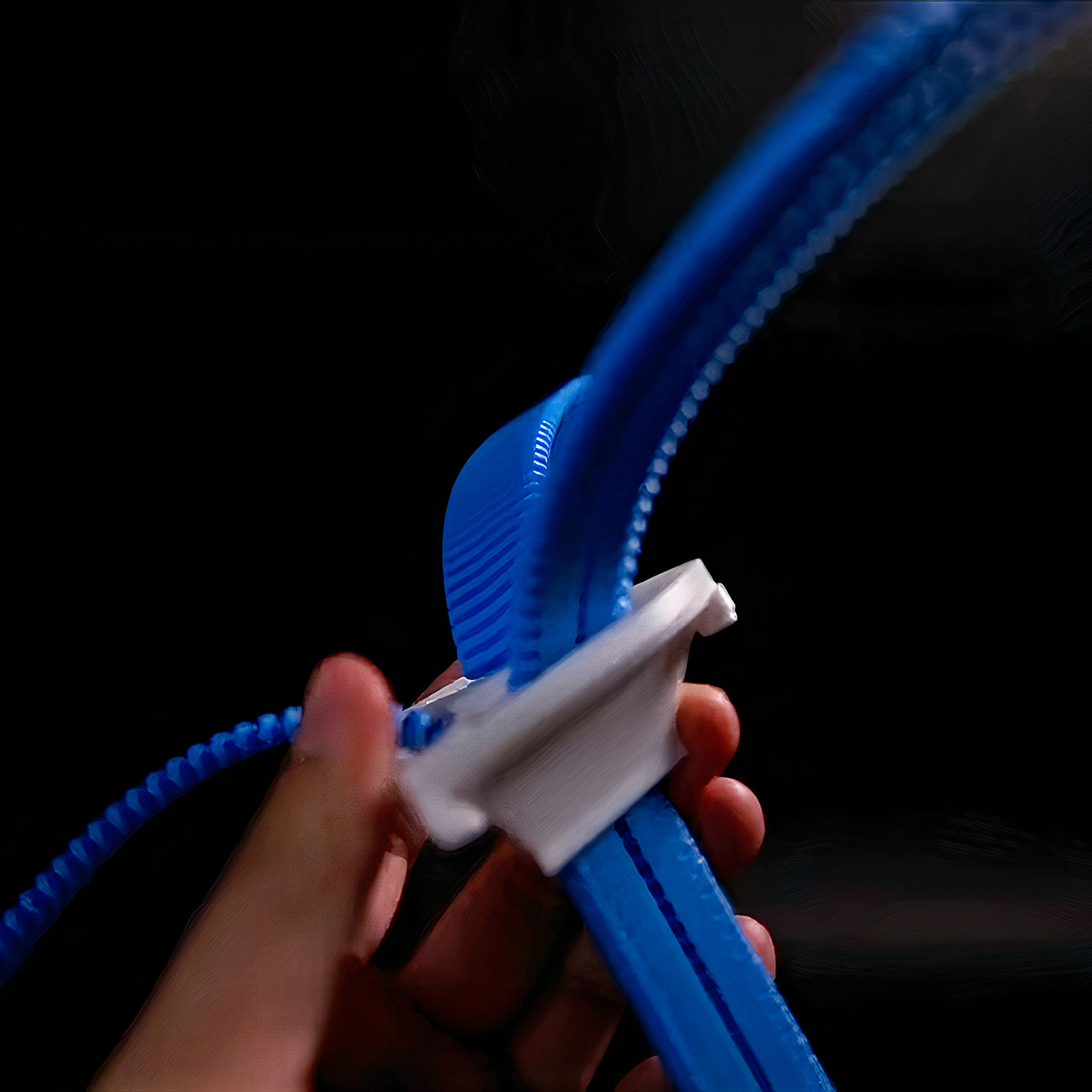

At the heart of this additive manufacturing breakthrough is the Y-zipper mechanism, a triangular fastener that converts three floppy plastic bands into a stiff structural beam within seconds. Each band carries rows of interlocking teeth along two edges. A single slider wraps around the three corners, pulling the bands together into a triangle as it moves along their length. Because triangles distribute stress evenly, the assembled structure strongly resists bending and twisting. Sliding the fastener back reverses the process, allowing the strips to separate and regain their flexibility. The entire system can be 3D printed from common plastics such as polylactic acid for higher load-bearing applications or thermoplastic polyurethane for more compliant behavior, enabling a new class of reconfigurable structures that bridge soft and rigid mechanics without screws, hinges, or tools.
Software-Defined Structures: Designing Curves, Spirals, and Twists

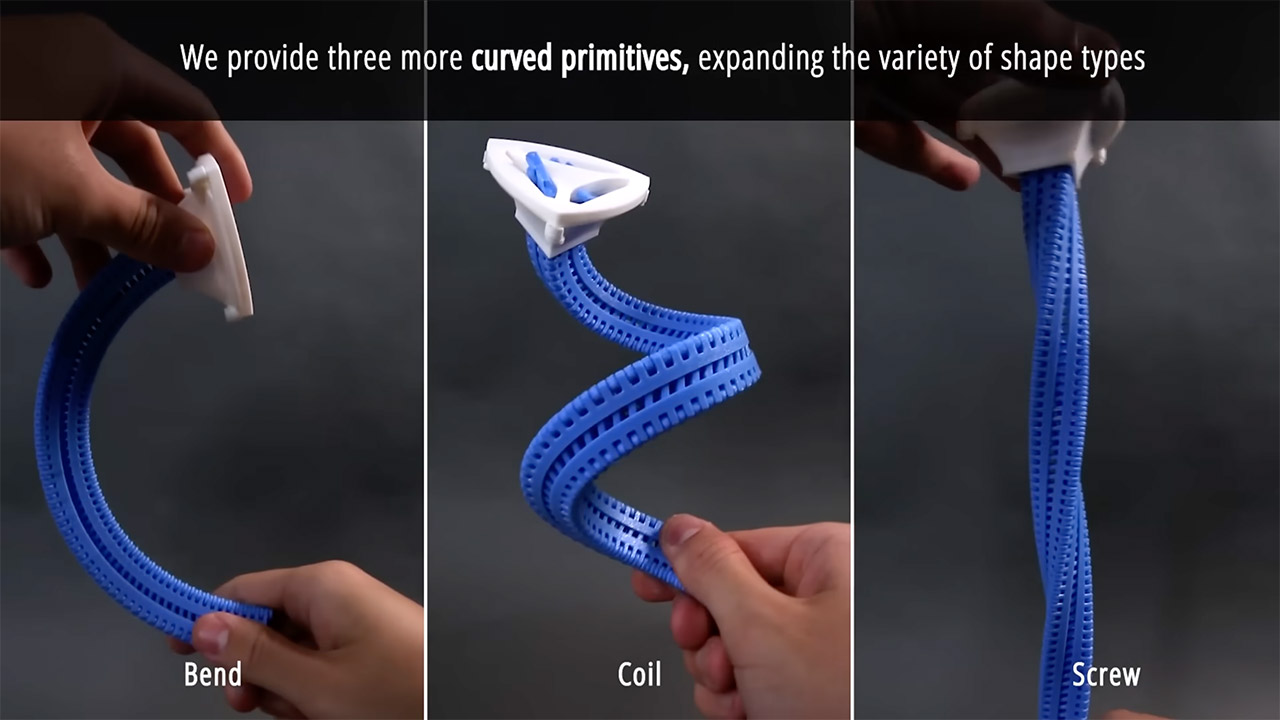

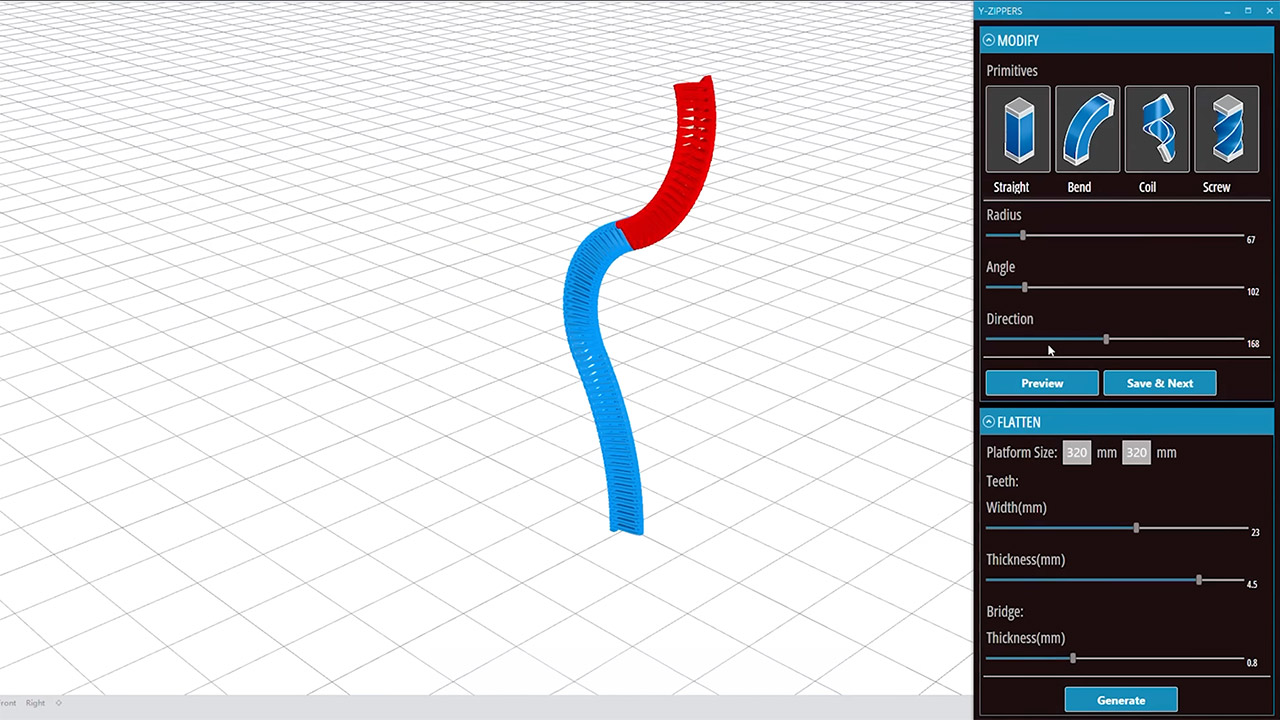

The MIT zipper design is not just a mechanical feat; it is also a software-driven system that expands what 3D printing robotics can achieve. Designers input parameters such as band length, preferred curvature, and target shape—whether a straight beam, smooth arc, tight spiral, or gentle twist. Custom software then generates a printable file where the band geometry and tooth layout are tuned for precise interlocking. Layer-by-layer, a standard 3D printer fabricates the entire assembly, with the printed layers bonding tightly enough for teeth to mesh and slide cleanly without post-processing. Durability tests show that a single system can withstand around 18,000 full open-and-close cycles without visible tooth wear, demonstrating how digital design and physical reliability can coexist in a fast, repeatable additive workflow.
A New Toolkit for Robot Engineering Innovation

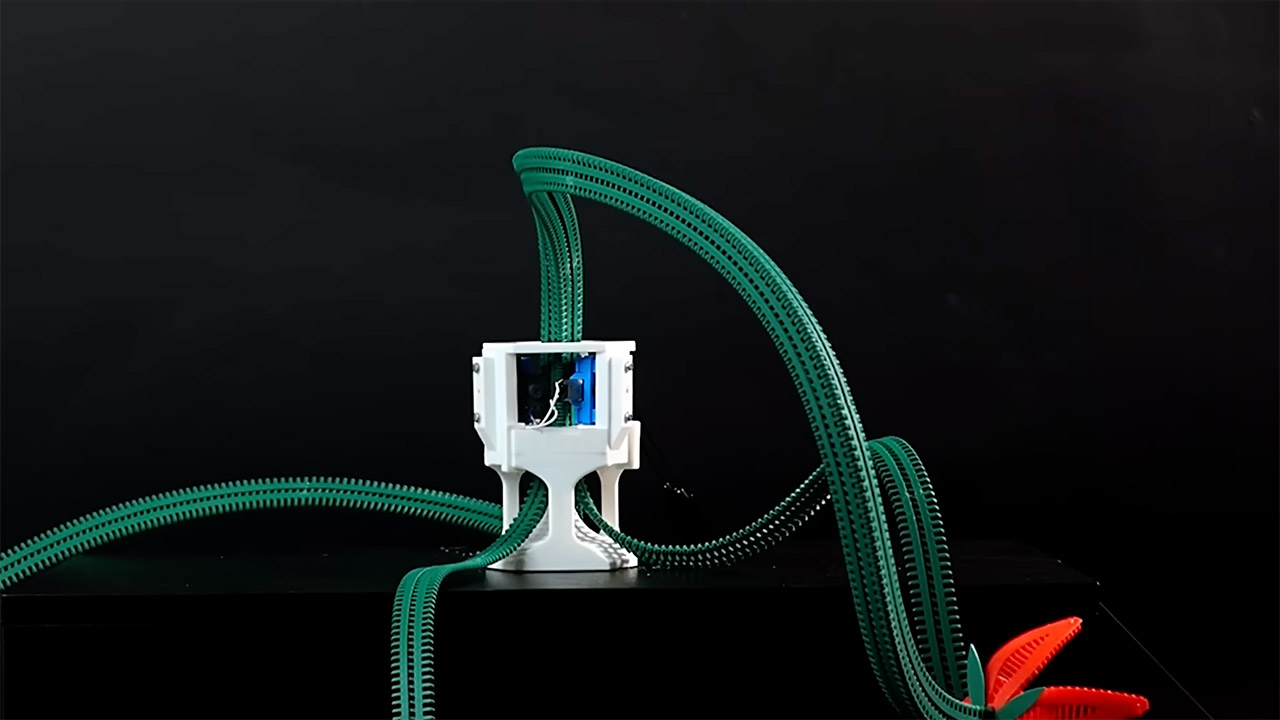

The Y-zipper has immediate implications for robot engineering innovation, where designers constantly struggle to balance strength and compliance. In one prototype, a four-legged robot houses a zipper inside each limb. When its motors pull the sliders tight, the legs become taller and stiffer, letting the robot traverse rough terrain. Loosening the fasteners makes the same limbs softer and lower, enabling it to squeeze through tight gaps while maintaining stability. This rapid, reversible transformation happens in less than a blink, without swapping parts or adding bulky actuators. By turning soft, tentacle-like elements into load-bearing beams on demand, the system addresses a long-standing challenge in robotics: creating structures that can adapt their stiffness in situ without complex mechanical linkages. The result is a flexible, printable hardware platform for shape-shifting machines.
Beyond Robots: Tents, Medical Devices, and Artistic Installations
Although robotics is a clear showcase, the Y-zipper’s impact extends to broader 3D printing applications. In tent prototypes, three printed arms connect to fabric panels, and a short burst of power closes the zippers, snapping the structure into place in under ninety seconds and eliminating the struggle with traditional poles. In healthcare, a wrist cast concept uses the same mechanism to toggle between an open, comfortable configuration during the day and a rigid, protective brace at night with a simple slider movement. Artists have begun experimenting as well, creating kinetic pieces like mechanical flowers that blossom and stiffen through controlled zipper motion. These examples highlight how a once-forgotten fastener, revitalized through modern additive manufacturing, can enable lightweight, reconfigurable designs across outdoor gear, medical supports, and interactive art.
