Canon’s Cinema Exposure Mode: Two Free Stops of Highlight Detail

Cinema Exposure Mode: A Free Dynamic Range Upgrade for C80 and C400

Cinema Exposure Mode is a new Canon firmware feature for EOS C80 and EOS C400 cinema cameras that reallocates dynamic range between highlights and shadows based on ISO, claiming up to two stops better highlight retention above base ISO for log workflows in high-contrast scenes without changing the underlying sensor hardware. Canon did not drop a minor tweak here; it quietly changed how these cameras think about exposure. In a world where expanded tonal range usually means buying a new body, getting meaningful highlight recovery Canon users can feel in real scenes for free is a statement. The key takeaway is simple: if you own a C80 or C400 and shoot log, this Canon C80 firmware update and EOS C400 firmware are now part of your toolkit, not an optional experiment. Ignoring them means leaving highlight detail and exposure control on the table.

What Cinema Exposure Mode Changes Above Base ISO

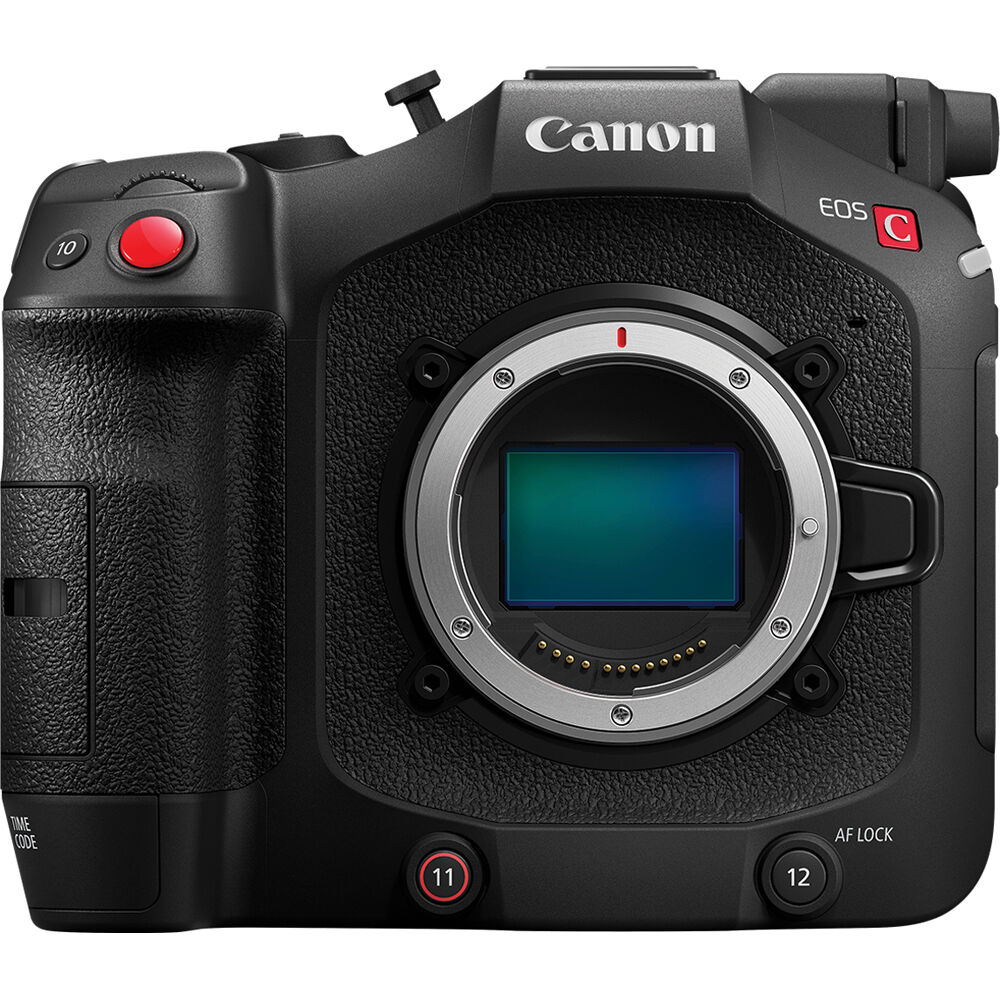

Canon’s Cinema Exposure Mode targets the part of the curve where most cameras start to fall apart: above base ISO. Both the EOS C80 and EOS C400 run a triple base ISO structure at 800, 3200 and 12800, and this mode specifically adjusts how much tonal range is reserved for highlights versus shadows once you push past whichever base you are using. Canon’s own claim is "up to two stops of improved highlight performance when you are working above base ISO". This matters in practical terms. Bright windows, specular practicals, and sunlit exteriors stop clipping as early, giving you more space to grade. It is not magic and it is not two extra stops of sensor; CineD’s reading is that the feature redistributes existing dynamic range rather than creating new range out of nothing. You pay for highlight recovery somewhere else in the curve, which is the honest trade-off. But for interior work and uncontrolled lighting, that reallocation can be worth far more than the theoretical pure DR number.

Who Benefits: Log Shooters, High-Contrast Scenes, and Live Work

Canon is candid about who this update is for. Cinema Exposure Mode is paired with a streamlined menu aimed at log pipelines, not casual run-and-gun setups. If you are a professional cinematographer working in uncontrolled lighting, where windows, skies and practicals threaten to blow out while you try to keep faces readable, this is targeted directly at your pain point. Two stops of recovered window detail is useful on a run of interior work because it preserves story-critical context instead of turning every outside view into a white hole. At the same time, the broader firmware rollout across the Cinema EOS lineup — C50, C70, C80 and C400 — tightens the ecosystem. C50 and C70 users gain CN30×40 Cine Servo compatibility and workflow refinements, while C400 owners land at the center of Canon’s broadcast ambitions. This feels less like a random feature drop and more like Canon nudging its user base toward a common, log-first way of shooting.

The C400-Only Extras: AE Ramping Compensation and CN30x40 Support

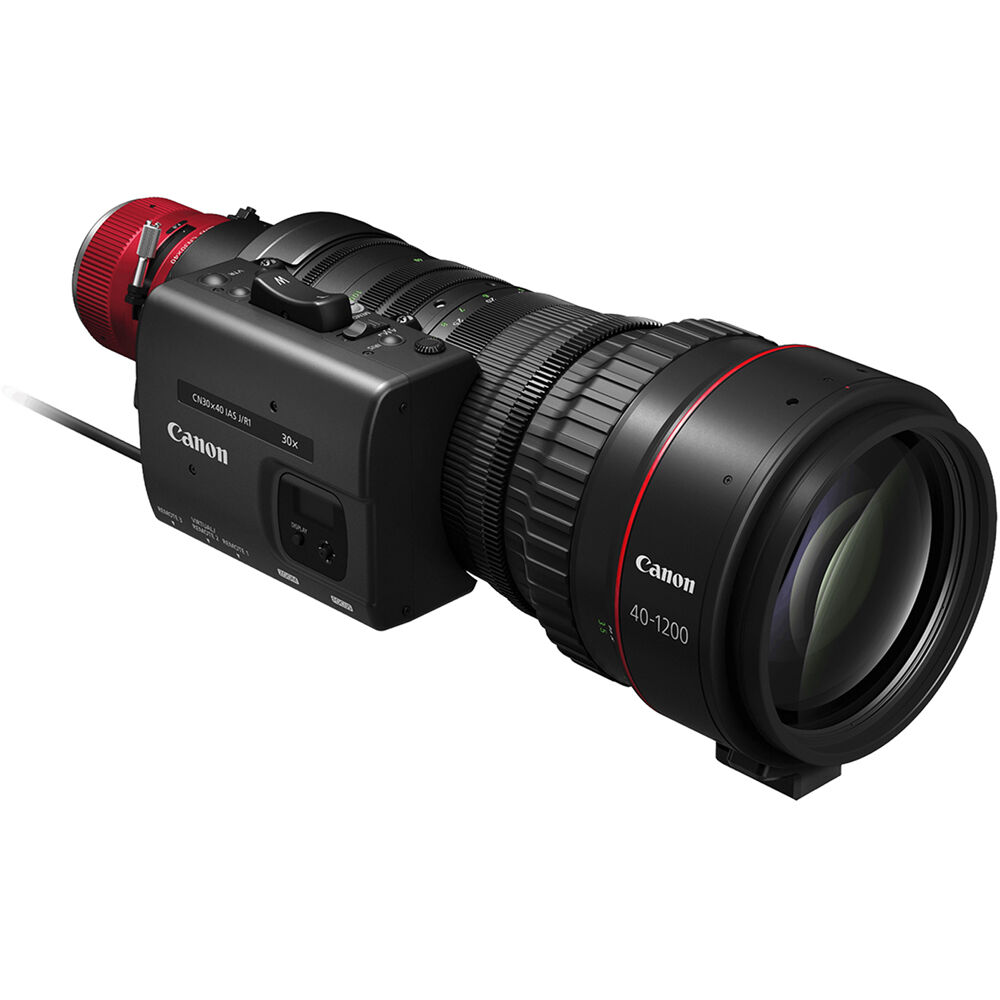

Canon’s decision to keep some features C400-only is deliberate. Alongside Cinema Exposure Mode, the EOS C400 firmware adds Auto Exposure Ramping Compensation and support for the CN30x40 Cine-Servo lens, while the C80 gets the headline exposure feature and nothing else. Servo zooms lose light as they move to the long end, which usually appears as an exposure drift mid-zoom. The new AE ramping compensation reads lens metadata and adjusts exposure so brightness stays consistent through the push, clearly aimed at broadcast and live production. Pair that with official CN30x40 support and the message is clear: the C400 is Canon’s rig-and-truck body, designed to sit behind serious glass and on serious productions. If your work involves live feeds, long zooms and demanding multi-camera pipelines, this update is more than a nicety — it directly protects your images from mid-shot exposure wobble.

Limitations, Version Confusion, and Why You Should Still Update

There are two caveats C80 and C400 owners should not ignore. First, "up to two stops" is a ceiling, not a guarantee; the gain is scenario-dependent, above base ISO, and comes from a redistribution of dynamic range rather than extra sensor capability. Anyone planning to rely on Cinema Exposure Mode for paid work should shoot tests and lock in a grading strategy before rolling on set, instead of trusting the headline. Second, Canon’s communication around this release is messy. The C80 and C400 firmware are labeled v1.0.7.1 in one announcement, yet the separate coverage notes that Canon has not published version numbers for this drop and that the most recent C400 firmware on record is 1.0.6.1 from June 11. There is also no bug-fix list this time, unlike previous rounds. Even with that confusion, the fact remains: this is a free update available from August 19 that directly improves highlight recovery Canon shooters care about. Skipping it because Canon’s messaging is imperfect seems like the wrong hill to die on.
