Dual-Function Pixels: What They Are And Why They Matter
Dual-function pixels are novel picture elements that can both emit light to form visible images and simultaneously detect incoming light with detailed information about intensity, phase, and polarization, combining screen-like display and sensor-like detection in a single compact component instead of relying on separate pixels for each function.
The key takeaway is straightforward: this pixel technology collapses two historically separate hardware layers into one. Ordinary pixels have been split into two worlds—display pixels on screens that show light, and sensor pixels in cameras that record it. That separation has dictated how we design phones, laptops, and all kinds of imaging devices. By building dual-function pixels that can both capture images and display them, a team led by David Norris has overturned that assumption. It is not a minor tweak; it is a new architectural rulebook for how light-handling components are arranged inside devices. If you care about thinner phones, smarter cameras, or screens that see as well as they show, this is the kind of shift that eventually changes product categories.
How Fourier Pixels Merge Display And Detection

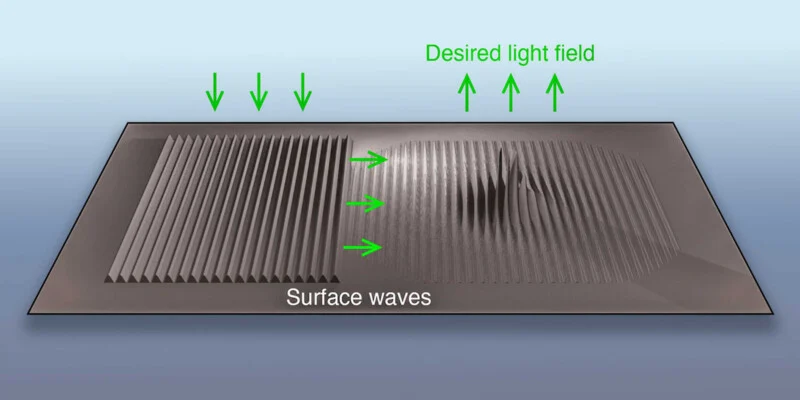

At the heart of these dual-function pixels is a clever use of interference, the way light waves either reinforce or cancel each other depending on their relative phase. The ETH team carves wave-shaped patterns onto the surface of a tiny chip with nanometer-level precision, turning incoming light into surface waves that travel across the material. At a different position within the pixel, those surface waves are scattered back out as normal light, and through interference they form patterns and images. Fourier analysis then lets researchers compute the exact geometry required for a chosen image, so they can design pixels that steer outgoing light into precise bright and dark regions without trial and error.
The same Fourier pixels can reverse the process for sensing. Incoming light generates surface waves that mix with a continuous reference wave on the chip, creating a pattern that encodes intensity, phase, and polarization. According to the research team, “Fourier pixels use surface waves, which are scattered out as light waves. These light waves interfere with each other and thus create patterns and images. Conversely, the same pixel can be used to analyze the intensity, phase and polarization of incoming light waves.” Standard camera pixels, which mostly record brightness, do not capture that kind of rich wave-level detail. That extra information is exactly what could unlock more advanced computational photography and smarter sensing down the line.
From Lab Demo To Sensor-Display Integration

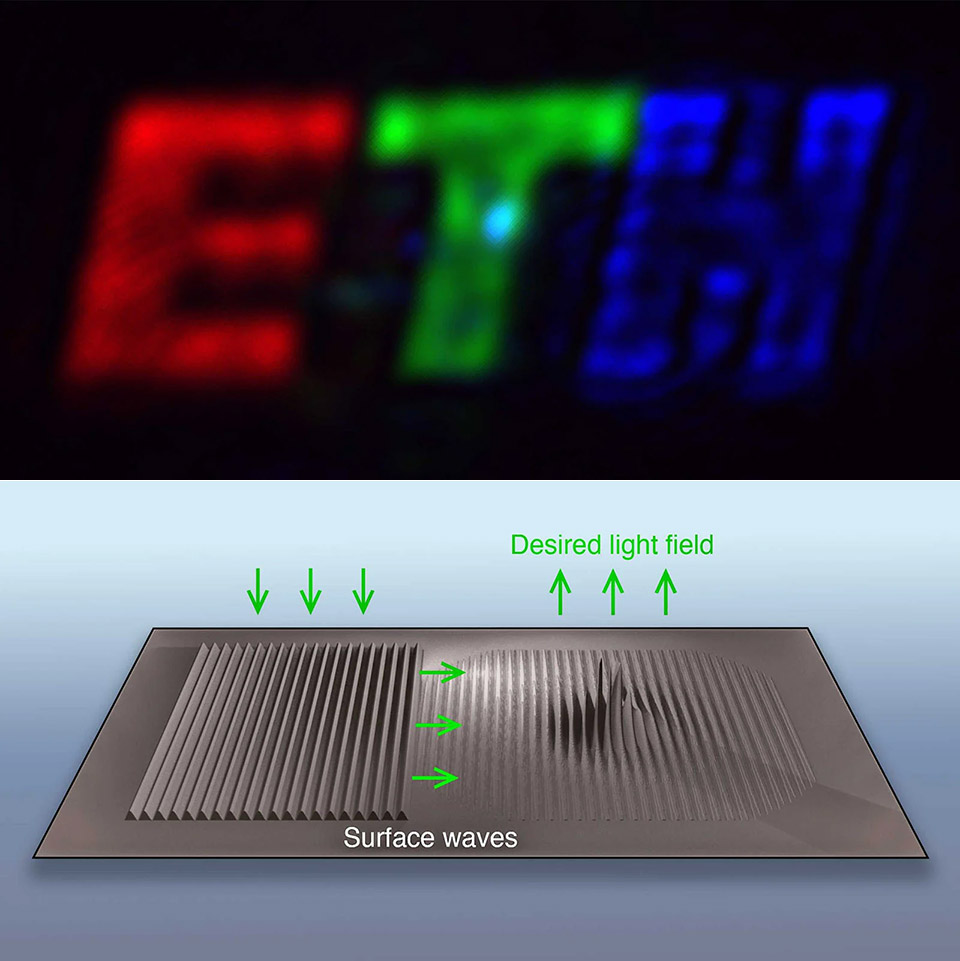

This is not just theory: the team has already demonstrated a miniature logo built with Fourier pixels, including a millimetre-tall letter E that can appear in different colors like green and red depending on how it is tested. That experiment proves the pixels can both shape and read polarization and brightness in a controlled way. More importantly, it hints at real-world sensor display integration. These so-called bidirectional pixels could react to a captured image and produce corresponding light without needing an external computer, effectively acting as a tiny camera-display unit. In the short term, the practical target is a matrix of Fourier pixels, which would allow complex camera-display devices where each element sees and shows.
Opinionatedly, that is the direction phone and device makers should be watching. Instead of squeezing separate camera modules, proximity sensors, and display layers into a crowded chassis, dual-function pixels point to a single light-handling surface that both presents content and senses the user and environment. “Our new pixels for control and analysis could, therefore, become a useful tool in many areas,” David Norris notes. While today’s implementation is still a research prototype and not ready for mass manufacturing, it has already been patented and recognized in innovation awards, which suggests serious intent to move beyond the lab. If matrices of these pixels scale, they could underpin new categories of hybrid camera-display products.
Rethinking Pixel Technology And Device Design
For nearly a century, pixels have been defined by single-purpose roles: picture elements on screens emit light, while pixels in camera sensors absorb light. That division is baked into everything from smartphone front faces to laptop lids. Dual-function pixels cut against that grain. They turn the pixel into a bidirectional light interface that can both steer outgoing light and analyze incoming light in detail. The architecture change is subtle at the chip level—wave-shaped sculpted surfaces instead of passive emitters or absorbers—but it is profound at the device level. Designers no longer have to treat display and detection as two separate stacks. Instead, they can think in terms of one surface where every pixel is both a tiny screen and a tiny sensor.
That shift matters because future imaging features will rely more on computation and rich input than on sheer sensor size. A display built from dual-function pixels could constantly sample phase and polarization of ambient and scene light, feeding algorithms with data traditional sensors miss. A phone that uses its whole screen as a light analyzer, for example, could support new forms of interaction, environment-aware brightness, or multi-angle image capture without multiple separate cameras. The point is not that current hardware is obsolete overnight, but that the definition of a pixel is being stretched. When you merge display and detection into a single element, you set the stage for devices where the boundary between screen and camera starts to dissolve.
What Comes Next For Dual-Function Pixels
The immediate road ahead is technical: building reliable matrices of Fourier pixels and proving they can be scaled, addressed, and manufactured in large numbers. The more interesting question, though, is how product designers will exploit this new pixel technology. Bidirectional pixels open up sensor-display integration that did not exist before, with each element able to show light and sense it. That is a very different design palette from today’s separate camera modules and display panels. Instead of asking where to hide the selfie camera, engineers could be asking which parts of a screen should be more sensitive, or how to let a device visually respond to a scene using the same pixels that captured it.
My view is that this is less a flashy demo and more a signpost: we are moving from pixels as passive endpoints toward pixels as active light processors. Researchers have already shown that the pixels can react to a captured image and generate corresponding light without a dedicated computer, hinting at local, pixel-level computation. As fabrication techniques for nanometer-scale sculpted surfaces improve, expect dual-function pixels to influence how we think about advanced computational photography, low-light and polarization-aware detection, and more compact sensing-display assemblies. When the same hardware can both see and show, the design question is no longer “Where do we put the camera?” but “What can a screen that sees do that a screen that only shines cannot?”
