What Happens When Wearable Brands Publish Their 3D Files
Consumer 3D printing for wearables is the emerging practice in which major brands share digital design files or CAD drawings so people can personalize, modify, or fabricate components of products like sneakers and smartwatch bands at home or through local makerspaces, turning passive buyers into active co-creators of their own gear. This shift links custom wearables printing with mainstream sports and tech brands that used to keep manufacturing blueprints behind closed doors. Instead of choosing from a small set of sizes and colorways, users can adjust geometry, textures, and fit around their own bodies. From 3D printed sneakers with algorithmic midsoles to DIY smartwatch bands built from official CAD drawings, the wearable market is starting to look less like a catalog and more like a toolkit for making. The result is a slow but visible move toward more open, participatory product design.
Algorithmic 3D Printed Sneakers Redefine How Shoes Are Made
Nike’s partnership with Zellerfeld shows how 3D printed sneakers are evolving from experiments into a new manufacturing model. The Nike x Zellerfeld AIRMAX 1000.2 is fully 3D printed as a single object, with no stitching, layered assembly, or traditional lacing. Instead, computational geometry and additive manufacturing create a sculptural form that reimagines classic Air Max DNA through software. Zellerfeld treats additive manufacturing as a complete system, which can cut waste and enable finer customization in fit and performance. The shoe’s flowing surfaces and organic textures openly display how it was printed, turning algorithmic shoe design into a visual language rather than hiding it behind familiar tooling. While this model is not yet something consumers download and print at home, it sets the technical and aesthetic foundations that future open, parametric designs could build on for truly custom wearables printing.
Decathlon’s Lattice Midsoles Highlight Performance and Personalization
Decathlon’s Kiprun brand is exploring a hybrid path with its KIPNEXT 3D running shoe, pairing a knit upper with a 3D printed midsole. The midsole is produced using HP’s Multi Jet Fusion technology and a proprietary TPA material tuned for rebound and comfort. Its hollow, coral-like lattice is carefully engineered for a favorable mass-to-stiffness ratio and variable density zones that respond to each runner’s stride pattern. According to Kiprun, “the shoe offers 75% energy return, whereas most conventional running shoes with EVA foam midsoles have an energy return in the range of 50-65%.” This kind of algorithmic shoe design shows how performance and personalization can converge: lattice regions can be thickened, thinned, or rearranged for different running styles. While KIPNEXT 3D is not yet user-editable, the development process points toward configurable midsoles that runners could one day tweak and print for themselves.

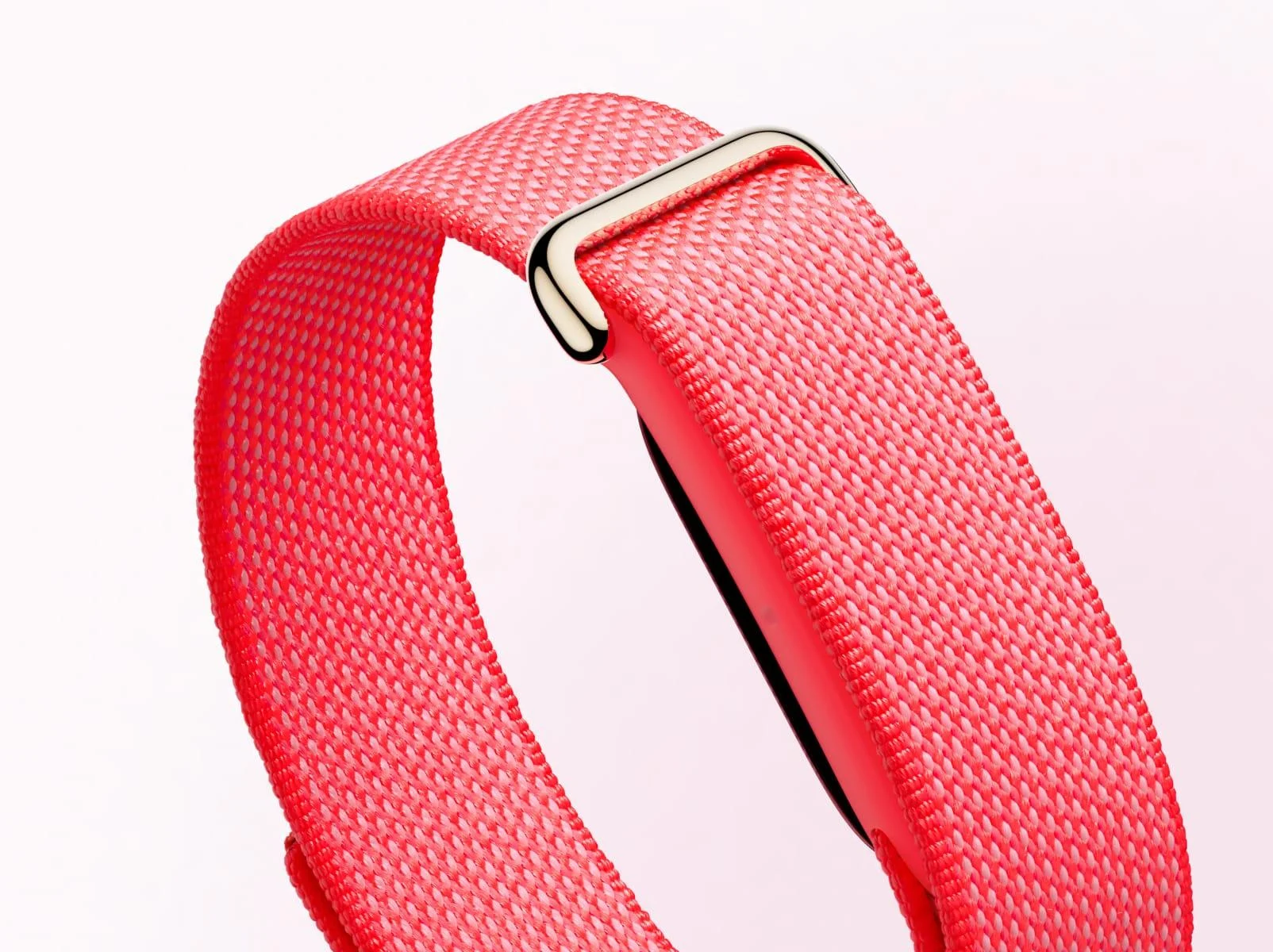

Google’s CAD Files Turn DIY Smartwatch Bands into a Mainstream Hobby
On the wearable tech side, Google has made DIY smartwatch bands far more accessible by releasing official instructions and 2D CAD drawings for the Fitbit Air. The files specify how to keep sensors flush with the skin, which dimensions and tolerances matter, and what attach and detach forces are needed for a secure sleeve. According to Android Authority, the guidance “covers everything from crucial mating dimensions and tolerances to mating force specifications, including attach and detach force, to help you build a high-quality accessory band.” Makers still need to convert the drawings into 3D models, but there is now enough information for hobbyists to design printable Fitbit Air accessories in common CAD tools. That lowers the barrier for consumer 3D printing: instead of reverse engineering a device, creators start from reliable geometry and focus on style, ergonomics, and material choice.
From Passive Buyers to Co-Creators of Wearable Hardware
Taken together, algorithmic 3D printed sneakers and DIY smartwatch bands point to a broader shift in the wearables market. Brands are no longer treating design files as untouchable secrets; they are releasing CAD drawings, tolerances, and printing guidelines that invite people into the design loop. Consumers can start with proven geometries and performance baselines, then adjust patterns, thickness, or form to suit their bodies and tastes. Custom wearables printing will not replace mass production overnight, but it adds a layer of personalization that traditional factories cannot match. As desktop printers improve and online communities share editable models, the technical hurdles keep shrinking. The next phase of wearables may not be defined by a single flagship device, but by an ecosystem where official components, open standards, and user-made parts blend into one continuous stream of shared design.
