From Raw Transducers to Precision Tools
Behind every high-performance loudspeaker is a set of professional speaker components engineered like precision instruments, not generic parts. Modern audio component engineering focuses on maximizing acoustic output, controlling directivity, and maintaining low distortion under punishing conditions. Instead of treating woofers and tweeters as isolated devices, engineers consider the entire acoustic system: motor linearity, cone or dome behavior, suspension mechanics, and how each driver integrates with horns or waveguides. Speaker driver testing validates these design choices with measurements of sensitivity, frequency response, polar patterns, and power handling. Triaxial transducer design and advanced high-frequency drivers exemplify this system-level mindset. By carefully shaping diaphragms, integrating phase plugs or midrange combiners, and optimizing motor structures, designers achieve both high SPL capability and the kind of clarity once reserved for studio monitors—all within more compact, installation-friendly packages.
Inside B&C’s 15HTX100: A Three-Way System in a Single Frame
The B&C Speakers 15HTX100 is a triaxial three-way transducer that condenses an entire full-range system into a single 15-inch chassis. Its woofer uses a stiff curvilinear paper cone with a TWP waterproof coating on both sides, supported by a three-roll coated pleated surround and a 6.5-inch double silicone spider for controlled excursion and durability. A 4-inch glass fiber former wound with aluminum wire, driven by a 6-inch neodymium ring magnet and aluminum demodulation ring, delivers 99 dB sensitivity at 2.83 V/1 m and 1600 W continuous power handling. Above the cone, the DCX354-8 coaxial compression driver adds a 3-inch PEEK midrange diaphragm and 2-inch high-frequency diaphragm, both sharing a 1.4-inch horn throat via a patented midrange integrator. This triaxial transducer design offers nominal 60° × 40° coverage and high SPL capability, ideal for compact stage monitors and fixed installations.
Directivity Control and Triaxial Integration
For professional installations, consistent coverage often matters as much as raw output. The 15HTX100’s horn, designed using FEA tools, provides a nominal 60° × 40° pattern, with horizontal and vertical directivity maps demonstrating how tightly the energy is controlled across frequency. The patented midrange integrator inside the DCX354-8 enables both the 3-inch midrange and 2-inch high-frequency diaphragms to share the same 1.4-inch throat without major magnitude or phase discontinuities. This is crucial for maintaining a coherent point-source behavior, minimizing comb filtering and preserving accurate imaging. By placing woofer, midrange, and HF sections on the same axis, the triaxial transducer design reduces cabinet complexity and crossover distance between acoustic centers. System designers can achieve full-range, high-SPL performance using fewer boxes, while still maintaining frequency response accuracy and predictable coverage for both stage and studio monitoring applications.

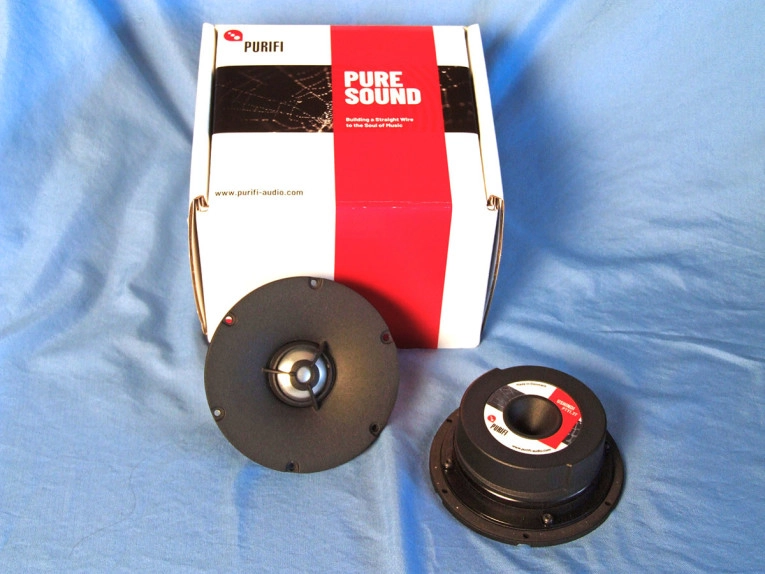

Purifi’s PTT1.3T Tweeter: Aluminum Dome Meets Waveguide Science

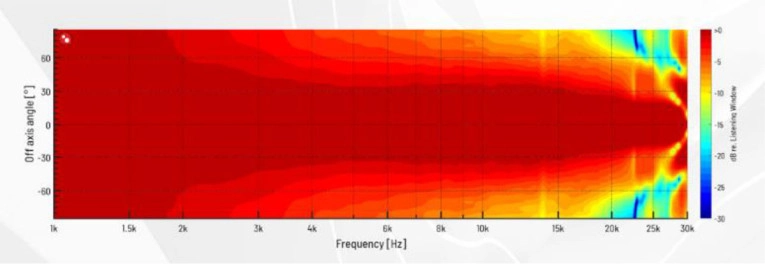

On the high-fidelity side, Purifi Audio’s PTT1.3T04-HAG-01 WG104 aluminum dome tweeter showcases how much engineering can be packed into a small format driver. This 1.3-inch (33 mm) hard anodized aluminum dome offers a relatively large diaphragm area of 9.5 cm² and an unusually high 1.1 mm Xmax for a tweeter, enabling comfortable crossover points around 2 kHz without stress. A cast-aluminum waveguide is co-optimized with an integrated Coherer phase plug to shape dispersion and improve loading, yielding 95 dB sensitivity at 2.83 V/1 m. The result is wide, controlled directivity, with a -6 dB beamwidth of about ±65°, confirmed by horizontal polar maps normalized to the listening window. This kind of audio component engineering targets both home and professional applications where precise imaging, low distortion, and consistent off-axis response are as critical as on-axis flatness.
Durability, Suspensions, and the Future of Compact Systems
High-performance drivers must survive heat, humidity, and mechanical stress without compromising clarity. In the 15HTX100, TWP waterproof coatings on the cone, a rugged pleated surround, and a double silicone spider form a suspension and diaphragm system built for demanding live sound environments. Strategic venting below the spider and neodymium motor design help manage thermal buildup at high SPL. In the PTT1.3T, a carefully damped rear chamber, rigid anodized aluminum dome, and waveguide integration prioritize controlled resonance behavior and off-axis consistency. Together, these examples show how triaxial and multi-way component designs can shrink enclosure counts and simplify cabinet design while preserving frequency response accuracy. As testing methods grow more sophisticated, expect professional speaker components to continue pushing toward higher output, better directivity control, and greater environmental resilience—all within increasingly compact, integration-friendly formats.
