A Solar Powered PDA Built for Life Away from the Wall Socket

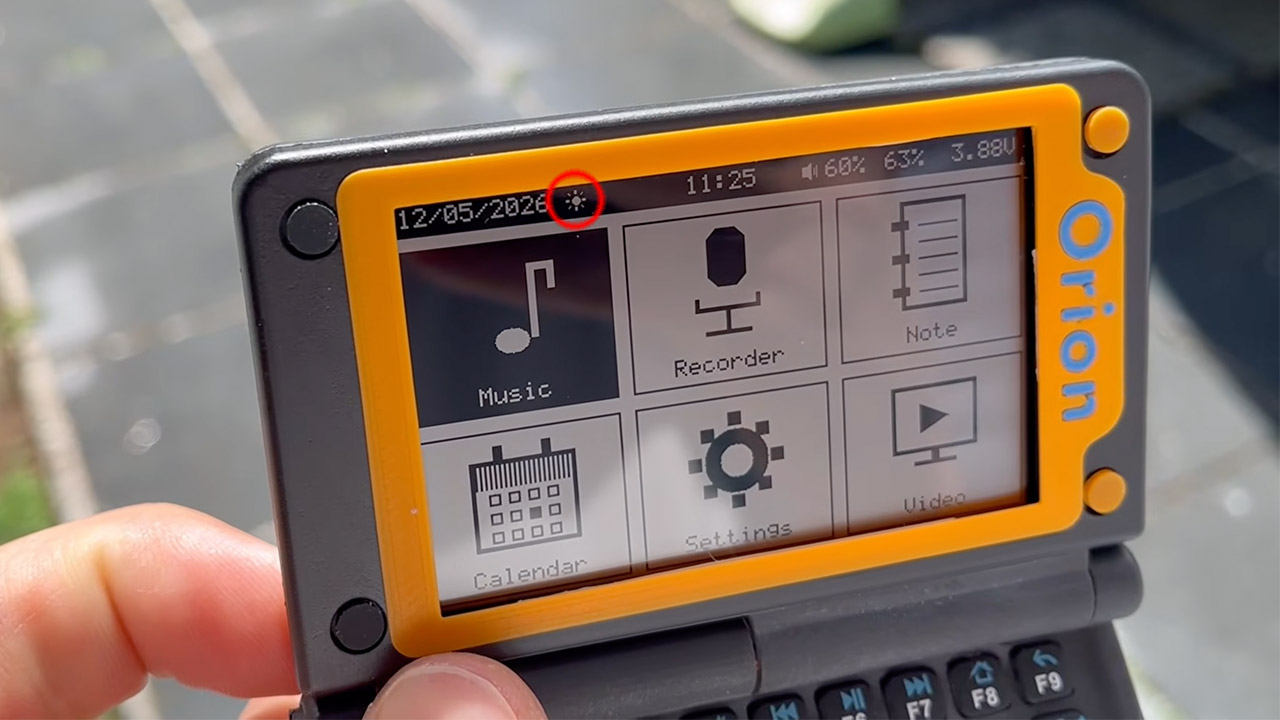

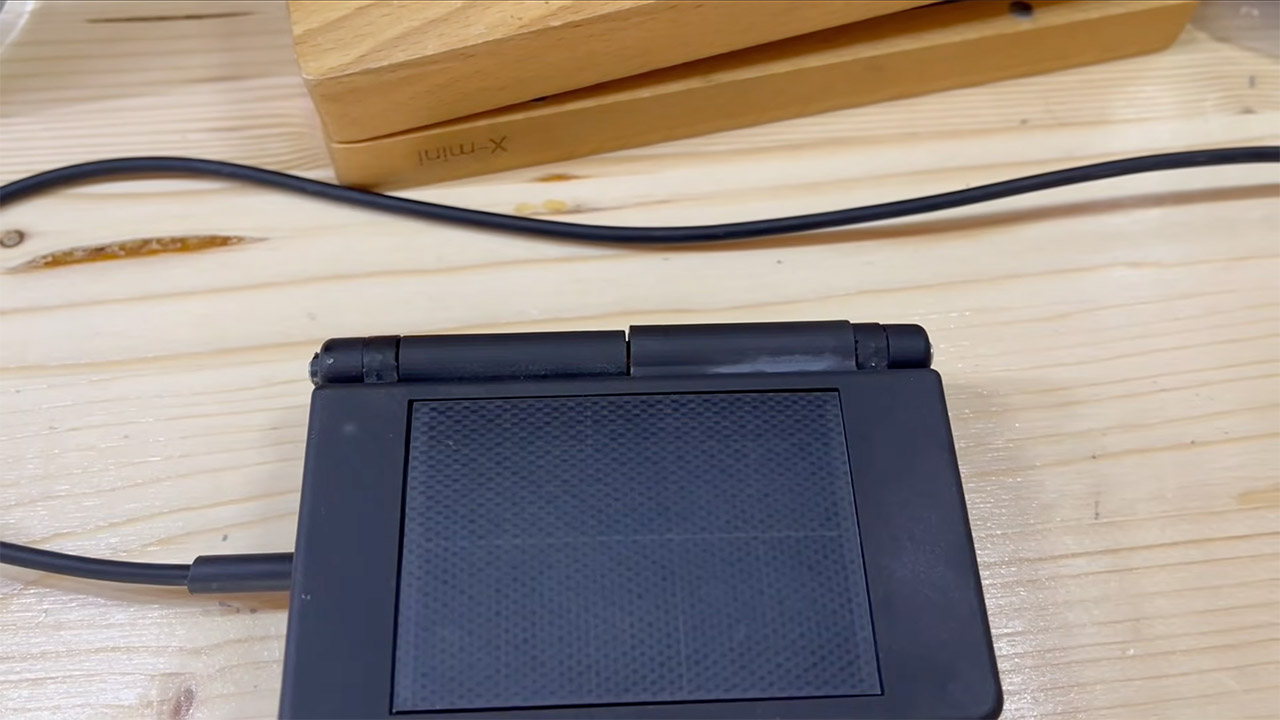

MVLab’s Orion PDA is a solar powered PDA designed for people who want a truly portable computing device that doesn’t depend on wall outlets. A solar panel on the rear continuously harvests energy from ambient light, and a small icon lets you know when it’s actively charging. Paired with a frugal STM32U575 microcontroller and a low-power Sharp memory LCD, this off-grid handheld can keep running long after conventional gadgets have gone flat. Instead of chasing high-refresh, power-hungry screens, Orion leans into efficiency and endurance, making it ideal for outdoor note-taking, list-making, and lightweight tasks. SD card storage, USB-C charging and data transfer, and an expansion interface ready for Wi‑Fi or LoRa modules further reinforce its self-sufficient spirit. The result is a retro computing build that feels deliberately slow and focused, yet quietly modern in how it manages power and connectivity.
Retro Clamshell Design with a Purpose

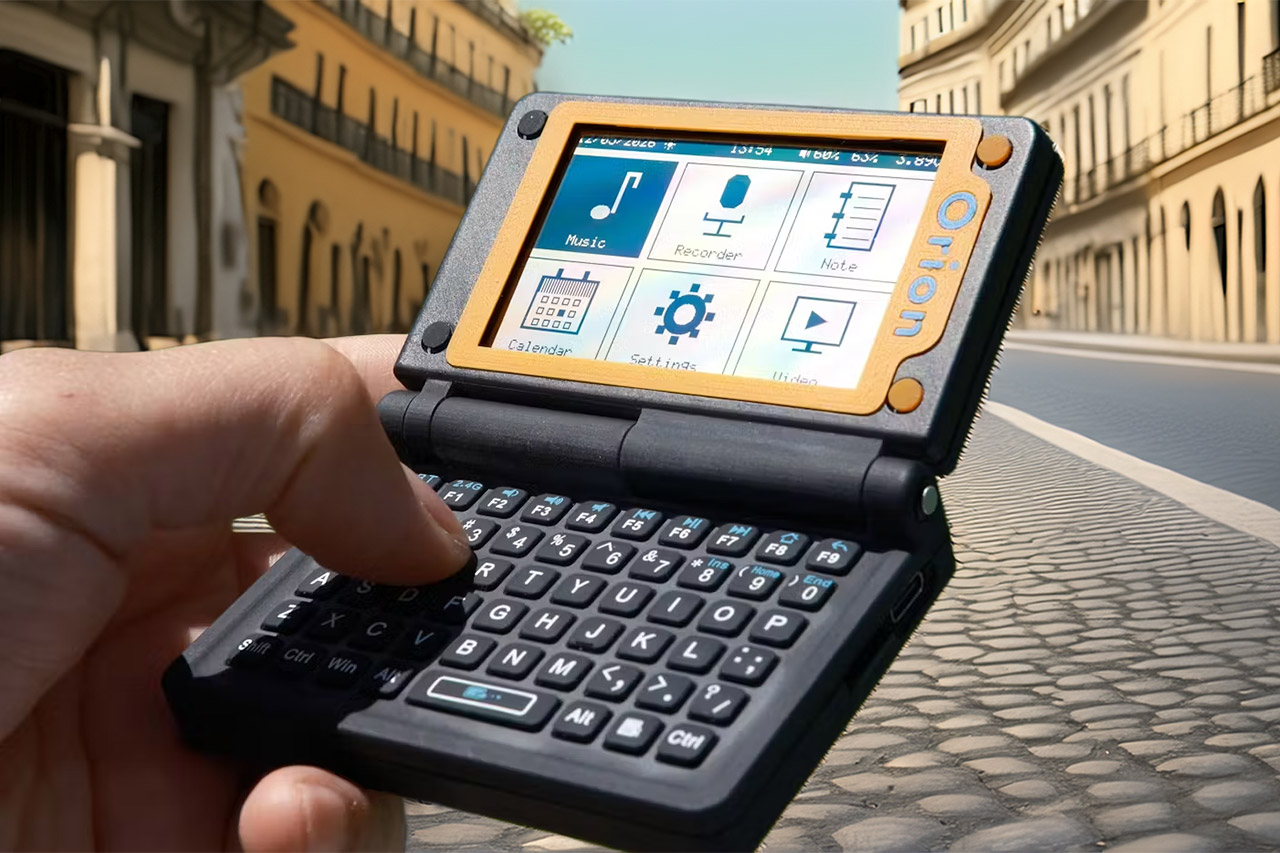

Orion’s design immediately recalls the clamshell organizers and pocket PCs many users once flipped open throughout the day. Closed, it slips neatly into a pocket; opened, it reveals a familiar split layout with the display on top and the keyboard below. This isn’t nostalgia for its own sake. The clamshell structure provides physical protection for the screen, a comfortable thumb-typing stance, and a stable base when set on a table. The proportions are tuned for one-handed operation while remaining sturdy enough for frequent daily use. By focusing on what genuinely fits in a hand, MVLab has created a portable computing device that feels purposeful rather than miniaturized for novelty’s sake. In an era dominated by glass-fronted rectangles, Orion’s hinged shell and tactile surfaces bring back the satisfying ritual of opening a dedicated tool, then closing it when the task is done.
A Sunlight-Loving Screen and Satisfying Keyboard

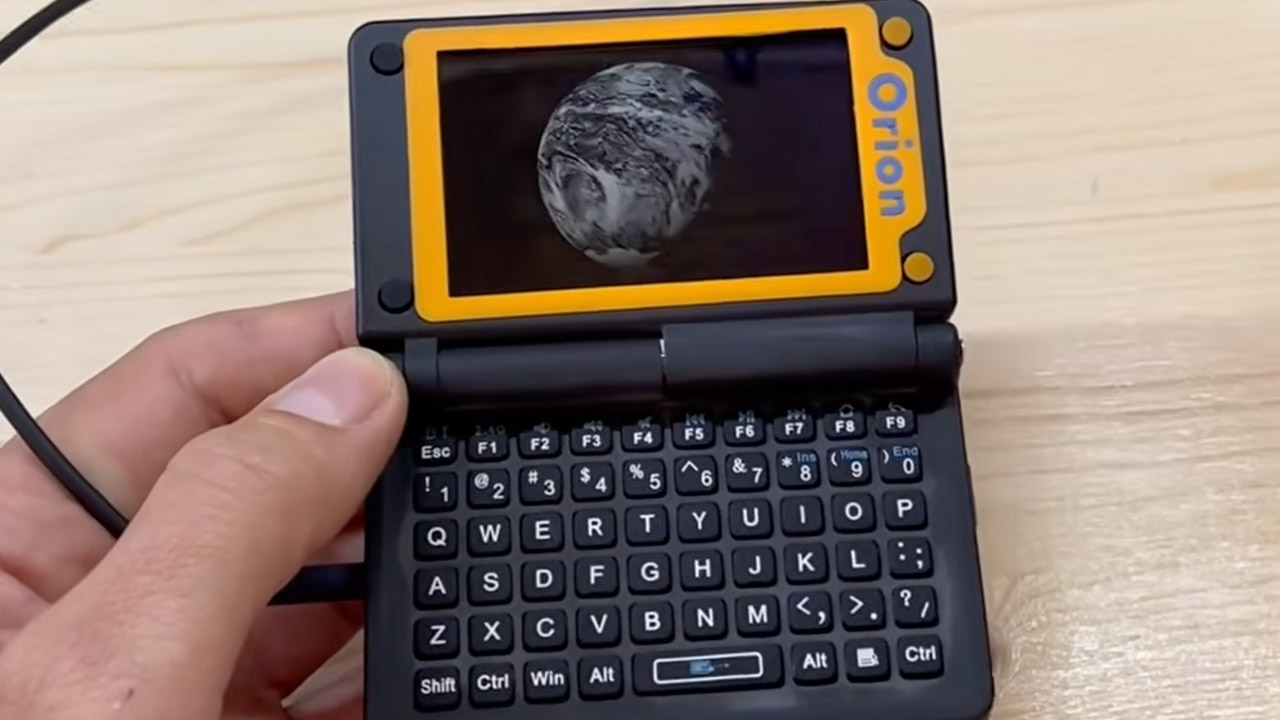

Open the Orion PDA and you’re greeted by a 3.16-inch Sharp memory LCD with a 536 × 336 resolution and a monochrome palette. On paper it sounds basic, but outside it comes alive: direct sunlight increases clarity instead of washing it out, and unlike traditional backlit screens, visibility doesn’t cost you precious battery life. The panel behaves a bit like e‑ink, yet refreshes quickly enough for smooth scrolling, menu navigation, and even simple greyscale video. Below it sits a custom QWERTY keyboard built around rubber domes with tactile buttons, offering a distinct contrast to glass typing. The layout encourages fast thumb input for notes, lists, or longer writing sessions, while a dedicated row of function keys provides quick access to common actions. Together, the display and keyboard make the Orion feel like a focused writing and reading companion, tuned for clarity and comfort outdoors.
Compact Hardware That Punches Above Its Weight
Under the retro exterior, the Orion PDA hides a thoughtful hardware stack optimized for low-power versatility. At its heart is an ST Micro STM32U575 microcontroller running up to 160 MHz, more than capable of handling text editing, basic applications, and audio playback without draining the battery. Storage relies on removable SD cards, so expanding capacity or swapping project libraries is as easy as changing cards. A USB‑C port manages charging and file transfers, and can even expose the device as a mass-storage drive for drag‑and‑drop organization. Audio is handled by a Cirrus Logic WM8904 DAC, a built-in speaker, and a 3.5 mm headphone jack that invites dedicated listening sessions. A digital MEMS microphone hidden beneath the keyboard turns the Orion into a pocket recorder, capturing voice notes directly to storage. Planned Wi‑Fi and LoRa modules hint at future wireless capabilities for this off-grid handheld.
Why Orion Signals a New Wave of Sustainable, Focused Computing
The Orion PDA stands at the intersection of retro charm and modern sustainability. Instead of competing with smartphones on raw performance, it offers an intentionally narrow focus: distraction-free writing, reading, task management, and audio playback that work just as well in bright sunlight as at a desk. The solar panel, efficient microcontroller, and reflective display embody a different philosophy of mobile design—one where longevity and independence from the grid matter as much as raw speed. For enthusiasts of retro computing builds, Orion channels the spirit of classic organizers while embracing modular storage, USB‑C, and potential wireless add-ons. For minimalists, it’s a reminder that a portable computing device can be a calm, single-purpose tool rather than a constant stream of notifications. As interest grows in sustainable, self-sufficient gadgets, Orion feels less like a niche curiosity and more like a glimpse into how off-grid handheld devices could evolve.
