Beyond the XPan: When Ultra-Wide Angle Cameras Are Not Wide Enough

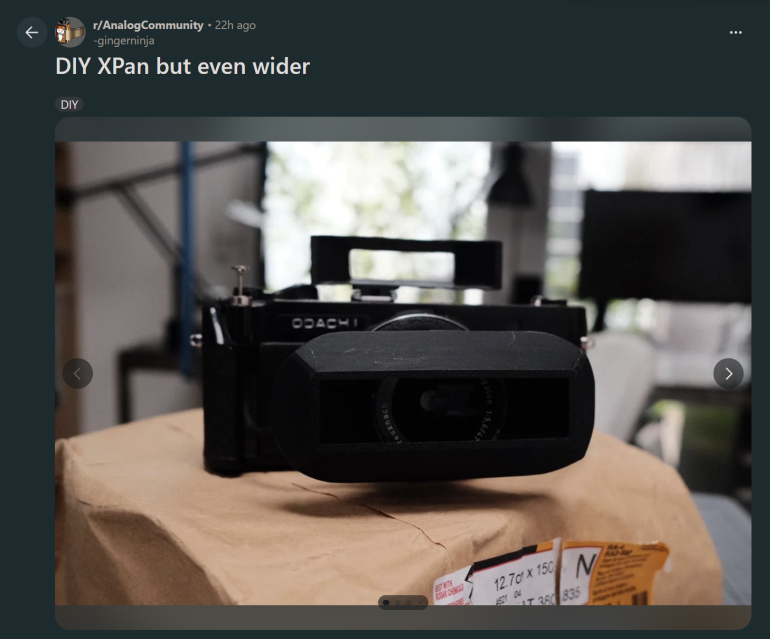

For a growing group of enthusiasts, even legendary ultra wide angle cameras no longer feel wide enough. Online forums are filling with experiments in custom camera building, where photographers modify existing film bodies and lenses to carve out far broader fields of view than commercial panoramic camera equipment can offer. One striking example surfaced on Reddit’s r/AnalogCommunity, where a young photographer re-engineered a broken Soviet-era FED stereo camera into a panoramic machine wider than a Hasselblad XPan. By exploiting the large blank space between the stereo pairs and altering the film gate, the builder created a frame roughly 93mm wide on 35mm film, surpassing the XPan’s 65mm format and even many niche 85mm panoramic cameras. This kind of project shows how specialized photography gear is increasingly being shaped not only by manufacturers, but also by dedicated tinkerers working at their kitchen tables.
Inside a DIY Panoramic Camera: Hacked Bodies, Legendary Lenses

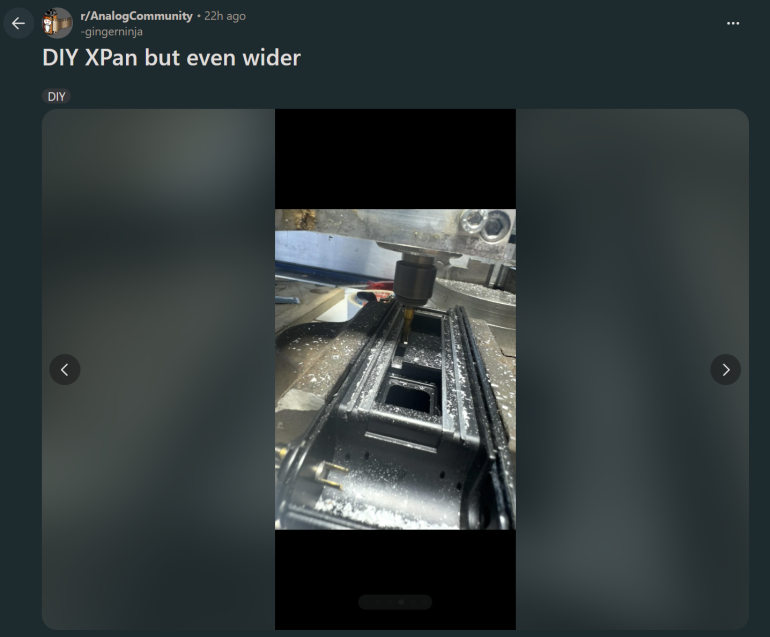

The custom FED stereo conversion illustrates how far DIY engineers are willing to go to stretch film real estate. By cutting the film gate and double-stroking the film advance, the camera captures 93mm-wide frames, yielding about 15 exposures on a standard 35mm roll. A leaf-shuttered Schneider Super Angulon 47mm f/5.6 lens—already a cult favorite in the DIY scene—was grafted onto the modified body using a helicoid for focusing, then operated via zone focus for simplicity and speed. Thanks to its 123mm image circle, the lens comfortably covers a 65mm gate while leaving ample headroom for wider formats, enabling clean, edge-to-edge panoramas. The results are sweeping, cinematic images that simply do not exist in off-the-shelf catalogues of ultra wide angle cameras. For many builders, the appeal lies as much in the machining and adaptation process as in the final photographs.
Why Enthusiasts Turn to Custom Camera Building
DIY panoramic camera builders are not just chasing technical bragging rights; they are solving creative problems that mainstream designs ignore. Mass-market bodies tend to target generalists, but specialized photography gear is often driven by niche needs—architectural lines that must stay straight, stadium scenes that demand extreme horizontal sweep, or analog textures that no digital filter can convincingly mimic. With film costs climbing and frame counts dropping, these photographers are forced to slow down, composing carefully before every shutter press. The payoff is a look that feels distinct from both digital panoramas and classic 35mm frames. The Reddit community’s reaction to the FED stereo hack underlined this: users pointed out that no phone filter can reproduce its organic, edge-to-edge rendering. Custom camera building becomes a way to reclaim control over format, aspect ratio, and visual character in an era of standardized imaging tools.
A Wider Movement: From Alternative Processes to Experimental Formats
The ultra-wide DIY movement fits into a broader resurgence of experimental photography, where makers explore forgotten techniques alongside radical hardware hacks. Science educator Steve Mould recently highlighted Gabriel Lippmann’s 1891 color process, which encodes full-spectrum color as interference patterns in an emulsion backed by a mirror. Modern practitioner Jon Hilty demonstrates that Lippmann plates still attract serious scientific attention because they are considered the only known way to permanently reproduce a full spectrum of color. Like panoramic hackers, Lippmann and autochrome experimenters accept practical drawbacks—long exposures, tricky viewing angles, complex chemistry—in exchange for unique visual qualities that mainstream pigment-based RGB workflows cannot match. Together, these communities show how specialized photography gear and processes are increasingly shaped by curiosity, historical research, and hands-on experimentation, rather than commercial roadmaps. The future of imaging may be less about incremental upgrades and more about bold departures from standard formats.
