Why Your Steam Machine Is Slower Than It Should Be
Steam Machine memory upgrade refers to replacing Valve’s default single DDR5 SODIMM with a dual-channel pair to increase bandwidth, remove a key CPU bottleneck in gaming RAM configuration, and unlock up to 15% more performance in demanding titles without replacing the entire living-room PC system.
Out of the box, Valve’s Steam Machine ships with a single 16GB 5,600MT/s DDR5 SODIMM module because of a wider memory shortage that pushed prices up. That design choice forces the system to run in single-channel mode, which cuts memory bandwidth and weighs on CPU-heavy games like Baldur’s Gate 3. According to tests by Gamers Nexus, a dual-channel Steam Machine is 15.3% faster in Baldur’s Gate 3 at 1080p Low compared to single-channel.
The good news: this Steam Machine bottleneck fix does not need a new rig. A modder has shown the machine will happily take a matched pair of 32GB DDR5 SODIMMs for 64GB total, plus a 4TB NVMe SSD, and boot straight back into SteamOS with all hardware detected. You just need to be willing to open the chassis and pay attention to compatibility.
What Dual-Channel DDR5 Delivers in Real Games
Before you grab a screwdriver, it helps to understand why DDR5 dual-channel performance matters so much for the Steam Machine. With one SODIMM, the CPU can only talk to half the memory bandwidth that the platform is designed for, which is fine for lighter or purely GPU-bound games but limiting when the processor is juggling AI, physics, and large game worlds.
In controlled tests, adding a second stick to enable dual-channel boosted game performance by up to 15.3% and 7-Zip by 19.4% compared to single-channel operation. Baldur’s Gate 3 shows the biggest gains on the CPU side, while titles like The Outer Worlds 2 and Resident Evil 4 also respond well in CPU-focused benchmarks. In GPU-targeted tests, the gap shrinks, with many games showing less than a 3% deficit on single-channel configurations.
In short: if you spend most of your time in CPU-heavy games or care about minimum frame rates and stutter, enabling dual-channel memory is one of the highest-impact Steam Machine memory upgrades you can make. If your library is mostly GPU-bound titles, the gains are smaller but still measurable.
Step-by-Step: Upgrading RAM and SSD in Your Steam Machine

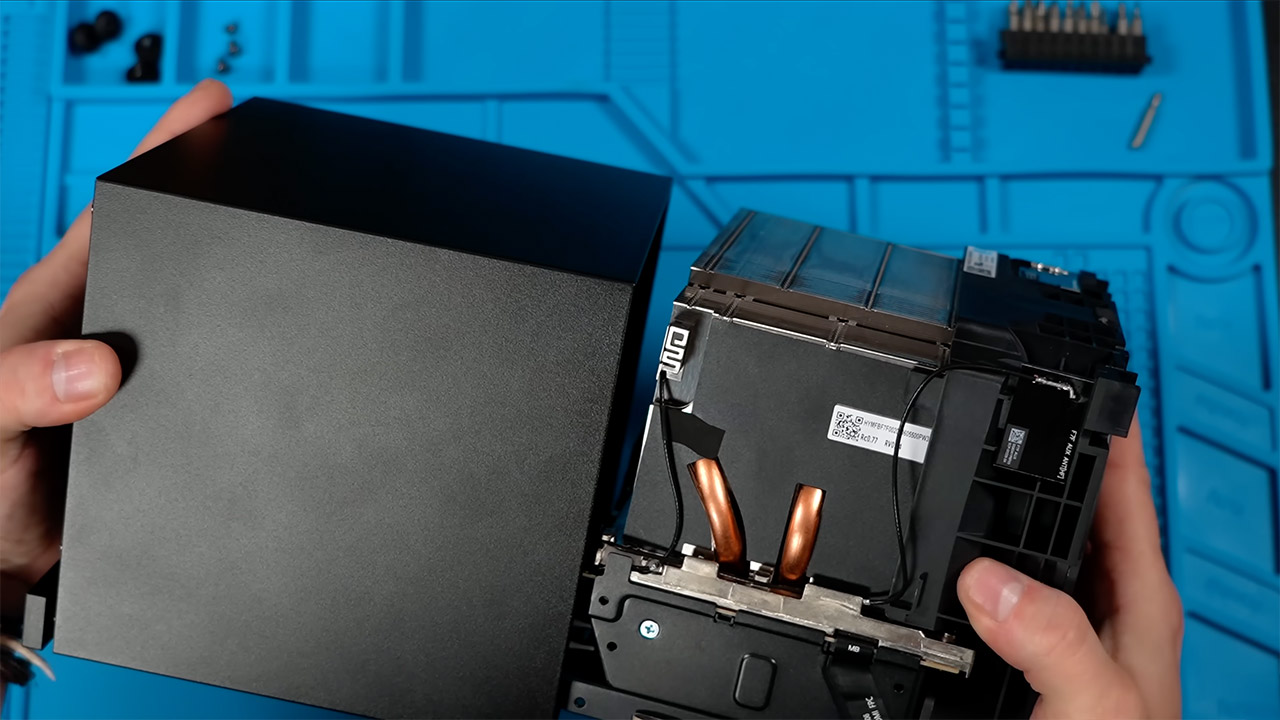

Cracking open a compact living-room PC sounds intimidating, but the Steam Machine’s layout is fairly serviceable once you know where everything is. The chassis is a small plastic cube with a reinforced metal rear panel, held together by a handful of screws. Inside you’ll find a large cooling system with copper pipes and aluminum fins over the CPU and GPU, a custom fan in its shroud, and the motherboard wedged between the cooling block and power supply. The harder part is reaching the memory slot, not the upgrade itself.
- Power down the Steam Machine, unplug all cables, and place it on a clean surface with good lighting.
- Remove the two rear screws and the four hidden in the rubber feet, then gently detach the faceplate by pressing down along the front edge with a plastic spudger instead of pulling hard.
- Carefully slide off the outer casing to expose the internal assembly, noting cable routes for later reassembly.
- Detach the antenna cables for wireless features and remove the screws from the small boards near the ports so you can slide the entire internal assembly out.
- Unscrew the heatsink assembly using its four screws to gain clear access to the memory slot; keep it level so the contact surfaces remain intact and you don’t need to reapply thermal paste.

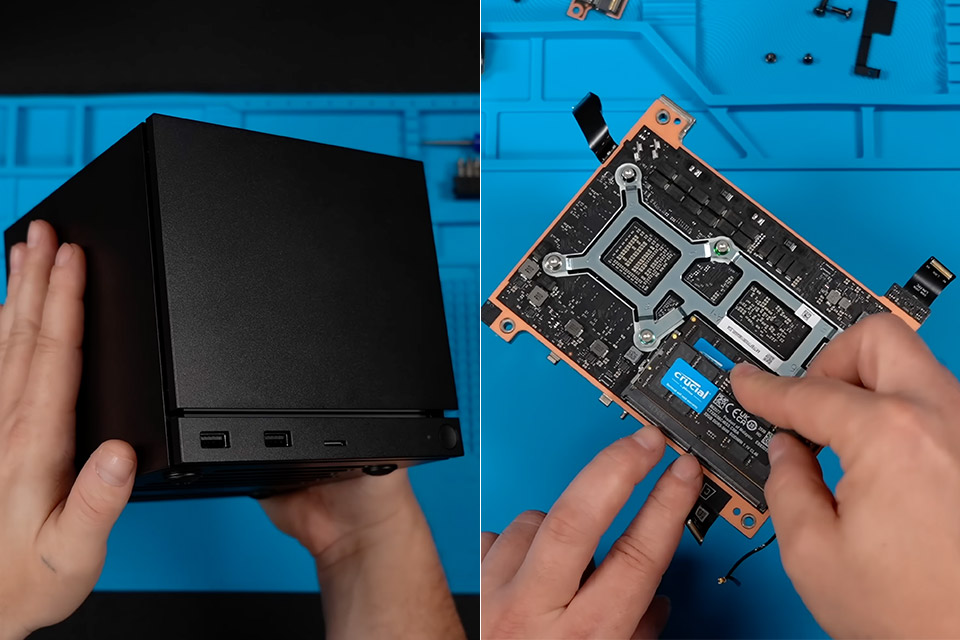

- Remove the single DDR5 SODIMM, then insert a matched pair of modules at the same speed rating, such as two 32GB sticks to reach 64GB total and automatically enable dual-channel.
- Locate the storage area behind the side panel, remove the existing 2230-size M.2 SSD from its adapter and ribbon cable, and install a full-size 2280 drive like a 4TB NVMe in the available space.
- Reassemble the heatsink, slide the internal assembly back in, reattach antenna and port board cables, screw everything down, and click the outer case and faceplate back into place.
- Reconnect power and display cables, then boot into SteamOS and verify that system information reports the new RAM capacity and SSD size with no warning messages.
Follow the sequence and take photos as you go so you know where every cable and screw belongs. The main gotcha is cable handling: the wireless antenna leads and small port boards need gentle treatment to avoid strain. Storage upgrades are easy and do not require specialized tools, but for the SSD swap you should clone the old drive to the new one on another computer before installation to avoid reinstalling the operating system.
Compatibility, Costs, and What You Can Expect Afterward

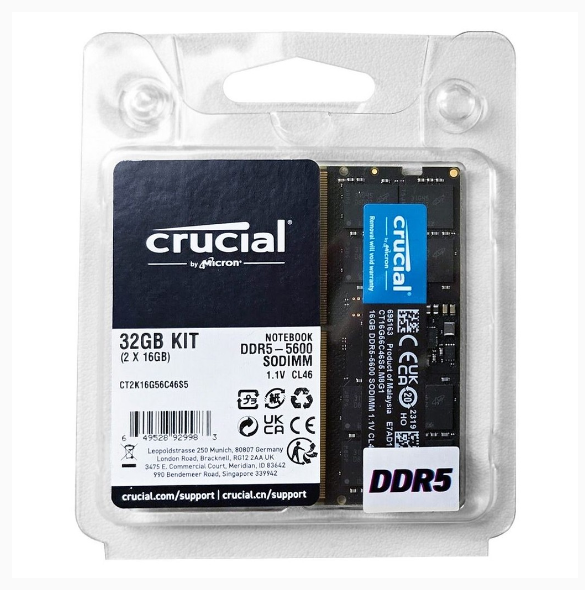

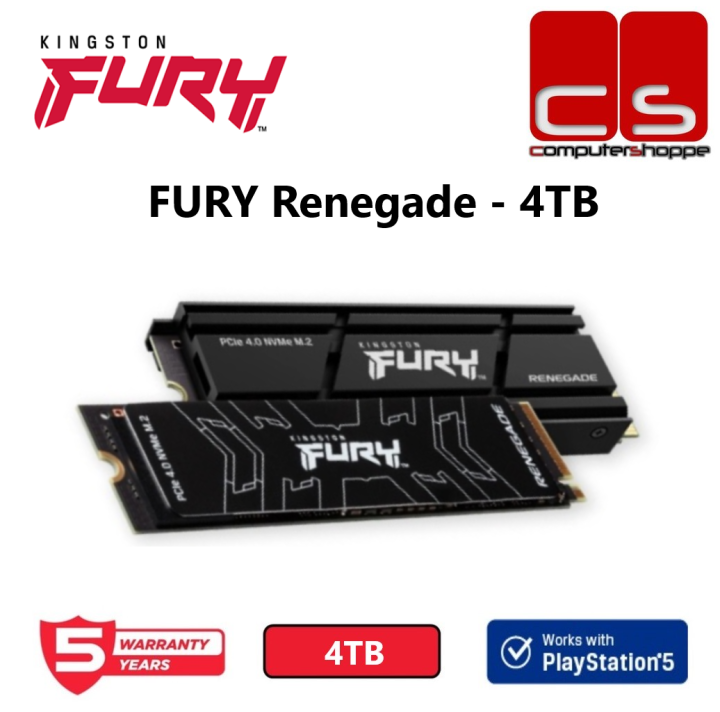

A modder confirmed that replacing the stock stick with a matched pair of 32GB Crucial DDR5 SODIMMs gives the Steam Machine 64GB of memory, with about 62GB usable, and dual-channel operation enabling immediately when the second module is inserted. They also swapped the small OEM 2230 SSD for a 4TB Kingston Fury Renegade 2280 drive, seeing far quicker read and write speeds. After reassembly, the system booted into SteamOS without warnings, showed the new memory and storage capacity in system information, and played games smoothly with occasional frame rate increases.
There are two practical caveats. First, compatibility isn’t guaranteed with every consumer DDR5 SODIMM kit; testing has shown boot instability with some sticks, which required sourcing modules identical to those Valve uses to keep the machine stable. Second, while 64GB RAM is possible, it may be more than many gaming workloads need on this hardware, even though it helps multitasking and storing large numbers of games.
The hardware used for this Steam Machine memory upgrade is not cheap, with the new memory kit priced around USD 820 (approx. RM3,770) and the 4TB SSD close to USD 1,000 (approx. RM4,600). When you factor in the original machine, the full build reached about USD 3,247 (approx. RM14,950). If that total is out of reach, you can still treat dual-channel memory as a targeted Steam Machine bottleneck fix: focus on a second matched SODIMM first, and treat a larger SSD as a bonus.
Is This Upgrade Worth It for You?
From a practical standpoint, this is one of the rare upgrades that directly tackles a design limitation without fighting against the rest of the hardware. Valve’s single-channel choice left performance on the table so the Steam Machine could ship at a lower price during a memory shortage. Switching to DDR5 dual-channel performance brings back up to 15.3% in some games and boosts CPU tasks like compression even more.
If you primarily play CPU-heavy titles or value smoothness over raw peak FPS, enabling dual-channel and, optionally, expanding to 64GB RAM and a 4TB SSD makes clear sense. Storage upgrades are easy and pay off in faster load times and a larger game library. The main thing to watch is memory compatibility and your budget; test kits carefully and start with a modest dual-channel pair if the high-end 64GB configuration feels excessive. For many Steam Machine owners, this targeted gaming RAM configuration tweak is the sweet spot between cost and noticeable performance gains.
