Verdict: The AIO for Silence-Obsessed Enthusiasts
The Noctua NL-LC1 AIO cooler series is a line of 240mm, 360mm, and 420mm closed-loop liquid coolers that prioritize ultra-low liquid cooling noise levels while keeping high-end desktop CPUs well within safe thermal limits. This isn’t a flashy RGB product or a budget option; it is a premium, engineering-first answer for enthusiasts who care more about hearing their game than their fans. In testing, both the 360mm and 420mm NL-LC1 variants produced the lowest-noise results measured among multiple competing AIOs, while matching or beating other 360mm units in cooling performance and adding extra headroom with the 420mm radiator. The trade-off is clear: you pay more than typical AIOs and live with brown fans and some cable clutter, but you get quiet PC cooling that finally justifies switching from top-tier air to liquid.
Pros
- Outstanding liquid cooling noise levels; quietest AIOs tested so far
- 360mm model outperforms other 360mm AIOs in thermal benchmarks
- 420mm radiator cooler adds meaningful thermal headroom over the 360mm
- Available in 240mm, 360mm, and 420mm sizes for different case layouts
- Includes an optional auxiliary VRM fan that cuts VRM temps by 4–6°C with near-inaudible noise
- Six-year warranty shows confidence in long-term liquid cooling reliability
- Easy installation with SecuFirm 2+ mounting and clear guides for AMD and Intel sockets
Cons
- High price compared to many competing AIOs
- Iconic brown fans may clash with some builds; black Chromax versions are not yet available
- Cable clutter is noticeable once the triple fans and accessory VRM fan are installed
Design, Build, and Specs: Air-Cooling DNA in a Liquid Chassis

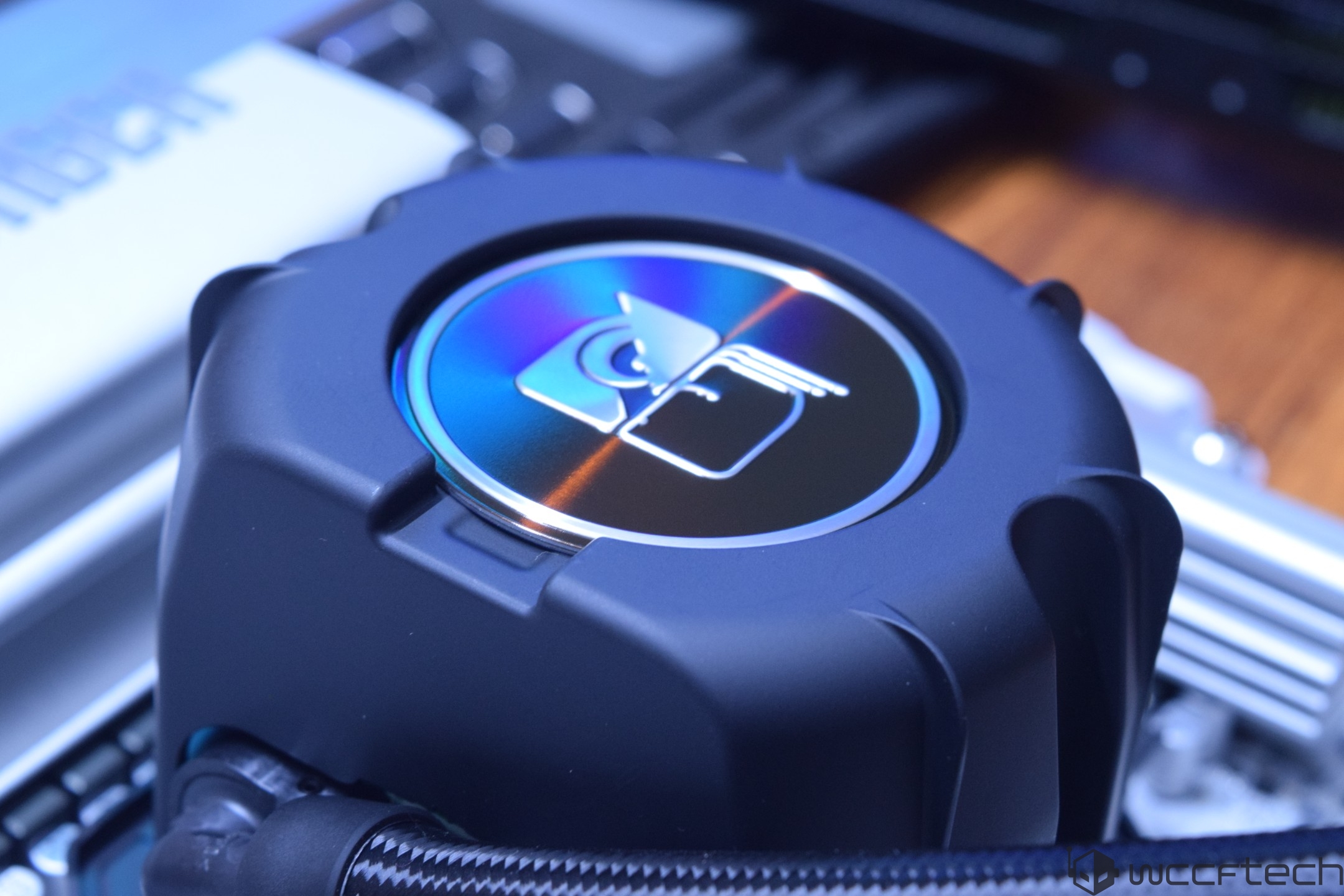

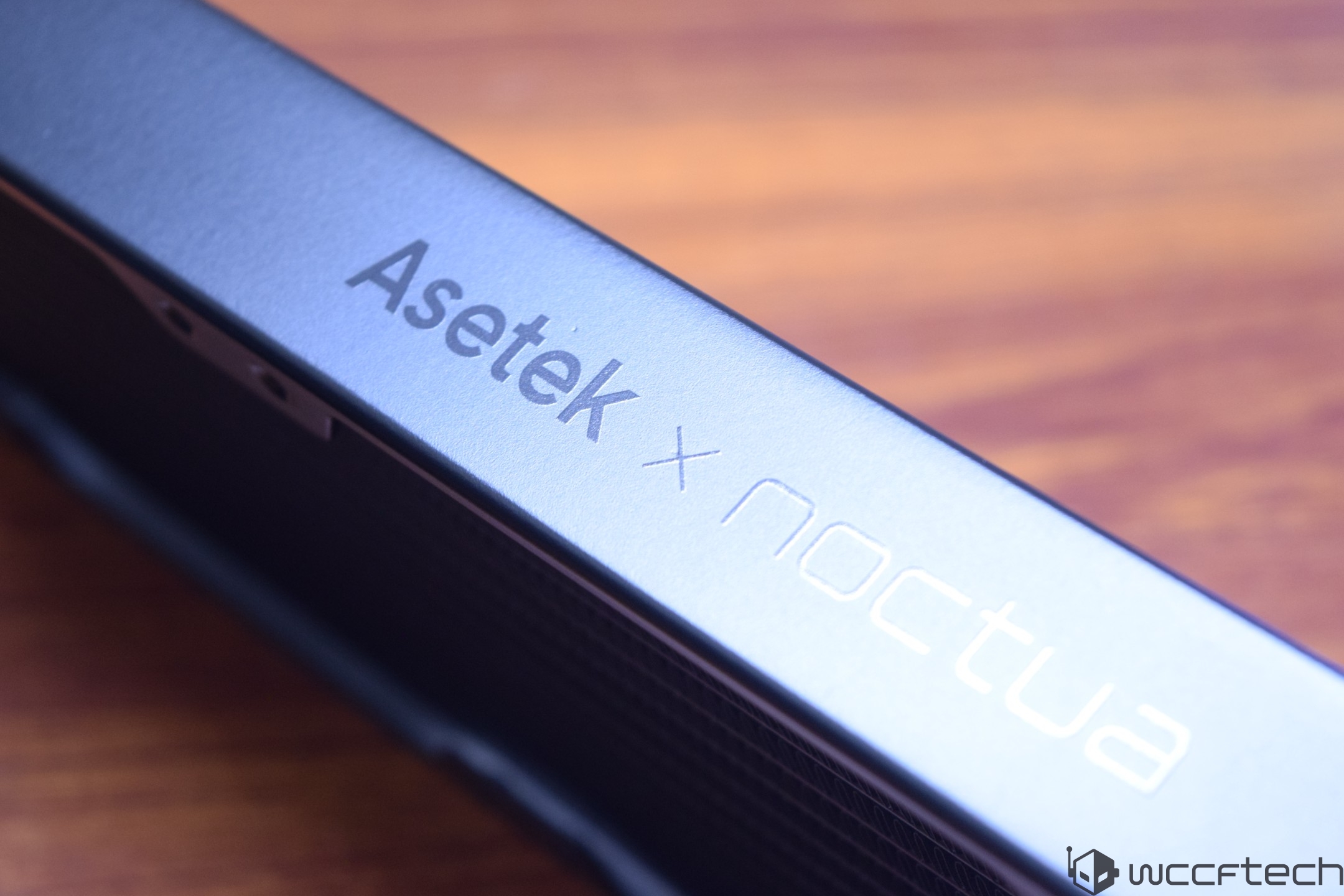

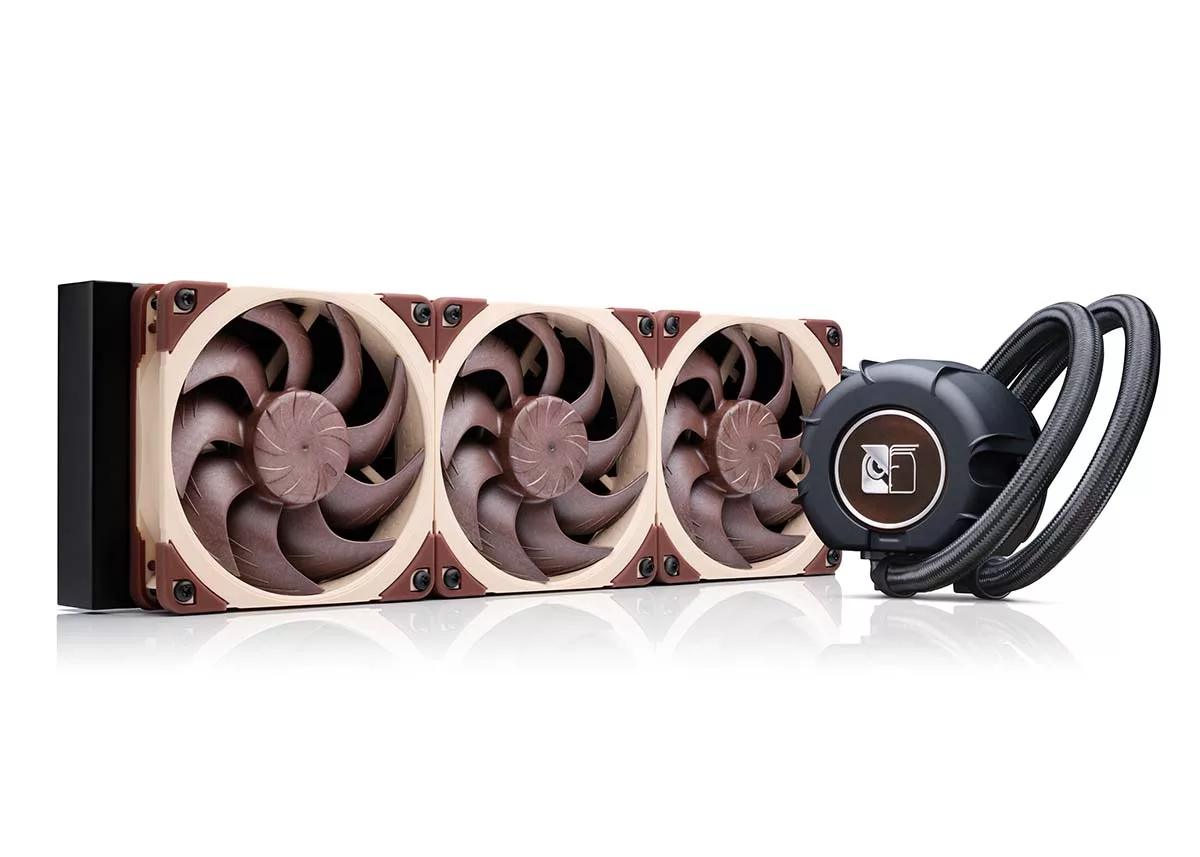

The NL-LC1 series pairs a black pump and radiator with Noctua’s familiar brown NF-A12x25 G2 or NF-A14x25 G2 fans, with all-black Chromax.Black versions promised later. Radiators use aluminum fins and tubes in a metal frame, with 20 fins per inch and standard UNC 6-32 threads for easy fan swaps. The 360mm radiator measures 399.5 × 120 × 30 mm and uses three 120 × 120 × 25 mm fans, while the 420mm stretches to 459.5 × 143.7 × 30 mm with three 140 × 140 × 25 mm fans. Internally, both radiators are filled with a coolant mixture of 22% propylene glycol and 78% water, offering anti-freeze, anti-corrosion, and anti-biological protection while remaining non-toxic. The pump uses Asetek’s Emma V2 platform with a 3-phase motor, centrifugal impeller, and ceramic sleeve and shaft bearings inside a 70 mm tall housing.
| Spec | NL-LC1 360mm | NL-LC1 420mm |
|---|---|---|
| Radiator size (mm) | 399.5 × 120 × 30 | 459.5 × 143.7 × 30 |
| Fan model | 3 × NF-A12x25 G2 PWM (120 × 120 × 25) | 3 × NF-A14x25 G2 PWM (140 × 140 × 25) |
| Fan speed range | 0–1800 RPM | 0–1500 RPM |
| Airflow (per fan) | 63.15 CFM, 22.5 dB(A) max | 91.58 CFM, 24.8 dB(A) max |
| Coolant mix | 22% propylene glycol / 78% water | 22% propylene glycol / 78% water |
| Socket support | AM4, AM5, LGA1700, LGA1851, LGA1954 | AM4, AM5, LGA1700, LGA1851, LGA1954 |
| Warranty | 6 years | 6 years |
| Price | USD 249 (approx. RM1,170) | USD 279 (approx. RM1,310) |
Noise and Thermal Performance: Where Noctua Earns Its Premium
Noctua spent around 25 years on air cooling before touching liquid, and the payoff is clear: multiple independent reviews call the NL-LC1 the quietest AIO coolers they have ever tested. According to one review, “both AIOs offered superb noise levels, the lowest that we have ever witnessed across multiple AIOs that we have tested in the past.” This starts at the pump; the Emma V2 unit is wrapped in a three-layer vibration absorber with an internal NL-PNA1 noise absorber, cutting the usual pump buzz down to a murmur. On the fan side, the NF-A12x25 G2 and NF-A14x25 G2 fans provide strong airflow and static pressure at very modest dB(A) ratings, keeping real-world liquid cooling noise levels far below typical gaming PC ambient noise. Thermally, the 360mm NL-LC1 outperformed all other 360mm AIOs tested, while the 420mm model added extra cooling headroom on the same CPU load, giving overclockers more room without needing louder fan curves.
Features, Warranty, and Real-World Trade-Offs
The NL-LC1 line is built as a long-haul platform rather than a fashion accessory. A six-year warranty on the coolers and fans underlines Noctua’s confidence in liquid cooling reliability, uncommon in a category where three to five years is more typical. The cold plate uses 99.95% copper (CU1100) with skived fin micro-channels and a 55.5 × 55.5 mm footprint, sized for mainstream desktop CPUs. Mounting is handled by SecuFirm 2+ with a 78 mm hole pitch, covering AMD AM4/AM5 and Intel LGA1700, LGA1851, and even upcoming LGA1954 sockets. An optional NL-ACF1 auxiliary cooling fan can magnetically snap onto the pump to cool VRMs, RAM, and M.2 SSDs; in testing it reduced VRM temperatures by 4–6°C while remaining almost inaudible, and costs USD 19.90 (approx. RM94). The downsides are mostly aesthetic and practical: brown fans won’t suit every build, cable management requires care with three radiator fans plus the VRM fan, and pricing is firmly in the high-end bracket at USD 249–279 (approx. RM1,170–RM1,310).*
Buy if / Skip if
- Buy the Noctua NL-LC1 if you are an enthusiast who values the lowest possible liquid cooling noise levels over RGB flair.
- Skip the Noctua NL-LC1 if your budget for a 240mm, 360mm AIO review unit is limited and you prioritize price over acoustic refinement.
- Buy the Noctua NL-LC1 if you want a quiet PC cooling solution that still offers competitive performance for modern high-core-count CPUs.
- Skip the Noctua NL-LC1 if you dislike Noctua’s brown fan aesthetic and do not want to wait for Chromax.Black versions.
- Buy the Noctua NL-LC1 if your case supports a 420mm radiator cooler and you want extra thermal headroom for overclocking or heavy all-core workloads.
- Skip the Noctua NL-LC1 if you prefer fully integrated, minimal-cable setups and are bothered by multi-fan cable clutter.
- Buy the Noctua NL-LC1 if a six-year warranty and long-term reliability matter more to you than chasing the lowest possible upfront cost.
