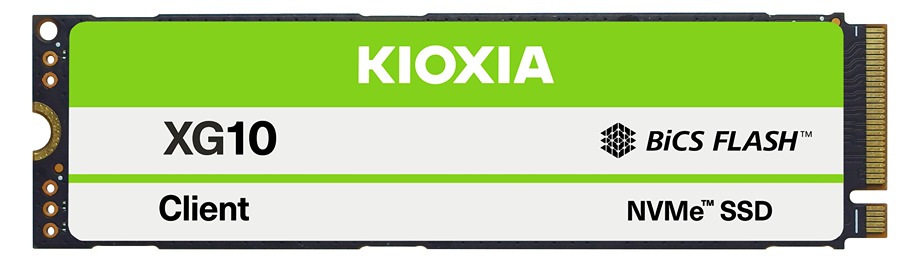

PCIe Gen5 Storage Arrives in Kioxia’s High-End Client Line
Kioxia’s new XG10 series marks the company’s move into the premium PCIe Gen5 SSD segment for performance-focused client systems. As the successor to the XG8 PCIe Gen4 line, the XG10 adopts a PCIe 5.0 x4 NVMe interface, effectively doubling interface bandwidth and unlocking headline sequential read speeds up to 14,000 MB/s and write speeds up to 12,000 MB/s. Random performance climbs to as high as 2 million IOPS for reads and 1.6 million IOPS for writes, representing more than double the throughput of the previous generation in many metrics. Built in the familiar M.2 2280 form factor and compliant with NVMe 2.0d, these drives are designed primarily for PC OEMs rather than the DIY retail channel—at least initially. Kioxia is positioning XG10 firmly at the high-performance end of its client stack, above the mainstream BG8 and value-oriented EG7 lines.
Architecture, NAND, and Power: What’s Inside the XG10 Series
Under the label, the Kioxia XG10 series differentiates itself with an 8-channel controller design paired with onboard DRAM, instead of the 4‑channel DRAM-less controllers used in BG8 and EG7 client drives. This more robust architecture underpins the drive’s elevated NVMe SSD performance and helps sustain high throughput under heavy workloads. Capacity options span 512 GB, 1 TB, 2 TB, and 4 TB, with smaller models using BiCS FLASH generation 6 TLC, while the 2 TB and 4 TB variants upgrade to BiCS FLASH generation 8 TLC with CMOS directly Bonded to Array (CBA) technology for higher density and efficiency. Active power consumption is listed around 10 W, noticeably higher than Kioxia’s lower-tier Gen5 offerings, reflecting the aggressive performance targets. This reinforces the need for good airflow and heatsinks in systems adopting PCIe Gen5 SSDs like the XG10, especially in compact desktops and tightly packed workstations.
Target Use Cases: From AI PCs to Content Creation Powerhouses
Kioxia is explicitly aiming the XG10 series at high-performance desktops, AI PCs, gaming rigs, and professional workstations. The combination of a PCIe Gen5 SSD interface, 14,000 MB/s read speed, and up to 2M/1.6M random IOPS allows these drives to tackle data-intensive workloads that routinely saturate older Gen4 storage. Private AI training and inference can benefit from faster dataset loading and checkpoint saving, while video editors and 3D artists gain smoother scrubbing, faster conforming, and quicker asset imports when dealing with large 4K or 8K project files. High-end gamers stand to see reduced level load times and better streaming of high-resolution textures in expansive open-world titles. Self-Encrypting Drive support based on TCG Opal 2.02 adds hardware-level security, making XG10 a compelling fit for professionals who juggle sensitive client data alongside massive media libraries on the same high-performance storage pool.
4TB Capacity and OEM-First Rollout: What Builders Should Expect
For high-performance storage planning, one of the most important aspects of the Kioxia XG10 series is its capacity ceiling. Scaling up to 4TB in an M.2 2280 form factor, the drives give OEM system designers enough room to ship content creation and AI-focused machines with a single, very fast primary drive that can comfortably host both OS and large project datasets. However, the rollout strategy matters: Kioxia is currently sampling XG10 drives to select PC OEMs, with systems featuring these PCIe Gen5 SSDs expected to start shipping from the second quarter of 2026. That means enthusiasts and professionals are most likely to encounter XG10 first inside prebuilt desktops, AI workstations, and gaming PCs, rather than as standalone retail SSDs. For builders planning next-generation platforms, it signals that PCIe Gen5 storage will soon be standard in premium OEM configurations.
Implications for the High-Performance Storage Landscape
The introduction of the Kioxia XG10 series is more than just another NVMe SSD spec bump; it rounds out Kioxia’s client lineup with a clear, performance-oriented flagship for PCIe Gen5 systems. With value QLC covered by EG7 and mainstream Gen5 TLC by BG8, XG10 provides an enthusiast-class tier that can exploit the bandwidth offered by recent desktop platforms. For PC OEMs, this makes it easier to segment product lines by storage performance without leaving the premium space to rivals. For content creators and AI users, the leap to 14,000 MB/s-class sequential throughput reduces the chance that storage will be the primary bottleneck in demanding workflows. Looking ahead to and beyond Q2 2026, the XG10 helps set expectations for what "high-performance storage" will mean in client PCs, as PCIe Gen5 SSDs transition from niche showcase components to everyday options in top-tier systems.
