Wildcat Lake Mini PCs: Compact Desktops With a Purpose
A Wildcat Lake mini PC is a compact desktop built around Intel’s Wildcat Lake architecture, aiming to balance low power use, quiet operation, and enough performance for everyday work, light creative tasks, and multi‑display productivity in very small enclosures. In this compact desktop comparison, three new designs stand out: MSI’s Cubi NUC WCG, ASUS’s NUC 16, and ASRock’s Tiny H810. All three systems target different users, from plug‑and‑play office machines to configurable small workstations. Wildcat Lake brings energy‑efficient cores, modest integrated graphics, and on‑chip AI acceleration, making these boxes attractive for space‑constrained desks or digital signage. Around that shared platform, each brand takes a different route: MSI focuses on tidy, affordable versatility, ASUS pushes a premium feature set in a small shell, and ASRock prioritizes socketed flexibility and storage capacity.
MSI Cubi NUC WCG: Affordable Triple‑Display Workhorse
The MSI Cubi NUC WCG positions itself as a cost‑effective Wildcat Lake mini PC with a focus on tidy desks and multi‑screen setups. It supports up to an Intel Core 7 360 processor, which combines two performance cores, four low‑power efficiency cores, dual‑core Intel Graphics, and an NPU rated for up to 17 TOPS of AI performance. MSI’s compact chassis hides support for up to three displays via dual HDMI and a USB4 Type‑C port with DisplayPort Alt Mode. There is user‑replaceable DDR5 SODIMM memory, though Wildcat Lake’s limit of 64 GB single‑channel means you can expect a single slot. Storage appears to be user‑upgradable as well. For networking, MSI includes both 2.5 GbE and Gigabit Ethernet, giving this box appeal as a flexible office node or edge device. Thunderbolt 4 on such an entry‑minded system is a welcome premium touch.

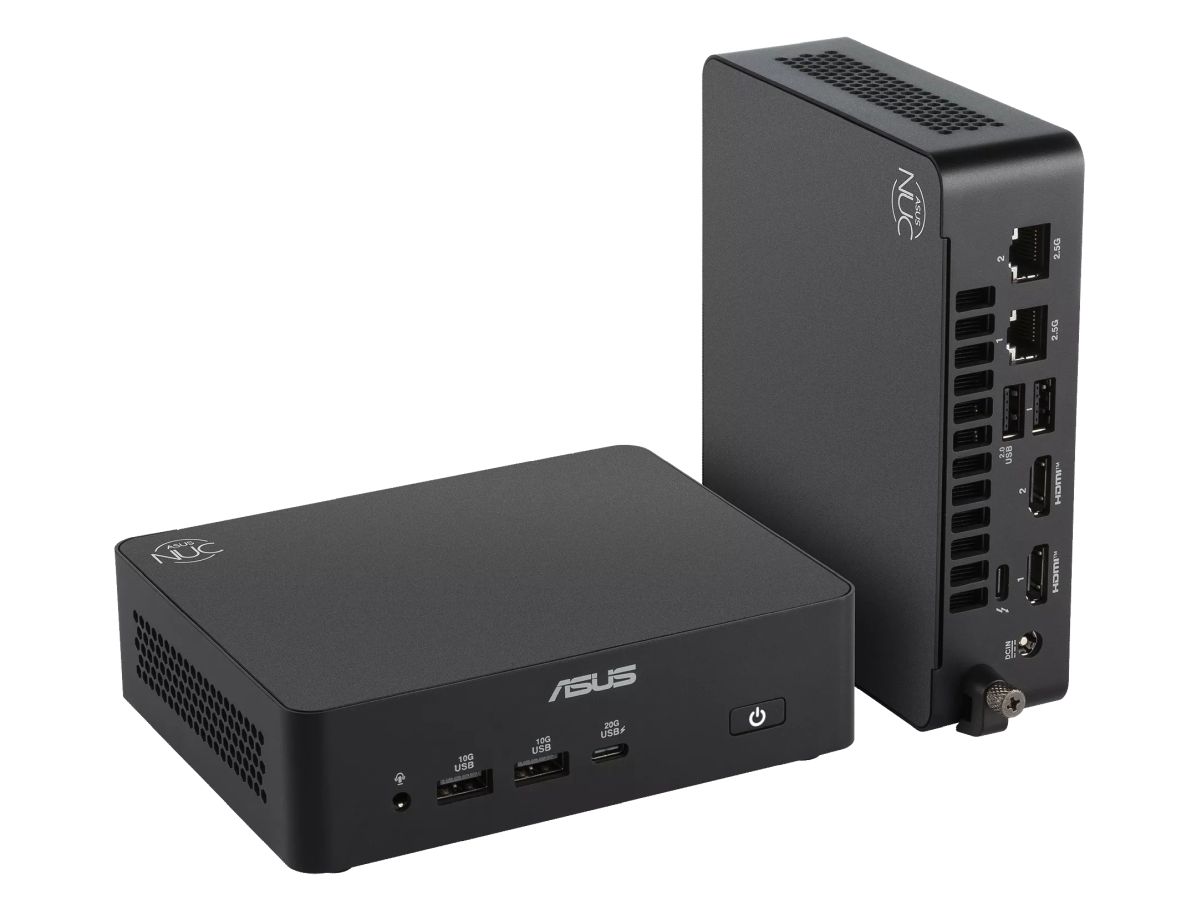

ASUS NUC 16: Premium Features on a 25 W Wildcat Lake Platform
The ASUS NUC 16 is the premium Wildcat Lake option in this trio, reusing the compact 144 x 117 x 42 mm chassis of the earlier NUC 16 Pro but pairing it with up to a 25‑watt Intel Core 7 350 processor. ASUS trims some higher‑end features from the Pro model, such as PCIe 5.0 support and dual SODIMM slots, due to platform limits. Instead, the NUC 16 offers a single CSO‑DIMM slot with up to 64 GB of DDR5‑6400 memory and one M.2 2280 PCIe 4×4 storage slot. Connectivity is where this Wildcat Lake mini PC shines: Thunderbolt 4, a second USB‑C (20 Gbps), dual 2.5 GbE LAN ports, Wi‑Fi 7 and Bluetooth 6.0 support, plus dual HDMI 2.1 outputs. According to Asus, customers can even request variants with a single Ethernet port, which helps integrators tailor the box for specific networks or thin‑client roles.
ASRock Tiny H810: Socketed Power and Storage in a Slim Chassis
ASRock’s Tiny H810 stretches the idea of a Wildcat Lake mini PC by pairing a compact 168.5 x 183 x 37 mm enclosure with an Intel LG1851 socket, so users can install their own processor. The platform is designed for up to a 65‑watt Intel Core Ultra desktop CPU based on Arrow Lake, and ASRock provides two memory slots that can take up to 128 GB of DDR5‑6400 (CSO‑DIMM) or DDR5‑5600 (SODIMM). Storage flexibility is a highlight: two M.2 2280 slots (one PCIe 5.0 x4, one PCIe 4.0 x4) plus two SATA 3 connectors for hard drives, and an M.2 2230 slot for Wi‑Fi. External ports include DisplayPort, HDMI, multiple USB 3.2 Gen 2 Type‑A, and several USB 2.0 connectors. With its “integrated cooling solution” and desktop‑class CPU support, the Tiny H810 suits small workstations or media servers more than basic office roles.
Which Compact Desktop Fits Your Workload?
Each of these systems targets a different slice of the compact desktop market. The MSI Cubi NUC WCG and ASUS NUC 16 are the pure Wildcat Lake mini PCs, built around efficient mobile‑class cores and limited to 64 GB of single‑channel memory, but in return they stay small, quiet, and easy to deploy. MSI’s box is ideal for multi‑display offices and light AI‑assisted tasks where cost and dual Ethernet matter more than peak speed. ASUS’s NUC 16 fits users who want a premium, feature‑rich Wildcat Lake mini PC with Thunderbolt 4, dual 2.5 GbE, and Wi‑Fi 7 for demanding business or enthusiast desks. ASRock’s Tiny H810 steps up to 65 W desktop CPUs and far more storage, making it the best choice for creators, lab builders, or small servers needing sustained performance inside a still‑compact footprint.
