What Defines an Ultra-Premium Moving Coil Cartridge?
An ultra-premium moving coil cartridge is a precision transducer that converts the microscopic motion of a record groove into an electrical signal with extreme accuracy, using advanced stylus shapes, rigid low-mass cantilevers, carefully tuned coils, and resonance-controlled bodies to deliver the highest vinyl playback quality for reference-level systems. In this rarefied tier, the Audio-Technica AT-MCD1 and Ortofon MC Vertex stand as flagship MC cartridge designs aimed at listeners who treat their turntables like laboratory instruments. Both models focus on pushing groove tracing, channel separation, and bandwidth to the limits of what analog can reveal. Their price tags reflect not only exotic materials like lab-grown and solid diamond, titanium, and high-purity conductors, but also decades of accumulated engineering knowledge. For anyone comparing phono cartridge options at this level, these two are now central to the conversation.
Design Philosophies: Unified Diamond vs Solid Diamond Cantilever

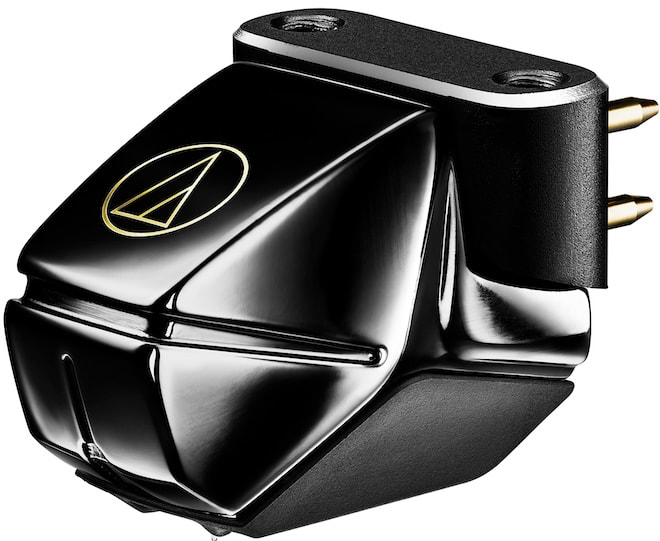

The AT-MCD1 centers on a unified diamond stylus and cantilever, formed from a single lab-grown diamond using a chemical vapor deposition process. By removing joints and adhesives between stylus and cantilever, Audio-Technica aims for a cleaner mechanical path from groove wall to coils and lower moving mass. The cartridge uses a newly developed Shibata stylus specified at r2.7 x R0.08, tuned for precise groove tracing. Ortofon’s MC Vertex follows a different route: the Vertex diamond stylus, with a 4 μm scanning radius and 110 μm contact radius, is mounted to a laser-polished solid diamond cantilever. Here, the emphasis is on extended contact area, stable tracking, and reduced localized wear. Both approaches serve the same goal—maximum signal integrity—but highlight how two engineers can interpret the flagship MC cartridge brief in very different ways.
Body Architecture, Generators, and Damping Strategies
Audio-Technica builds the AT-MCD1 around a multilayer body with an aluminum base, titanium housing, and elastomer undercover to manage resonance without deadening the sound. Inside, the dual moving coil architecture with PCOCC copper coils and a powerful magnetic circuit aims to boost channel separation and output while preserving a wide frequency response. According to eCoustics, the AT-MCD1 is specified at 20 Hz to 50,000 Hz with 0.55 mV output and 28 dB channel separation at 1 kHz. Ortofon’s MC Vertex uses a selective laser melted titanium core with a DLC coating to control mass distribution and internal geometry. A refined magnetic system with a non-magnetic armature, high-purity silver coils, and the company’s Wide Range Damping system reflects Ortofon’s focus on linear signal generation and transient precision. Both bodies are far from cosmetic; they are tuned mechanical environments for the generator system.
Price, Positioning, and the Value Equation at the Top
The AT-MCD1 enters the market at USD 11,000 (approx. RM51,000), signaling that Audio-Technica is no longer confined to affordable cartridges but competing head-on in the ultra-premium moving coil cartridge class. Its relatively healthy 0.55 mV output and recommended load of 100 ohms or higher make system matching manageable for owners of high-end phono stages. Ortofon’s MC Vertex is positioned higher at USD 16,999 (approx. RM78,500), announced as the company’s most advanced cartridge to date and a statement piece for reference turntables and tonearms. The price gap reflects different choices: unified diamond structure and PCOCC copper coils on one side, extended-contact stylus geometry, solid diamond cantilever, SLM titanium body, and high-purity silver coils on the other. For buyers at this level, value is less about cost-per-LP and more about which design philosophy best aligns with their reference system and sonic priorities.
Trickle-Down Technology: MC X50 and Accessible High-End Vinyl
While the MC Vertex grabs attention as a USD 16,999 (approx. RM78,500) flagship MC cartridge, Ortofon’s introduction of the MC X series hints at a broader strategy. The MC X50, revealed alongside the Vertex, is aimed at a much larger audience that wants premium turntable cartridge performance without entering five-figure territory. Technologies proven in the Vertex—stylus geometry choices, damping strategies, and body engineering—are likely to inform this more accessible line. For listeners comparing phono cartridge options, this is where the ultra-premium race benefits the rest of the market: advances made for the MC Vertex and AT-MCD1 will influence designs further down the ladder. In practical terms, the escalating rivalry at the top could translate into better vinyl playback quality for enthusiasts shopping at more realistic prices in the coming years.
