A Pocket-Sized Origami Satellite That Grows in Orbit

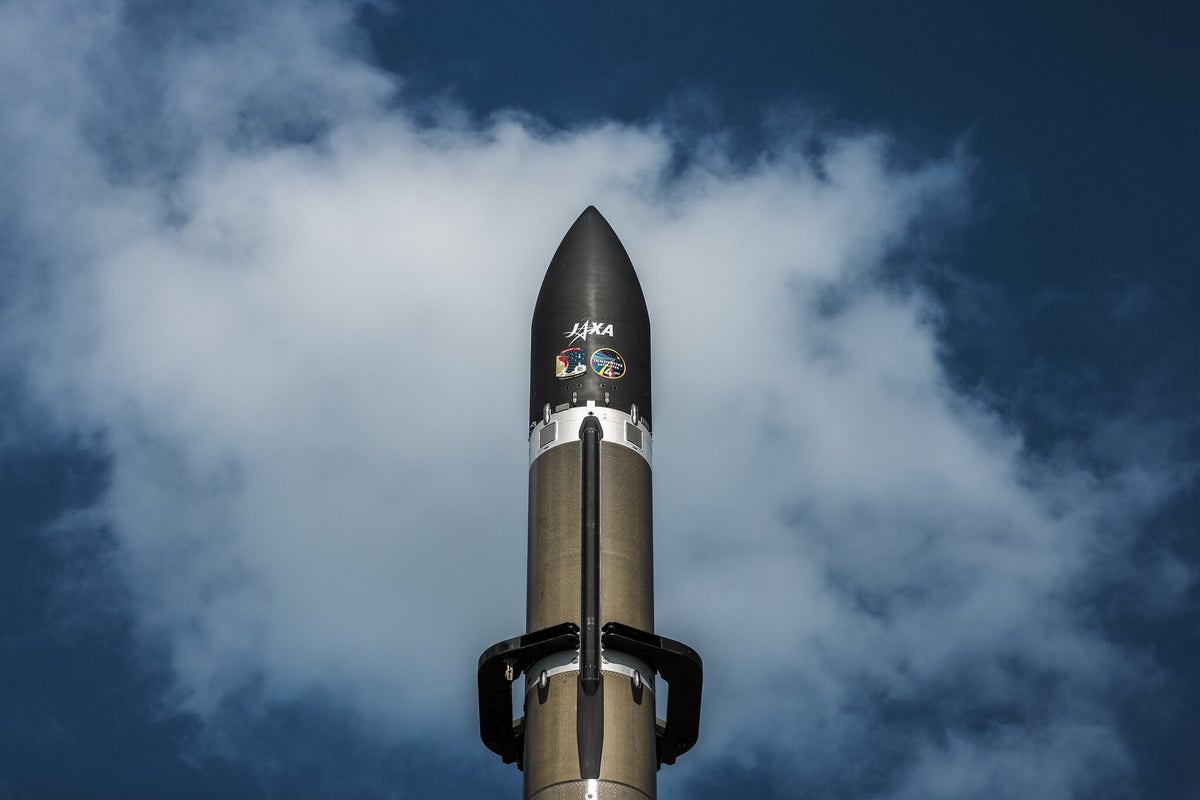

Imagine a cube just 10 cm on each side that, once in space, blooms into a flat structure 2.5 m across. That is the new origami cubesat launched by JAXA on the Kakushin Rising mission, part of its Innovative Satellite Technology Demonstration Program. Packed tightly at liftoff, the origami satellite carries a deployable reflectarray antenna designed to unfurl to roughly 25 times its folded size while orbiting about 540 km above Earth in a sun‑synchronous path. Instead of a bulky metal dish, this folding space antenna is built as a two‑layer membrane with many small antenna elements printed or mounted on its surface. When it deploys, the membrane stretches into a precise, almost mirror‑like sheet that can form a focused radio beam. The mission’s goal is to prove that such lightweight, highly packable antenna technology can survive launch, unfold reliably, and operate as planned in low‑Earth orbit.
From Miura Maps to Flasher Spirals: Origami as Space Hardware
For craft lovers, the magic of this origami cubesat lies in how familiar paper patterns become engineering tools. JAXA has long explored origami and kirigami for space structures, drawing on ideas like Dr. Miura Koryo’s famous “Miura fold,” once popularized in large road maps. That pattern, which collapses a big sheet into a compact, easy‑to‑open bundle, was used on the Space Flyer Unit’s solar panels and has inspired later satellite designs. The new origami satellite, however, uses a different concept: a flasher pattern. If you have ever folded a circular flasher that twists open in a spiral, you already understand the basic deployment motion. In space, the folded membrane sits like a tightly wound coaster. Once released, it unwinds in a controlled spiral, transforming into a broad, flat surface. This switch from linear map folds to radial flashers lets engineers pack circular or square antennas extremely efficiently into tiny cubes.
How a Folding Reflectarray Antenna Works
The heart of this origami cubesat is its folding space antenna, a reflectarray. Instead of relying on a deep metal bowl like a traditional satellite dish, a reflectarray spreads many small reflecting elements across a thin, flat sheet. A central feed, similar to the rod in a parabolic dish, sends out radio waves that bounce off the patterned surface. By carefully tuning each element, engineers can control the phase of the reflected signal and steer a narrow, high‑gain beam without moving the whole structure. For paper‑crafters, think of a tessellated pattern of tiny squares, each with a slightly different fold or thickness: the overall sheet looks flat, but every tile plays a distinct role. Here, those “tiles” are electronic rather than paper folds, but the principle is similar. The challenge—and the reason origami is vital—is keeping the sheet flat, tensioned, and precisely shaped after unfolding from a cramped 10 cm cube.
Why JAXA’s Origami Tech Matters for Small, Low‑Cost Satellites
Space agencies and universities are turning to CubeSats because launch mass and volume are at a premium. Traditional communication satellites can weigh over six tonnes and require enormous, rigid antennas. By contrast, a cubesat weighing only a few kilograms can hitch a ride on smaller rockets yet still perform sophisticated tasks—if its hardware can fold cleverly enough. JAXA’s origami satellite is part of a broader push to make compact, low‑cost spacecraft more capable by giving them deployable structures: reflectarray antennas for communications, solar sails for propulsion, and flexible panels for power. Earlier missions such as IKAROS showed that origami‑folded sails could harness sunlight for interplanetary travel. Now, JAXA is extending those lessons to high‑gain antennas. Reliable origami deployment techniques reduce the need for heavy mechanical booms and hinges, cutting mass and complexity while allowing tiny satellites to behave like much larger platforms once they unfurl in orbit.
From Kitchen Table to Classroom: Turning Space Origami into DIY STEM
The crossover between paper folding engineering and aerospace makes this origami cubesat a perfect spark for STEM‑friendly craft projects. To visualize the antenna, try folding a Miura‑style map from a large sheet, then compress it into a compact brick—just as solar panels do. Next, experiment with flasher patterns by creating a disk that collapses into a tight spiral and then pops open flat, echoing the satellite’s deployment. Modular cubes built from smaller folded units can represent a stack of CubeSats awaiting launch. In classrooms, students can design “paper reflectarrays” by drawing grids of squares, coloring each tile differently to represent tuned elements, and discussing how a flat sheet can still focus waves. These hands‑on activities connect familiar desk origami to cutting‑edge origami satellite missions, showing how creative folding can solve real engineering problems and inviting a new generation of makers to imagine their own folding space antenna ideas.
