What a CPU GPU Bottleneck Really Is
A CPU GPU bottleneck is a temporary situation during gaming where either the processor or graphics card becomes the slowest stage in the frame pipeline, so one component waits idle while the other finishes its work, limiting overall frame rate and smoothness regardless of how powerful the rest of the hardware is. In simple terms, if the GPU cannot render frames as fast as the CPU prepares them, you are GPU‑bound; if the CPU cannot feed draw calls and game logic fast enough to keep the graphics card busy, you are CPU‑bound. This state shifts from scene to scene depending on resolution, settings, and target FPS. A dense open‑world city, a quiet corridor, or a big multiplayer match can all move the bottleneck. That is why gaming performance diagnosis must look beyond average FPS and examine how both chips behave over time.
Fast Reality Check: Using Performance Overlays
Start your gaming performance diagnosis with an in‑game overlay. Tools such as MSI Afterburner with RTSS, the NVIDIA app, AMD Adrenalin, CapFrameX, or Intel PresentMon can display live CPU and GPU stats. Track GPU usage, power, clocks, and VRAM, plus CPU total and per‑core load, RAM use, FPS and frame times. If GPU usage stays around 95–100%, power is high and clocks are steady at boost speeds, the system is in a healthy GPU bottleneck: raising resolution or quality will lower FPS, while lowering them will increase FPS. If GPU usage sits well below 90%, power is low and changing resolution or graphics presets barely moves FPS, the limit is on the CPU/platform side. Note that CPU usage does not need to reach 100% to indicate a CPU-side bottleneck because many games lean on a few busy threads while others stay lightly loaded.
Frame Time Analysis: Looking Past Raw FPS
Average FPS hides stutter and uneven delivery, so the next step is frame time analysis. Frame time is the interval between frames that reach your display; lower and more consistent times mean smoother motion. A 60 FPS average implies about 16.7 ms per frame, but if some frames spike to 40 ms, you will feel hitching even though the FPS counter looks fine. Use your overlay or CapFrameX to plot frame times and check 1%/0.1% lows. Long, recurring spikes that match CPU activity suggest a CPU bottleneck or data streaming issue, while spikes aligned with GPU usage or VRAM saturation point to a GPU limit. According to Wccftech, you can be “severely CPU‑bound even if your total CPU usage looks deceptively low,” which is why timing data across many frames is more trustworthy than a single utilization percentage.
Advanced Bottleneck Testing Tools: CapFrameX and PresentMon

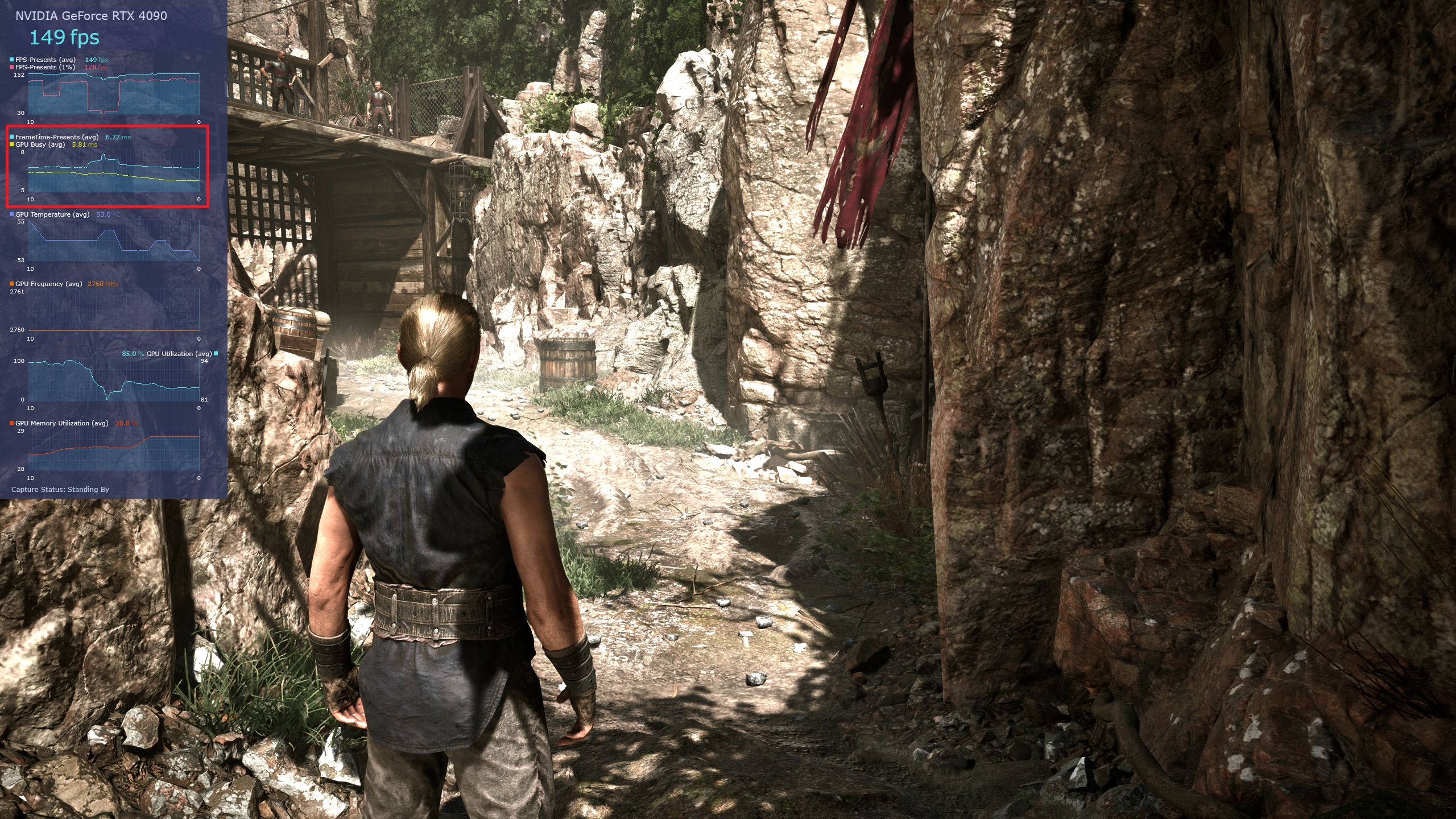

For detailed bottleneck testing tools, CapFrameX and PresentMon give a deeper view of each frame’s journey. CapFrameX can capture runs, graph frame times, and separate CPU and GPU timing data, making it easier to see which component stretches each frame. Capture several repeats of a demanding scene, then compare runs at different resolutions and settings. Intel’s PresentMon adds a metric called GPU Busy, which shows how long the GPU was actively rendering per frame. If GPU Busy nearly matches total frame time, the game is GPU‑limited; if frame time is much longer than GPU Busy, the delay lies on the CPU, memory, or storage side. An overlay screenshot from Gothic 1 Remake demonstrates a 0.91 ms gap between frametime and GPU Busy, revealing that something other than the GPU was holding performance back even with a high‑end card installed.
Real‑World Upgrade Decisions: When the CPU Holds Back a New GPU
Understanding bottlenecks is essential before spending on upgrades. A high‑end GPU will not guarantee large gains if the CPU cannot keep it fed. CNET compares this to a restaurant: the CPU is the waiter taking orders, and the GPU is the kitchen preparing food. Faster cooks cannot speed up service if the wait staff is already overwhelmed. In a gaming PC, swapping to a much stronger GPU in an older CPU platform can leave the card underused in CPU‑bound titles, improving performance only slightly instead of the big leap you expected. The same rig may still be GPU‑bound in visually heavy single‑player games while becoming CPU‑limited in massive multiplayer shooters. Before upgrading, test your current system: if most of your favorite games are CPU‑bound at your target FPS, a CPU and platform upgrade will provide more benefit than another GPU swap.
