What Minisforum’s Fanless Wildcat Lake NAS Is

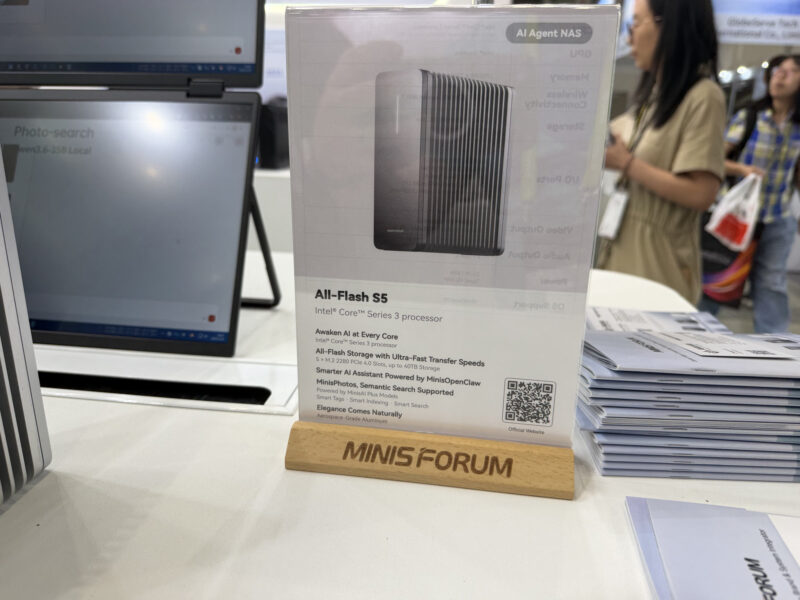

Minisforum’s fanless Wildcat Lake NAS is an ultra-compact, all-flash storage appliance that combines silent, passive cooling with 10GbE networking, five M.2 SSD bays, and Intel’s Core Series 3 Wildcat Lake platform to deliver mid-range performance for creative professionals and small businesses that need quiet, high-speed shared storage without the noise, size, or power draw of traditional rackmount servers. Branded as the Minisforum S5, this fanless NAS system focuses on efficient NAS operations, low power consumption, and strong I/O rather than raw CPU horsepower. It runs Minisforum’s MiniCloud OS with preloaded agentic AI tools for light media indexing and photo tagging tasks, turning the box into more than a simple file server. The result is a compact appliance that aims to sit discreetly on a desk or shelf while feeding multi-gigabyte projects to several editors at once.
All-Flash Storage: Five M.2 Slots Tuned for Capacity
At the heart of the S5 is an all-flash storage layout built around five M.2 2280 SSD slots, each connected via PCIe Gen4 x1. This configuration prioritizes capacity and parallelism over headline NVMe speeds, with each drive receiving around 2 GB/s of bandwidth—plenty for multi-stream creative workloads and far beyond what spinning disks can handle. According to ServeTheHome, “the name of the game here is favoring storage capacity over storage speed,” a practical choice for a mid-range fanless NAS system. Minisforum quotes support for up to 40 TB of all-flash storage across these slots, while the operating system lives separately on a 64 GB UFS 2.2 chip so the data pool remains clean and easy to expand. For editors and small teams, this means room for large RAW libraries or shared project caches without juggling external drives.
Silent, Fanless Design and Thermal Performance

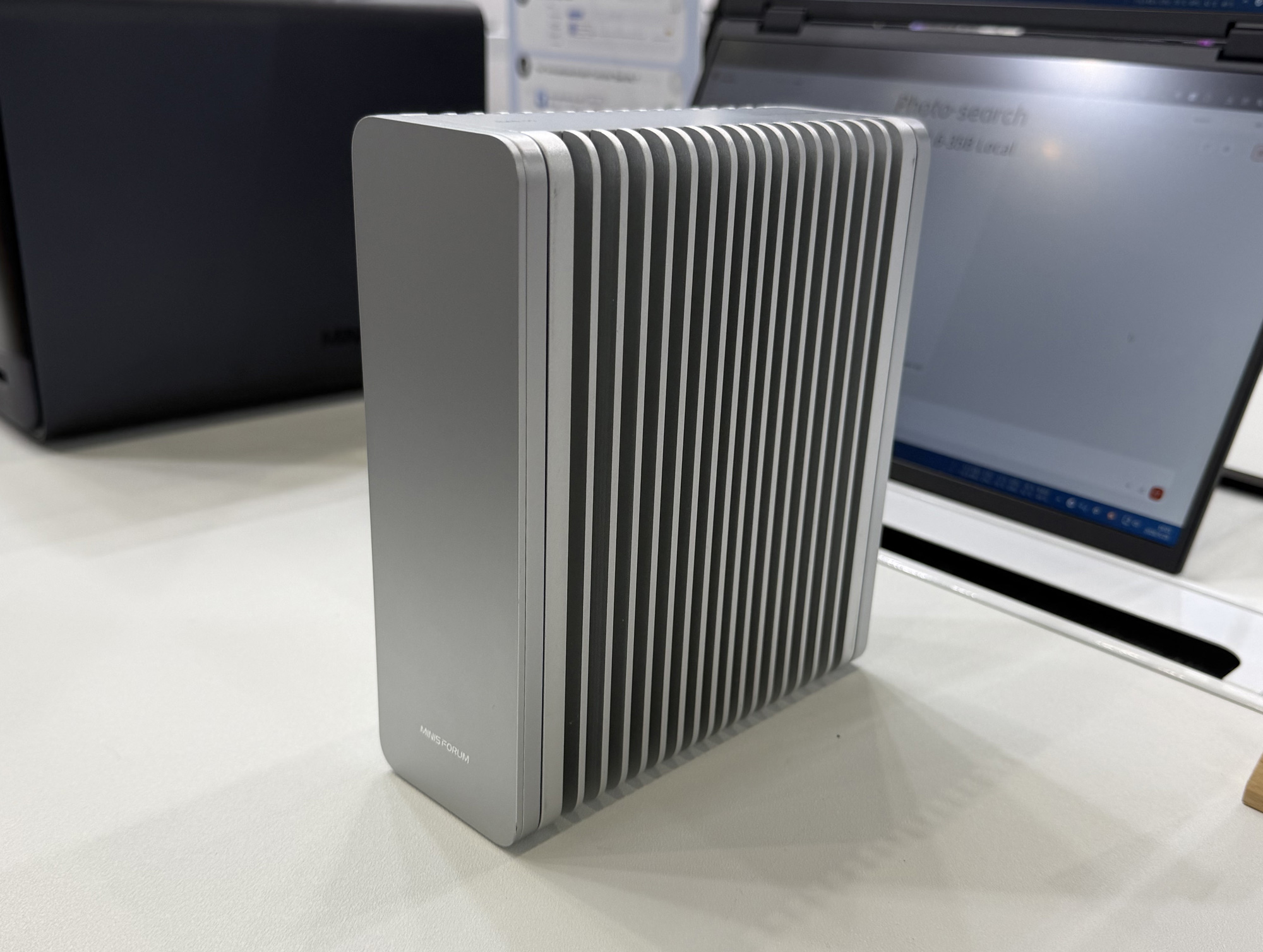

Silence is a central promise of the S5. The NAS uses a fully fanless design and an all-aluminum chassis that doubles as a heatsink, with integrated fins to improve heat dissipation from the Wildcat Lake platform and the populated SSDs. The low-power Core Series 3 processor and M.2-based all-flash storage keep thermal output within a range that passive cooling can handle, even under sustained NAS workloads. This makes the unit suitable for sound-sensitive spaces such as edit suites, podcast rooms, or home studios where the whine of fans is unacceptable. The chassis is compact enough to tuck behind a monitor or into a shelf, and the absence of moving parts reduces both potential failure points and dust intake. For teams that leave their storage online around the clock, the combination of quiet operation and modest power draw is a practical advantage.
10GbE Networking for Modern Creative Workflows

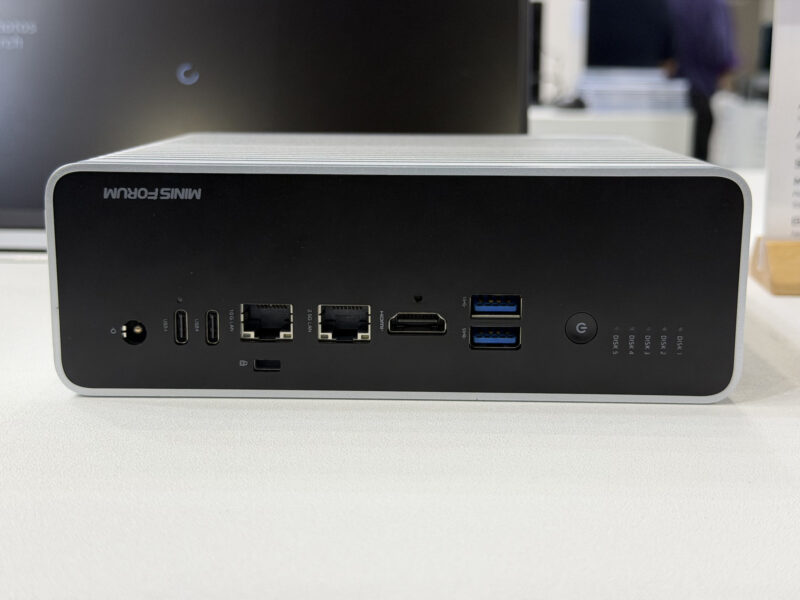

Networking is where the S5 steps beyond budget NAS boxes. Minisforum pairs the five-way all-flash storage with dual Ethernet ports: 10GbE plus 2.5GbE, driven in part by a Realtek RTL8127 10GbE controller. Even a single PCIe Gen4 lane per SSD can provide more bandwidth than 10GbE can saturate, so the network becomes the main ceiling rather than the internal bus. For creative professionals working with 4K or higher media, that 10GbE networking link supports fast project loads, smooth multi-user access to shared footage, and quicker backups to other high-speed endpoints. On the back panel, the S5 also includes two 40 Gbps USB4 Type‑C ports and two 10 Gbps USB‑A ports, making it easy to attach high-speed external drives or use USB networking when needed. HDMI 2.1 output rounds things out for local management or media display.
Wildcat Lake Platform and AI-Ready MiniCloud OS

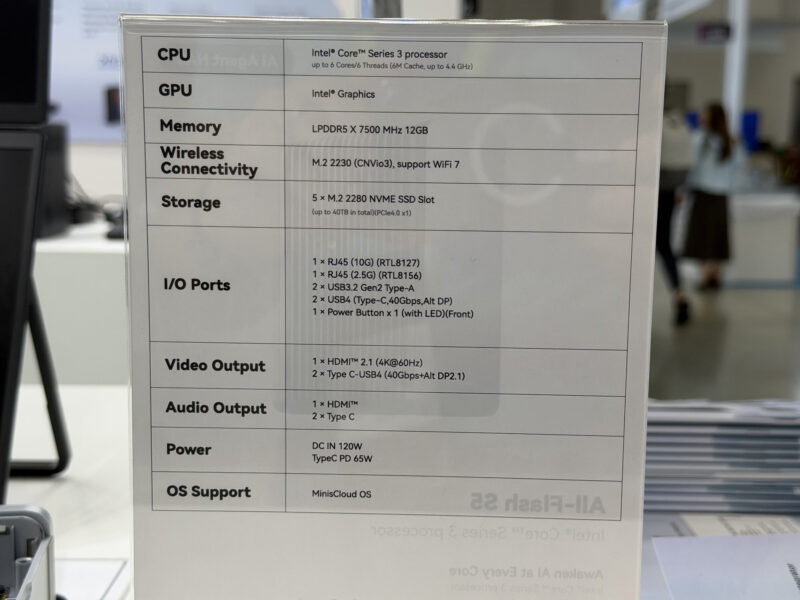

The S5 is built on Intel’s Core Series 3 Wildcat Lake platform, with Minisforum targeting configurations of at least 5 CPU cores (1 performance plus 5 efficiency cores) and up to 6 cores total according to earlier disclosures. It ships with 12 GB of soldered LPDDR5X‑7500 memory, which is ample for NAS tasks, lightweight AI workloads, and concurrent users on MiniCloud OS. Minisforum’s MiniCloud OS is a NAS-focused environment that comes preloaded with AI tools such as MinisOpenClaw and the MinisPhotos photo cataloging and tagging app. While the Wildcat Lake platform’s NPU and iGPU are modest compared with higher-end chips, Minisforum expects them to be enough for local semantic search, simple agentic automations, and media indexing. Positioning the S5 as a mid-range, AI-aware fanless NAS system, the company sits between low-end Alder Lake-N boxes and high-cost enterprise arrays.
