What a Rotating Detonation Rocket Engine Is—And Why It Matters
A rotating detonation rocket engine (RDRE) is an experimental propulsion system that uses continuous, supersonic detonation waves circulating in a ring-shaped combustion chamber to produce thrust more efficiently than conventional rocket engines that rely on slower, subsonic combustion. In an RDRE, fuel and oxidizer are injected into an annular chamber where self-sustaining pressure waves, rotating tens of thousands of times per second, compress and burn the mixture, potentially delivering higher performance for the same propellant flow. Students from ETH Zurich’s Aris initiative have ground‑tested such a detonation rocket engine, fabricated with metal 3D printing, and achieved stable detonation waves in a bi‑liquid configuration. Their work offers a clear example of how additive manufacturing propulsion research is starting to turn cutting‑edge combustion concepts into working hardware that conventional machining would struggle to realize.
Inside the ETH Zurich Student RDRE Breakthrough

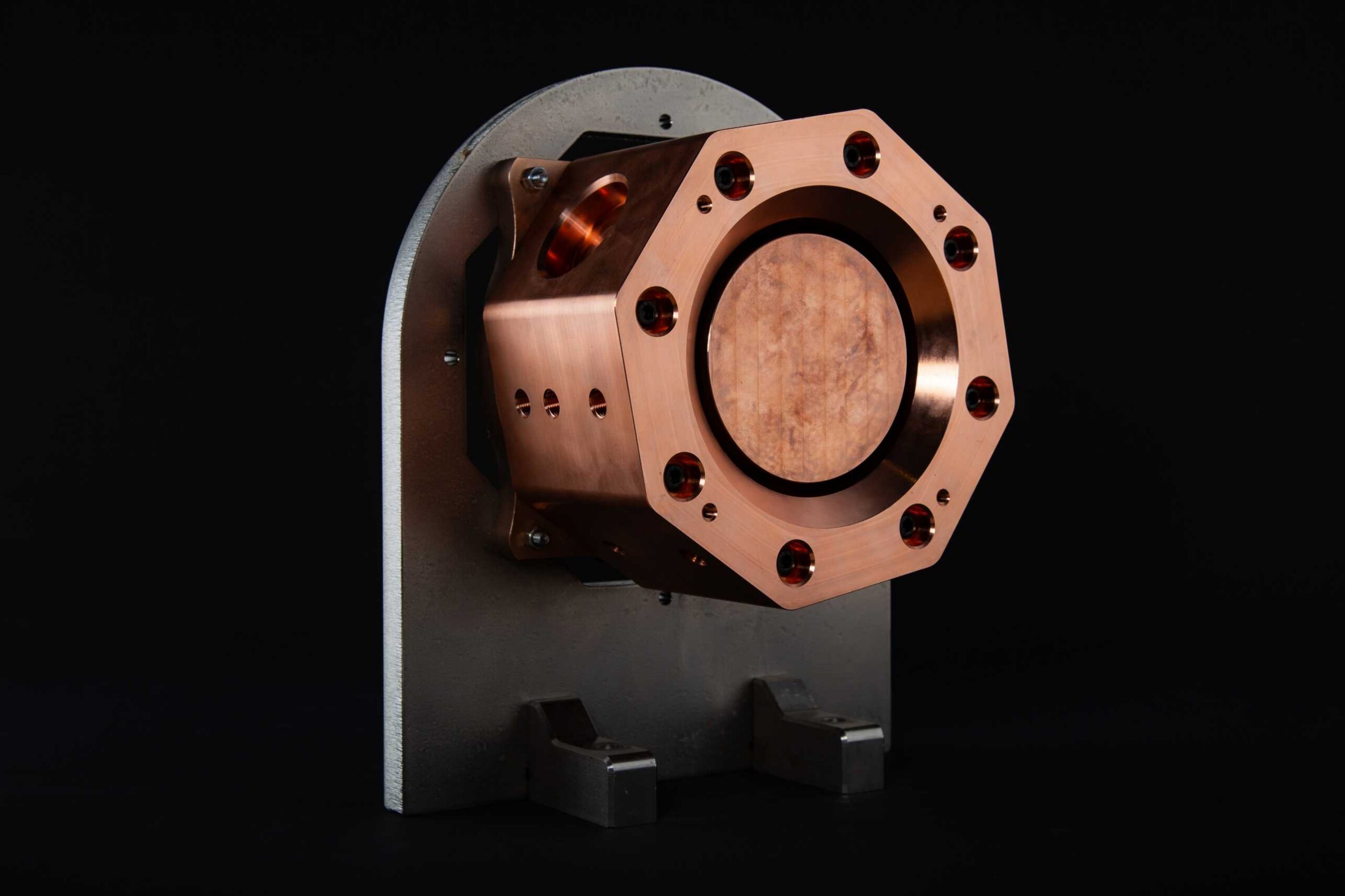

The Pegasus team within ETH Zurich’s Aris student space initiative designed and fired an RDRE whose combustion chamber and injector were produced by metal additive manufacturing. The hexagonal combustion chamber, about the size of a dinner plate, was 3D printed in copper and paired with iterative injector prototypes tailored for a bi‑liquid propellant feed. During testing at Dübendorf airfield, the engine produced three confirmed detonation waves on its second ignition attempt, a rare achievement in academic projects. Pegasus reports this makes Aris the first student team to ignite a liquid‑fuelled 3D printed rocket engine of the RDRE type, a configuration previously demonstrated only in a limited number of professional programmes worldwide. RDREs are estimated to deliver 10–20% more power than conventional combustion engines using the same amount of fuel, highlighting their potential for higher‑efficiency space propulsion.
How Metal 3D Printing Enables Complex, High‑Performance Geometries
At the heart of this additive manufacturing propulsion effort is the injector, developed by mechanical engineering student Mattia Röösli as part of a focus project. Laser powder bed fusion (LPBF) allowed the team to move from calculations to tangible hardware quickly, printing multiple injector variants and a copper combustion chamber with internal features that would be difficult or impossible using traditional methods. Intricate cooling channels, fine flow passages, and the ring‑shaped detonation geometry can be integrated into a single metal 3D printing aerospace part, reducing assembly steps and improving thermal management. Röösli explained their process as cycles of sketching, team review, and refinement, with new challenges emerging every time a prototype arrived on the table. This rapid, hands‑on iteration is central to exploring RDRE designs, where small geometric changes can strongly affect detonation stability and engine durability.
Detonation Efficiency and the Future of Additive Propulsion
RDRE technology aims to capture the efficiency benefits of detonation, where supersonic combustion can provide higher pressure and better fuel use than conventional deflagration in rocket chambers. According to VoxelMatters, RDREs are projected to deliver 10–20% more power than conventional combustion engines for the same fuel quantity, making them a promising path for more compact, efficient launch and in‑space propulsion systems. Metal additive manufacturing is a key enabler, letting engineers tune the annular channel shape, injector pattern, and cooling layout around the extreme pressures and temperatures created by detonation waves circulating up to 20,000 times per second. As 3D printed rocket engine research matures, RDRE designs could influence commercial engines that demand higher performance without dramatic increases in propellant mass or complexity.
Why Student Teams Are Pushing the Additive Manufacturing Frontier
Beyond its technical impact, the ETH Zurich project shows how academic teams are turning metal 3D printing into a training ground for future propulsion engineers. Students handled everything from safety concepts and system design to test‑firing, gaining practical experience with finite element analysis, design for additive manufacturing, and post‑processing of metal AM hardware. Röösli emphasizes the accessibility of this frontier work, noting that “you don’t need to be exceptionally talented to develop a rocket engine after two years of study. You go step by step and help each other.” The project structure demands close cooperation between systems, simulation, propulsion, and manufacturing subteams, mirroring the integrated workflows of space companies. As additive manufacturing costs fall, similar student‑driven 3D printed rocket engine efforts could accelerate innovation in aerospace while training people to handle complex, cross‑disciplinary hardware programmes.
