What the ROG Ally X20 Is and Why the AR Glasses Bundle Matters

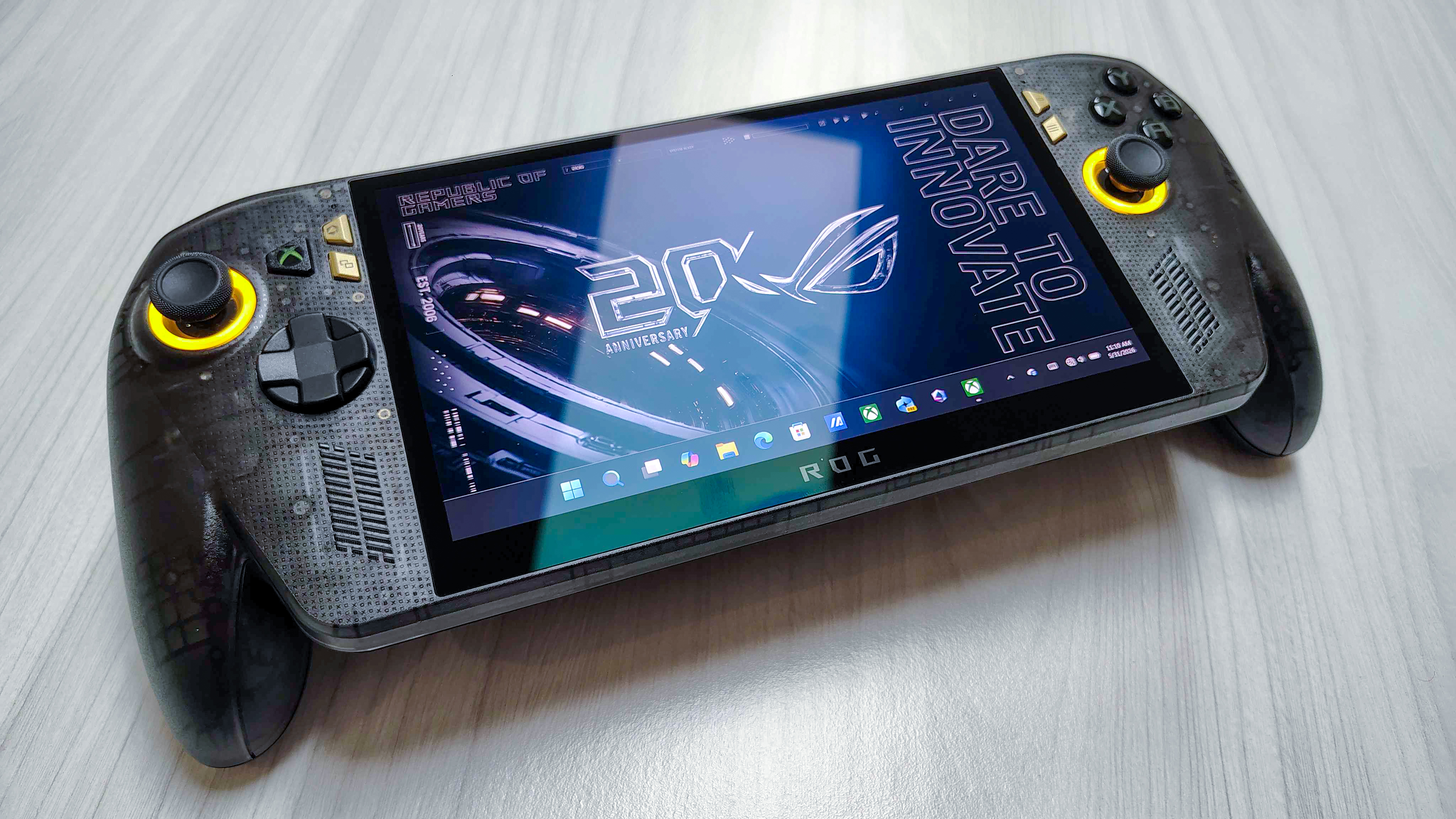

The ROG Ally X20 is a limited-edition OLED handheld gaming PC that bundles XREAL R1 AR glasses, combining traditional on-device play with portable AR gaming to create a hybrid, dual-screen experience aimed at more immersive and flexible handheld gaming sessions. Built as a 20th anniversary Republic of Gamers showpiece, the X20 refines the original Ally X rather than replacing it outright. ASUS keeps the AMD Ryzen AI Z2 Extreme processor, Radeon 890M graphics, 24GB of LPDDR5X RAM, and 1TB NVMe storage, but wraps them in a translucent black shell with gold accents and a glowing Xbox Mode button. According to Expert Reviews, the top bezel is now 60% smaller, making the 7.4-inch OLED panel feel more spacious and modern. The twist is its smart glasses integration: every X20 ships bundled with AR eyewear instead of offering a standalone console-only option.
OLED Handheld Gaming Upgrades: Screen, Cooling and Ergonomics

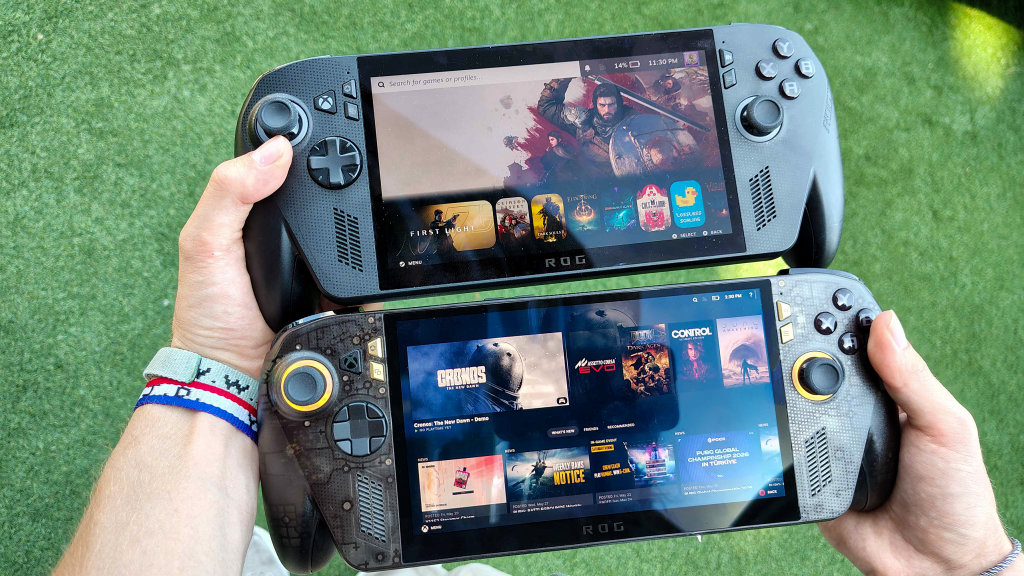

At the center of any ROG Ally X20 review is the new display. ASUS replaces the earlier 7-inch LCD with a 7.4-inch OLED panel at 1080p, 120Hz, and variable refresh down to 30Hz. Techeblog notes that this OLED reaches 1,400 nits peak brightness, supports Dolby Vision, and carries VESA DisplayHDR TrueBlack 1000 certification, pushing HDR handheld visuals well beyond the original Ally X. An anti‑reflective coating and Corning DXC glass help cut glare and protect the screen, while the smaller bezel makes the image feel larger without enlarging the device. Under the shell, ROG Intelligent Cooling with dual fans aims to hold noise to around 30dB, keeping the hardware comfortable under sustained loads. The X20 gains some weight but trades that for a rubberized rear grip, which should make longer gaming sessions easier to manage, especially when you are also tracking a second virtual screen in AR.
Refined Controls: Transforming D-Pad, TMR Sticks and Input Tweaks

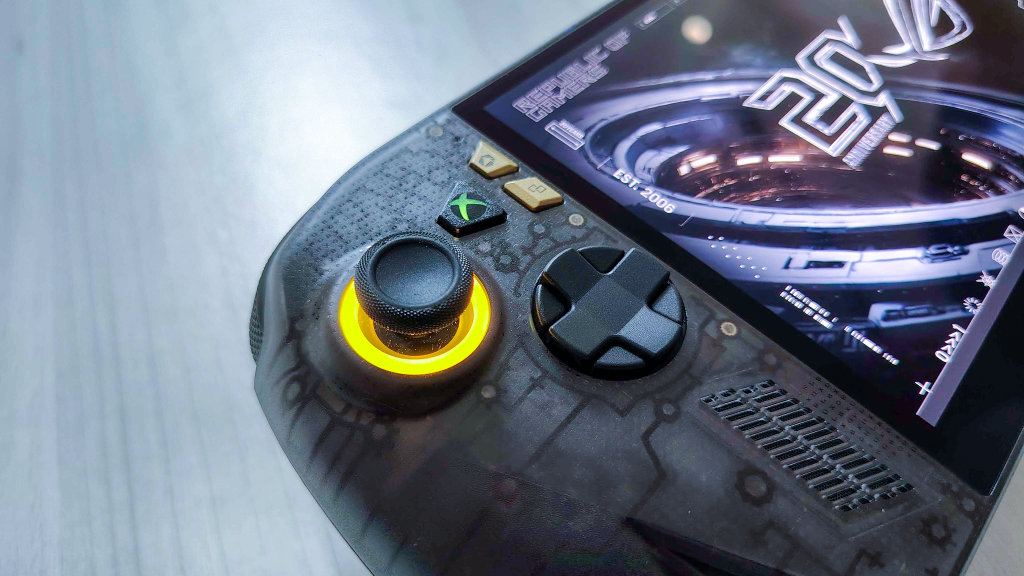

ASUS positions the X20 as a direct response to player complaints about the first Ally X, focusing heavily on feel and reliability. The transforming D‑pad can switch between four-way and eight-way input by pulling, twisting, and locking it in place, which ASUS highlights as a win for fighting games and retro titles that demand strict diagonals. TMR (tunnelling magnetoresistance) joysticks replace traditional potentiometer designs, using magnetic sensors to increase precision and reduce the risk of stick drift over time. Techeblog adds that face buttons now sit closer to the shell, need less force, and make less noise, while the bumpers have been moved slightly and given longer but quieter travel for clearer feedback. There is also a new action button that snaps screenshots and records video without leaving the game. Together, these changes target daily pain points rather than headline-grabbing specs.
AR Glasses Gaming: How Smart Glasses Integration Changes Handheld Play

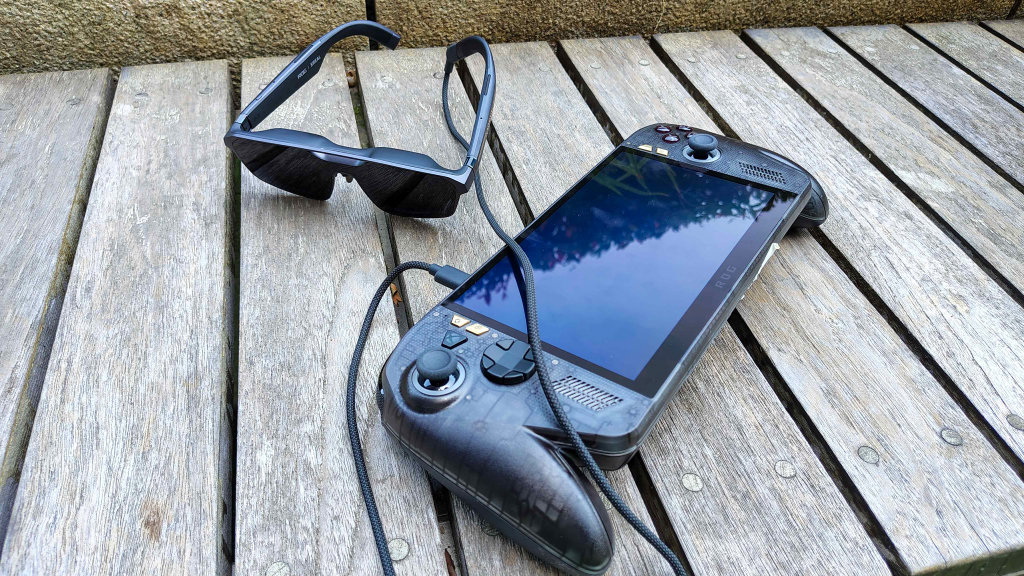

The most forward-looking part of the Ally X20 is its smart glasses integration. Instead of treating AR as an optional accessory, ASUS sells the handheld only as a bundle with XREAL R1 Edition 20 AR glasses. This pairing turns the X20 into a portable AR gaming hub, where the on-device OLED becomes one screen and the glasses act as another, expanding usable screen space. In practice, players can keep core gameplay on the handheld while floating a second display in their field of view for maps, chats, or streaming tools, hinting at new dual-screen game designs. For more traditional play, the glasses can act as a large virtual monitor, giving console-like scale without a TV. This deep smart glasses integration pushes AR glasses gaming from a niche experiment into something closer to a standard feature for power users.
What the Ally X20 Signals for the Future of Portable AR Gaming
Beyond limited-edition appeal, the Ally X20 points to where handheld gaming may be heading. An OLED handheld gaming device with high-refresh HDR and a larger screen addresses obvious visual demands, while TMR sticks, a transforming D‑pad, and improved haptics respond to complaints about accuracy and comfort. More interesting is the decision to make AR glasses part of the default package rather than a bolt‑on extra. That move implies ASUS sees portable AR gaming as a practical extension of PC handhelds, not a novelty. If developers start treating the glasses as a second screen, we could see genres like strategy, racing, and simulation use AR overlays for telemetry, inventory, or social features. For now, the Ally X20 is a collectible proof of concept, but its tight smart glasses integration hints that future ROG handhelds may treat dual‑screen AR as a normal way to play.
