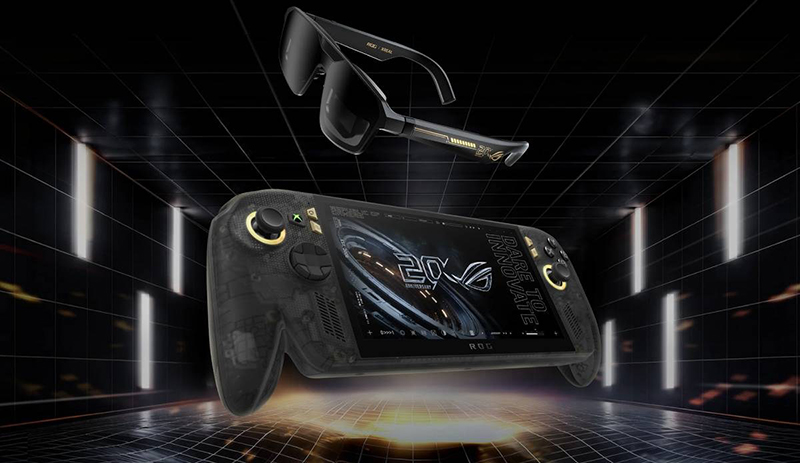

What the ASUS ROG Ally X20 Is and Why It Matters
The ASUS ROG Ally X20 is a limited-edition handheld gaming device that combines a Ryzen AI Z2 Extreme processor with a 7.4‑inch OLED display to deliver premium portable gaming performance, improved controls, and advanced cooling aimed at serious players who want PC‑class experiences in a compact, Xbox‑focused form factor. Positioned as the most feature-rich entry in the Ally family, the Ally X20 refreshes the design, adds more memory and storage, and debuts ASUS’s first OLED display handheld in the ROG Ally line. It runs Windows 11 Home, supports a dedicated Xbox mode, and includes Microsoft’s Auto Super Resolution upscaling, blurring the line between compact gaming PC and portable gaming console. Bundled AR glasses highlight ASUS’s ambition to turn this device into a complete portable gaming setup built around high-end visuals and strong processing power.
Ryzen AI Z2 Extreme: Processing Power for a PC-Class Handheld
At the heart of the ASUS ROG Ally X20 is AMD’s Ryzen AI Z2 Extreme, an 8‑core, 16‑thread processor with integrated Radeon graphics and an XDNA NPU rated for up to 50 TOPS of AI performance. According to PC Guide, the chip can boost up to 5.0GHz, putting it close to thin‑and‑light gaming laptops while staying within handheld power envelopes. The Ally X20 pairs this with 24GB of LPDDR5X dual‑channel memory and a 1TB PCIe 4.0 NVMe SSD, giving enough RAM headroom for demanding PC games and large game libraries. Support for Microsoft Auto SR upscaling is especially important, because it lets the portable gaming console maintain smooth frame rates at 1080p on-device or on larger external displays. For serious portable gamers, this combination positions the Ally X20 as a full Windows gaming PC that happens to be handheld sized.
7.4-Inch OLED Display: A First for ROG Ally Handheld Gaming
The Ally X20’s most visible upgrade is its 7.4‑inch OLED display, the first OLED display handheld in the ROG Ally series and a key differentiator against LCD rivals. The ROG Nebula HDR panel runs at 1920 × 1080 with a 120Hz refresh rate, 0.2ms response time, and FreeSync Premium Pro support, promising smooth animation with low blur. ASUS specifies 100% DCI‑P3 coverage, Pantone validation, Dolby Vision HDR, 600 nits SDR brightness, and up to 1,400 nits in HDR, which should yield deep blacks and lively highlights that stand out in portable play. Gorilla Glass Victus and a Gorilla Glass DXC coating help resist scratches while cutting reflections, important for gaming on the go. Together, these traits move the Ally line firmly into OLED display handheld territory, competing directly with other premium portable gaming consoles that prioritize visual quality.
Thermals, TMR Sticks, and Controls Tuned for Long Sessions
Sustained performance has been a challenge for many handheld gaming devices, so ASUS redesigned the Ally X20 chassis and cooling system. The new thermal layout directs more airflow toward the Ryzen AI Z2 Extreme while also managing heat around the OLED panel during long plays, aiming to reduce throttling and screen temperature buildup. On the input side, ASUS introduces TMR joysticks, which are designed for better precision and durability compared with earlier thumbsticks. A transforming D‑pad that switches between four‑way and eight‑way modes helps for both platformers and fighting games, and redesigned face buttons and HD haptics round out the control scheme. With an 80Wh battery, dual USB‑C ports, stereo speakers with Dolby Atmos, WiFi 6E, Bluetooth 5.4, and a microSD slot, the Ally X20 looks built for extended docked or handheld sessions without feeling like a cut‑down PC experience.
Positioning in the Portable Gaming Console Landscape
The ASUS ROG Ally X20 targets serious portable gamers who value premium screens and strong processing more than entry-level pricing. As a limited-edition 20th‑anniversary model bundled with ROG XREAL R1 Edition 20 Gaming AR Glasses, it aims to be a complete portable gaming ecosystem. The glasses connect over USB‑C and project a virtual 171‑inch display at up to 240Hz, extending the handheld gaming device into a big‑screen PC that fits in a bag. With Windows 11, dedicated Xbox mode, and Auto Super Resolution, the Ally X20 competes not only with other OLED display handheld systems but also with compact gaming laptops for docked use. ASUS has not yet confirmed an exact release date, but with specifications already public, the Ally X20 is clearly positioned as a flagship portable gaming console built around OLED visuals, Ryzen AI Z2 Extreme performance, and refined ergonomics.
