How to Set Up Dual ISP Failover on Your Home Router

What Dual ISP Failover Is and Why You’d Want It

Dual ISP failover is a home router redundancy setup where your router connects to two independent internet providers at once and automatically shifts new traffic to the backup connection whenever the primary WAN fails, so work tools, streaming, and online services stay reachable without you reconfiguring devices or reconnecting Wi‑Fi each time your main line goes down.

If your home network has become more than “just Wi‑Fi” and now runs homelab services, remote work tools, or family entertainment, a single ISP is a single point of failure. Many people learn this the hard way when maintenance windows or fiber cuts stretch to 12–24 hours. Dual ISP failover gives you an internet backup connection: when one line breaks, the other keeps your network usable. The catch is that you need a router that supports multi‑WAN failover and two independent connections, whether that’s fiber plus fixed wireless or home broadband plus a phone-based data plan. This guide walks you through turning that hardware into a seamless WAN failover setup.

What You Need for Home Router Redundancy

Before you touch any settings, check your prerequisites. First, you need two independent ISPs: for example, a home fiber line and a fixed‑wireless "airfiber" link so your whole home doesn’t depend on one cable. The goal is simple: if one fails, the other takes over. Your secondary can also be a cellular internet backup connection; a spare phone with tethering and a data plan can sit near your router and step in during outages.

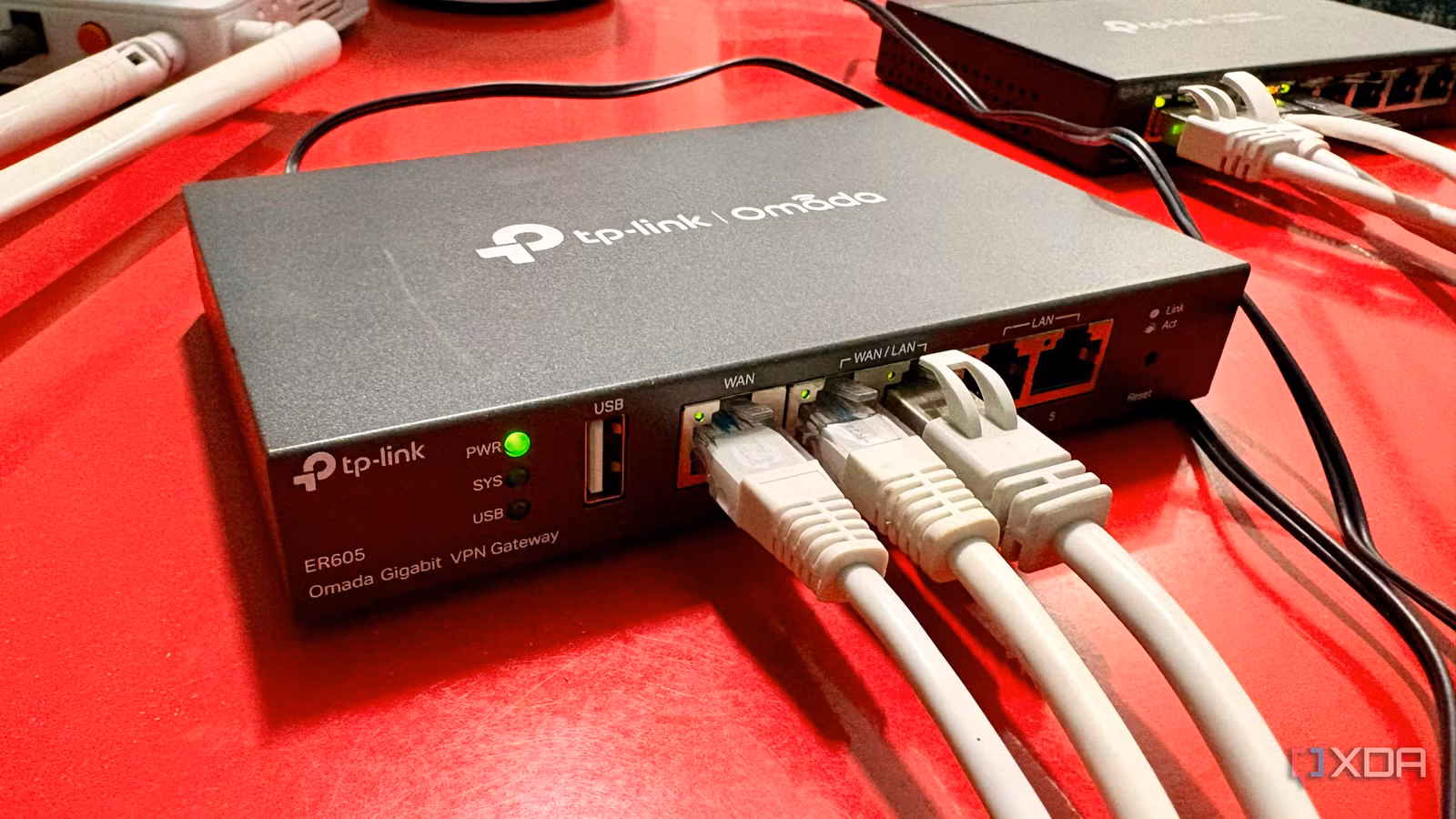

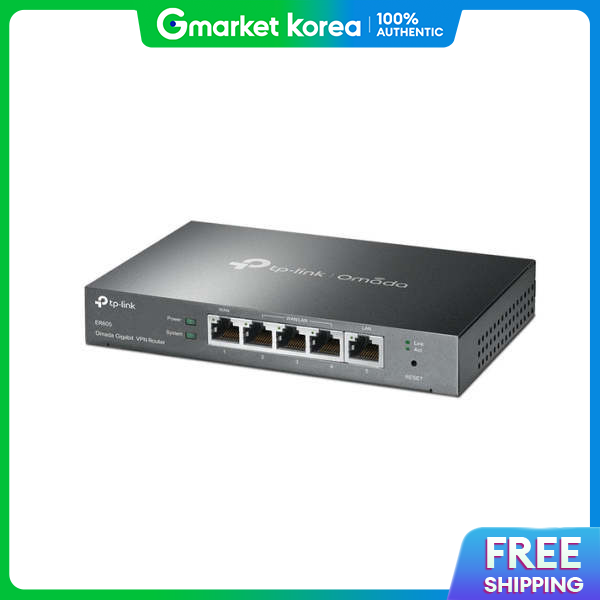

Second, you need a router or gateway with dual WAN support and failover features. Multi‑WAN gateways keep both connections up and decide where traffic goes, and models like the ER605 show how a single device can manage multiple ISPs at once. On some routers that lack a second physical WAN port, USB tethering or a wireless WAN mode lets the router treat your phone’s hotspot as another WAN input. Finally, be prepared to spend time in the router’s web interface: you’ll be assigning each ISP to a WAN port, setting failover priority and online detection intervals, and fine‑tuning behavior to keep sessions stable during outages.

Step-by-Step: WAN Failover Setup on Your Router

Think of this section as sitting beside a friend at the desk, walking through the menus together. The idea is to configure dual ISP failover once and then let the router quietly manage switchover before you even notice a problem. The underlying flow is straightforward: the primary ISP drops, the gateway detects it, new traffic shifts to the secondary, and the network keeps working without intervention. To get there, follow these sequential steps and avoid skipping ahead; each builds on the previous one and affects how fast and smooth failover feels in daily use.

1. Connect both ISPs to the router’s WAN inputs. Plug your primary ISP (for example, fiber) into WAN1 and your backup (such as airfiber or a tethered phone) into WAN2 or USB/Wireless WAN, so both stay physically linked to the gateway at all times.
2. Log in to the router and configure each WAN. In the web interface, assign ISP credentials to WAN1 and WAN2, confirm each gets an IP address, and ensure both show as online so the router can treat them as independent connections.
3. Enable load balancing or traffic distribution. Turn on the router’s load‑balancing function and set ratios that reflect each line’s bandwidth—for instance, a 7:1 split if your primary line is 300Mbps and the backup is 40Mbps, so most new sessions go to the faster ISP while the slower one stays active.
4. Enable session‑aware routing. Switch on any "Application Optimized Routing" or equivalent option so once a device’s traffic starts over one ISP, that session stays pinned to that WAN instead of bouncing between providers and breaking long‑running connections.
5. Configure automatic failover and detection intervals. Turn on failover mode, set your primary WAN as the preferred line, and choose a short online detection interval such as three seconds so the router detects a drop quickly and reroutes new traffic to the secondary WAN without manual input.
6. Test switchover speed and stability. Start a video call, game session, or download, then simulate an outage by unplugging the primary WAN cable; watch how fast the router detects loss and keeps calls, gaming, and downloads running uninterrupted while shifting traffic to the backup connection.
7. Save the configuration and check logs over time. After everything works, save settings and later review router logs to confirm failures were detected, traffic moved to the backup ISP, and your homelab and remote access stayed available even during scheduled maintenance or unexpected outages.

One quotable lesson from real use is: "With these few settings in place, my video calls didn't drop, my gaming session stayed up, and downloads continued uninterrupted." That result hinges on steps 4 and 5—session‑aware routing and short detection intervals. If you skip them, failover may look fine on paper but still break VPNs or browser tabs in practice. Take time to run the test in step 6 while watching the router’s status page; it will show you whether your WAN failover setup responds within seconds or lags enough to be noticeable during work.

Common Gotchas and Real-World Payoff

The most common mistake with dual ISP failover is expecting doubled speed instead of redundancy. There’s a widespread assumption that a dual‑WAN router can merge two connections into one faster pipe, but in real use it can only route connections intelligently; it can’t combine them into a single session. Think of it as traffic management, not bandwidth stacking. Another pitfall is ignoring router support for USB WAN or wireless WAN, then assuming a spare phone can’t help; many routers that support smartphone tethering or mobile WAN can treat a phone as a full backup ISP when configured properly.

The payoff shows up on the days when everything would have broken. One homelab user found that after moving to a dual‑WAN gateway, outages that once lasted 12–24 hours no longer took all services offline. Remote access stayed available and logs later revealed drops that had gone unnoticed because failover worked quietly. Another person discovered that keeping an old phone wired to the router as a permanent backup internet device "saved my workday" during repeated ISP issues. Dual ISP failover is worth it if a few hours of downtime would disrupt your work or home life; keep an eye on detection intervals, session handling, and router logs, and your network will ride out maintenance windows and surprises with far less drama.
