What smarter steel detailing software means today
Modern steel detailing software is a class of digital tools that combines BIM modeling, automated connection and fastener design, and integrated steel fabrication workflows to reduce manual detailing, improve data consistency, and connect design with shop-floor production in a single, coordinated process. Instead of redrawing connections and updating drawings by hand, engineers and detailers work in a shared 3D model where changes flow automatically into bills of materials, shop drawings, and production data. This shift is changing how teams plan and deliver steel projects, from small frames to high-rise structures. Automation in areas like fastener placement, steel joints, and connection checks removes repetitive steps, while integrated BOM verification and external linking help keep complex assemblies organized. Together, these capabilities support faster iterations, fewer errors, and a more reliable digital thread from concept to installation.
IronCAD adds BOM checks and fastener automation

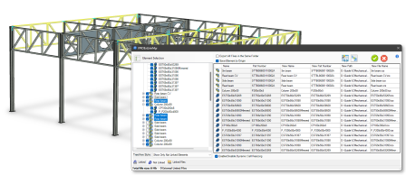

IronCAD Mechanical 2027 focuses on cutting manual work in large assemblies by tightening bill of materials control and automating common steel tasks. The enhanced CheckBOM tool now checks materials as well as names and part numbers, flagging parts that look the same but are labeled differently, or parts with matching names but mismatched materials. This helps prevent inconsistent data from reaching fabrication. Fastener automation is another highlight. The new Steel Joints tool lets users apply joints to steel profiles and insert fasteners in one workflow, while Place Hole & Fasteners can populate all holes on a plate with bolts and create matching holes in underlying members. Features such as improved steel stiffener placement, smarter profile creation, and more accurate “Trim at Intersection” behavior round out a set of upgrades aimed at cleaner BIM modeling steel and more dependable downstream steel fabrication workflows.
External links and integrated tools streamline collaboration
Complex steel assemblies often depend on many linked components, which can become fragile as models grow. IronCAD’s new External Link Manager addresses this by helping teams manage internally linked elements across assemblies without breaking existing relationships. The “Save Unlinked Elements” function can convert elements into external links, giving users flexibility to reorganize designs while keeping connections intact. On the documentation side, improvements to IPROActiveManager and TreeView simplify BOM generation and part organization, including grouping sheet metal parts by thickness. These integrated design features support better coordination between design, detailing, and fabrication teams, because data is stored and maintained in a more structured way. Reliable BOMs, consistent material and color assignments, and clear assembly hierarchies reduce back-and-forth checks and help ensure that what is modeled is what gets built, with fewer surprises at the workshop or on site.
SDS2 combines BIM modeling, connection design and fabrication
ALLPLAN’s SDS2 platform extends the idea of BIM modeling steel by joining 3D construction modeling, automated connection design, and steel fabrication workflows in a single environment. Connections are generated and checked during modeling, and they update automatically when the model changes. According to ALLPLAN, the same 3D model can be used for detailing, fabrication, and assembly, with fabrication deliverables and BIM data produced from that shared source. The Deloitte Summit Tower project is one example, where Supermétal used SDS2’s 3D tools to analyze the structure and design the connections for a high-rise. Real-time multi-user modeling and support for open BIM standards aim to keep design, detailing, fabrication, and assembly teams working from aligned data. This model-based approach reduces repeated data entry, shortens turnaround for fabrication data, and helps meet tighter documentation and quality requirements.
Automation and BIM cut manual work across the steel lifecycle
Taken together, platforms like IronCAD Mechanical and SDS2 show how automation is reshaping steel construction workflows. Fastener automation, automatic connection design, and smarter trimming and stiffener tools remove repetitive modeling tasks that once consumed many hours. Integrated BOM checks, material verification, and external link management keep assemblies and documentation consistent, reducing the risk of fabrication errors. SDS2’s model-based workflow, with automatic updates to drawings, bills of materials, and production data, illustrates how a single 3D source can feed the full lifecycle from engineering to erection. For project teams, the result is fewer manual edits, faster coordination, and more predictable steel fabrication workflows. As more firms adopt BIM-centric tools with embedded automation, manual assembly and detailing tasks are likely to shrink further, allowing engineers and detailers to focus on design intent and constructability instead of repetitive drafting.
