Why Hack a Hybrid Digital Rangefinder?

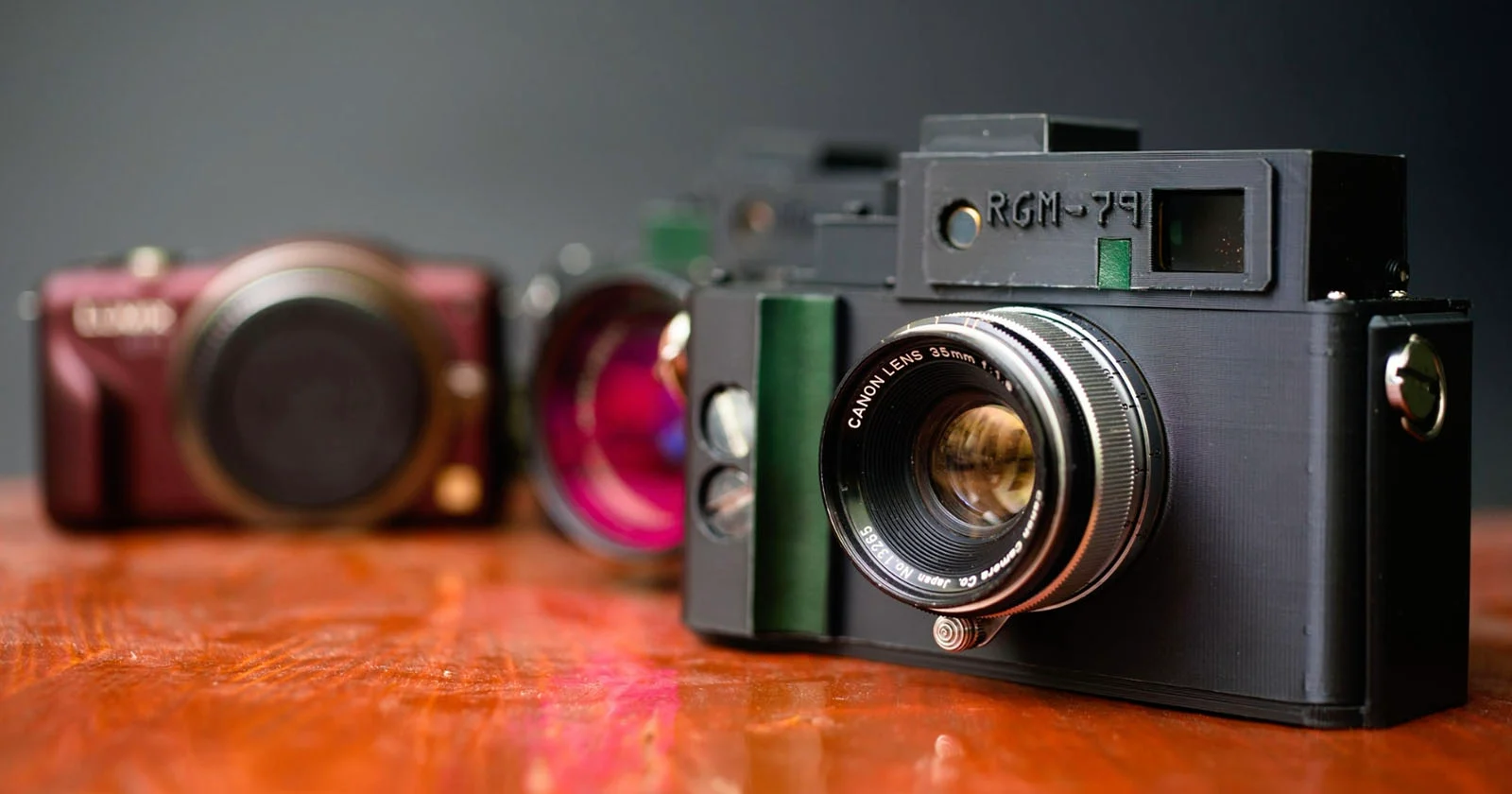

Digital rangefinders are legendary, but their prices push many photographers toward cheaper alternatives or aging film bodies. This DIY hybrid camera project, dubbed the RGM-79 by creator Mr. 50mm, offers a way in without premium-brand budgets. By merging a Panasonic GF3’s digital guts with the mechanical charm of a Soviet-era Fed 5, you get a digital rangefinder build that retains true rangefinder focusing while shooting straight to a modern sensor. The stated aim is to provide “the cheapest most accessible way to get into the Digital Rangefinder game,” especially now that used Leica M8 or Epson R-D1 bodies are no longer easily attainable. Instead of chasing rare gear, you perform a thoughtful camera modification that breathes new life into donor cameras and gives you a unique, hands-on vintage camera hack experience.
Gathering Your Donor Cameras and Parts
To recreate this DIY hybrid camera, you need two fully functional donor cameras: a Panasonic GF3 and a Fed 5 rangefinder with a diopter adjustment. Both are essential; the GF3 supplies the imaging pipeline, while the Fed 5 contributes its analog rangefinder mechanism. Mr. 50mm notes that this project typically requires about USD 200–USD 250 (approx. RM920–RM1,150) in parts, depending on what you pay for each donor body and services like 3D printing. As an example, a bargain-grade GF3 has been listed for USD 94 (approx. RM430), and Fed 5 bodies can be found for under USD 100 (approx. RM460). You’ll also need 3D printer filament or access to a printing service, a set of cheap screws, and, if you want an M-mount version, a compatible lens adapter such as one from Fotodiox.
Disassembling the GF3 and Fed 5 Safely
The heart of this digital rangefinder build is careful disassembly. The Panasonic GF3 is completely taken apart, so you can transplant its sensor, mainboard, and controls into a new 3D-printed shell. This stage is delicate; Mr. 50mm warns that GF3 electronics are fragile, and he has destroyed a few bodies across different projects. Label each ribbon cable, keep screws organized, and photograph every stage to guide reassembly. The Fed 5 teardown is partial rather than total. You keep the rangefinder assembly and diopter adjustment intact while removing parts of the original body that would interfere with the new shell. Because the design assumes a specific Fed 5 layout, variants with projected frame lines may not work. Treat both donors as sacrifices: once you commit, they are no longer standalone cameras, but components of your custom digital rangefinder.
3D-Printing the New Body and Combining the Systems
With both donors stripped, you move on to constructing the hybrid camera body. Using 3D printer filament and Mr. 50mm’s shared design files, you print a shell that accommodates the GF3 imaging pipeline and the Fed 5 rangefinder in a coherent, ergonomic layout. Dry-fit everything before final assembly: confirm that the sensor sits square to the lens mount plane, that the viewfinder windows align with the rangefinder optics, and that all buttons and dials are accessible. The goal is to marry analog rangefinder mechanics with digital control and output in a single, rigid chassis. Once satisfied, install the components permanently using your cheap screws and any recommended spacers or shims. Add your chosen lens adapter if you’re building an M-mount variant, then perform basic tests to ensure the camera powers on, responds to controls, and displays a live view.
Calibrating, Shooting, and Next Steps
The final stage is calibration and practice. Align the Fed 5 rangefinder mechanism with the digital sensor plane so that what appears in focus in the viewfinder matches your captured images. This may involve incremental adjustments and test shots at various distances and apertures. Once dialed in, you’ll have a functioning DIY hybrid camera that behaves like a classic rangefinder while delivering digital files from the GF3’s 12.1-megapixel Micro Four Thirds sensor. Mr. 50mm rates the difficulty as moderate: not plug-and-play, but achievable for careful enthusiasts willing to follow a detailed Hackaday guide. The reward is a digital rangefinder experience that normally sits behind a massive financial barrier. From here, you can explore further camera modification ideas, tweak ergonomics, or dive into more of Mr. 50mm’s projects and videos to refine your own vintage camera hack skills.
