What Is Gaming Controller Robotics?
Gaming controller robotics is the practice of using off‑the‑shelf gamepads as the primary human interface for building and controlling DIY robots, combining their buttons, joysticks, sensors, and wireless links with microcontrollers and motor drivers so hobbyists can create responsive, customizable machines without designing complex control hardware from scratch. Instead of building custom joysticks or radio transmitters, you map familiar inputs like analog sticks and triggers to robot actions such as throttle, steering, and arm movement. Modern gamepads already include Bluetooth radios, motion sensors, and haptic motors, so they are effectively handheld control panels ready for robot duty. When paired with microcontrollers like the ESP32, they become a bridge between human intent and robot motion, lowering the barrier for newcomers who want to experiment with wireless robot control, gamepad robot hacking, and fast prototyping.
Why Gamepads Make Great Robot Controllers
Traditional DIY robot control often meant wiring custom switch panels or learning radio systems; gamepads remove that hurdle. Their ergonomic grips, analog sticks, and clear button layouts give a familiar feel, so you can focus on robot behavior instead of control ergonomics. In gaming controller robotics projects, the stick that once steered a digital car can command a tracked rover, and trigger buttons can become speed boosts or mode toggles. According to Hackster’s Brookstone Rover rebuild, an Xbox or PS4/PS5 Bluetooth gamepad can fully steer a tank‑style robot with “one stick for throttle and one for steering.” This lowers the learning curve for anyone starting a DIY robot control project, especially those without embedded systems experience. Because many controllers already support Bluetooth or proprietary wireless links, they are also ideal for wireless robot control at practical distances, without tethering your robot to a laptop or cable.
Wireless Freedom: Bluetooth Gamepads and Web Control

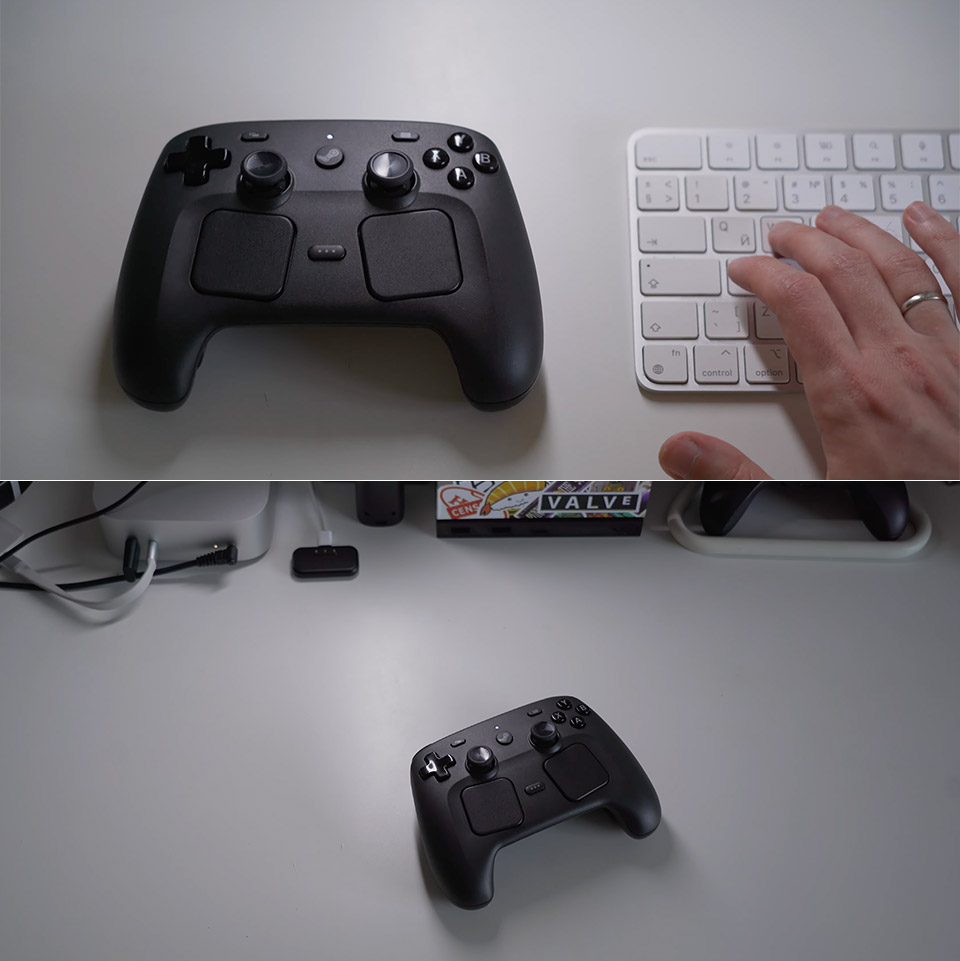

Untethered control is where gaming controller robotics shines. Modern Bluetooth gamepads pair with microcontrollers or PCs to send stick positions and button presses over the air. In an ESP32 robot project, a BLE‑capable controller connects through a library like Bluepad32, which handles pairing and exposes clean stick data for your code. That means you can stand across the room while your rover navigates obstacles. Wireless isn’t limited to Bluetooth either. A Steam Controller demonstration shows how a web app uses a Chromium browser’s built‑in USB features to send keyboard commands that drive the controller’s own haptic motors, turning it into a desk‑sized RC car. Once connected, pressing W or the Up arrow sets both grip motors pulsing, while A and D steer by varying motor timing. This mix of web standards and controller hardware proves you can achieve wireless robot control with nothing more than a browser and a gamepad.
Repurposing Haptic Motors and Sensors

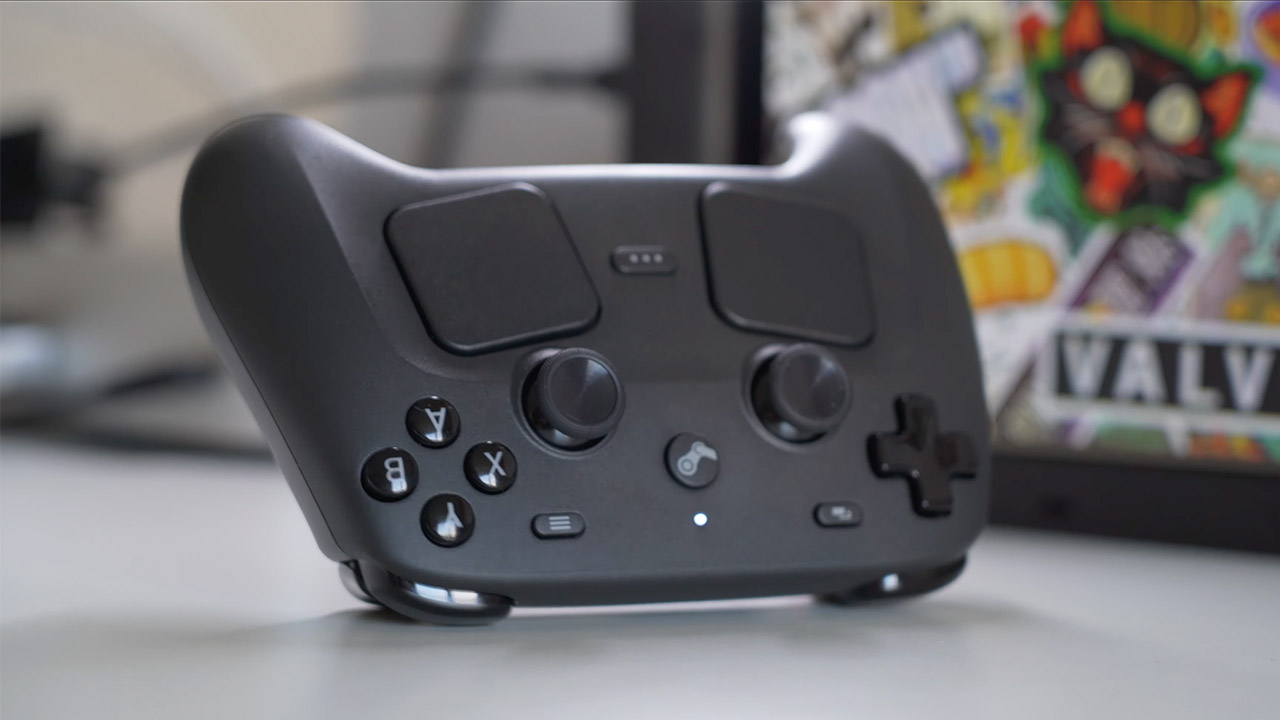

Gamepads are more than buttons and sticks; their haptic feedback motors and sensors can become parts of the robot itself. Valve’s Steam Controller, for example, has haptic motors in each grip designed for rich game feedback. A clever project turns those into drive units: timed vibrations push the controller across smooth surfaces like glass or polished wood, effectively transforming the gamepad into a self‑propelled robot chassis. Short pulses provide gentle forward motion, while asymmetrical pulses tilt and rotate the body for steering. A developer panel in the web app lets users tweak pulse length, frequency, and strength, turning the setup into a live motion lab. The same idea can inspire other DIY robot control experiments: haptic motors could vibrate sensors, indicate battery warnings in your hands, or actuate tiny mechanisms. With careful timing and surface choice, haptics become another actuator in your gamepad robot hacking toolkit.
Building an ESP32 Gamepad-Controlled Rover

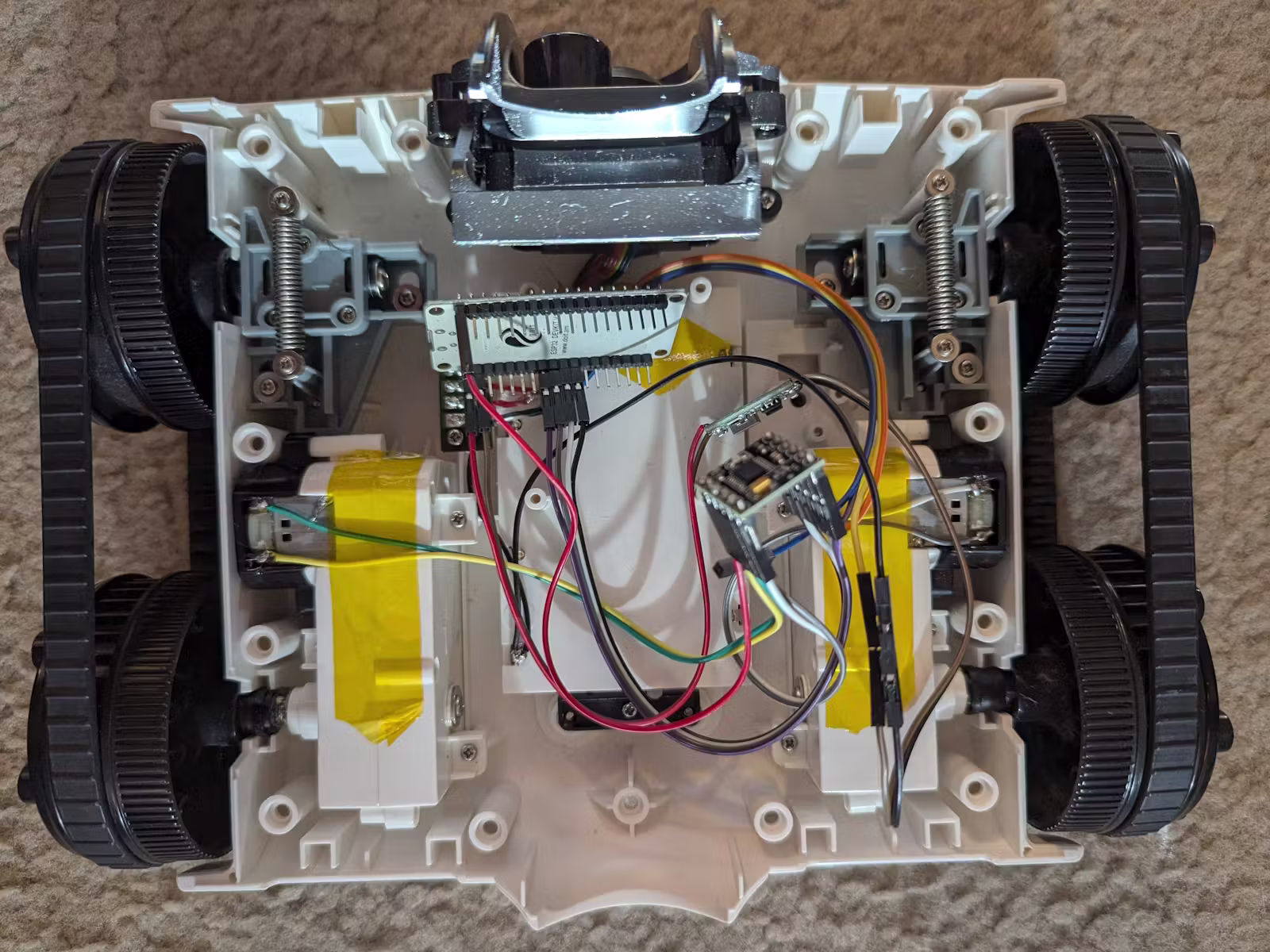

A practical path into gaming controller robotics is rebuilding an old RC vehicle with an ESP32 and a Bluetooth gamepad. One project revives a Brookstone Rover tank by replacing its dead Wi‑Fi board with an ESP32 DevKit V1, a DRV8833 dual H‑bridge motor driver, and a simple buck converter to power the logic. Four PWM‑capable GPIO pins drive the left and right DC motors, keeping wiring approachable for beginners. The firmware uses Bluepad32 to read a BLE gamepad, mixing the left stick’s Y axis (throttle) and right stick’s X axis (steering) into per‑track speeds so the rover can drive straight, arc, or spin in place. A deadzone prevents drift, while ramp limiting smooths acceleration and protects the gearbox. A disconnect failsafe cuts power to the motors if the controller link drops. This kind of ESP32 robot project shows that with a few modules and a used rover chassis, wireless robot control becomes accessible to any hobbyist.
