Internal vs. External SSDs: The Core Choice
Internal and external SSDs are high-speed, flash-based storage drives that connect either directly to a PC’s motherboard or through a cable, and choosing between them depends on whether you prioritize maximum boot and load performance inside a desktop or laptop, or flexible, portable capacity you can move between multiple systems for backups, content creation, and on-the-go workflows. Internal SSDs dominate as the best internal SSDs for operating system responsiveness and gaming, while external SSDs trade a little pure speed for plug-and-play convenience and easy expansion. In practice, power users often need both: a fast M.2 drive for system tasks and a rugged external unit to carry projects and protect data.
If you build or tune PCs, the bottom line is simple: prioritize an internal NVMe storage upgrade for your primary OS and game library, and add a Thunderbolt or USB4 external SSD when your workload involves shuttling large media files, maintaining portable backups, or collaborating across machines. Internal options shine when every frame and second counts; external drives win when versatility, expandability, and multi-device access matter most.
Best Internal SSDs: WD & Sandisk Lab Award Winners

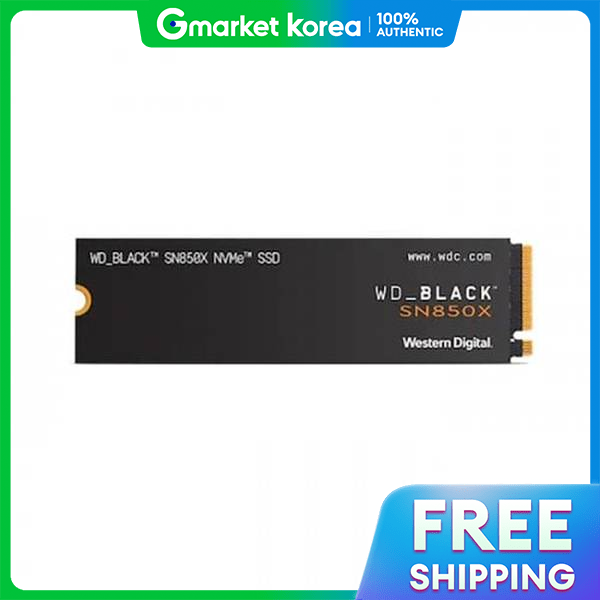

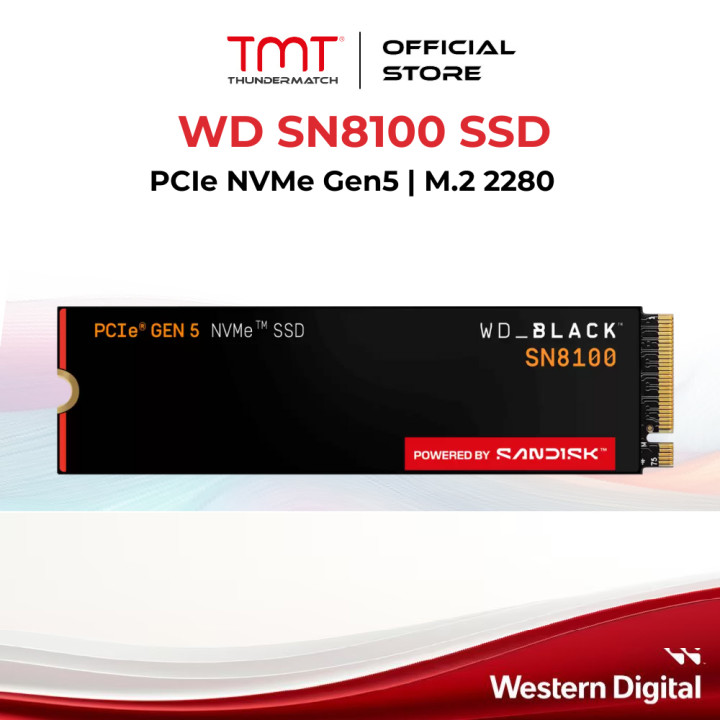

Lab testing of more than 100 internal SSDs since 2020 highlighted two clear speed leaders: the WD Black SN8100 for PCIe 5.0 and the WD Black SN850X for PCIe 4.0. These M.2 SSD benchmarks focus on PCI Express gumstick drives, the real performance heart of modern laptops and desktops. Internal PCIe 4.0 sticks top out around 7,400MBps reads and 7,000MBps writes, while PCIe 5.0 models can exceed 14,000MBps for both. That kind of throughput directly benefits boot times, level loads, and heavy multitasking when paired with a capable CPU and motherboard. According to PC Labs, “Our inaugural SSD Lab Awards thus yielded two winners based on our speed tests. The WD Black SN8100 is the PCIe 5.0 victor, while the WD Black SN850X is the PCIe 4.0 champ.”
These best internal SSDs are built for high-end desktops that already run DDR5 memory and modern chipsets, where energy-efficient NAND and DRAM-less controllers help reduce heat and avoid throttling. DDR5 memory efficiency and direct CPU PCIe 5.0 lanes combine with NVMe protocols to unlock full performance gains in demanding tasks like high-refresh gaming, 3D rendering, and code compilation. If your motherboard supports PCIe 5.0, the SN8100 is the better bet for future-proof speed; if you are on a PCIe 4.0 platform, the SN850X gives near-peak throughput without needing a new board. Enthusiasts focused on smooth OS boot, responsive apps, and snappy game loads should put an internal NVMe drive first on their upgrade list.
| Spec | Internal NVMe SSD (PCIe 4.0/5.0) | Thunderbolt 5 External SSD |
|---|---|---|
| Connection type | Direct M.2 slot on motherboard using PCIe | Cable-based Thunderbolt 5 port on host device |
| Typical peak sequential throughput | Up to ~7,400MBps (PCIe 4.0) and >14,000MBps (PCIe 5.0) | In excess of 6,000MBps with Thunderbolt 5 SSDs |
| Primary performance impact | OS boot, game load times, and desktop responsiveness | Fast file transfers, external project drives, and portable scratch disks |
| Platform requirements | PCIe 4.0 or 5.0-capable motherboard and M.2 slot | Thunderbolt 5-capable port, such as on recent laptops |
External SSD Performance: LaCie Rugged SSD Pro5

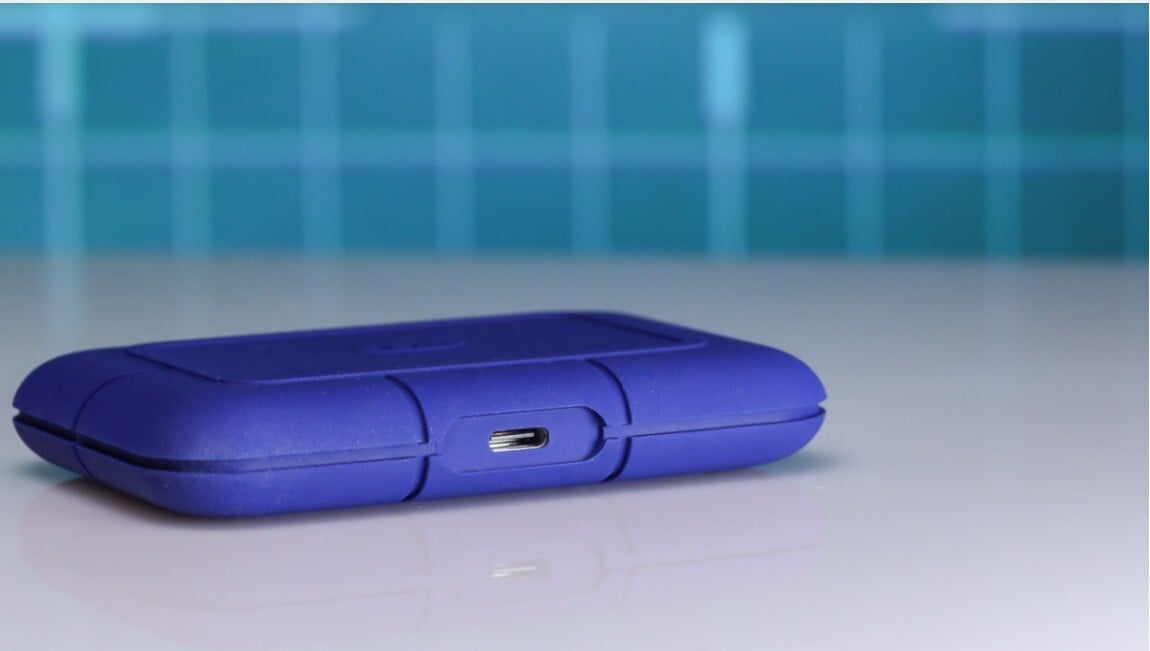

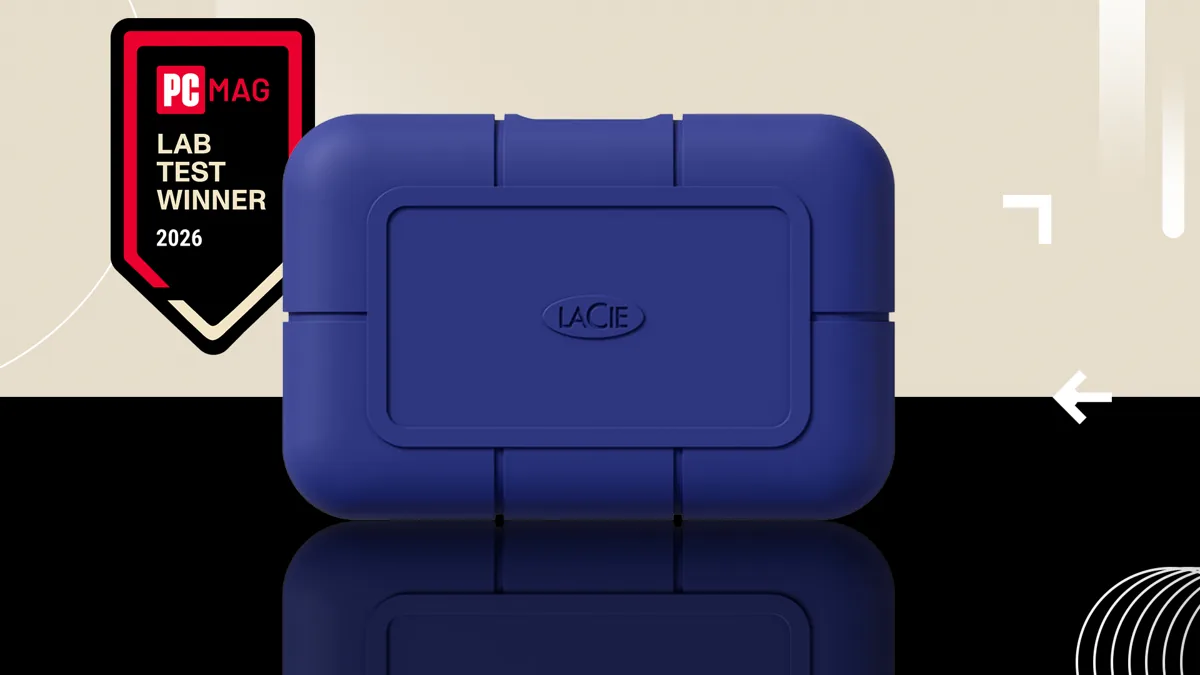

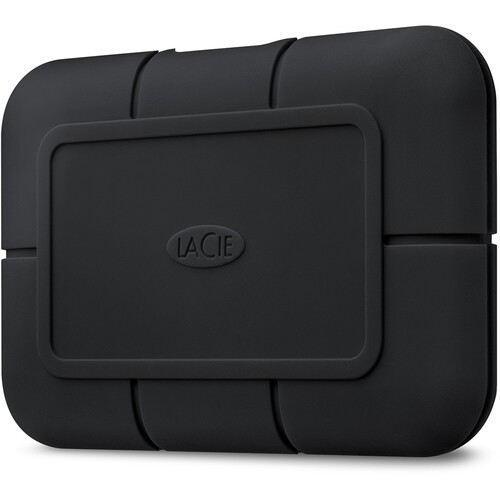

On the external side, a Lab Award for fastest portable SSD went to LaCie’s Rugged SSD Pro5. Over five years, more than 60 external SSDs were tested across CrystalDiskMark, PCMark 10 Storage, and macOS Blackmagic Disk Speed Test to rank external SSD performance. Integrating these benchmarks, the Rugged SSD Pro5 emerged as the performance king among 52 qualifying drives. Modern external SSDs rely on fast connectivity: USB 3.2 Gen 2, USB 3.2 Gen 2x2, USB4, Thunderbolt 4, and the emerging Thunderbolt 5 standard. Thunderbolt 5 SSDs are rated for maximum sequential speeds over 6,000MBps, or roughly 80Gbps, making them serious contenders for pro workflows. A recent 16-inch laptop with an M4 Pro CPU is already used to test Thunderbolt 5 drives, confirming host support is in place on modern machines.
Compared with internal NVMe drives, the best Thunderbolt 5 SSD offers slightly lower peak throughput but superior portability and expandability. You can move a LaCie Rugged SSD Pro5 between desktops and laptops, use it as a shared project disk, or store backups away from the main system, all while keeping transfer speeds high enough for 4K and even 8K video workflows. External SSD performance is especially appealing for content creators and remote workers who must carry terabytes of data without sacrificing responsiveness. The trade-off is a reliance on port compatibility: without USB4 or Thunderbolt 4/5, these drives fall back to slower modes and lose their edge. If your primary pain point is cramped internal storage or cross-device collaboration, a Thunderbolt 5 SSD is often the more flexible upgrade than swapping your boot drive.
Workload-Based Verdict: Gaming, Creation, and Backups
For a gaming or enthusiast desktop with DDR5 memory and PCIe 4.0 or 5.0 support, an internal NVMe drive like the WD Black SN8100 or SN850X remains the best performance upgrade. Faster boot and load behavior means less waiting between matches, shorter level transitions, and smoother multitasking when running launchers, browsers, and chat in the background. When M.2 SSD benchmarks show gains beyond 7,000MBps, those improvements are most obvious under heavy system load, not simple file copies. Pairing an efficient internal drive with a strong CPU and GPU keeps latency low and frame pacing consistent. For creative professionals, though, the picture changes: the ability to carry projects on a rugged Thunderbolt 5 SSD, plug into any compatible machine, and maintain high read/write speeds more directly affects productivity.
External SSD performance is also invaluable for backup strategies. Keeping a LaCie Rugged SSD Pro5 as an off-machine target minimizes the risk of data loss from system failure while still letting you restore quickly. Enthusiasts should consider their main workload. If they mostly launch games and big desktop apps on a single PC, the best internal SSDs deliver the biggest quality-of-life jump. If they edit large media files, run multi-device workflows, or need portable scratch space, a Thunderbolt 5 SSD is the smarter first purchase. Many advanced users will combine both: an internal NVMe storage upgrade for core responsiveness plus a high-speed external drive for safety, collaboration, and mobility. That hybrid approach gets you the speed champion in each arena without compromising how you build and use your PC.
Buy if / Skip if
- Buy the WD Black SN8100 or SN850X if you want the best internal SSDs for faster OS boot and game load times on a modern DDR5 desktop.
- Skip the WD Black SN8100 or SN850X if your motherboard lacks PCIe 4.0 or 5.0 M.2 slots and you cannot upgrade the platform soon.
- Buy the LaCie Rugged SSD Pro5 if you need top-tier external SSD performance over Thunderbolt 5 for content creation and portable project drives.
- Skip the LaCie Rugged SSD Pro5 if your PC or laptop does not support USB4, Thunderbolt 4, or Thunderbolt 5 ports and will bottleneck the drive.
- Buy the WD Black SN8100 or SN850X if your workload is mostly gaming, OS boot, and desktop apps on a single primary machine.
- Skip the LaCie Rugged SSD Pro5 if you rarely move data between devices and prefer to invest only in internal NVMe storage upgrade capacity.
