Why KV Cache Geometry Matters More Than Bit Precision for LLM Speed

Stop Obsessing Over Bits: KV Cache Geometry Is the Real Dial

KV cache quantization is the practice of compressing the keys and values stored during transformer generation by grouping them and representing each group in a low-bit integer format, and the decisive factor for performance is not the number of bits used but which axis you group and scale across in those keys and values. When you hold precision constant, geometry dominates. At identical 2-bit precision with a quantization group size of 32 on Llama‑2‑13B, changing only the axis used for scale factors swings CoQA accuracy from 2.88 to 63.53, versus 66.37 in full precision. That is not a rounding error; it is a “model works” versus “model breaks” gap. If you pick channel as the grouping dimension for keys and token for values, performance lands within four points of full precision, but flipping either choice torpedoes quality and flipping both makes the model unusable.

Inside the Attention Equation: Why Keys and Values Want Opposite Axes

Uniform integer quantization works by taking a group of numbers, recording the smallest as a zero point, dividing the group’s range by the number of representable levels to get a step size, then rounding each element to the nearest step. At 2 bits, four levels must cover whatever spread exists in that group, and any very large activation inflates the step size so every element in that group becomes coarser together. Group choice is therefore a choice about who suffers together. Keys and values are consumed differently by attention, so they should not share the same geometry. Keys feed into similarity scores where outliers live in fixed channels; grouping along channels isolates those extremes and protects the rest. Values, by contrast, are never read directly: the attention output is a weighted sum of value vectors across tokens with softmax attention scores as weights. Because attention is sparse and a small number of very important tokens carry most of the information (84.3 percent in one measurement), grouping values across tokens lets you concentrate precision where it matters and waste it where attention is near zero.

KV Cache Size, GPU Memory Efficiency, and the Shift to Geometry-Aware Quantization

During generation, a transformer stores all previously processed key and value projections in a cache so it does not have to recalculate them for each new token. That cache grows linearly with context length and batch size and eventually outweighs the model itself: for LLaMA‑7B, weights are roughly 98 percent of memory at sequence length 512, but at 128K context they drop to about 16 percent while KV cache climbs to 84 percent. The GPU must read this entire cache from device memory for every token, leaving compute cores idle while data moves. Reducing cache size therefore directly increases processing headroom and cuts time spent on data transfers. Geometry-aware KV cache quantization is the straightforward way to do that without wrecking accuracy. Per-channel key quantization, non-uniform datatypes, and isolating a small fraction of outliers keep perplexity degradation under 0.1 at 3 bits and allow LLaMA‑7B to serve up to 1 million tokens of context on a single A100‑80GB. There is significant practical benefit: peak memory for Llama‑2‑7B falls by 2.6×, enabling batch sizes up to 4× larger at the same hardware footprint. The lesson is clear: stop asking "how many bits can we afford?" and start asking "where are the extreme values and how do we isolate them?"

KV Cache Offload and Token Latency: Geometry Meets GPU-Direct Storage

Quantization is only half the KV story; where you keep the cache matters as much as how you compress it. A single 235K-token request produced a 43 GB KV cache in one test — large enough that a typical GPU can only hold a few such requests in high-bandwidth memory, and far too valuable to discard and recompute. Reusing cached context instead of recomputing it addresses inference latency directly, and does so on storage priced per terabyte rather than per accelerator. GPU-direct RDMA offload now makes object storage a first-class target: RDMA lands cache data directly in GPU memory with no host bounce buffer, delivering 837 ms time to first token at 235K tokens on an S3 endpoint. "In benchmark tests, GPU-direct RDMA cut time to first token from 11,223 ms to 837 ms at 235K-token context — a 13.4× improvement compared with recomputing prefill." The same path runs inside the open-source inference stack through an accelerated engine for an OBJ plugin, with RDMA-based asynchronous PUT/GET, GPU memory segment support, and runtime engine selection merged upstream. KV cache offload has therefore moved from a tuning trick to an architectural decision across enterprises, large cloud providers, and AI-native builders.

What Data Scientists Should Do Next: Geometry-First Optimization Across Setups

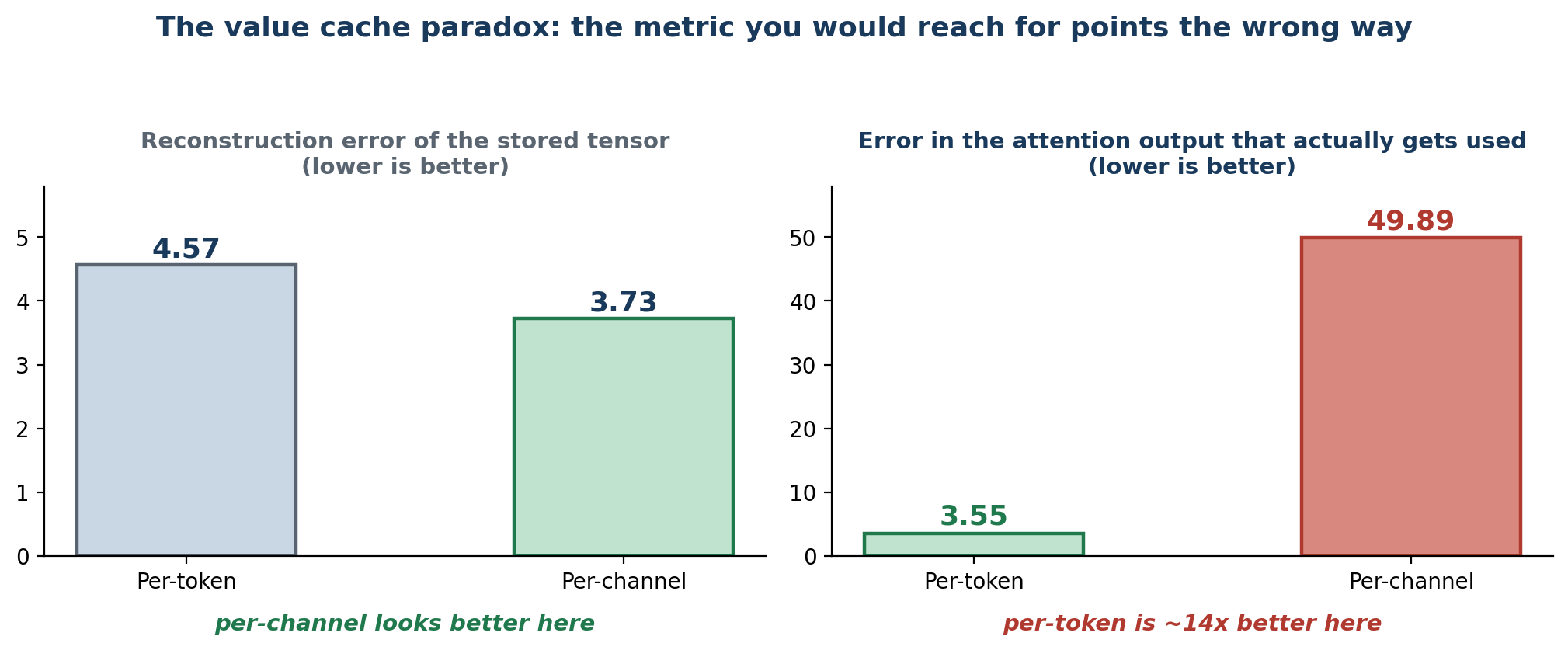

If you treat KV cache as an afterthought, you will continue to waste GPUs on memory transfers and prefill recomputation. The transferable lesson is broader than KV: measure compression error where the tensor is consumed, not where it is stored. For keys, that means per-channel quantization before positional rotation and applying RoPE after dequantization. For values, it means grouping along the token axis, respecting attention sparsity and the dominance of a few important tokens. Alongside geometry-aware quantization, offloading KV cache to GPU-direct object storage gives you a path to large contexts without a ballooning GPU count. Practical gains show up everywhere from consumer GPU rigs — serving long prompts by cutting KV memory 2.6× and pushing context windows toward 1 million tokens on a single accelerator — to enterprise clusters where KV offload is now an architectural choice for code assistants, document analysis, RAG over large corpora, and agentic workflows carrying long histories. Does this help with RAG and agentic workloads? Those are strong candidates, because they generate the long, frequently repeated prompts that KV cache offload is built for. If your optimization focus is still on bit precision alone, you are leaving the fastest and cheapest wins on the table.
