What 16-Channel Immersive Processors Do for Home Cinema
An immersive audio processor for home cinema is a multi-channel control center that decodes advanced sound formats, routes up to 16 speakers, and applies automatic room treatment technology to adapt movie and music playback to the acoustics of any listening space without needing extensive physical acoustic treatment. This new class of 16-channel surround sound processors, led by products like miniDSP’s Tide16 and AudioControl’s Hyperion APR-16, moves home cinema optimization beyond traditional AV receivers. They handle decoding, bass management, and time alignment across layouts such as 9.1.6, then apply room correction to manage reflections and resonances. Instead of relying on thick panels and diffusers, these processors analyze the room with a calibrated microphone and build corrective filters. The result is a more coherent soundstage, tighter bass, and convincing height effects, even in everyday rooms with hard walls, windows, and furniture.
Dirac Live ART: Virtual Room Treatment for Everyday Spaces
miniDSP’s Tide16 integrates Dirac Live Active Room Treatment (ART), Dirac Live Room Correction, and Dirac Live Bass Control to bring professional-style tuning into consumer systems. Dirac Live ART treats every speaker as part of a cooperative control network, using MIMO processing to manage low-frequency resonances and cut decay times across the whole listening area. According to Dirac, Dirac Live ART “delivers performance benefits traditionally associated with extensive physical treatment, helping reduce decay times and smooth low-frequency response across seats.” This approach allows cleaner, more even bass without lining walls with absorbers. Dirac Live Room Correction then optimizes frequency and phase response, addressing issues that basic EQ cannot fix. Dirac Live Bass Control applies machine learning to coordinate subwoofers and main speakers so that low-end energy stays consistent from seat to seat, which is critical in multi-row home theaters.

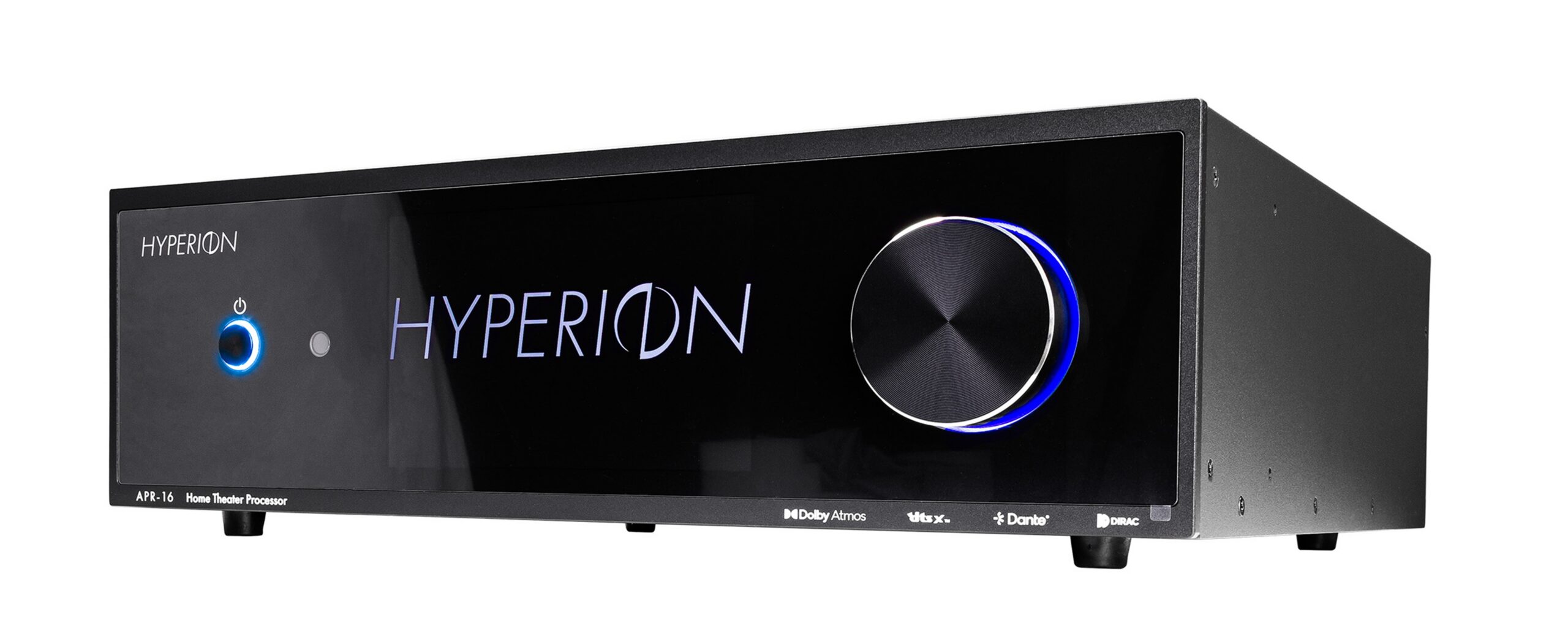

Hyperion APR-16: Integrator-Grade Control in the Living Room
AudioControl’s Hyperion APR-16 shows how far consumer-focused immersive audio processors have come. It is a 16-channel immersive surround processor with independent signal-path optimization and premium 32-bit ESS Sabre DACs, designed to handle complex home cinema configurations. Built-in Dirac Live and Dirac ART support let it analyze time-domain behavior, frequency linearity, and spatial reflections, then apply precise filters for clarity and tonal balance. For advanced users and installers, optional HAA Link integration connects the APR-16 to Home Acoustics Alliance’s CinemaTools app, adding deep calibration controls normally reserved for professional dubbing stages. The processor also offers a rich control API and HDCP/EDID management to keep video and audio handshakes reliable. Together, these features mean enthusiasts can reach studio-level home cinema optimization while keeping installation manageable, with the option to invite a calibrator later rather than at the outset.
From Fraunhofer’s MP3 Legacy to Object-Based, Adaptive Audio
The rise of these processors is tied to format innovation from research houses like Fraunhofer IIS, creators of MP3, AAC, and the immersive MPEG-H system. MPEG-H moves beyond fixed channel mixes to object-based audio, where individual sound elements plus metadata describe how audio should behave in different rooms and speaker layouts. This lets content adapt to anything from a full 16-channel surround sound array to a soundbar or headphones without losing intent. Fraunhofer’s work shows how hardware power and software complexity have grown since MP3, when five engineers could handle a codec; MPEG-H required close to 100 people. That complexity pays off at home: immersive audio processors can now decode adaptive formats and align them with each room’s corrected response. Instead of forcing every living room to match cinema acoustics, the format and processor cooperate to fit the sound to the space.
Bridging Classic Surround and Next-Gen Immersive Formats
Taken together, 16-channel immersive audio processors are becoming the bridge between legacy 5.1/7.1 surround and next-generation object-based audio. Products like Tide16 and Hyperion APR-16 accept HDMI, digital, and analog inputs, decode modern immersive formats, and route them flexibly to ceiling, height, and wide speakers. Their room treatment technology—Dirac Live ART, room correction, and bass control—turns acoustically imperfect living rooms into reliable playback spaces. At the same time, adaptive formats such as MPEG-H keep mixes portable, so the same content can scale from a TV to a 9.1.6 system while respecting the creator’s intent. For consumers, this convergence means cinema-grade sound without a construction project or full-time calibrator. For manufacturers and format developers, it signals a future where home cinema optimization is driven as much by intelligent processing and object-based audio as by the number of speakers in the room.
