Verdict and What the NZXT H6 Flow RGB Is
The NZXT H6 Flow RGB is an ATX gaming case that combines high-airflow side and bottom intake, integrated RGB fan control, and a modern cable-friendly layout to support clean builds with powerful graphics cards and contemporary motherboards while keeping visual focus on the main chamber rather than the rear cabling mess. From a few builds, my verdict is clear: this is a visually striking RGB gaming case with thoughtful airflow and layout for mid-range to high-end systems, best suited to enthusiasts who care as much about clean aesthetics as they do about cooling. It is less appealing if you need maximum flexibility for custom radiators or a dust-optimized environment, but for a showpiece ATX case review angle, it delivers convincing PC case airflow and RGB integration at a premium-but-not-exotic level.
Pros
- Strong side and bottom intake design with many vent holes for airflow-focused builds
- Integrated Control Hub Lite for RGB gaming case fan and lighting control via CAM software
- Supports modern long GPUs and reverse-connector ATX motherboards for cleaner cable routing
Cons
- Only one removable dust filter; other intakes depend on fine perforations for dust control
- No space for a radiator behind the front/side fan assembly, limiting custom loop options
- Drive cage capacity is modest for storage-heavy builds, with room for one 3.5-inch and two 2.5-inch drives
Design, Build Quality, and Layout

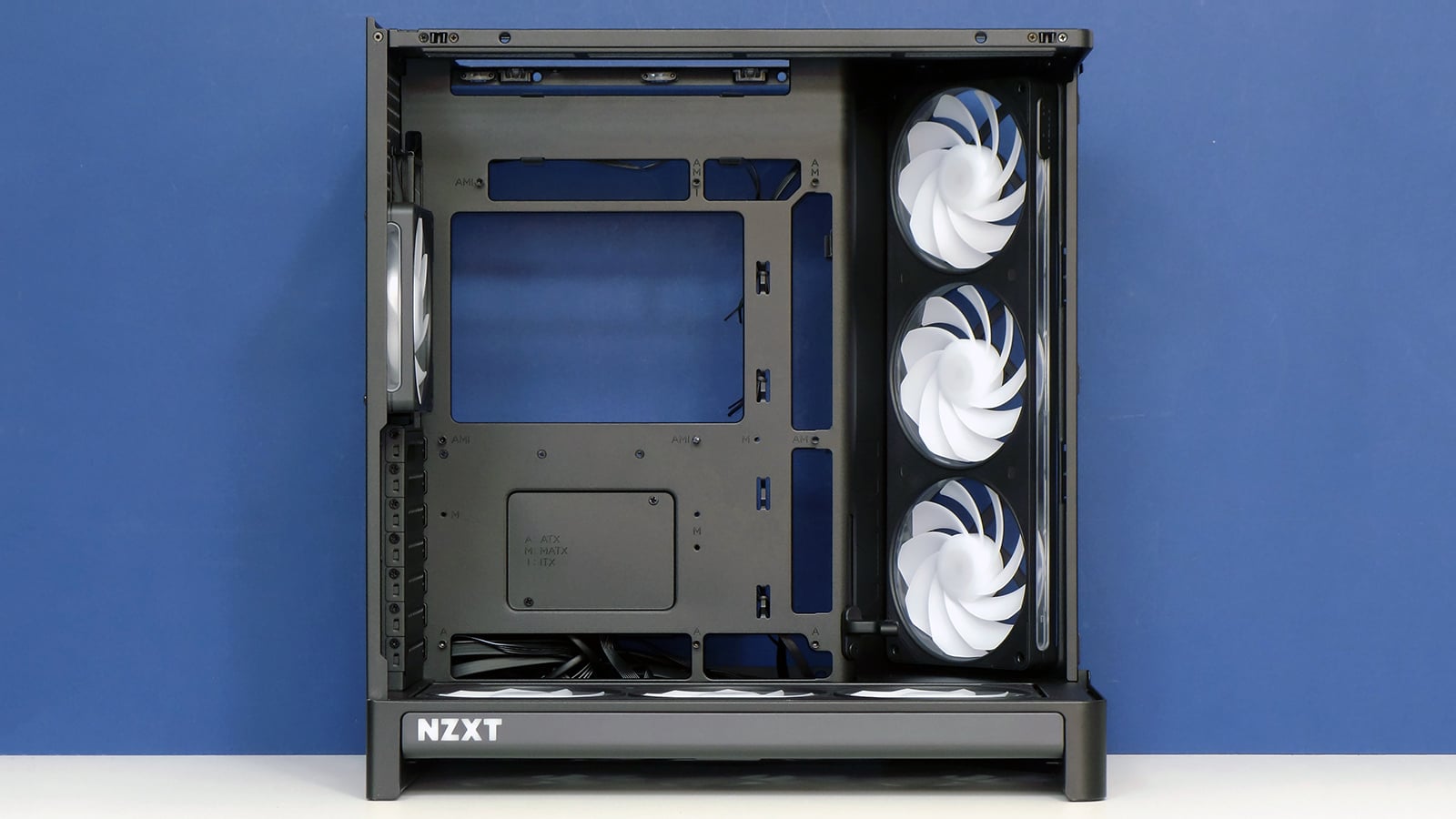

The H6 Flow RGB’s most distinctive design cue is its curved vertical panel edges and angled intake panel, paired with many vent holes that define the case’s airflow-focused identity. The right side panel carries profuse perforations shaped into stripes with the "NZXT" name embossed and ventilated, which looks premium and gives the case a technical, gaming-forward character. A traditional inset PCIe slot panel makes dropping in graphics and expansion cards straightforward, though it trims interior depth slightly. Inside, the motherboard tray has punched access holes around the ATX perimeter, supporting concealed headers on reverse-connector boards such as Asus BTF, Gigabyte Stealth, and MSI Project Zero, while additional holes above, below, and in front of the tray help route cables on standard ATX boards. Overall build quality feels solid and purpose-driven rather than purely decorative, with the layout clearly tuned for clean mid-range to high-end RGB gaming case builds.
Airflow and Cooling: Great Intake, Specific Limits

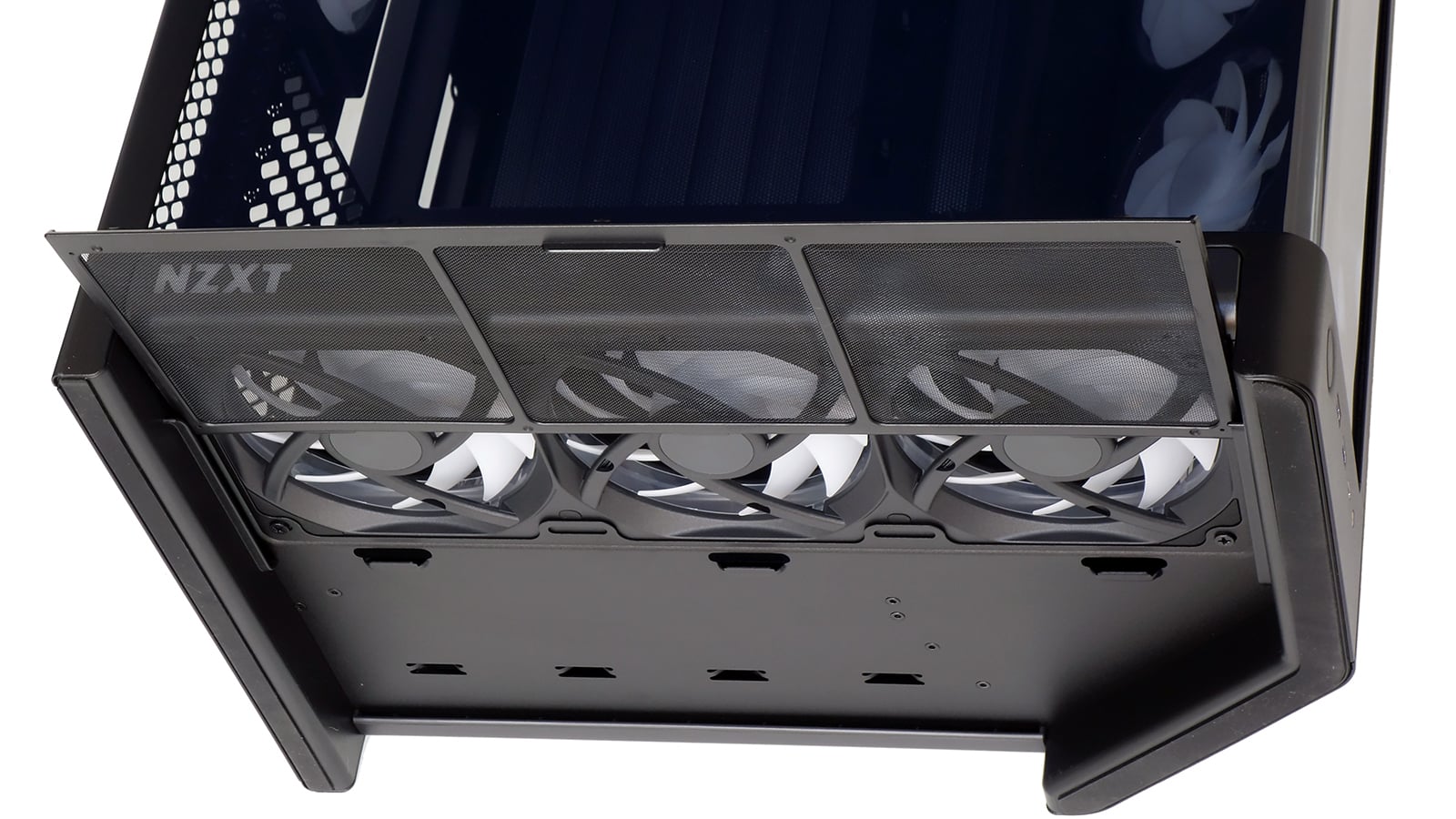

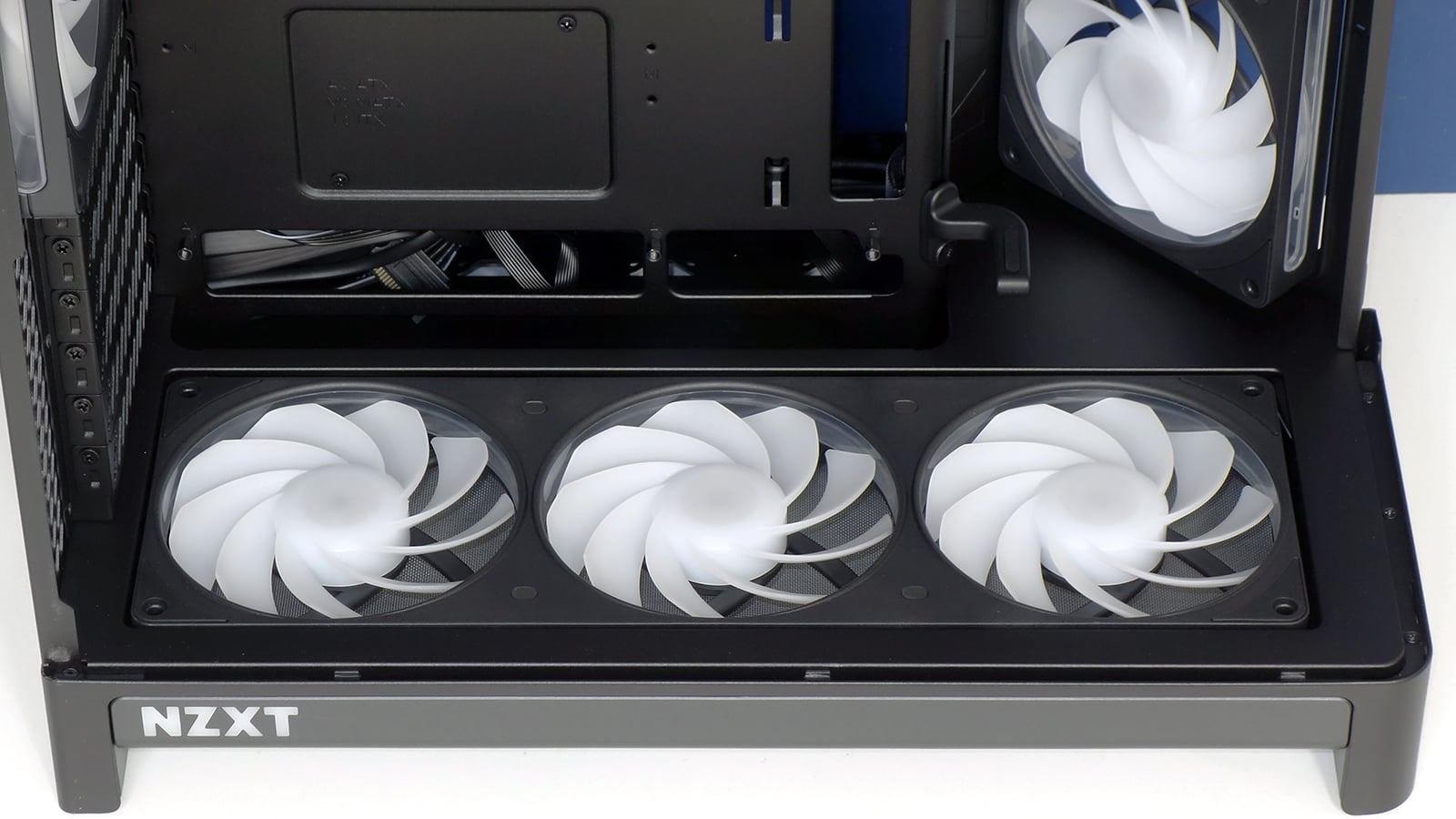

Airflow is the H6 Flow RGB’s main selling point. The case gains a bunch more vent holes and four additional fans compared with its predecessor, giving it six intake fans in total: three on the angled side and three at the bottom. NZXT uses reverse-curve blades on all six intake units to conceal motor frames on the visible side, improving both aesthetics and how the RGB lighting looks through the panels. The bottom intake is backed by the case’s only removable fan filter, accessed from the side; all other intake fans rely on the very fine perforations of their cover panels to catch incoming dust. This means airflow is abundant but dust management is only partly user-serviceable. Radiator support is also specific: there is clear capability for a 280mm-format radiator at the top thanks to fan mounts on both 120mm and 140mm spacing and more than 65mm of clearance above the motherboard, but there is no room for a radiator behind the front/side fan assembly due to the lack of space for end caps and fittings.
| Cooling Feature | Support | Trade-off |
|---|---|---|
| Side & bottom intake | Six intake fans with extensive venting | High airflow, more dust to manage |
| Bottom dust filter | Single removable filter for lower intake | Other intakes rely on fixed perforations |
| Top radiator | Supports 280mm format with ample clearance | Occupies space above motherboard |
| Front/side radiator | Not supported behind angled fan assembly | Limits custom loop placement options |
Component Support, Storage, and Cable Management
For modern high-end components, the H6 Flow RGB is ready. The inset PCIe slot panel reduces usable depth from 16.2 to 15.6 inches, but NZXT rates graphics card clearance at 390mm, so almost any current large GPU should fit comfortably here. That covers typical RTX 50-series expectations in an ATX case review context. The support for reverse-connector ATX boards via perimeter access holes, plus extra routing points for conventional boards, means cable management can be very clean for DDR5 and other modern platforms. Storage and cable organization sit behind a slide-mounted drive cage held between the power supply shelf and bottom panel. Secured via a single knurled screw, the cage holds one 3.5-inch drive inside and two 2.5-inch drives on the outside, which is adequate for most gaming PC case airflow–focused builds but limited if you need many hard drives. Behind this cage sits the Control Hub Lite, which powers and controls proprietary fans and links them to NZXT's CAM software over an internal USB 2.0 header. It also offers an ARGB input for lighting pass-through, though the case does not include an extension cable to reach motherboard headers.
Buy if / Skip if
- Buy the NZXT H6 Flow RGB if you want a high-airflow RGB gaming case that highlights side and bottom intake for powerful GPUs.
- Skip the NZXT H6 Flow RGB if you need extensive removable dust filters and prefer maintenance-friendly intakes across every panel.
- Buy the NZXT H6 Flow RGB if you plan to use modern ATX or reverse-connector motherboards and care about clean cable routing options.
- Skip the NZXT H6 Flow RGB if your build demands front-mounted radiators or complex custom loops behind the angled intake fans.
- Buy the NZXT H6 Flow RGB if you want integrated RGB control via Control Hub Lite and CAM software without buying extra controllers.
- Skip the NZXT H6 Flow RGB if you require a case with room for many 3.5-inch drives instead of a single-drive cage plus two 2.5-inch slots.
