Defining the Armature Art 24 and Its 48-Driver Ambition

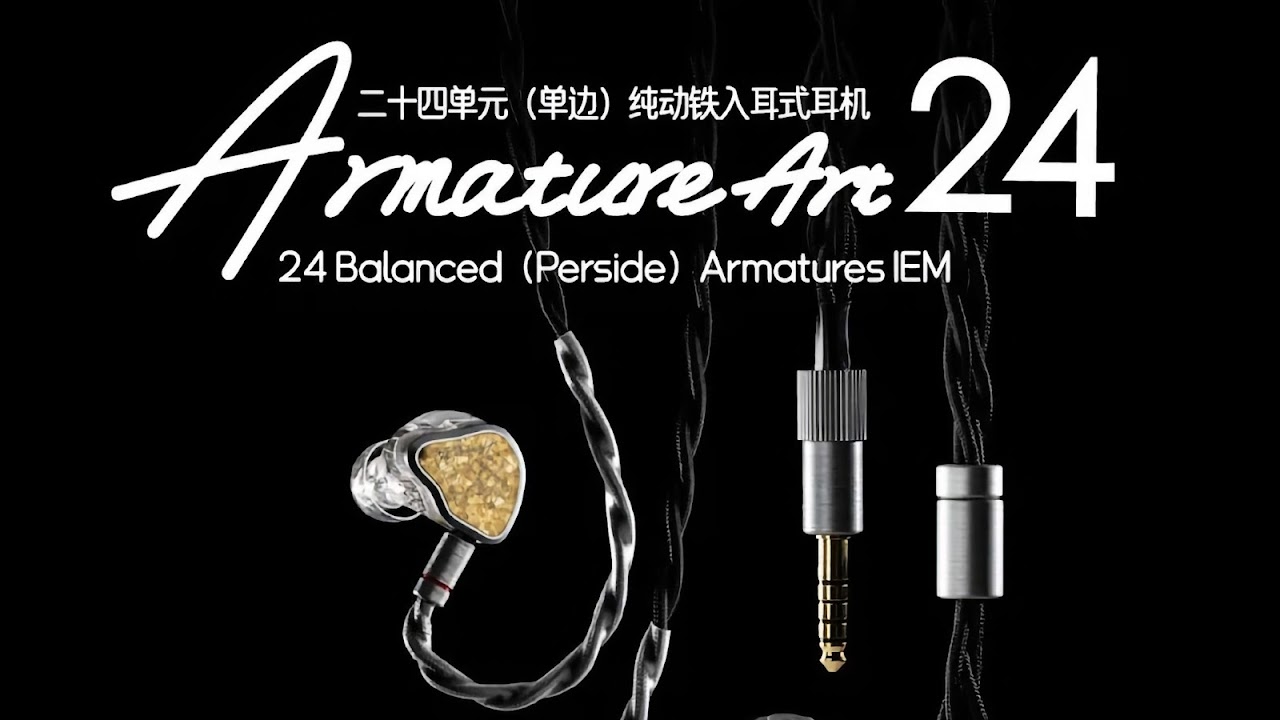

The Moondrop Armature Art 24 is a flagship in-ear monitor that uses an unusually dense array of balanced armature drivers and 3D printed acoustics to push multi-driver earphone design toward near loudspeaker-like precision within a compact shell. Each earbud houses 24 balanced armature drivers, for a total of 48 across the pair, arranged to handle low, mid, high, and ultra-high frequencies with discrete driver clusters. Moondrop positions this model as a professional-grade monitor for high fidelity listening and studio work, promising high resolution and low distortion. According to Technetbooks, the company describes the Armature Art 24 as “the most dense acoustic architecture found on a commercially available pair” of in-ear monitors IEM, underlining how aggressively it chases driver density in a market where even high-end products often stop far below this count.
3D Printed Acoustic Channels and Phase-Accurate Sound
Packing 24 balanced armature drivers into a single shell forces Moondrop to solve mechanical and acoustic problems that do not exist in simpler in-ear monitors IEM. The Armature Art 24 uses precision 3D printed acoustic wave channels to route the output from each driver cluster to the ear canal, aligning their paths so that sound from each group arrives at the eardrum in sync. This physical time alignment is designed to reduce phase interference and avoid the smearing that can occur when drivers overlap in uncontrolled ways. Moondrop also adds a patented progressive time-difference simulation that mimics natural reflections and spatial decay, helping instruments sit in a realistic soundstage rather than collapsing into a narrow, congested image. These 3D printed acoustics effectively become part of the tuning toolkit, giving the engineers another lever beyond crossovers and EQ.
SUPERWOOFER Bass System and Multi-Band Tuning Strategy
The headline 48-driver figure matters less than how those flagship IEM drivers are organized. Moondrop’s design heavily weights the low end, with a patented SUPERWOOFER module built from 16 balanced armature drivers dedicated to bass reproduction. Four additional drivers handle mid and high frequencies, while another four tweeters target the ultra-high band for extension and air. This segmentation lets Moondrop push bass output without overdriving a single unit, while keeping midrange and treble drivers in cleaner operating ranges. According to Gizmochina, the company tunes the Armature Art 24 to a PopAvg-DF target with a slight bass lift, aiming for a controlled yet lively presentation. Combined with a frequency response rated from 7 Hz to 35 kHz and sensitivity of 119 dB, the architecture is designed to deliver both detail and headroom across complex mixes.
Premium Cable System and Flagship-Level Positioning
To match its dense internal layout, the Armature Art 24 ships with a premium cable system that targets both signal integrity and flexibility. Moondrop uses a 0.78 mm 2-pin detachable cable built from a hybrid of 19 cores of single-crystal copper and 19 cores of pure silver, aiming to keep resistance low while maintaining durability through a braided outer layer. Modular plugs provide support for 3.5 mm single-ended and 4.4 mm balanced outputs, so users can connect to a wide range of portable players and desktop DAC/amps without aftermarket cables. Inside the box, three ear tip types—including silicone, UC tips, and a foam-silicone hybrid—help secure a consistent seal, which is critical for the SUPERWOOFER’s low-frequency performance. With a listed price of 6,999 yuan (about USD 1,030, approx. RM4,800), Moondrop plants the Armature Art 24 firmly in the upper tier of personal audio flagships.
What This Means for the Future of Flagship In-Ear Monitors
The Armature Art 24 shows how far manufacturers are willing to push balanced armature drivers and 3D printed acoustics in search of higher resolution and more controlled frequency response. While many listeners may never need 24 drivers per side, the engineering behind such designs can influence more attainable models, especially in areas like phase management, acoustic channel design, and multi-band crossover strategies. The use of time-difference simulation and high-density driver arrays hints at a future where in-ear monitors IEM blur the line between traditional studio monitors and portable devices. For professionals, the promise is more precise monitoring in compact form; for enthusiasts, it is a closer approximation of full-size systems on the go. Whether this extreme density becomes a norm or stays a halo experiment, it raises expectations of what flagship IEM drivers can achieve.
