Redefining the DIY 3D Printer Frame
A DIY 3D printer frame is the structural skeleton that supports motion systems, electronics, and print bed components, and it can be built from wood, metal, or fully printed parts when its design balances stiffness, alignment, and vibration control for reliable performance. For years, aluminum extrusions and steel plates were the unquestioned default, especially for CoreXY printer build projects that demand rigid geometry at high speeds. Now, makers are questioning that assumption. From a wooden 3D printer that dampens noise to compact machines with 3D printed frame materials, these experiments show that structural reliability depends as much on clever engineering as on the metal you buy. The shift matters for accessibility: replacing specialized aluminum stock and custom metal cuts with plywood, solid timber, or printable panels lowers cost and tool requirements. In the process, it reveals how far careful design and tuning can stretch nontraditional materials.
Six Months to a Wooden 3D Printer That Stays Square
Content creator Mitsu Makes spent six months building a wooden 3D printer frame to see if timber could match metal’s precision demands. Starting with thick solid wood, he CNC-cut frame pieces, then hand-sanded them for seven hours to get tight, flex-free fits. Conventional wood glue, not screws, held the main structure while clamps kept everything square during a multi-day cure. Thin sections around 3 mm thick gained strength from laser-cut steel backing plates at linear rail mounting points, turning the hybrid frame into a stiff assembly. The motion system uses a cross-gantry with two stepper motors for X and Y and a third stepper driving 150 mm Z leadscrews, giving 110 mm of travel and automatic bed tramming. According to Techeblog’s report on Mitsu’s build, the wood frame “helps to dampen vibrations, which is far superior to your average metal frame.”
Electronics and Toolhead: Modern Hardware in a Wooden Shell
While the frame is wood, the wooden 3D printer’s internals are fully modern. Mitsu chose a BigTreeTech Manta M8P controller running Klipper, a firmware stack popular in high-end CoreXY printer build communities for its fast control loops and flexible tuning. Clean wiring, auto homing, Z tilt adjustment, and complete bed mesh probing give the machine the same quality-of-life features found in many commercial printers. On the toolhead, he adapted an Annex Engineering K3 carriage and combined it with a Dragon UHF hot end and a Sherpa Mini extruder to handle high flow rates. A Beacon RevH probe enables accurate bed mapping despite the non-metal frame. Initial tests with a Voron calibration cube showed promising dimensional accuracy, and subsequent tuning improved results further. The outcome is a DIY 3D printer frame that feels custom and experimental, yet behaves like a polished, quiet workhorse in daily use.
Encore: A CoreXY Printer Built From Its Own Medium
Where Mitsu used wood, Alex Yu’s Encore project leans fully into 3D printed frame materials. Encore is a compact CoreXY printer build whose outer shell is made from printed panels only 1.5 mm thick. Once welded together, these panels form a strong monocoque-style shell. Horizontal axes mount directly to the side panels, meaning there is no internal aluminum frame at all. Every structural component fits on a typical 225 mm build plate, so any capable desktop printer can fabricate the parts. The machine’s footprint is about 219 × 221 × 262 mm, with a 120 mm cube build volume that still suits practical parts and detailed prototypes. It uses MGN9C linear rails and a CoreXY belt layout for smooth motion, plus a Bambu-style hotend and a low-cost BMG-style extruder. Yu’s approach shows how a DIY 3D printer frame can be printed, assembled, and later re-printed as improvements appear.
Recursive Manufacturing and Lower Barriers for Makers

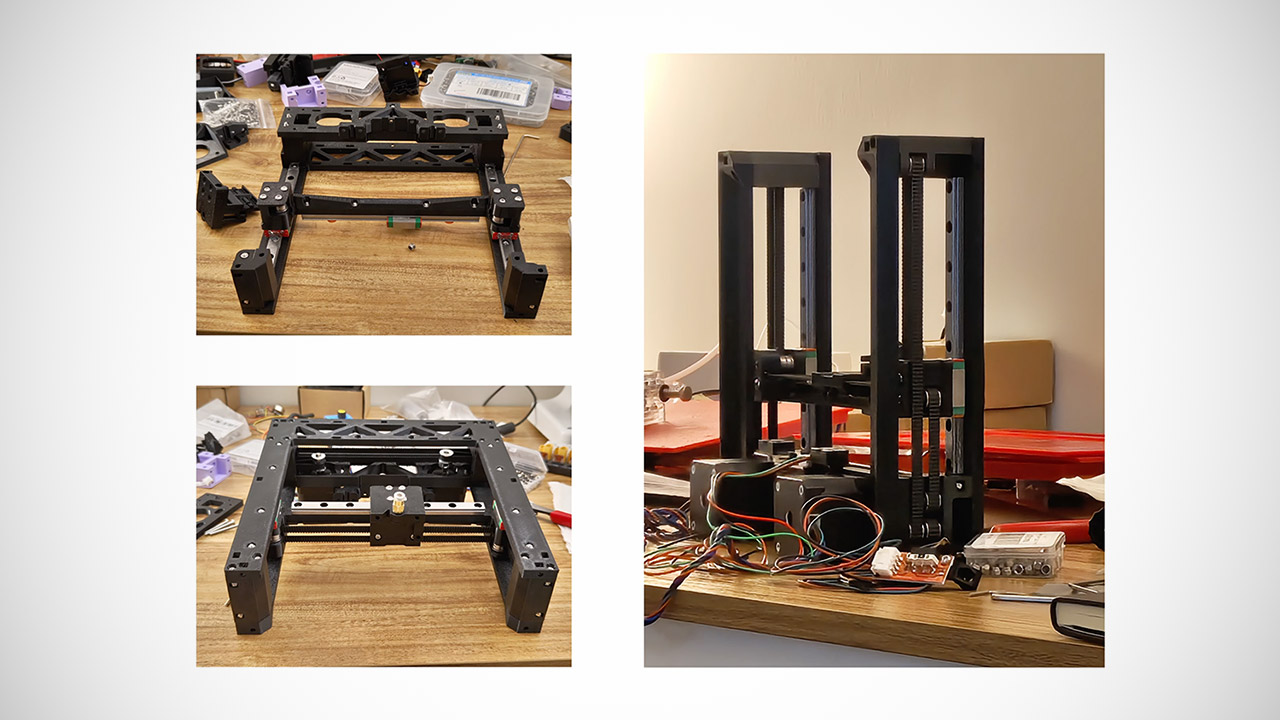

Encore highlights a key advantage of 3D printed frame materials: recursive manufacturing. Builders can print nearly all structural parts of a CoreXY printer build on an existing machine, then use the new printer to upgrade or duplicate parts again. Yu structured Encore as a modular system, with separate gantry, Z stage, and outer panels. That makes repairs or upgrades as simple as reprinting a module instead of rebuilding an entire frame. Mechanical issues identified during testing, such as insufficient hotend cooling and bed vibration at high speeds, were solved with design changes: stronger blowers, revised shrouds, extra side fans, and thicker 8 mm Z rods in place of 6 mm ones. These tweaks show that non-metal frames can hit high speeds without structural instability when paired with thoughtful engineering. Together with wooden builds, they argue that DIY 3D printer frames no longer need to be constrained by aluminum profiles.
