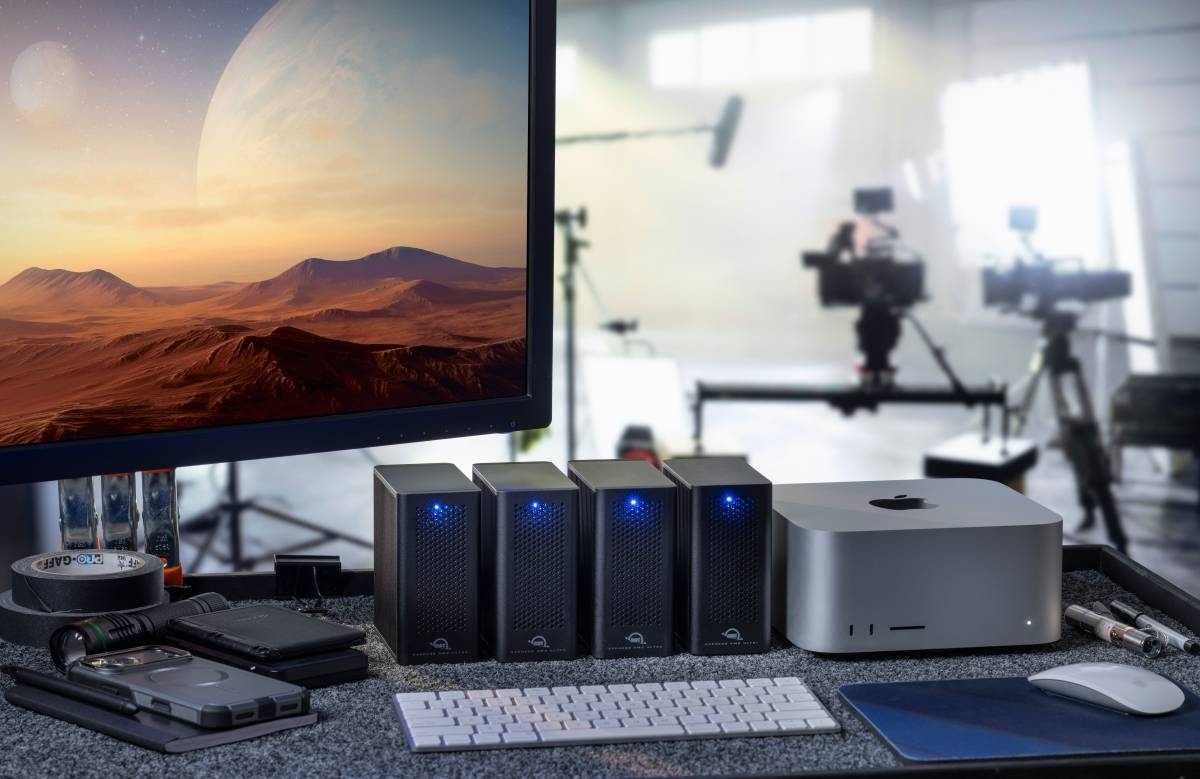

OWC’s Express 4M2 Ultra: Thunderbolt RAID Enclosure for Extreme DIY Performance
OWC’s Express 4M2 Ultra RAID enclosure has just taken home Videomaker’s Best RAID Storage award at NAB, and it is easy to see why. The compact Thunderbolt RAID enclosure lets users install their own NVMe M.2 SSDs and configure them as RAID 0, 1, 4, 5, 10, or JBOD for speeds up to 6622 MB/s. That level of throughput is fast enough to handle demanding creative work, including 12K RAW video and complex 8K multicam timelines, without resorting to bulky rackmount gear. The aircraft‑grade aluminum chassis and adaptive fan balance cooling with low noise, while a second Thunderbolt 5 port enables daisy chaining up to five additional devices, including more Express 4M2 Ultras for a single massive volume. Compatible with Thunderbolt 5, 4, 3 (Mac only) and USB4 systems, it offers a flexible, high speed external SSD platform that fits neatly on a creator’s desk.
HighPoint’s Dual-Track NVMe RAID Storage for the Post‑VMware Virtualization Era
While OWC is targeting deskside Thunderbolt RAID enclosure workflows, HighPoint is focusing deeper in the server stack with PCIe Gen5 NVMe RAID storage. Its new dual‑track strategy addresses two pain points in a post‑VMware world: resilient boot volumes and high‑density, software‑defined storage. The Rocket 7600A series delivers NVMe switching plus RAID‑1 boot redundancy for Hyper‑V and Proxmox hosts, keeping the hypervisor online even if a boot drive fails. In parallel, the Rocket 1600 series uses a pure PCIe Gen5 switch architecture and native NVMe drivers so platforms like Microsoft Storage Spaces Direct, ZFS and Ceph can talk directly to the drives. HighPoint claims up to 64 GB/s of bandwidth with near‑zero latency, effectively turning a single adapter into an SDS performance hub. For small businesses and home lab builders, that means enterprise‑class virtualization storage options without legacy controller bottlenecks.
Beyond SATA: How NVMe RAID Changes Performance, Latency and Complexity
Traditional RAID arrays built on HDDs or SATA SSDs still win on raw capacity per ringgit, but they struggle with modern workloads. Spinning disks have millisecond‑level latency and limited IOPS; even SATA SSDs are capped by the SATA interface, making 8K video timelines and busy virtualization clusters feel sluggish. NVMe RAID storage, whether via Thunderbolt solutions like the Express 4M2 Ultra or PCIe Gen5 adapters from HighPoint, shifts to PCIe lanes instead of legacy buses. This slashes latency and boosts parallel I/O, so multiple VMs or editing apps can hammer the storage without choking. The trade‑offs: NVMe is more expensive per terabyte and demands more attention to cooling and PCIe lane allocation. Configuration can also be more complex, especially when mixing hardware RAID with software‑defined storage. But for creators and home labs that value responsiveness over pure capacity, NVMe RAID is increasingly the logical next step.
Real-World Workflows: From 12K Video to Virtualization Clusters and Backup Targets
The clearest wins for NVMe RAID appear in real‑world workflows that are both bandwidth‑hungry and latency‑sensitive. On the creative side, OWC’s Express 4M2 Ultra can sustain transfer rates fast enough for 12K RAW and 8K multicam editing, turning a laptop or compact workstation into a serious finishing rig. Large Lightroom or Capture One libraries also benefit: previews and exports feel closer to local RAM than disk. In the lab or server room, HighPoint’s Rocket 1600 series shines as a software‑defined storage backbone, feeding Hyper‑V or Proxmox clusters with tens of gigabytes per second of shared NVMe capacity. NVMe arrays are also ideal as fast backup or ingest targets on a storage network—capturing project files, VM images or database snapshots at wire speed, then tiering older data down to slower NAS or HDD‑based arrays for cost‑effective long‑term retention.
Integrating High-Speed Storage in Malaysian Home Labs and Studios
For Malaysian power users, the question is how to integrate these high‑speed options into existing setups. In a Thunderbolt‑centric studio, an Express 4M2 Ultra can act as the primary NVMe RAID storage on a Mac or Windows workstation, while project archives live on a separate NAS over 10GbE. Thunderbolt to NAS workflows let editors cut directly from the RAID, then consolidate to the NAS at the end of the day. In a home lab, a small Proxmox or Hyper‑V server can use a HighPoint Rocket 7600A for mirrored NVMe boot drives and a Rocket 1600 for SDS‑managed capacity. Direct‑attached NVMe RAID can then be shared over the network via NFS, SMB or iSCSI. Just remember: speed is not safety. Plan for proper airflow and cooling, ensure enough PCIe lanes on the motherboard, use RAID primarily for uptime, and still maintain off‑box backups—ideally to a separate NAS or cloud service.
