A YouTube Streaming Handheld That Should Not Exist
GBCTube is a Game Boy Color mod that turns the 160x144 pixel handheld into a YouTube streaming handheld by combining a backlit screen swap, a custom microcontroller cartridge, wireless networking, and external video transcoding to push retro video playback far beyond what Nintendo’s 1998 hardware was meant to do.
On paper, loading a comedy podcast onto a 160 by 144 pixel Game Boy Color screen sounds like a joke, not a design brief. The system dates back to 1998, has no wireless hardware, runs an 8‑bit processor, and shipped without a backlight. Yet creator Throaty Mumbo decided that live YouTube playback on this relic was a goal worth pursuing and filmed the entire process. This project is not about convenience; it is an argument that “impossible” on old hardware usually means “no one has bothered yet.” The result is a YouTube streaming handheld that works precisely because it bends every original design assumption until it cracks.
Rebuilding the Game Boy Color for Video
To make any kind of retro video playback viable, the Game Boy Color mod starts with the weakest link: the screen. The original non‑backlit panel had to go, replaced with a new backlit LCD to make those 160x144 pixels usable for video in the first place. That sounds minor, but opening a nearly three‑decade‑old handheld, wrestling fragile ribbon cables and plastic clamps, and reassembling it without killing the board is already a small act of defiance against planned obsolescence.

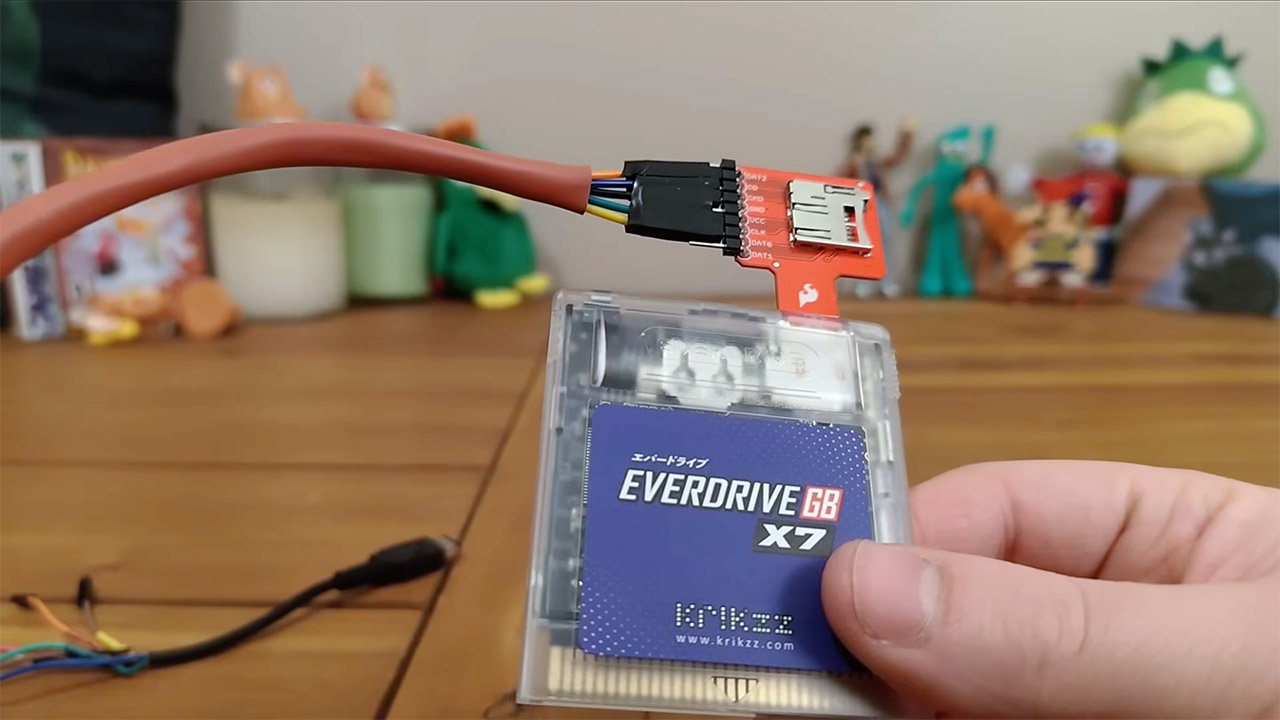

With a readable display in place, the next step was proving the console could even draw complex images. Static tests, including a full‑color Mario graphic loaded via an EverDrive, confirmed that the Game Boy Color could handle visuals richer than its original library. From there, homebrew video players pushed the hardware: one prioritized frame rate for smooth animation at the cost of color depth, another crammed more colors per scanline but dropped to about five or six frames per second. Those experiments mattered for one reason: they proved the handheld could decode and display movies if the data arrived in the right format and at the right speed.
Why the Link Cable Failed and the Cartridge Slot Won

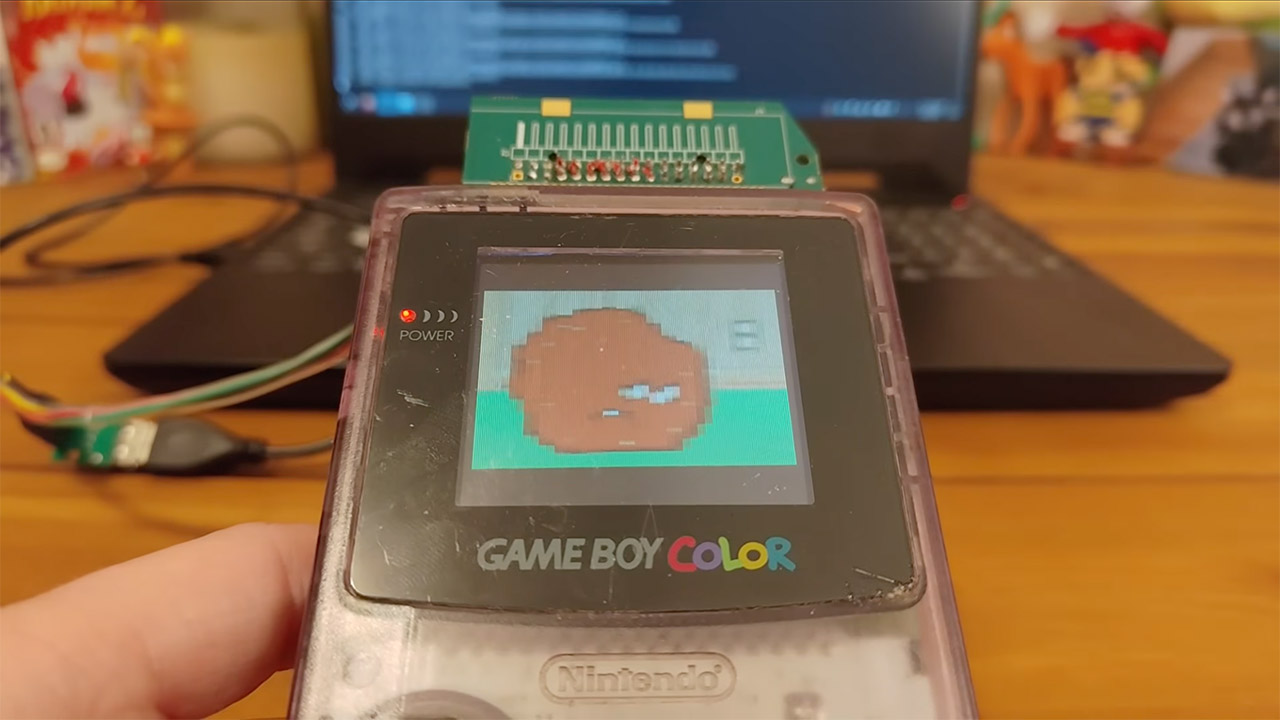

If you want to stream video to a Game Boy Color, the link cable looks like the obvious port of entry. In practice, it was a dead end. Throaty Mumbo tried pushing frames from a PC through the link connector while the handheld decoded them in real time, but the link cable maxed out at 64 kbps. At that speed, the 8‑bit CPU choked; frames sometimes took ages to appear, and real‑time streaming was a fantasy. The cable’s slow throughput turned the experiment into a slideshow.

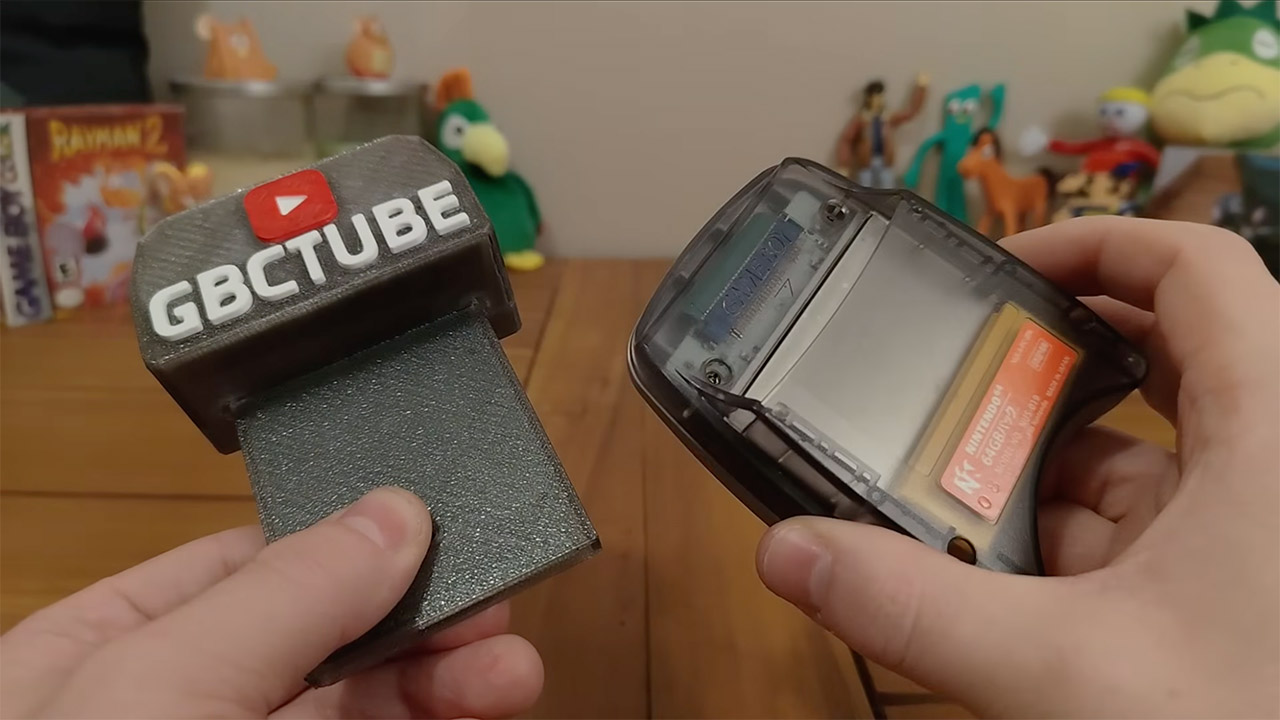

The real breakthrough came from treating the cartridge slot not as storage, but as a live data hose. Instead of asking the Game Boy Color’s CPU to do the heavy lifting, a modified cartridge—based on a GB Interceptor‑style design—became the brains. A Raspberry Pi Pico 2 microcontroller, built on the RP2350 chip, was wired directly to the cartridge breakout and tuned to match the bus timing so it could answer every memory read in lockstep with the console’s clock. From the handheld’s perspective, this microcontroller cartridge was just a ROM. In reality, it was an active device streaming frames into VRAM as if they were game data. That sleight of hand is the heart of the mod: the cartridge slot is no longer a passive port, but a hijacked bus under microcontroller control.
Inside the GBCTube Streaming Pipeline

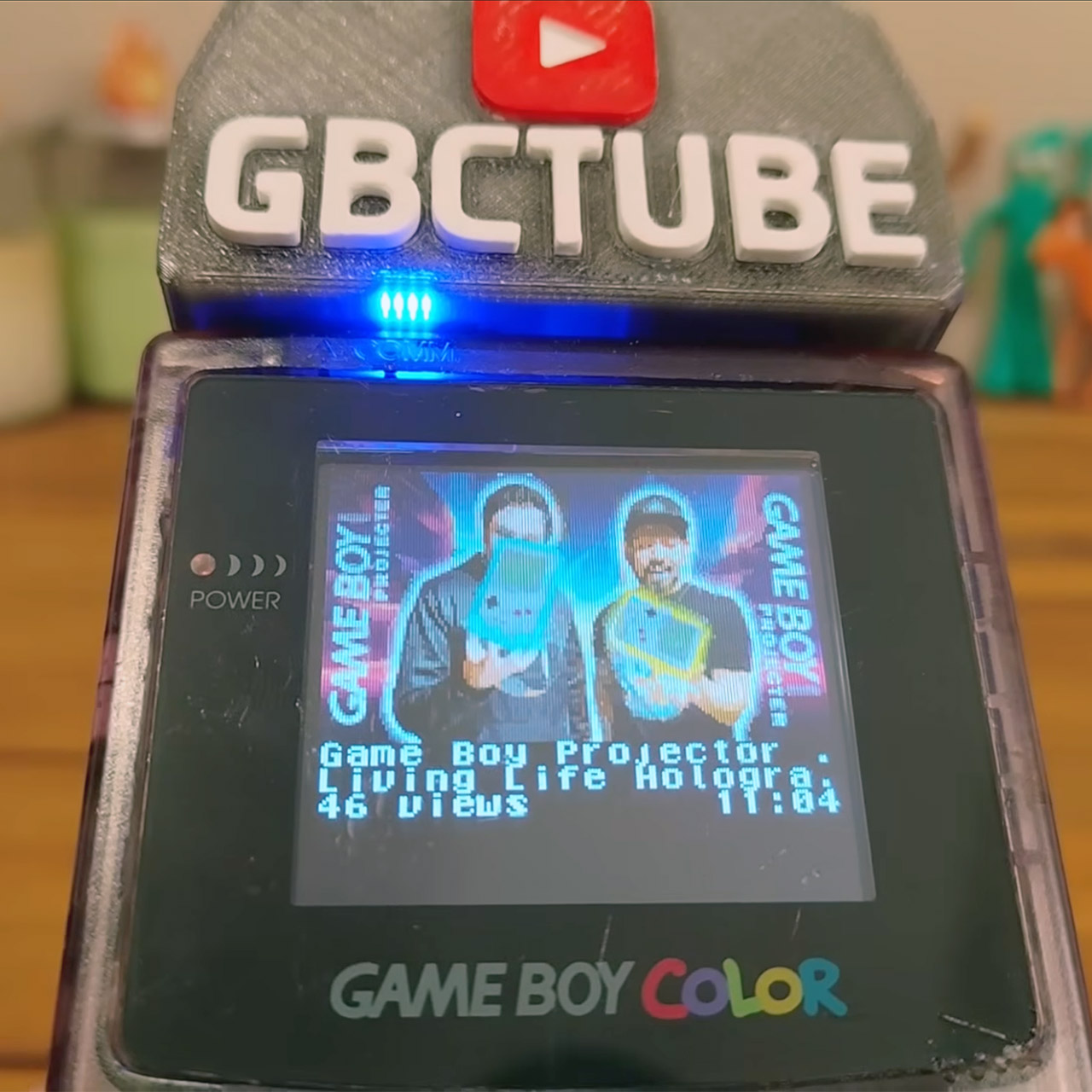

Streaming YouTube to a Game Boy Color is not about cramming a web browser into an 8‑bit system; it is about building a distributed video pipeline that respects the handheld’s limits. GBCTube lets you pick a video directly on the Game Boy using an on‑screen keyboard; search results appear as tiny low‑resolution thumbnails, and choosing one sends the video ID back to a nearby computer. That PC then pulls the YouTube stream using regular tools, converts each frame into a Game Boy‑friendly format, and packs the data for transmission.
On the cartridge, an ESP‑12F Wi‑Fi module receives the stream and forwards it over a high‑speed SPI link to the RP2350‑based microcontroller. From there, the microcontroller feeds pixels to the Game Boy Color in real time, acting like a ROM that happens to be updated every frame. Audio takes a separate route: the RP2350 splits sound from the video stream and drives an internal I2S amplifier and speaker inside the shell. The result is imperfect but impressive. Video and audio can drift slightly over long sessions, and users must choose between a high frame rate mode and a high color mode that trades smoothness for richer color. Yet every frame proves that clever external compression and timing can turn 1998 hardware into a functioning YouTube streaming handheld.
Hobbyists and the Art of Useless Genius
This Game Boy Color mod did not arrive in a vacuum. The spark came in part from a short social clip imagining Netflix on a Game Boy Color cartridge, which raised the question of whether streaming to such old tech could ever be more than a gag. That question landed in the hands of someone who had already run Windows on an N64 cartridge and original console, so the bar for “ridiculous but achievable” was high. GBCTube is the predictable result when you give a determined hacker a what‑if and a pile of solder.
Retro creators love these exercises because they answer niche questions that no commercial product manager would fund. One commentator summed up the GBCTube build on GitHub as needing “a microcontroller, a cartridge breakout board, and a bunch of other crap soldered together to make this nightmare a reality,” a description that doubles as a mission statement for the whole scene. The retro gaming community keeps pushing the boundaries of old media, from Windows‑on‑consoles to radio carts and beyond, precisely because the stakes are low and the creativity is high. Projects like this YouTube streaming handheld are not about practicality; they are proof that decades‑old gaming hardware still has surprises left, if someone is stubborn enough to pull them out frame by frame.
