From DAC Chips to the Analog Output Stage
For years, digital-to-analog converters (DACs) have dominated discussions about sound quality in high-end audio. Flagship chips now deliver astonishing resolution and dynamic range, yet many systems still rely on generic op amps in the analog output stage. That analog stage is where the delicate voltage or current from the DAC is converted, filtered, buffered, and finally driven into the next component in the chain. If the op amp there adds noise, distortion, or loses drive capability under load, much of the DAC’s performance advantage simply vanishes. This is where premium audio op amps enter the picture. By focusing on ultra-low noise, vanishingly low distortion, and robust current drive, they ensure that the analog signal coming out of a high-end DAC remains as pure and intact as possible all the way to your preamp, power amp, or headphones.
AKM’s AK491x Series: Extending Velvet Sound Beyond the DAC

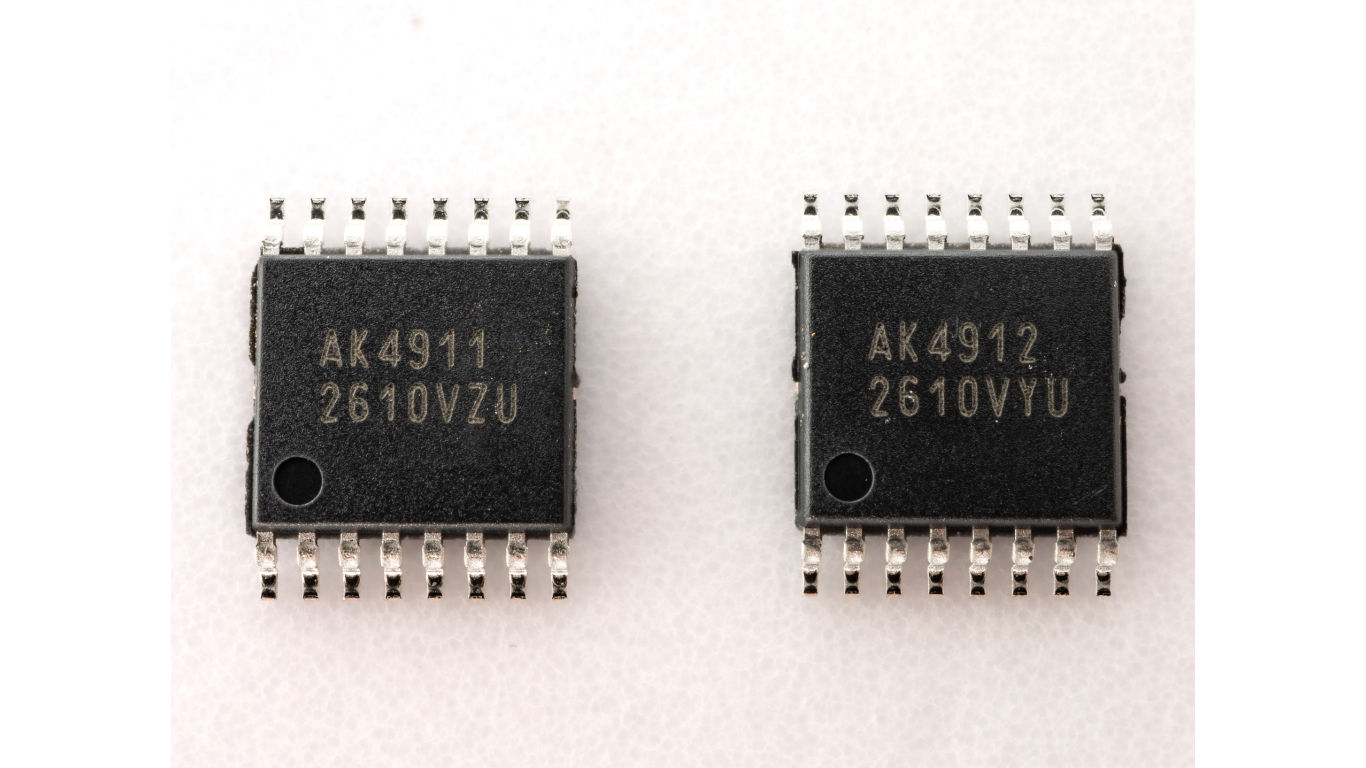

Asahi Kasei Microdevices’ AK491x series—made up of the single-channel AK4911 and dual-channel AK4912—was created specifically for this critical analog output stage. Building on the company’s Velvet Sound philosophy, which already underpins DACs like the AK4499EX, these premium audio op amps are designed as a listening-first complement rather than just another measurement exercise. On paper, their performance is formidable: noise density of 0.96 nV/√Hz and THD+N of −150 dB at 1 kHz, combined with ±100 mA of output-drive capability. In practice, that means they can handle demanding roles such as multi-channel current summing without losing their composure. AKM emphasizes that the goal is to preserve transparency, spatial openness, and tonal weight, so the emotional impact of the music matches the impressive technical specifications of modern high-end DAC components.
Why Op Amp Selection Now Defines System-Level Sound Quality
As DAC architectures improve, the analog circuitry around them has become the new bottleneck. The AK491x series highlights a broader shift toward component-level optimization in premium audio design, where op amp choice is treated as a decisive voicing tool rather than an afterthought. With ultra-low inherent noise, the op amp does not mask microdetail or ambience; with extremely low distortion, it avoids adding hardness or grain; with high drive capability, it maintains linearity even when feeding complex loads like multi-channel summing networks or low-impedance stages. This combination directly influences perceived clarity, imaging stability, and low-frequency authority. For designers chasing an “as if you were there” presentation, the analog output stage becomes a place to refine soundstage depth, timbral realism, and dynamic contrast—areas where incremental improvements in component quality can be clearly audible in a resolving system.
What Audiophiles and DIY Builders Stand to Gain
Premium audio op amps such as the AK4911 and AK4912 are appealing not only to major manufacturers but also to serious DIY audiophiles. For brands building new DACs, preamps, or headphone amplifiers, a part like the AK491x series offers a clear path to matching state-of-the-art DAC chips with an equally refined analog stage, all while maintaining consistency with a recognized Velvet Sound tuning philosophy. For DIY builders and modders, op amp selection is one of the most accessible ways to influence system character without redesigning entire circuits. Swapping a generic device for a premium part can reduce background noise, sharpen imaging, and improve drive into challenging loads. As samples become more widely available ahead of mass production, expect more designs—and upgrade paths—that treat op amps as core high-end DAC components rather than invisible supporting actors.
