What hidden bottlenecks look like (and what you need first)
Hidden PC performance bottlenecks are problems where games stutter or apps slow down even though usage graphs look fine and Windows shows no clear error, because settings in the BIOS, memory configuration, cooling, or storage are silently limiting performance behind the scenes.
If your games “stutter every now and then”, the internet will happily tell you the CPU is bottlenecking the GPU, that Windows 11 is broken, or that reinstalling chipset drivers is the magic fix, but none of these guesses are tailored to your exact system. This guide is for PC enthusiasts who’d rather measure than guess, and who are comfortable entering the BIOS and watching a few monitoring graphs. You don’t need to be an overclocking pro, but you should be willing to change one setting at a time and test it. One writer fixed intermittent stutters by logging a thirty‑minute HWiNFO64 session at one‑second intervals, catching the issue right when the game hitch appeared.
Step-by-step: A sane sequence for PC performance troubleshooting
Random frame drops feel chaotic, but you’ll save time if you follow a strict order and isolate one variable at a time. Think of this as a checklist you run through any time a game feels worse than the hardware suggests.
- Record the problem under load: Use a tool like HWiNFO64 to log CPU, GPU, clocks, temperatures, and power at one‑second intervals while you recreate the stutter for at least 20–30 minutes, so that any pattern has time to appear.
- Check “obvious” Windows issues: Close non‑essential background apps, check for updates, and confirm your GPU drivers and game settings aren’t wildly mismatched with your monitor before you blame hardware.
- Inspect BIOS for performance basics: Enter UEFI/BIOS and verify XMP/EXPO is enabled so RAM runs at its rated speed instead of slow JEDEC defaults, which can drop a 6,000 MT/s kit to 4,800–5,200 MT/s if left off.
- Fix cooling and fan behavior: In BIOS, review fan curves and build a custom curve so fans ramp earlier instead of prioritizing silence, because default curves can allow temperatures to hit thermal limits and cause throttling.
- Analyze logs for thermal throttling: Look for moments where CPU temperature spikes and clocks plunge, even if throttle flags like PROCHOT show “No”, because firmware limits can still pull clocks down silently.
- Use AI to read sensor logs: Feed your CSV log and system specs into an AI assistant to scan thousands of rows and highlight correlations between temps, clocks, and power that might be hard to spot by eye.
- Rule out other GPU and shader issues: Confirm you aren’t hitting shader compilation hitches, VRAM exhaustion, or GPU thermal throttling by watching utilization, clocks, and texture behavior during hitches.
- Check Windows memory pressure: Use Resource Monitor or Task Manager to compare committed memory with installed RAM; if committed memory approaches your RAM size and disk activity spikes during stutters, suspect paging.
- Tune the Windows pagefile safely: If memory pressure correlates with hitches, adjust the pagefile so Windows isn’t constantly resizing it in the middle of a game, which can smooth out frame pacing without boosting raw FPS.
- Re‑test and compare logs: Run the same workload, log again, and compare temperatures, clocks, and stutter frequency; if the pattern changes, you’ve found a lever that matters, if not, roll back and move to the next component.
The main risk here is skipping steps. If you tweak the pagefile before confirming memory pressure, or undervolt the CPU before fixing fan curves, you can misread the results and blame the wrong component. Methodical, component‑by‑component testing prevents hours lost in forum rabbit holes and stops you from replacing healthy hardware you already paid for.
BIOS: The silent performance governor you can’t see in Windows
Your BIOS (or UEFI) decides how your CPU boosts, how your RAM clocks, and how aggressive your cooling is long before Windows loads, which means a misconfigured option can bottleneck performance while every Windows graph looks normal. One article puts it bluntly: not everything is Windows’ fault — your BIOS might be misconfigured.
Many gamers never touch BIOS defaults after a build, so XMP or EXPO stays disabled and a 6,000 MT/s DDR5 kit drops to 4,800–5,200 MT/s, cutting straight into gaming frame rates. Default fan curves often favor quiet over airflow, letting the CPU heat up until it hits a thermal ceiling; thermal limits will tank your PC’s performance long before you see a blue screen. Log analysis from one system showed the CPU temperature jumping from 78°C to 90.4°C in about five seconds, with effective clock speed collapsing from 4,200 MHz to 740 MHz during that window. Yet PROCHOT and HTC throttle flags stayed “No” for every sample, so Windows never “saw” throttling even though performance cratered.
The lesson: treat BIOS as the place where you unlock (or accidentally lock away) performance you already bought. Before you blame an aging CPU, check whether your power limits, boost behavior, memory profiles, and fan curves are helping or holding you back.
Using AI and logs to expose CPU thermal throttling
Once you’re logging your system, AI can be a powerful second pair of eyes. Instead of reading thousands of lines by hand, you hand the raw data to a model and ask it to find patterns that line up with your stutters.
One writer logged a thirty‑minute session at one‑second intervals and exported the CSV right after the stutter hit. They then gave that file and basic hardware specs to an AI assistant and let it parse roughly 1,700 rows across 145 sensor columns in about five minutes. The model found something subtle: around the 10.5‑second mark of a recorded hitch, CPU temperature spiked from 78°C to 90.4°C in five seconds and the effective clock dropped from 4,200 MHz to 740 MHz. By AMD’s own flags, PROCHOT and HTC never triggered, so technically the CPU “never throttled” — but performance told another story. The reason for the clock collapse was thermal throttling enforced by firmware, not a Windows setting or a dying chip.
Following AI‑guided directions, the user went back into BIOS, set a negative Curve Optimizer offset, rebooted, and logged a new run under load. Peak temperature fell from 90.4°C to 74.9°C, package power dropped from 122 W to 94.5 W, and the thermal limit metric fell from 93.7% to 80% in the new run. In subsequent sessions, the intermittent stutters disappeared. This is a good example of how AI‑assisted CPU sensor log analysis can surface thermal and configuration problems much faster than trial‑and‑error tweaks.
When memory, not the GPU, is behind your frame drops
Many of us are trained to stare at GPU utilization first, so when a game stutters, we blame the graphics card. But if utilization, temperature, and VRAM usage look healthy, you need to ask what the rest of the system is doing during those hitches.

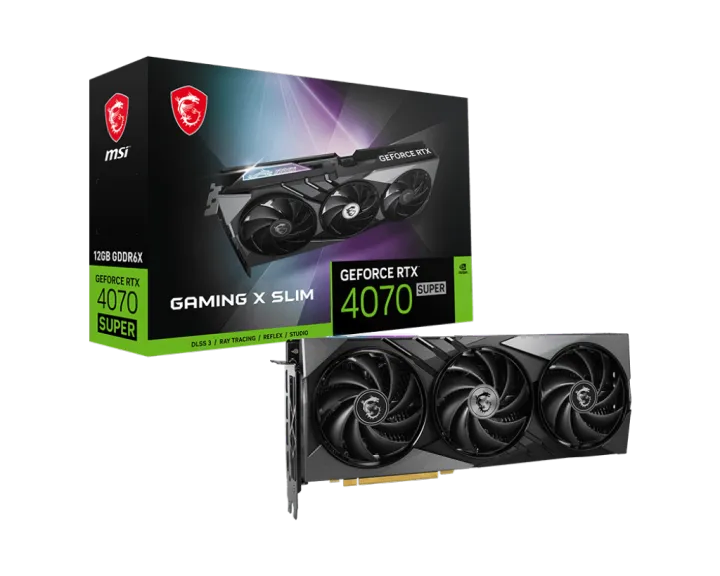

In one case, a player with an RTX 4070 saw smooth performance for about twenty minutes, then stutters, then smooth play again, even though GPU usage stayed at 70–80%, temperatures stayed under 70°C, and VRAM never approached its 12 GB limit. The breakthrough came from Resource Monitor: during stutters, disk activity spiked and committed memory climbed close to 30 GB out of 32 GB installed. The frame rate counter barely moved; frame pacing fell apart instead. This is exactly when Windows leans on pagefile.sys on the system drive, moving inactive data out of RAM so it can honor all commitments. Committed memory, not just “RAM in use,” is the number that tells you whether Windows is making heavy use of the pagefile.
To reduce paging overhead, you can set a fixed pagefile size. Follow these steps to set a fixed page file: Press Windows + R, type sysdm.cpl, and hit Enter. In System Properties, open the Advanced tab, click Settings under Performance, then go to the Advanced tab and click Change under Virtual Memory. Uncheck “Automatically manage paging file size for all devices,” select your system drive, choose Custom size, and set both Initial and Maximum size to the same value, then click OK and restart the computer. In the reported case, this didn’t eliminate every stutter, but what had been a recurring hitch every 20 minutes happened far less often, with the average frame rate staying about the same. The key is to first confirm memory pressure; tuning the pagefile won’t fix shader compilation, VRAM exhaustion, or thermal throttling.
Putting it all together: A smarter way to chase stutters
The pattern across these stories is simple: people blamed the most obvious component — the GPU, Windows, or even the CPU itself — and they were wrong. The real problems lived in BIOS defaults, thermal behavior, and Windows’ memory management. PC performance troubleshooting works best when you keep a clear order: verify BIOS profiles and fan curves, log and analyze temps and clocks, rule out GPU‑specific problems, check committed memory and paging, and only then reach for exotic tweaks or new hardware.

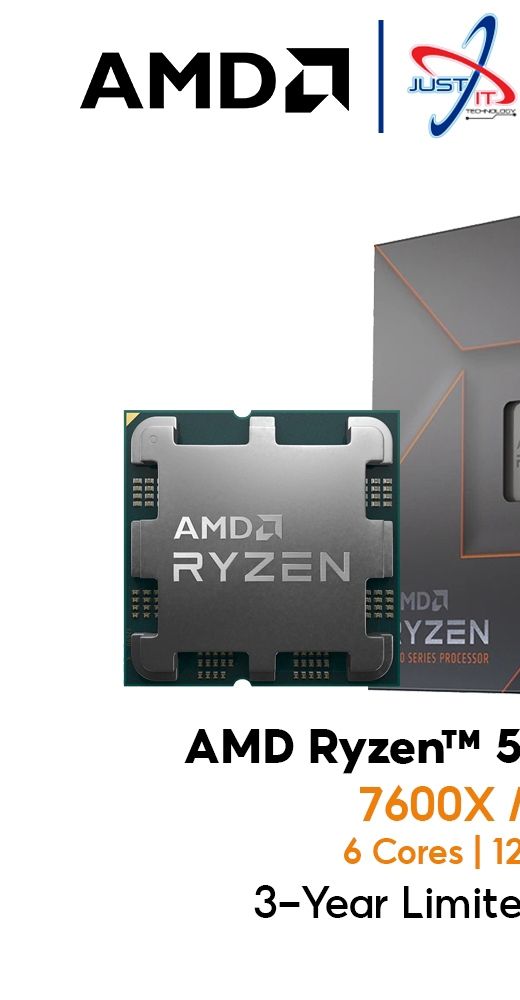

The payoff can be big. One user nearly upgraded from a Ryzen 5 7600X to a 9600X before AI‑assisted log analysis pointed to a BIOS setting they hadn’t checked, likely saving them USD 229 (approx. RM1,050) and hours of frustration. Another reduced regular frame‑pacing hitches not by changing graphics settings but by taming Windows’ virtual memory. The takeaway: resist quick blame, record what your PC is doing, and adjust one layer at a time. When you find the real bottleneck, the fix often costs nothing more than a reboot and a bit of patience.
