Why Xbox Expansion Cards Work on a PC at All

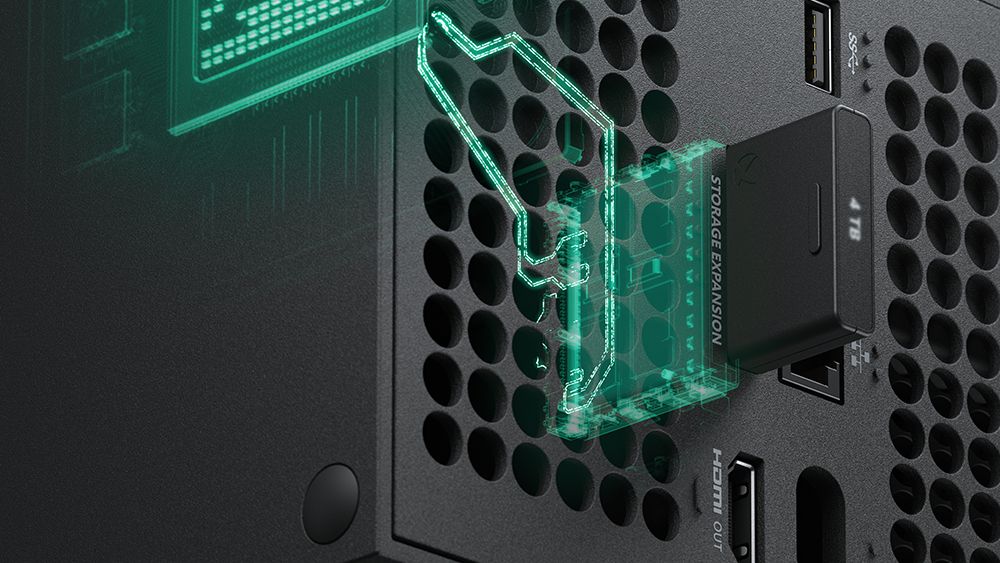

Xbox Series X|S storage expansion cards look proprietary, but under the shell they speak very familiar PC language. Microsoft’s cards, built by partners like Seagate and Western Digital, use a CFexpress Type‑B connector and the NVMe protocol over PCIe. The twist is lane configuration: the standard CFexpress spec normally uses PCIe 3.0 x2, while Microsoft’s custom implementation supports PCIe 4.0 x2. That still gives you a genuine NVMe SSD, just on an unusual plug instead of M.2. Enthusiasts realized that if you can expose a Type‑B CFexpress slot inside a desktop, you can repurpose an Xbox SSD as regular Windows storage. With memory and storage prices squeezed by ongoing component demand, the idea of turning a spare console expansion card into a usable CFexpress SSD adapter–based drive has become a tempting PC storage hack for tinkerers.
Hardware Setup: CFexpress SSD Adapter and Installation Basics
To use an Xbox expansion card on a PC, you need a CFexpress SSD adapter that bridges between the console-style card and your motherboard. The simplest route is a PCIe to CFexpress adapter that slots into a spare PCIe slot and presents a female CFexpress Type‑B connector. You insert the Xbox card into that slot just like you would on the console. Alternatively, M.2 to CFexpress adapters plug into an existing M.2 slot, which can help in small form factor builds, but you must verify that the adapter explicitly supports Type‑B. Power is delivered over PCIe or M.2, so there are no extra cables, but you should still check clearance for the vertical card and ensure good airflow around it. Once installed, the drive appears in your UEFI and operating system like any other NVMe device, ready to be partitioned and formatted.
Performance: How Fast Is an Xbox Expansion Card as PC Storage?
In community testing, an Xbox expansion card connected through a PCIe to CFexpress adapter shows read speeds up to 1,117 MB/s and write speeds up to 1,570 MB/s. Those figures put it well ahead of traditional SATA SSDs, which typically top out around 550–600 MB/s, and far beyond spinning hard drives. However, it trails even many entry‑level PCIe 3.0 x4 NVMe drives that can comfortably exceed 3,000 MB/s. Practically, this means load times for games and applications will feel snappy compared with SATA, but you will not see the same raw throughput as a mainstream M.2 NVMe SSD when copying huge files or working with very large projects. The PCIe 3.0/4.0 x2 limitation is the bottleneck. Still, for general gaming PC storage and a secondary library, the real‑world experience is more than acceptable for most users.
Costs, Trade‑offs and Longevity Versus Standard NVMe SSDs
Using an Xbox expansion card as PC storage makes the most sense if you already own the card and want to repurpose Xbox SSD hardware you paid for. New units are sold in multiple capacities, with listed examples including 500GB, 1TB, 2TB and 4TB options, and several are offered at sale prices. Because these cards were designed as console accessories, their cost‑per‑GB can be less attractive than typical PCIe 3.0 or 4.0 M.2 SSDs, especially when those NVMe drives are heavily discounted. You also accept trade‑offs in warranty and support: using a CFexpress SSD adapter in a desktop is not an official Microsoft use case, and any troubleshooting will largely be community‑driven. Longevity should be broadly comparable to other NVMe drives, but without detailed endurance specs and with potential firmware differences, you should treat this as opportunistic storage rather than a mission‑critical system drive.
Practical Use Cases, Safety Notes and Stability Testing
As a PC storage hack, an Xbox expansion card works best as a secondary game library, a scratch disk for media projects, or space‑efficient storage in compact builds where adding another M.2 slot is impossible. It is less ideal as a primary OS drive if you depend on maximum reliability, vendor support, and the highest possible speeds. After installing the CFexpress SSD adapter and card, Windows will see the drive but not the Xbox filesystem, so you must fully reformat it before use. Back up any data from the console first, because this process is destructive. Once formatted, run extended benchmarks and stress tests to check for thermal throttling, bus errors, or random disconnects. Monitor SMART data where available, and keep critical data duplicated on a separate, fully supported NVMe or SATA SSD until you are confident in long‑term stability.
