From Hot Silicon to Cool Spintronics

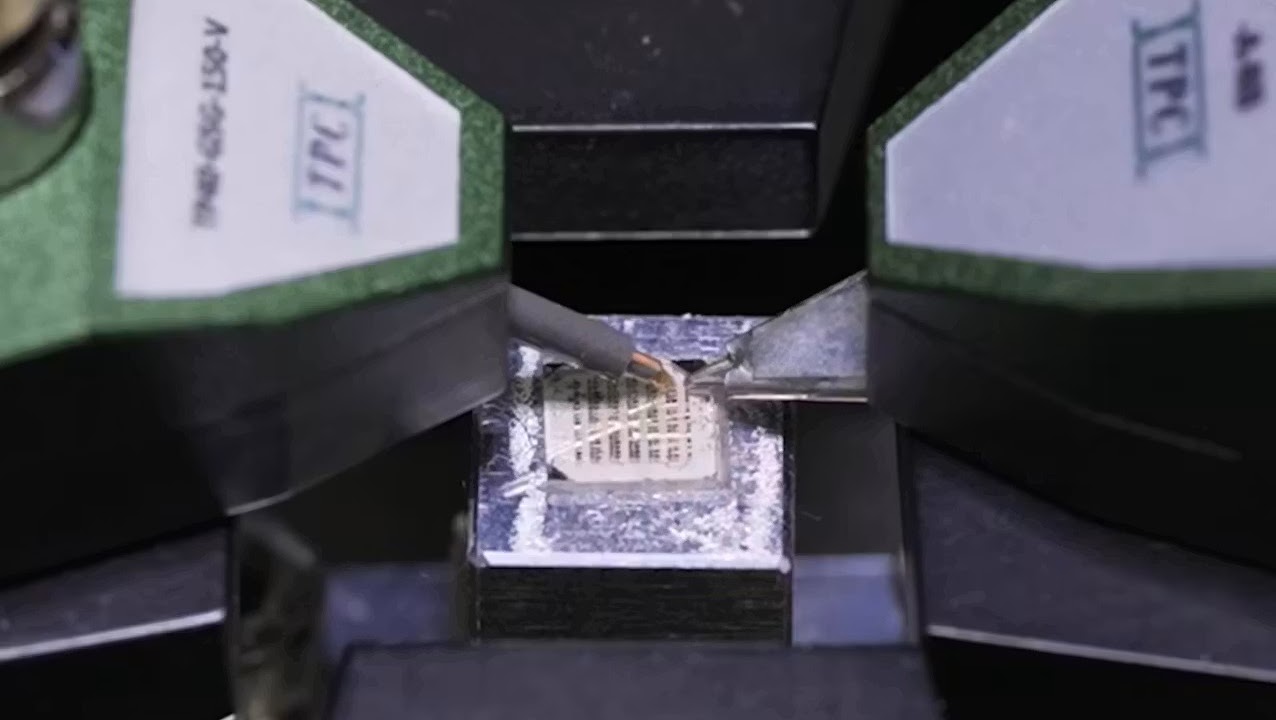

Conventional silicon transistors rely on shuttling electric charge to represent binary 1s and 0s, a process that generates substantial heat at high frequencies and has become a major bottleneck for further semiconductor scaling. Researchers at the University of Tokyo have unveiled a quantum switch technology that sidesteps this limitation by exploiting spintronics—the intrinsic magnetic spin of electrons rather than their physical movement. The non-volatile device combines manganese tin and tantalum layers. A brief electrical pulse through the tantalum flips the magnetic orientation of the manganese tin, encoding a bit without the constant flow of current typical of today’s transistors. Because information is stored magnetically, the device can retain state without power while producing minimal heat. This architectural shift directly targets the power and thermal constraints that have slowed microchip performance gains since the early 2000s.
A 1000x Semiconductor Speed Boost with Extreme Endurance
Early lab measurements suggest the quantum switch could deliver a dramatic semiconductor speed boost. The device writes a single bit in just 40 picoseconds, compared with around one nanosecond or more for current silicon memory designs—roughly a thousandfold improvement in write speed. Read-write endurance is equally striking: the switch sustained well over 100,000,000,000 consecutive cycles before measurable degradation, whereas conventional transistors operating at similar frequencies typically fail after about 1,000,000 cycles due to heat-induced damage. This combination of ultrafast operation and extreme durability points to architectures where memory and logic could be more tightly integrated, blurring the boundary between storage and computation. For workloads dominated by rapid, repeated data access—such as AI inference, real-time analytics, and graphics processing—the performance uplift could be transformative, enabling processors to run far more operations per second without being constrained by thermal budgets.
Chip Power Efficiency and the Data Center Energy Crunch
The quantum switch’s biggest impact may be on chip power efficiency. By encoding data through magnetic orientation instead of continuous charge flow, the device can operate with extremely low active power and heat output. Professor Nakatsuji notes that this approach enables data to be written and stored almost without consuming active power. Lab results indicate that, if engineered into commercial systems, overall computer power requirements could fall to about 1 percent of today’s levels. This matters as AI-driven data center energy use accelerates: the International Energy Agency projects global data center consumption could reach 945 terawatt hours by 2030, more than double the 2024 level. Cutting per-chip power demand by orders of magnitude would ease strain on power grids, reduce cooling needs, and lower the carbon footprint of high-performance computing, enabling more aggressive scaling of AI and cloud services without proportional energy growth.
Implications for Consumer, Cloud, and Edge Chips
If quantum switch technology scales as expected, it could reshape architectures across consumer devices, data centers, and edge computing. In smartphones, laptops, and gaming consoles, a thousandfold speed increase for certain memory and switching operations would enable smoother multitasking, richer graphics, and more on-device AI, all while improving battery life thanks to lower power use. In cloud and AI accelerators, ultrafast, low-heat switches could relieve memory bandwidth bottlenecks and allow denser integration of compute units, raising performance per rack while moderating cooling requirements. Edge devices such as industrial sensors, autonomous drones, and IoT gateways could gain persistent, non-volatile processing elements that retain state without power, supporting always-on analytics at minimal energy cost. The technology also supports optoelectronic fusion schemes, converting incoming light into stored bits in about 60 picoseconds, hinting at future chips that tightly couple photonic interconnects with spintronic storage.
Commercialization Timeline and Integration Challenges
The research team aims to deliver a fully functional prototype chip based on the quantum switch by 2030, marking a key milestone on the road to commercialization. Scaling from individual devices to large-scale integrated circuits will require close collaboration with semiconductor manufacturers, which the team is actively seeking. Foundries will need to adapt fabrication processes to incorporate manganese tin and tantalum layers alongside established CMOS flows, while design toolchains must evolve to model spintronic behavior accurately. Reliability under real-world operating conditions, integration with existing logic and memory blocks, and cost-effective production at volume all remain open questions. Nonetheless, the demonstrated gains in speed, endurance, and power efficiency provide strong incentives for industry to explore hybrid architectures, where quantum switches initially complement, rather than replace, silicon transistors in niche high-performance and low-power domains before diffusing into mainstream consumer and enterprise chips.
