Before You Start: What Wi‑Fi Speed Optimization Really Means
Wi‑Fi speed optimization is the process of tuning your router settings, wired connections, and network-wide filters so your existing hardware delivers lower lag, more stable speeds, and fewer random disconnects without replacing your router or internet plan.
If your speed tests look fine but games rubber‑band when someone starts a download, or video calls freeze for a second and then recover, you are in home network troubleshooting territory, not an automatic “call the ISP” situation. The good news: most of the fixes live in a browser page or a simple Windows menu. You will need your router’s admin login, access to its companion app or web interface, and admin rights on at least one Windows PC to tweak Ethernet adapter settings. Optional but helpful is a small always‑on device (old PC, Raspberry Pi, or NAS) if you want to move ad and malware filtering to the network level using a DNS resolver like Pi‑hole or AdGuard Home.
Everything below assumes your ISP delivers roughly what you are paying for. If your line is unstable or underprovisioned, these tweaks will still help with network performance tuning, but they cannot fix a bad connection.
- Log in to your router’s admin page or app and enable QoS with realistic bandwidth limits.
- Disable Green Ethernet or Energy‑Efficient Ethernet on Windows adapters that stutter.
- Tighten your 2.4GHz Wi‑Fi channel width and align antennas for your home layout.
- Set up network‑level DNS filtering on your router or a small always‑on device.
- Audit your wired network for weak Ethernet cables and use switches instead of extra mesh nodes.
- Test again under real load (downloads, streaming, gaming) and roll back any change that does not help.
Step 1: Turn On QoS and Stop Blaming Your ISP for Lag
Quality of Service (QoS) is the one router setting that often fixes the lag you blame on your ISP by prioritizing latency‑sensitive traffic like gaming and calls over bulk downloads. Most routers ship with QoS disabled, which means a 4K stream or game download can sit in the same queue as your tiny game packets. According to one source, this is exactly what shows up as sudden ping spikes and jitter when someone starts a big download.
You configure QoS from your router’s admin page or companion app; common names include QoS, Adaptive QoS, Dynamic QoS, Game Boost, or Game Accelerator. The main gotcha is bandwidth values: if the router asks for upload and download speeds, do not type the headline numbers from your contract. Instead, run a speed test and enter about 90% of those real results so the router has some headroom to schedule traffic. Using the ISP’s advertised speeds is one of the most common mistakes and can make QoS less effective.
Once QoS is enabled and your bandwidth is set correctly, the expected result is fewer ping spikes in games and less buffering when the rest of the house is busy, because your router is now prioritizing that traffic instead of treating every stream and download the same.
Step 2: Kill Micro‑Stutter by Disabling Green Ethernet
If your wired connection passes every speed test but you still see tiny freezes in calls, Remote Desktop, or games, your Ethernet adapter’s power‑saving mode might be to blame. Many modern adapters ship with Energy‑Efficient Ethernet (EEE) or Green Ethernet turned on by default, which follows the IEEE 802.3az standard and drops the link into a low‑power state when idle. The problem is that waking from this state can add a small delay, and on some hardware combinations that delay is very noticeable in real‑time use.
On Windows, open Device Manager, expand Network adapters, then double‑click your Ethernet adapter and switch to the Advanced tab. Look for options named Energy Efficient Ethernet, Green Ethernet, IEEE 802.3az, or similar, and disable them. If your link speed option is set manually, set it to Auto Negotiation so both ends can agree on the highest speed and duplex they support. One quotable observation from the field is that “the stuttering completely disappeared the moment I switched it off” when Green Ethernet was disabled.
After this change, you should not expect higher download speeds, but you should see fewer random pauses and a connection that feels the same even after sitting idle for a while. If disabling EEE does not help, re‑enable it and continue home network troubleshooting for other causes, since this feature is a trade‑off between consistency and power saving.
Step 3: Tune Channels, Antennas, and DNS for Faster Wi‑Fi
Wi‑Fi is radio, and radio cares about channel width, frequency, and antenna orientation. Many people widen channels thinking they will get more speed, but on the crowded 2.4GHz band only channels 1, 6, and 11 are non‑overlapping, so combining them into 40MHz can double the congestion your router has to wait through. Narrowing the 2.4GHz channel to 20MHz has been shown to immediately improve stability; smart plugs stop vanishing every few hours and video calls stop stuttering mid‑call.

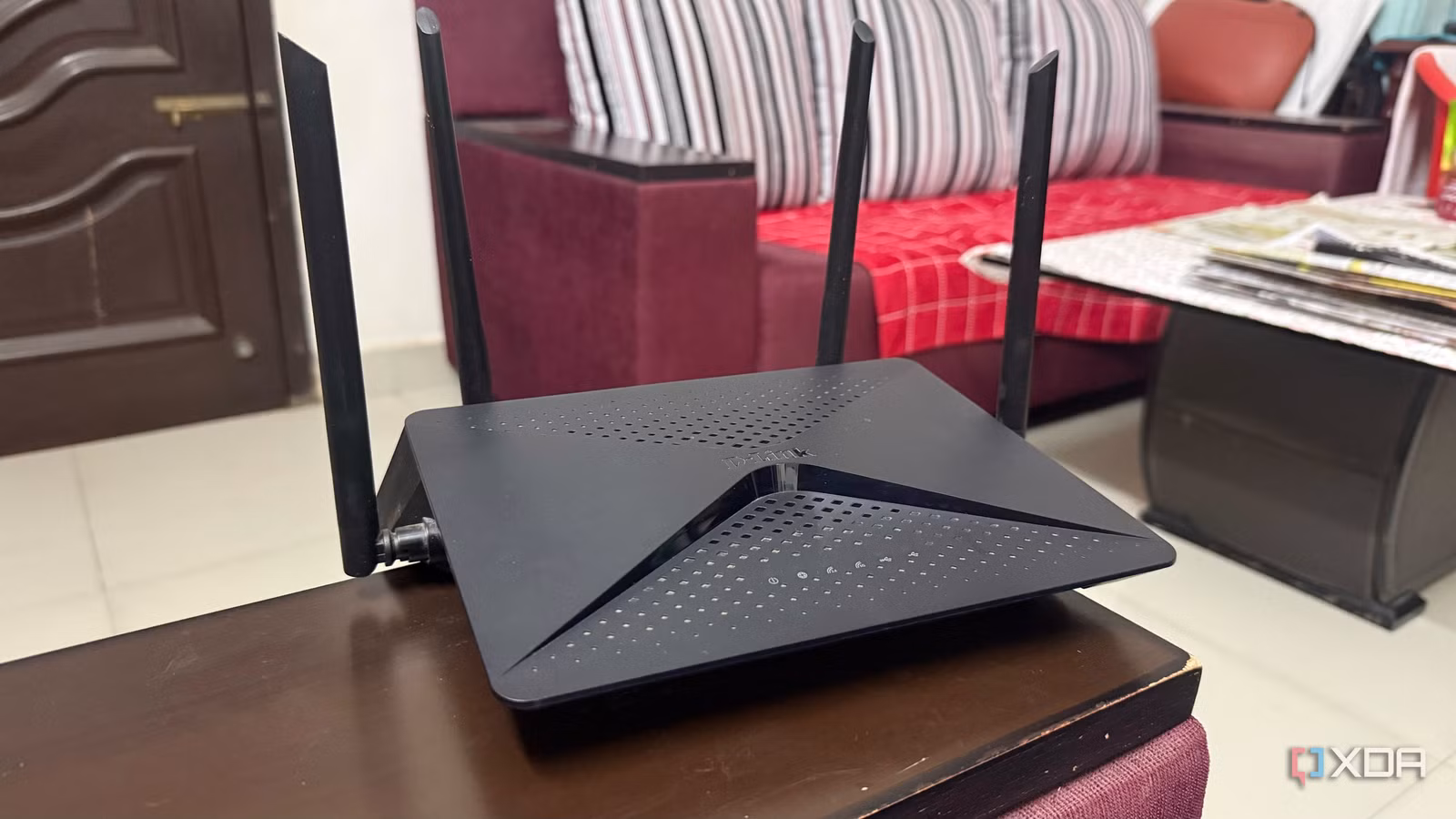

To adjust this, open your router’s admin page, find the wireless or Wi‑Fi settings, and set the 2.4GHz channel width to 20MHz while leaving 5GHz on auto or a wider width if the router recommends it. At the same time, look at your router’s antennas: vertical antennas radiate signal strongest horizontally, covering the floor they are on, while horizontal antennas push signal up and down between floors. Modern dual‑band routers broadcast 2.4GHz for range and wall penetration, and 5GHz for higher speeds but with less range and more sensitivity to obstacles. Align antennas based on where you actually use your devices.
Finally, consider network‑level DNS filtering. Instead of each device running its own ad blocker, set up a DNS resolver like Pi‑hole or AdGuard Home on your router or on a small device connected to it. This moves filtering off individual browsers and blocks requests to advertising, tracking, and malicious domains before your devices reach them, which can reduce RAM usage on endpoints and let you remove some browser extensions.
Step 4: Use Ethernet and Switches to Fix Hidden Bottlenecks
Once your router settings are tuned, the next bottleneck is often the wire—or lack of it. Ethernet is still the fastest and most reliable network technology you can have at home. However, not all Ethernet cables are equal: if you feed gigabit fiber into a cable only rated for 100Mbps, you will only ever get 100Mbps at that segment, because the weakest link sets the limit.

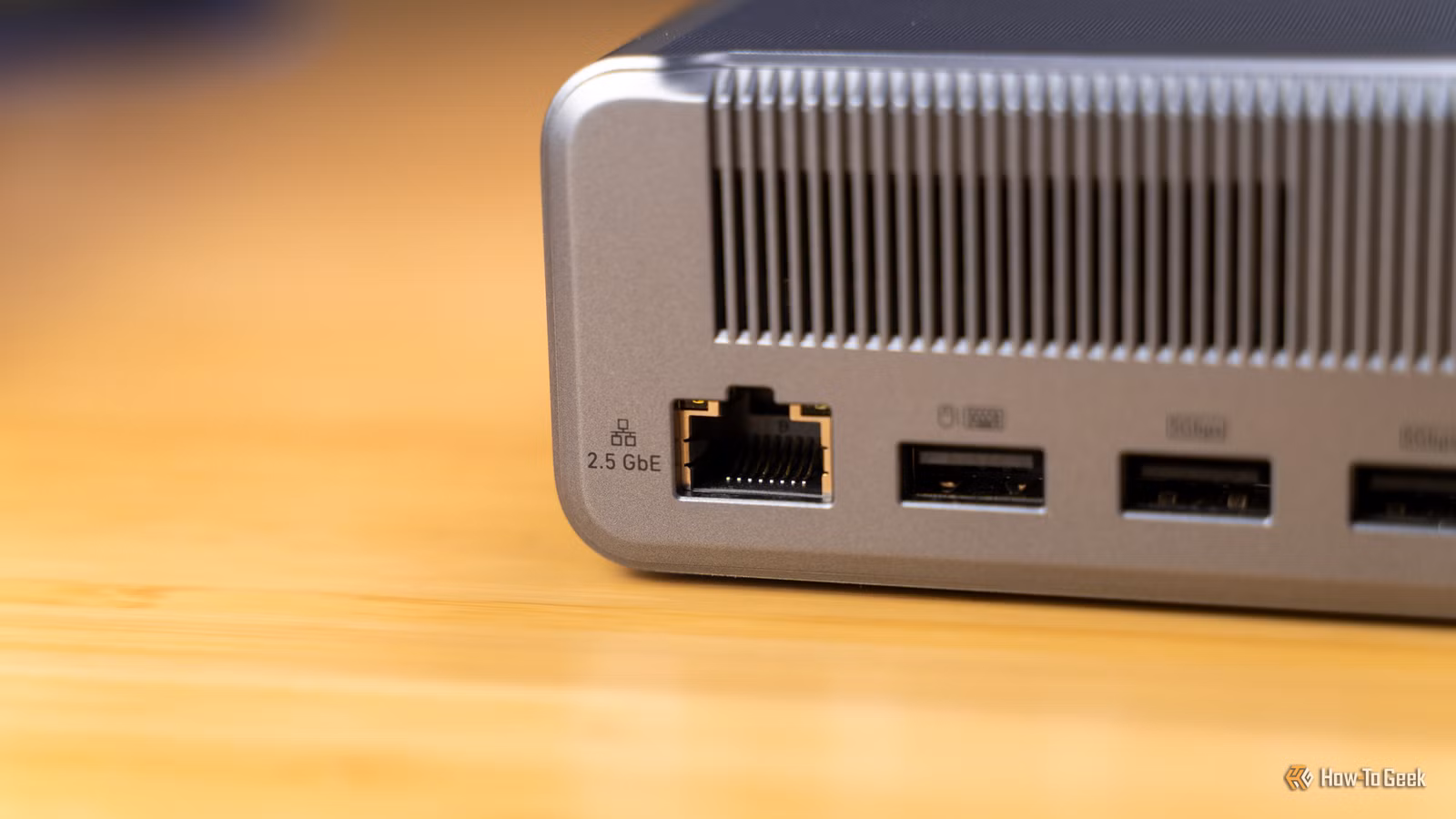

Check the markings on your cables. Cat5 is effectively obsolete and caps at 100Mbps, while Cat5e handles gigabit and Cat6 goes higher. Upgrading a few key cables is often cheaper and more effective than expanding a mesh system, especially for stationary devices like TVs, consoles, and desktops. Most households are still fine with gigabit Ethernet today, but as broadband and local traffic grow, the next step is 2.5GbE, which conveniently works over existing Cat5e or Cat6 cabling when the hardware behaves.
Instead of adding more mesh nodes to chase coverage, consider running a single Ethernet cable to a central spot and using an unmanaged switch there. That gives you full wired speed to multiple devices and pulls their traffic off Wi‑Fi entirely. If problems persist even over clean wiring, then it is time to inspect for cable damage, failing ports, or an ISP issue rather than blaming Wi‑Fi alone.
Step 5: Test, Roll Back, and Decide If It Was Worth It
With QoS configured, Green Ethernet tamed, channels narrowed, antennas aligned, DNS filtering in place, and key devices wired, it is time to test under real load. Start a big download or 4K stream, join a game or video call, and pay attention to the feel of the connection rather than only the speed test graph. Remember that normal speed tests measure throughput, not the tiny delays that cause micro‑stutters.
The most common mistakes at this stage are forgetting to roll back a setting that made things worse and assuming a single tweak is to blame for every hiccup. Change one thing at a time where possible. If QoS made latency worse, check the bandwidth values. If disabling EEE did nothing, enable it again and move on. If a cable swap did not increase speeds, confirm the router or switch port is not limited to a lower speed or failing.
In most homes, these six tweaks are worth the effort: they cost little or nothing, use the hardware you already own, and can eliminate Wi‑Fi lag, random stutter, and slow corners of the house without buying a new router. Keep an eye on consistency over a few days, and only then decide whether hardware upgrades are still necessary.
