NVMe vs SATA SSDs for Gaming: The Real Difference
NVMe vs SATA gaming performance compares how different SSD interfaces shape your experience, from frame rates and 1% lows to load times, asset streaming, and overall responsiveness as modern, large-scale games increasingly depend on solid-state storage for smooth play and fast access to content. In our bottom-line view, any SSD is a huge step up from a hard drive, but moving from a SATA SSD to NVMe mainly improves how quickly games start and stream assets, not your average FPS. Across 11 titles spanning demanding, storage-heavy games and more traditional releases, faster NVMe — including PCIe 4.0 and PCIe 5.0 — rarely changed headline frame rates, but did help tighten minimums in specific scenarios. That makes NVMe a targeted upgrade: essential if you want snappier loading and smoother asset streaming, less critical if your only goal is higher FPS on an already solid setup.
| Spec | SATA SSD | PCIe NVMe SSD (incl. PCIe 5.0) | |
|---|---|---|---|
| Interface | SATA | PCIe (3.0 / 4.0 / 5.0) | |
| Typical use in tests | Baseline SSD for gaming performance comparisons | Higher-speed tiers up to PCIe 5.0 gaming workloads | |
| Game load times vs HDD | Seconds instead of minutes, huge gain over HDD | Often several times faster than SATA in some titles, smaller gains in others | |
| Average FPS across 11 games | Comparable to NVMe in most titles | No meaningful difference vs other NVMe generations in most titles | |
| 1% low FPS behavior | Can trail PCIe SSDs in some storage-heavy scenes | Can significantly improve 1% lows compared with SATA in certain games | |
| Peak in-game bandwidth observed | Around 500–570 MB/s in demanding scenes | Up to several GB/s, with PCIe 5.0 reaching over 5 GB/s in testing | |
| Typical SSD utilization in heavy games | Frequently approaches or hits 100% utilization | Also hits 100%, but with lower average utilization on faster drives | |
| Best suited for | Budget builds focused on solid performance and fast loads vs HDD | Enthusiast rigs, PCIe 5.0 gaming, and workloads needing maximum sequential throughput |
What Our 11-Game SSD Speed Test Shows
To answer the core NVMe gaming performance question, we looked at SSD speed across 11 titles using both SATA and multiple generations of PCIe NVMe, up to PCIe 5.0. This SSD speed test for gaming focused on real play rather than built-in benchmarks, with every game pushed to maximum settings and SSD activity captured through detailed monitoring. The test rig used 16GB of RAM to encourage more asset streaming from storage, mirroring mainstream PC configurations and exposing potential bottlenecks. A quotable takeaway from the analysis is that "we tested gaming performance with both NVMe and SATA SSDs across 11 games to determine if upgrading to a faster drive is worth it." Across the full set, average FPS stayed within a narrow band from SATA through PCIe 3.0, 4.0 and 5.0, while NVMe separated itself more in the behavior of 1% lows and load times than in raw frame rate numbers.
Load Times, Asset Streaming, and PCIe 5.0 Gaming

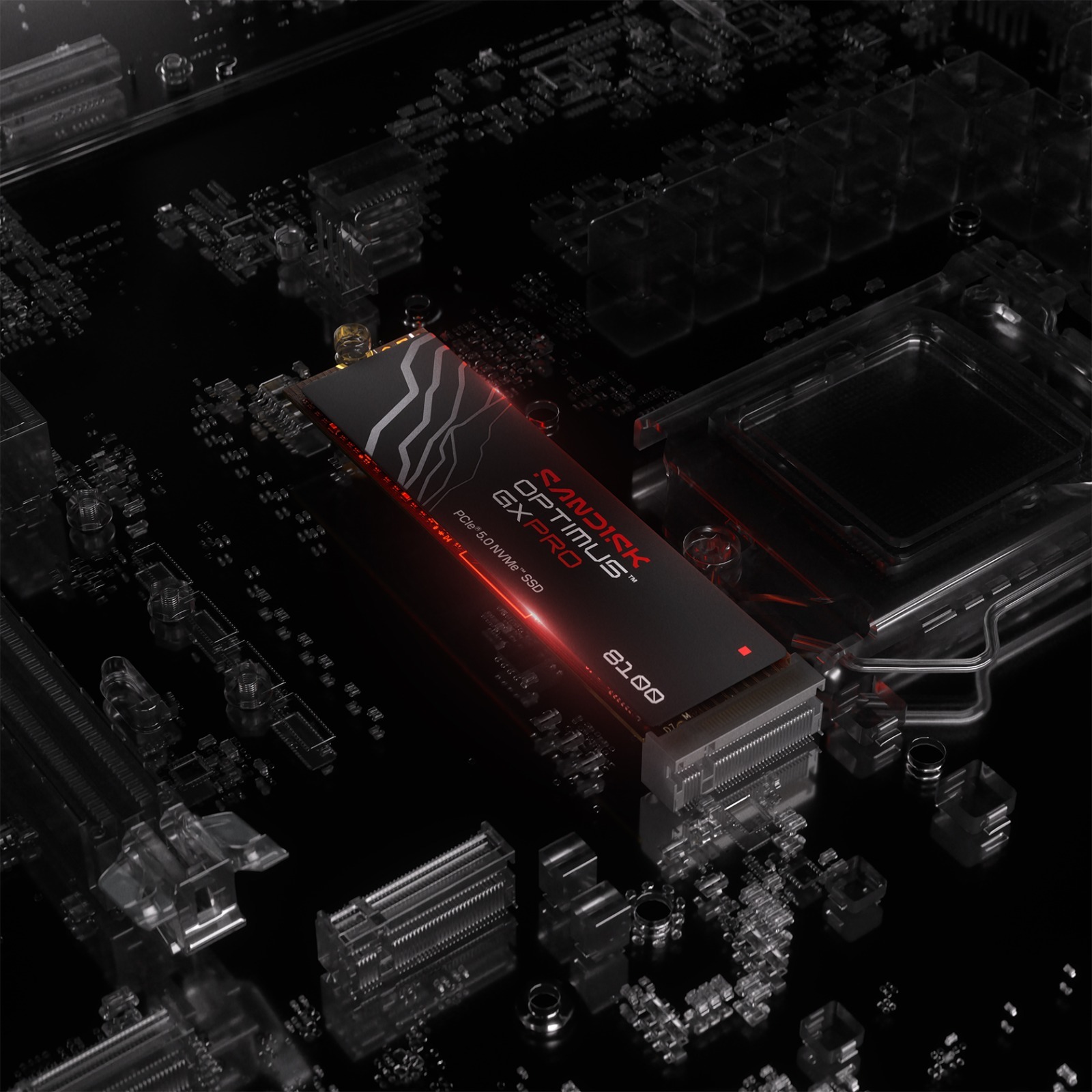

From a practical standpoint, SSD speed matters most in how quickly games start, reload checkpoints, and stream assets into memory. It is well known that loading from an HDD can take minutes, while modern SSDs cut that to seconds. Within SSDs, SATA vs NVMe gaming differences are more subtle: in some titles, PCIe NVMe drives load games several times faster than SATA SSDs, but in many others the gap is relatively small. Where higher-speed NVMe — especially PCIe 4.0 and PCIe 5.0 gaming drives — stands out is peak bandwidth and reduced average utilization under load. In one demanding title, SATA peaked around 572 MB/s with 85% average utilization at 2160p, while PCIe 5.0 hit 5128 MB/s with only 32% average utilization, showing how fast drives handle bursts far more comfortably. Premium PCIe Gen 5.0 models such as the Optimus GX PRO 8100 are aimed at high-end rigs and heavy workloads beyond games, including AI processing.
Genre Differences and When NVMe Helps FPS
Not every game stresses storage the same way. The test suite deliberately included titles known for higher storage bandwidth, peaks in SSD utilization, and support for features such as DirectStorage, along with popular games players care about. In many games, especially those with modest streaming demands, there was no difference in performance among the PCIe NVMe tiers and only a small spread when compared with SATA SSDs. In others, particularly storage-intensive releases with constant asset streaming, the move from SATA to NVMe produced a noticeable boost in 1% lows, even though average FPS remained flat. DirectStorage-focused titles showed the highest average bandwidth and frequent periods of 100% SSD utilization, confirming that some modern engines are built to rely heavily on fast NVMe storage. At the same time, tests comparing 16GB and 64GB memory showed little change in SSD activity, suggesting that storage behavior stays broadly similar once you are on a capable SSD.
Buy if / Skip if
- Buy the PCIe NVMe SSD if you want faster NVMe gaming performance focused on shorter load times, better 1% lows in some titles, and smoother asset streaming than a SATA SSD can provide.
- Skip the PCIe NVMe SSD if your main goal is higher average FPS and you already use a solid SATA SSD, as the 11-game SSD speed test gaming analysis found little difference in headline frame rates between SSD generations.
- Buy the PCIe 5.0 SSD if you run a demanding gaming rig alongside AI or advanced workloads and want a drive tuned for high sequential throughput and PCIe 5.0 gaming capability.
- Skip the PCIe 5.0 SSD if you play mostly older or less storage-intensive games where SATA vs NVMe gaming shows similar performance and premium bandwidth will sit mostly unused.
- Buy the SATA SSD if you are upgrading from an HDD and want dramatically shorter load times and acceptable in-game performance without paying for high-end NVMe tiers.
- Skip the SATA SSD if you frequently play large, asset-heavy open-world games at maximum settings and care about tightening 1% lows, where PCIe SSDs can offer a noticeable improvement.
