Gaming Laptops With RTX 5070 and 5090: Cooling That Keeps Up

Verdict: Great Power, Heavy Trade‑Offs

Gaming laptop cooling refers to the combined design of heatsinks, vapor chambers, fans, vents, and chassis layouts that control GPU and CPU temperatures under sustained gaming or rendering workloads, directly shaping performance, noise, and system longevity. In this generation of RTX 5070 and 5090 laptops, the bottom line is clear: you can get desktop‑level performance on the go, but only if you accept desktop‑like size, noise, and cost. The ROG Zephyrus Duo GX651AX is a power user’s tool disguised as a sci‑fi toy, while the ROG Strix Scar 18 is a portable desktop that stops pretending to be thin. XMG’s Apex 17 aims at workstation users who need RTX 5070 power without going full halo. All three show that sustained performance is now mostly a thermal design problem, not a silicon problem.

ROG Zephyrus Duo GX651AX: Dual OLEDs, Dense Thermals

The Zephyrus Duo GX651AX is built around two 16‑inch 2880 x 1800 OLED panels at 120 Hz, driven by an Intel Core Ultra 9 386H and up to an RTX 5090, with as much as 64 GB of LPDDR5X‑8533 memory and 2 TB PCIe 5.0 storage. It is not light: the laptop alone weighs nearly 3 kg, and the full package with detachable keyboard and charger reaches 3.566 kg/7.86 lbs. Cooling has to work around that stacked layout and heavy internals. The underside uses a large hinged stand that exposes a wide ventilation area and raises the chassis to feed the fans. In practice, the Duo behaves more like a compact workstation than a travel‑friendly gaming laptop; you feel the mass, you hear the cooling, but you also get desktop‑class performance in a tight footprint.

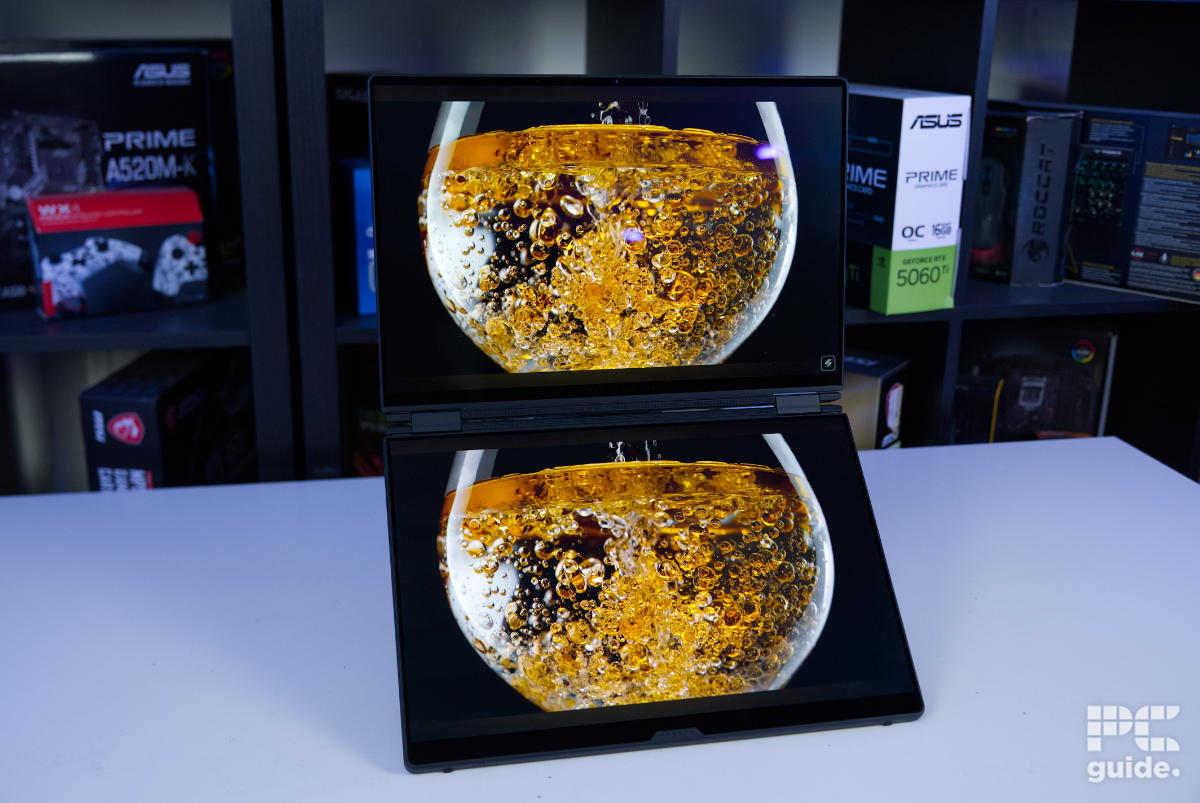

Color accuracy testing confirms the Duo’s OLED panels are tuned for creative work as much as gaming. “Both the top and bottom OLED screens cover 100% of sRGB, 94% of AdobeRGB, and 97% of DCI‑P3” in SDR mode. Enabling HDR reduces coverage to 95%/72%/71% on the main panel and 93%/69%/69% on the secondary display. That means thermals are not the only design focus; this is a machine that targets editors, streamers, and multitaskers who will lean on that dual‑screen setup. The secondary panel sits where the keyboard would usually be, with a magnetic wireless keyboard and touchpad that you can move off the chassis. From a cooling standpoint, this lets ASUS carve out more intake and exhaust area across the deck and underside, though the dense build and big components still make it a hot, loud performer under full load.

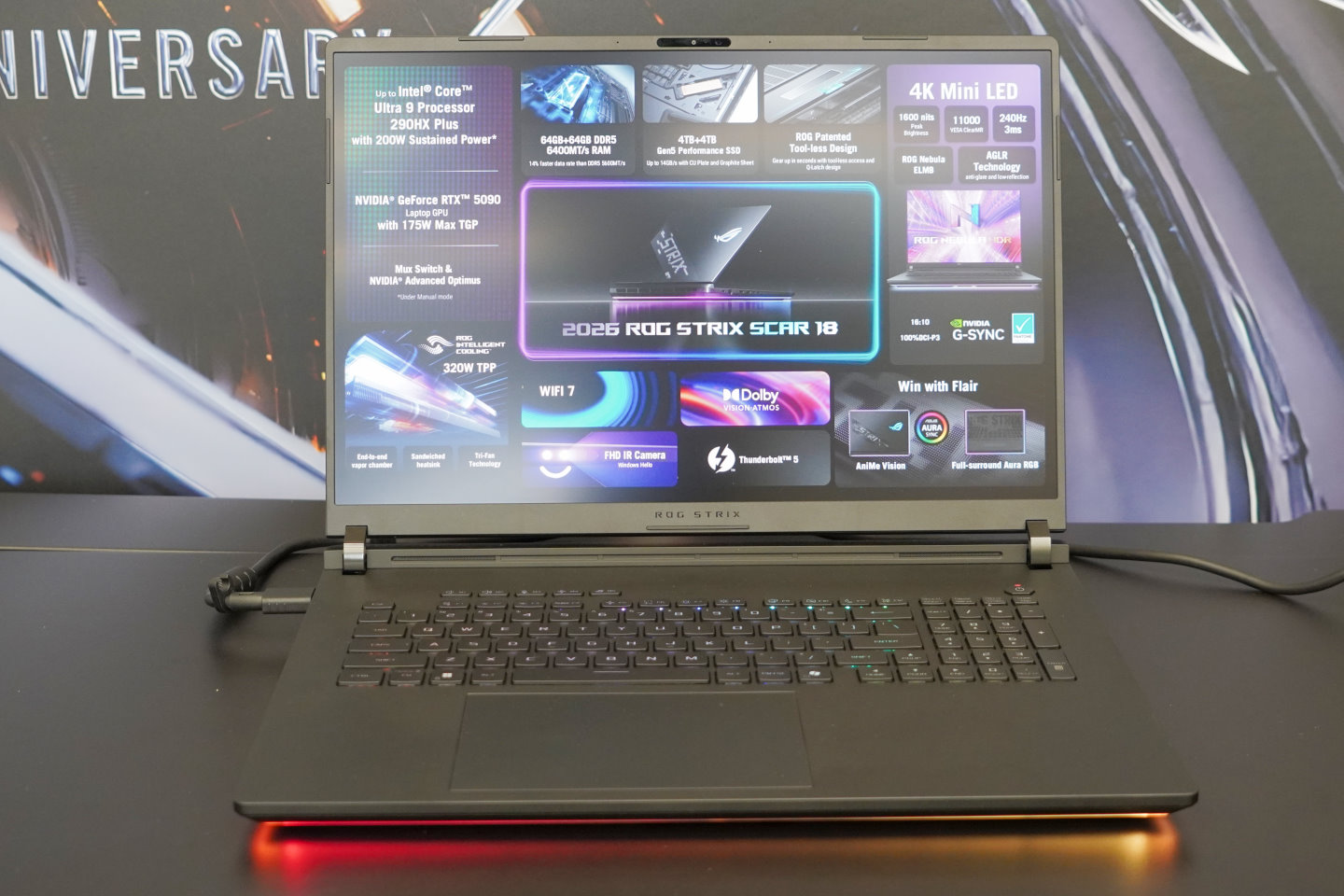

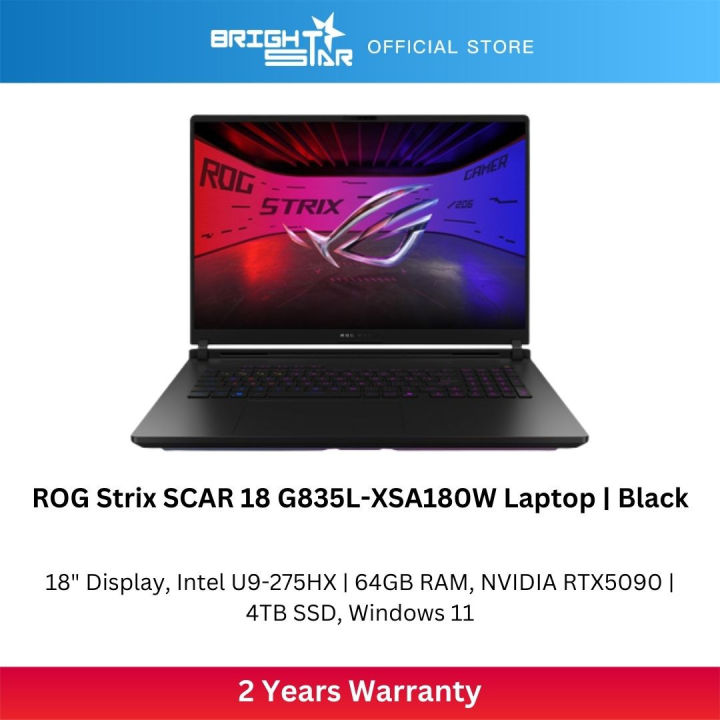

ROG Strix Scar 18: Thick Chassis, Aggressive Cooling

The ROG Strix Scar 18 takes the opposite approach to thin‑and‑light; its concept is to be a “portable desktop” that prioritizes power delivery and cooling over slimness. At its core is up to an Arrow Lake Refresh Core Ultra 9 290HX Plus, paired with dual‑channel DDR5‑6400 memory that can be upgraded to 128 GB, plus two M.2 2280 slots for SSDs. On the GPU side, it can be configured with a mobile GeForce RTX 5090 with a TDP ceiling of 175 W including 25 W of Dynamic Boost. The display is an 18‑inch Mini LED panel at 4K resolution, positioned as a flagship gaming screen. The lid carries a “scar” made of dot‑matrix LEDs that can show custom animations and messages, signaling that this is a gaming machine first and foremost.

Cooling is where the Scar 18 draws its hard line. Ignoring thickness lets ASUS fit a much larger vapor‑chamber‑style heatspreading solution, described as an enlarged “均溫板,” that spans the CPU, chipset, and GPU. The thermal module uses three fans, with one fan dedicated to the GPU, and the two main fans sized close to those found in mini desktop PCs. That allows the system to push high airflow at lower RPMs, keeping noise more manageable at idle while still clearing heat under load. Another detail is the bumped surface (“凸點”) on the vapor plate, which increases surface area and improves heat transfer to the airflow compared with previous Strix Scar models. This is a clear example of gaming laptop cooling where the chassis is sacrificed to keep an RTX 5090 running closer to its 175 W limit over long sessions.

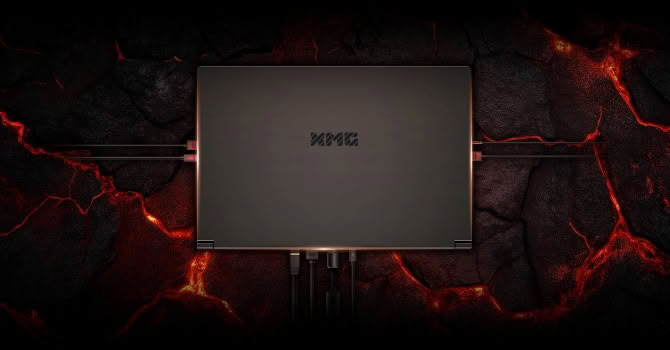

XMG Apex 17 and the Workstation Angle

The XMG Apex 17 takes a more understated route, pairing an RTX 5070 with a design that is as much workstation as it is gaming rig. While the detailed thermal layout is less flamboyant than the Scar 18’s, the goal is similar: keep GPU and CPU clocks steady under sustained rendering, simulation, or content creation tasks. RTX 5070 performance sits below the 5090 halo but still demands serious cooling hardware to avoid throttling. In practice, this kind of machine is attractive if you need long export runs or multi‑hour 3D workloads where fan noise and keyboard thermals matter more than squeezing the last 5–10% of frame rate. XMG tends to prioritize accessible internals and user‑serviceable components, which aligns well with people who see their “gaming laptop” as a mobile workstation first and a LAN machine second.

Who These Laptops Are For

With all three designs, the theme is the same: sustained GPU performance is about thermal budget, not only raw silicon. The Scar 18 uses oversized fans and a sculpted vapor plate to keep an RTX 5090 near its high TDP limit over time. The Zephyrus Duo instead spreads heat and airflow around a dual‑screen layout, trading portability and simplicity for multitasking potential and desk‑friendly ergonomics. XMG’s Apex 17 plays in the middle, giving RTX 5070 buyers a machine that can pull double duty as a gaming system and a mobile workstation without going to the extremes of dual OLEDs or ultra‑thick chassis. If you are buying at this level, you are not paying for thinness; you are paying for cooling headroom and consistent performance when the fans spin up and the session stretches into hours.

• Buy the ROG Zephyrus Duo GX651AX if you want dual 16-inch OLED screens with workstation-grade color coverage and can live with a heavy chassis.
• Skip the ROG Zephyrus Duo GX651AX if you need a light, travel-friendly gaming laptop or rely on wired Ethernet networking.
• Buy the ROG Strix Scar 18 if you want RTX 5090 power with a thick chassis and oversized cooling hardware that favors sustained loads over portability.
• Skip the ROG Strix Scar 18 if you care more about a slim profile than about maximum cooling capacity and upgrade headroom.
• Buy the XMG Apex 17 if you want RTX 5070 performance in a machine that can double as a mobile workstation for long rendering or simulation tasks.
• Skip the XMG Apex 17 if you are chasing the absolute highest RTX 5090 frame rates and do not need workstation-oriented features.
