What the Zeiss Horizon Anamorphic Platform Is

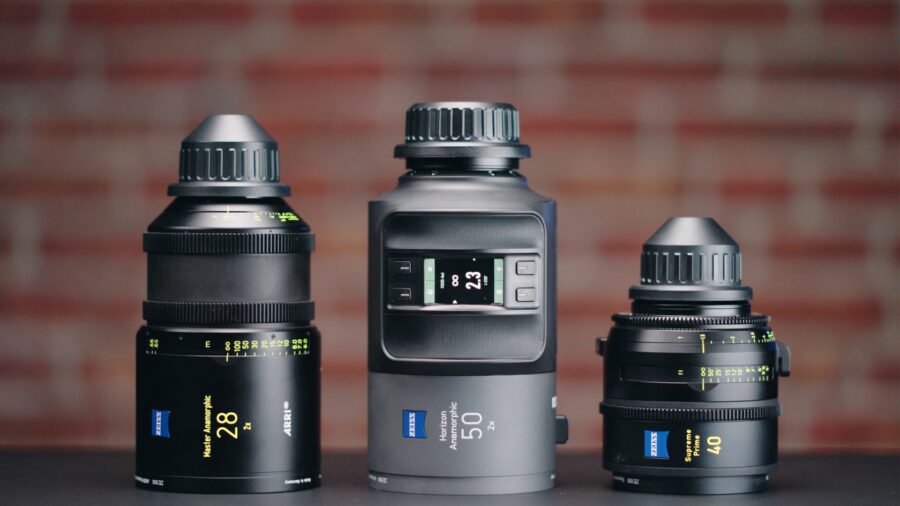

Zeiss Horizon Anamorphic is a new series of full-frame 2x anamorphic cinema lenses that combines integrated motorized lens control, metadata, and interchangeable look elements into a single optical platform aimed at high-end narrative and VFX-heavy production workflows. Spanning seven primes from 35mm to 200mm, the set delivers a classic 2x anamorphic signature with pronounced oval bokeh and a stretched sense of depth, while maintaining a neutral, clean baseline look that takes well to filtration, LUTs, and lighting choices. With a fast T2.3 aperture across most of the range (T2.9 at 200mm) and a shared 114mm front diameter, Horizon is designed as a practical on-set tool as much as an aesthetic choice. Its first public unveiling at Cine Gear Expo Los Angeles signals Zeiss’s intent to position Horizon as a reference for next-generation anamorphic cinema lenses.
Built-In Motors and Metadata: Rethinking Lens Control

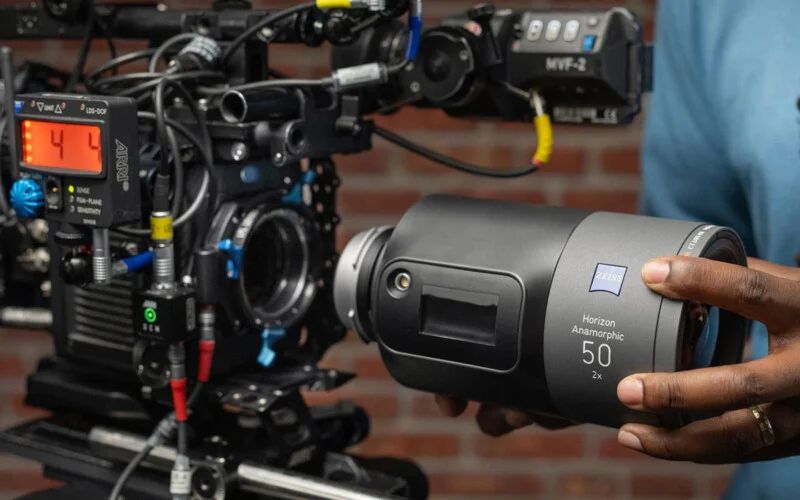

The most disruptive element of the Zeiss Horizon anamorphic design is its fully motorized lens control. Whisper-quiet focus and iris motors are built directly into the barrel, offering motorized lens control without external drive units, rails clutter, or separate power and data cabling. According to Zeiss, these motors are compatible with ARRI and Preston lens control systems via serial or LBUS connections, so existing wireless focus workflows can plug straight in. Factory-calibrated absolute encoders store all focus and iris scales inside the lens, turning Horizon into a unified source of metadata for virtual production, VFX tracking, and lens mapping. Dual on-barrel displays and touch panels show live focus distance and T-stop values and provide access to lens menus, shifting key information from bolt-on accessories to the lens itself. This level of integration moves anamorphic cinema lenses closer to being smart, self-describing devices rather than passive optics.
Swappable Look Elements: One Lens, Multiple Personalities
Beyond motorization, Horizon’s most creative feature is its swappable look-tuning back element. Mounted via the Zeiss Interchangeable Mount System and secured with eight screws, this proprietary optical element lets cinematographers alter sharpness, contrast, and rendering character without changing the core glass. The default Horizon look is intentionally neutral and controlled, the opposite of heavily flared, aberration-forward vintage anamorphic cinema lenses. Swapping the back element pushes the image toward a more textured, characterful style while preserving scale accuracy and lens calibration, so there is no need to re-map focus or adjust marks. In practical terms, that means a show can keep a single set of full-frame anamorphic primes from 35mm to 200mm and still tailor the visual tone between sequences, cameras, or episodes. Swappable lens elements turn Horizon into a modular aesthetic system rather than a fixed, single-look investment.
Creative Impact: Classic 2x Anamorphic for Full-Frame Sensors
Horizon sits firmly in the classic 2x anamorphic camp, designed for full-frame sensors that are now common in cinema cameras. This higher squeeze ratio delivers more pronounced oval bokeh, stronger horizontal expansion, and a heightened sense of spatial depth compared with 1.5x or 1.8x designs aimed at 16:9 or open-gate frames. Zeiss engineers describe the optical design as clean and low-distortion, with stable color and minimized aberrations that make these anamorphic cinema lenses suitable for VFX-intensive work, from green screen to CG integration. The consistent T2.3 maximum aperture across most focal lengths simplifies exposure in fast-moving production environments and helps maintain shallow depth of field even on larger formats. For filmmakers, the combination of full-frame anamorphic coverage, controlled rendering, and tunable character means Horizon can shift from glossy, precise images to more expressive looks without changing lens families or compromise on image science.
A New Direction for Zeiss and Future Lens Design
With Horizon, Zeiss is signaling a strategic shift from isolated lens sets toward technology platforms that merge optics, electronics, and workflow integration. Christophe Casenave, head of the company’s cinematography business unit, calls Horizon “a new reference platform that integrates lens motors, data and ecosystem compatibility,” and frames it as the next chapter of Zeiss cinema optics. Compared with the company’s previous lines, such as Master Anamorphic or Panavision-style large-format offerings, Horizon looks more like a smart module in a digital system than a traditional prime. Its debut at Cine Gear Expo places it directly in front of working cinematographers who must balance creative ambition with tight schedules, VFX demands, and remote operation. If Horizon’s concept of motorized, metadata-rich, swappable lens elements proves popular, it could push the wider market toward lenses that are as much programmable tools as they are pieces of glass.
