10GbE NAS Systems Move Into the Budget Tier
10 Gigabit Ethernet used to be reserved for expensive enterprise racks or flagship SOHO appliances. That’s changing fast. A new wave of 10GbE NAS systems is pushing high-speed networking into the budget NAS storage segment, giving creatives, homelab builders, and small offices access to throughput that previously required far larger investments. Instead of settling for 1GbE bottlenecks or stacking multiple 2.5GbE links, buyers can now saturate a single 10GbE line for multi-user file sharing, high-resolution video editing, and rapid backup jobs. The most interesting entrants in this space are hybrid designs that blur the lines between classic NAS boxes and compact servers. They pair laptop-class processors with generous drive bays, PCIe expansion, and even Thunderbolt NAS drives support, enabling both local and networked workflows. Two standout examples are the ZimaCube 2 Pro and the AOOSTAR WTR Max (Intel), each taking a different path to affordable network storage with serious performance.
ZimaCube 2 Pro: Compact Thunderbolt NAS with PCIe Expansion
The ZimaCube 2 Pro is built around an Intel Core i5-1235U processor with 2 performance cores and 8 efficiency cores, giving it ample horsepower for multi-user NAS duties and HEVC-accelerated media streaming. Storage is generous for its footprint: six hot-swap 3.5/2.5-inch SATA bays plus a dedicated module that fits four M.2 2280 PCIe Gen3 x4 SSDs. On top of that, two low-profile PCIe slots (one Gen4 x4, one Gen3 x2 electrical) allow further expansion for GPUs, extra network cards, or additional storage controllers. Connectivity is unusually rich for this class, with dual 2.5GbE ports, a single 10GbE LAN port, and two Thunderbolt 4/USB4 40Gbps ports on the rear, making it ideal as a Thunderbolt NAS drive hub for editing workstations. This PCIe expansion NAS design lets power users start small and scale up, turning the box into a flexible, general-purpose server over time.

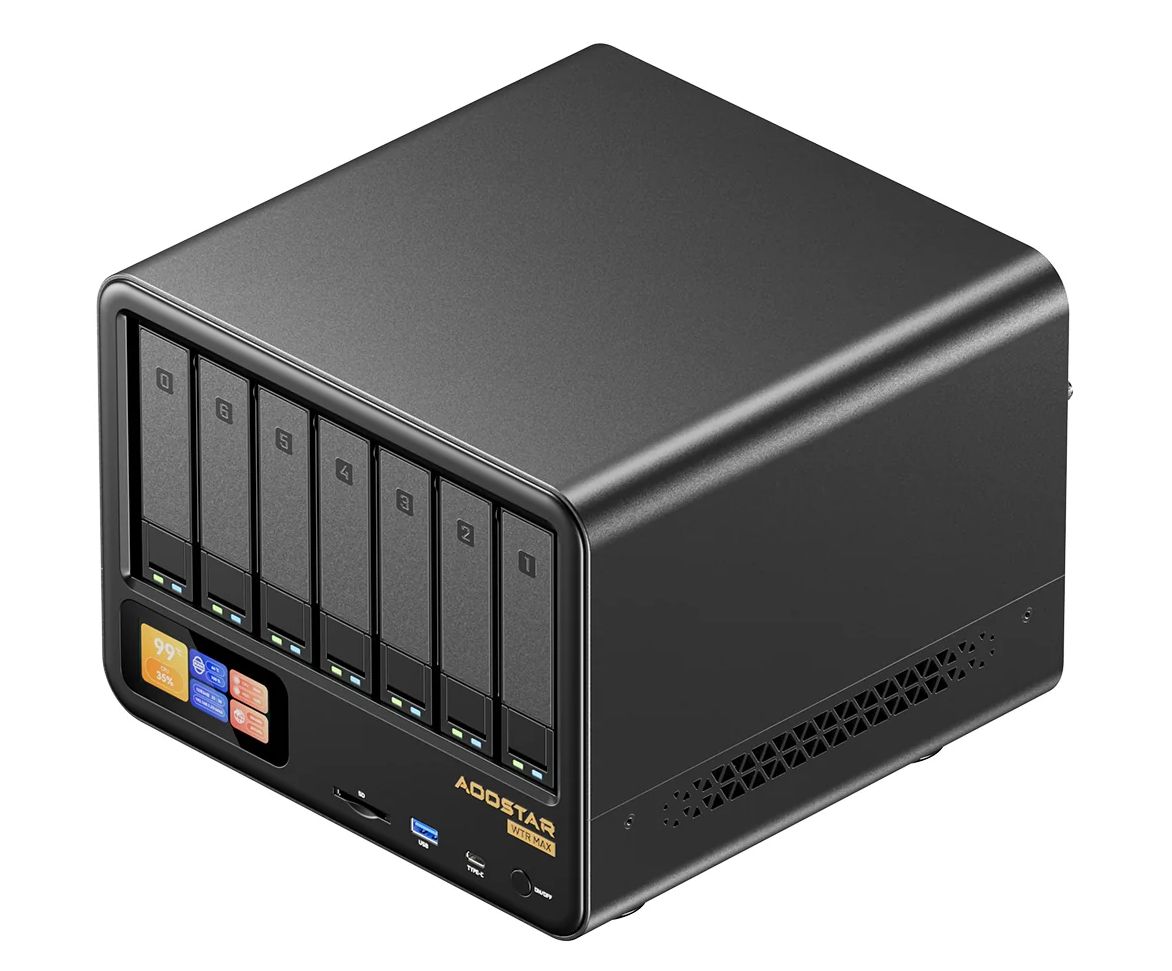

AOOSTAR WTR Max (Intel): High-Capacity 11-Disk 10GbE NAS on a Budget
AOOSTAR’s WTR Max Intel model targets buyers who need more raw capacity at a lower entry price. It swaps the original AMD Ryzen 7 PRO 8845HS for an Intel Core i5-1235U, a mid-range Alder Lake-U laptop chip that is less powerful but adequate for typical NAS workloads like file serving, backups, and light virtualization. The chassis supports up to six 3.5-inch SATA hard drives plus five M.2 2280 SSDs, giving a total of 11 disks and substantial tiered storage potential. Networking is a standout: two 10 Gigabit LAN ports, two 2.5GbE ports, USB4, and OCuLink provide ample bandwidth for multiple clients and external enclosures. The Intel version is positioned as a cheaper alternative, selling for USD 559 (approx. RM2,570), compared to the AMD configuration at USD 659 (approx. RM3,030), while trading away ECC memory support and some PCIe 4.0 bandwidth on the M.2 slots.
Performance‑to‑Price Tradeoffs: Prosumers vs Small Business Needs
Both systems bring 10GbE NAS capabilities to price points that were previously unthinkable, but they emphasize different strengths. The ZimaCube 2 Pro focuses on flexibility and desktop integration: Thunderbolt 4 ports make it attractive as a direct-attached storage node for Mac or PC editors, while PCIe slots invite GPU or specialty NIC upgrades. Its design suits prosumers running mixed workloads—Plex, containers, light AI experiments, and editing from a shared SSD pool. The AOOSTAR WTR Max (Intel) instead maximizes disk count and aggregate network bandwidth. Dual 10GbE plus dual 2.5GbE ports are overkill for a single user, but ideal for small teams serving VMs, surveillance footage, or large design libraries. Its lack of ECC and the older CPU architecture are acceptable for non-mission-critical tasks, especially when balanced against the lower purchase price. Choosing between them comes down to whether you value expansion and Thunderbolt workflows or sheer capacity and port density.
Enabling AI, Video, and Data‑Heavy Workloads on Smaller Budgets
The real story behind these affordable network storage boxes is the kind of workloads they unlock. With 10GbE and multiple 2.5GbE ports, both devices can comfortably serve high-bitrate 4K or even 8K video to multiple editors, especially when M.2 SSDs are used as primary or cache storage. PCIe expansion in the ZimaCube 2 Pro can host GPUs for AI inference, computer vision, or hardware-accelerated transcoding, turning it into a compact AI and media node. Meanwhile, the WTR Max’s 11-disk layout is well suited for large ZFS or RAID arrays, giving small businesses space for years of file growth, frequent snapshots, and multi-site backup workflows. By blending laptop-class CPUs, PCIe expansion NAS architectures, and high-speed networking, these systems fill the gap between simple consumer NAS appliances and complex enterprise racks, making serious data projects feasible for labs, studios, and startups working within tight budgets.
