What a Thermosiphon CPU Cooler Is—and Why It Matters

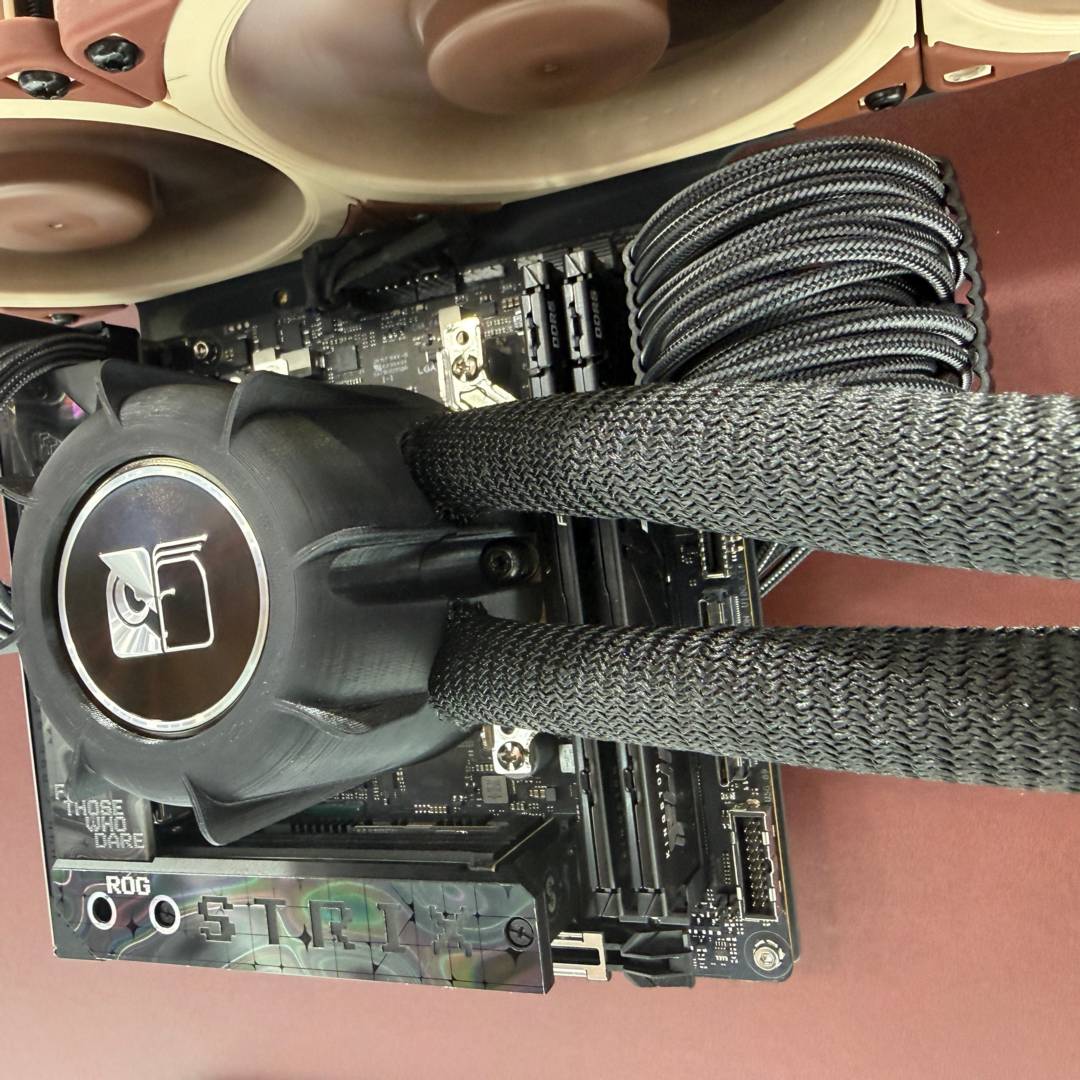

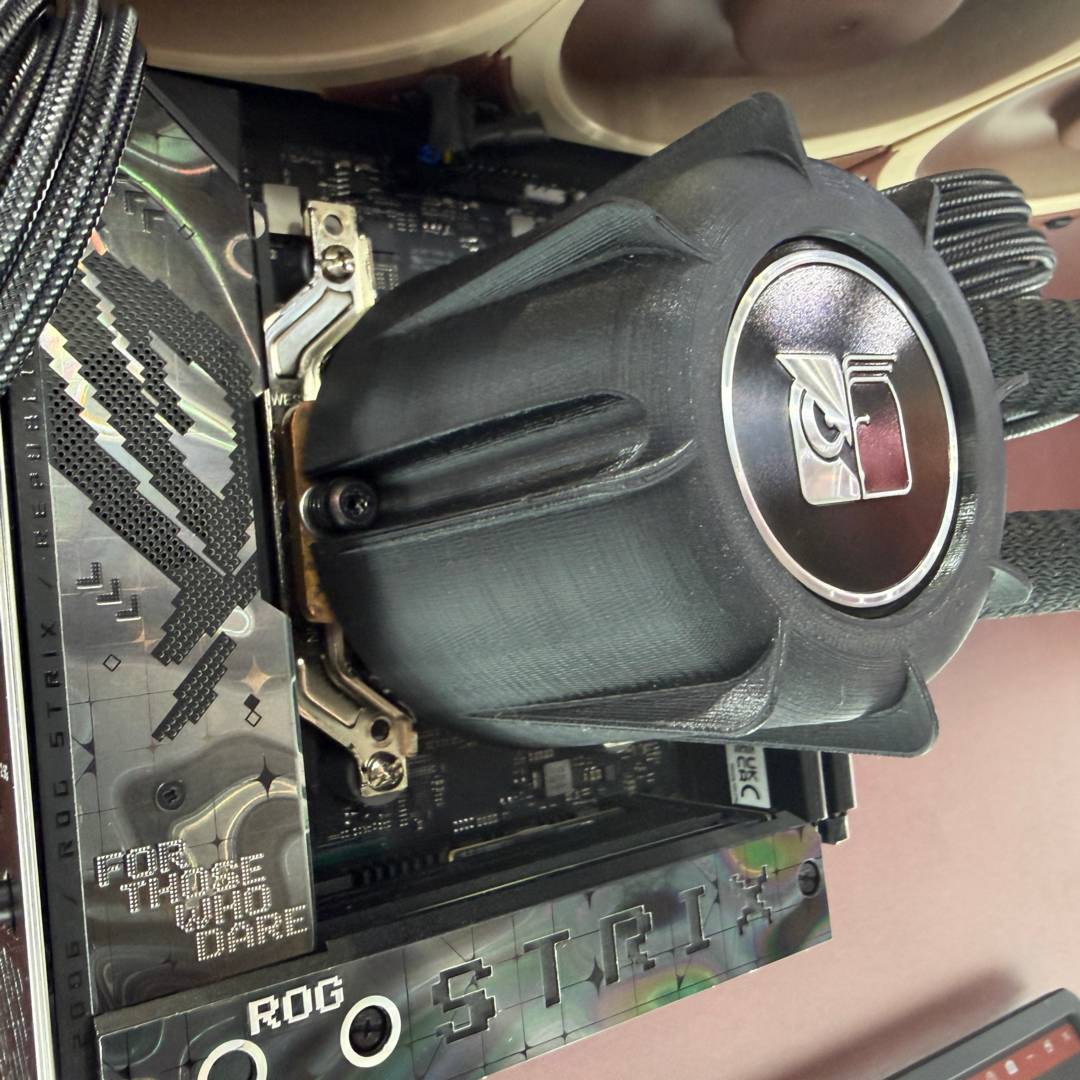

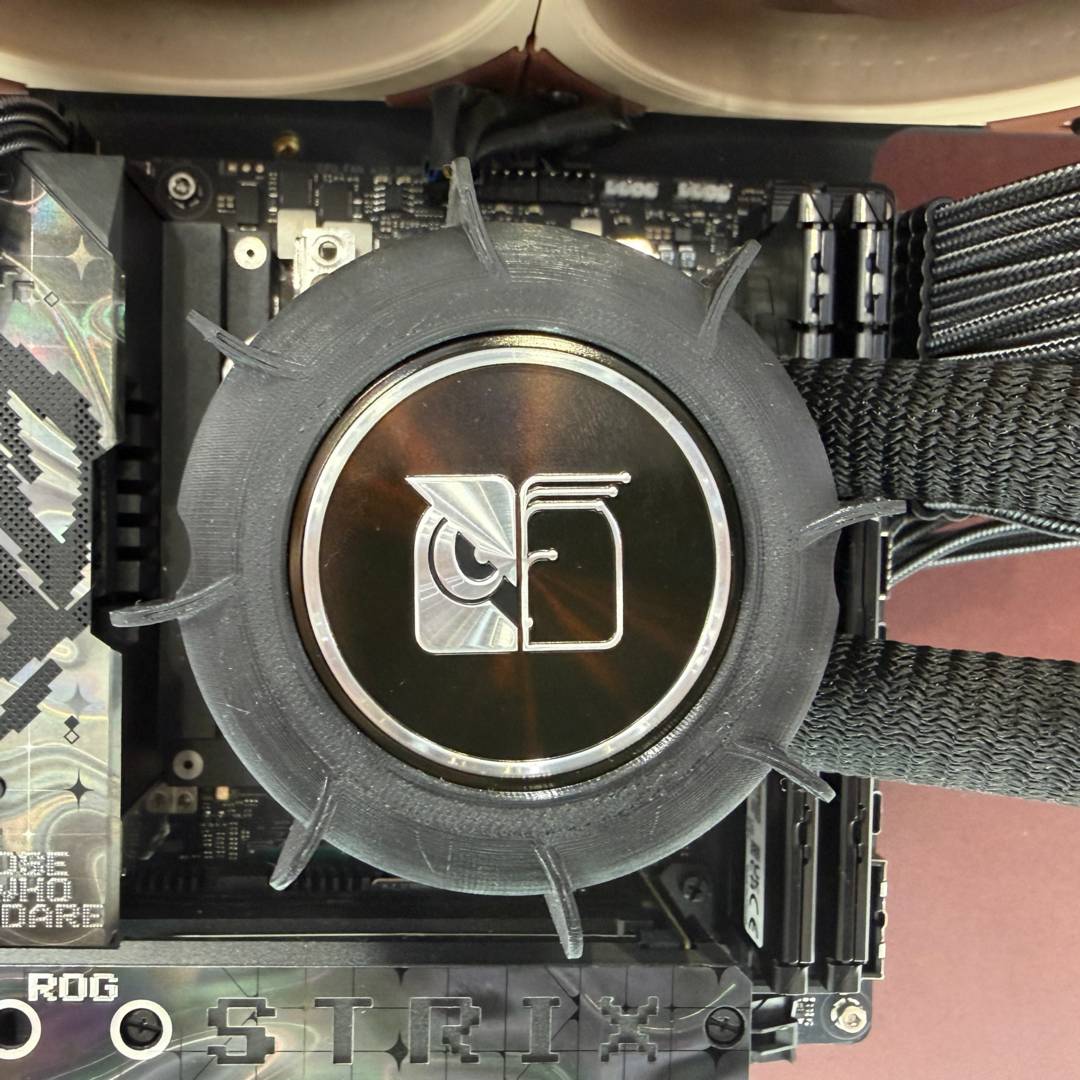

A thermosiphon CPU cooler is a pumpless liquid cooling system that relies on vaporization and gravity-driven condensation to move coolant through a sealed loop, aiming to match all-in-one (AIO) performance while improving noise levels and long-term reliability by removing mechanical pumps and their associated failure points. Noctua’s latest prototype, teased ahead of Computex, is a two-phase thermosiphon CPU cooler that uses a special refrigerant to carry heat from the processor to a radiator, where it condenses and flows back to the cold plate. This Noctua vaporization cooler keeps the familiar building blocks of an AIO—cold plate, tubes, and radiator—but rethinks how the liquid circulates. As an AIO alternative cooling concept, it targets users who want high-end performance without the hum and wear of a pump, moving passive liquid cooling from niche experiment to mainstream contender.
Vaporization-Based Design: Passive Liquid Cooling Without a Pump
At the heart of Noctua’s pumpless liquid cooling concept is a two-phase thermosiphon loop that trades a motorized pump for physics. Heat from the CPU causes the sealed refrigerant to boil inside the evaporator block, producing vapor that rises through the tubes toward the condenser. There, the vapor releases heat to the radiator fins, cools, and condenses back into liquid, which returns under gravity to the CPU block. This closed cycle turns natural convection into active heat transport, making the thermosiphon CPU cooler effectively a form of passive liquid cooling with only the radiator fans as moving parts. Noctua calls the current iteration “Vaporisation… enhanced,” hinting at internal refinements to the evaporator and condenser. The design keeps the simplicity and reliability of an air cooler while exploiting liquid-vapor phase change to compete with performance-oriented AIO liquid coolers.
Handling a Ryzen 9 9950X3D: AIO-Class Performance on Flagship Silicon

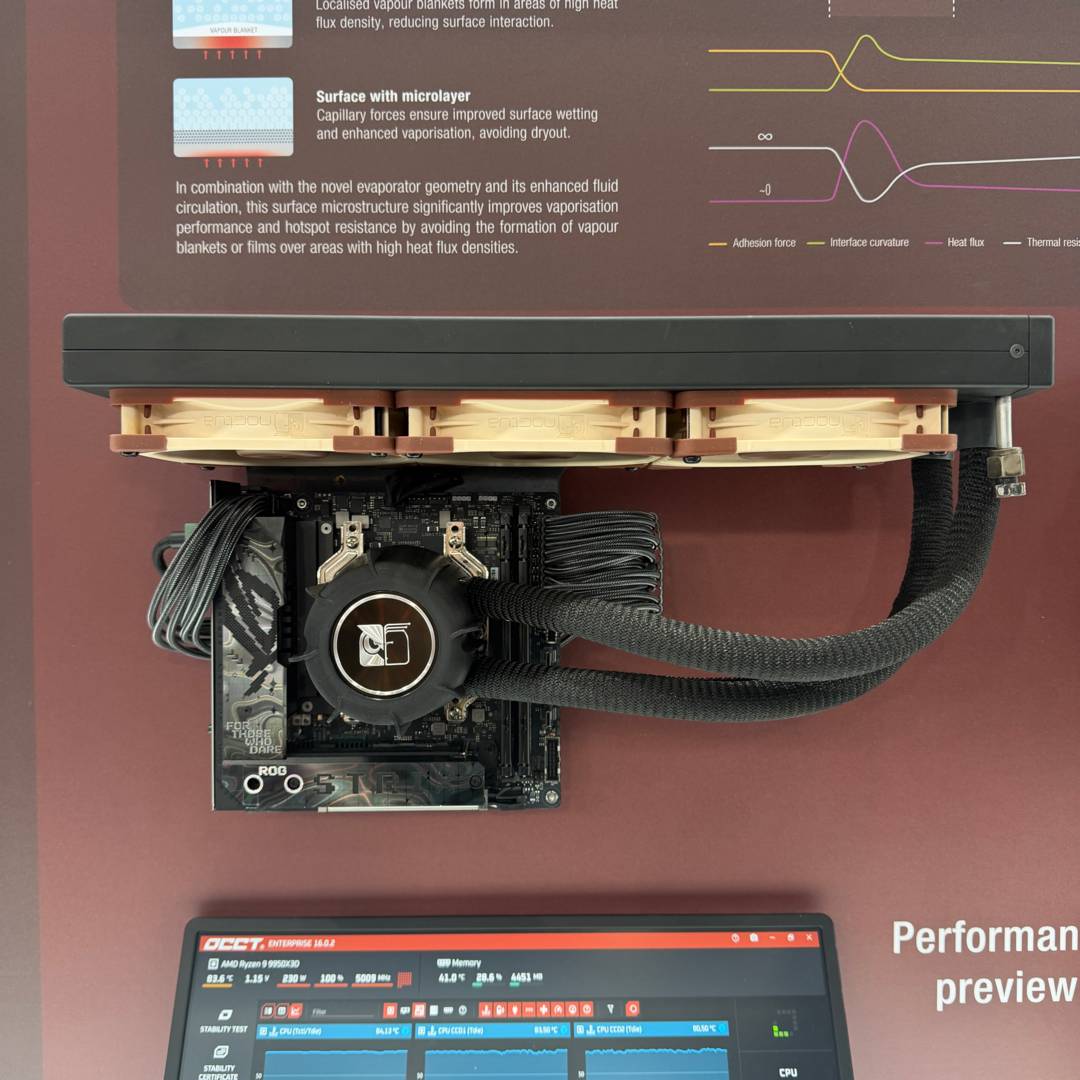

Performance is where pumpless liquid cooling must prove itself, and Noctua’s latest prototype delivers promising data. Club386 reports that when mounted above an AMD Ryzen 9 9950X3D and paired with NF-A12x25 G2 fans spinning at 1,800 RPM, the thermosiphon CPU cooler held temperatures to around 82°C at a 230W CPU power draw. This result was only a few degrees behind Noctua’s own AIO liquid cooler, which still uses a traditional pump. That near-parity on a high-end, high-power processor indicates that a Noctua vaporization cooler can serve as an AIO alternative cooling option even for demanding workstations and gaming rigs. The main limitation is positional: because the design needs gravity for fluid return, the radiator must be installed at the top of the case, which builders will need to factor into layout plans.
From Prototype to Product: Reliability, Noise, and Design Refinements

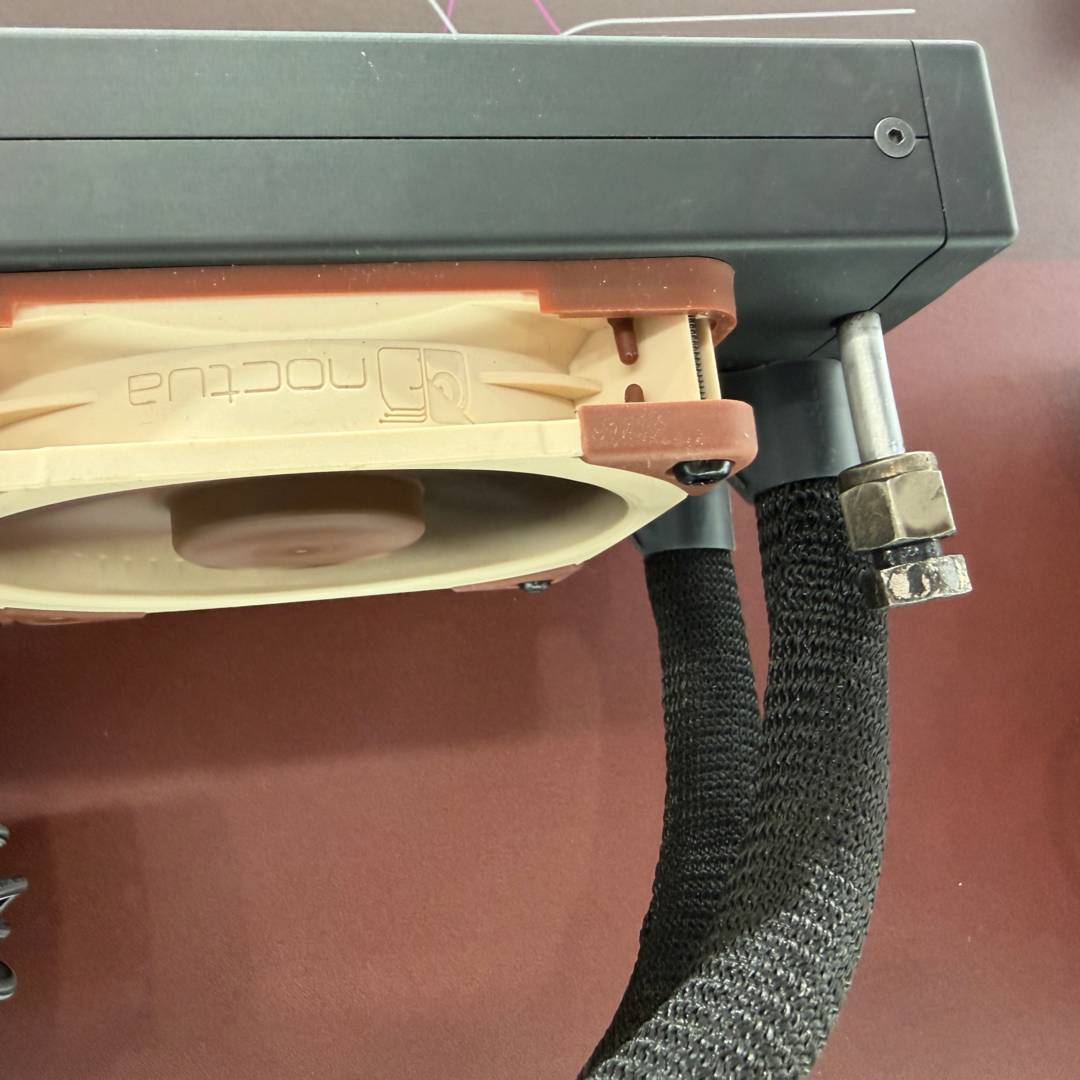

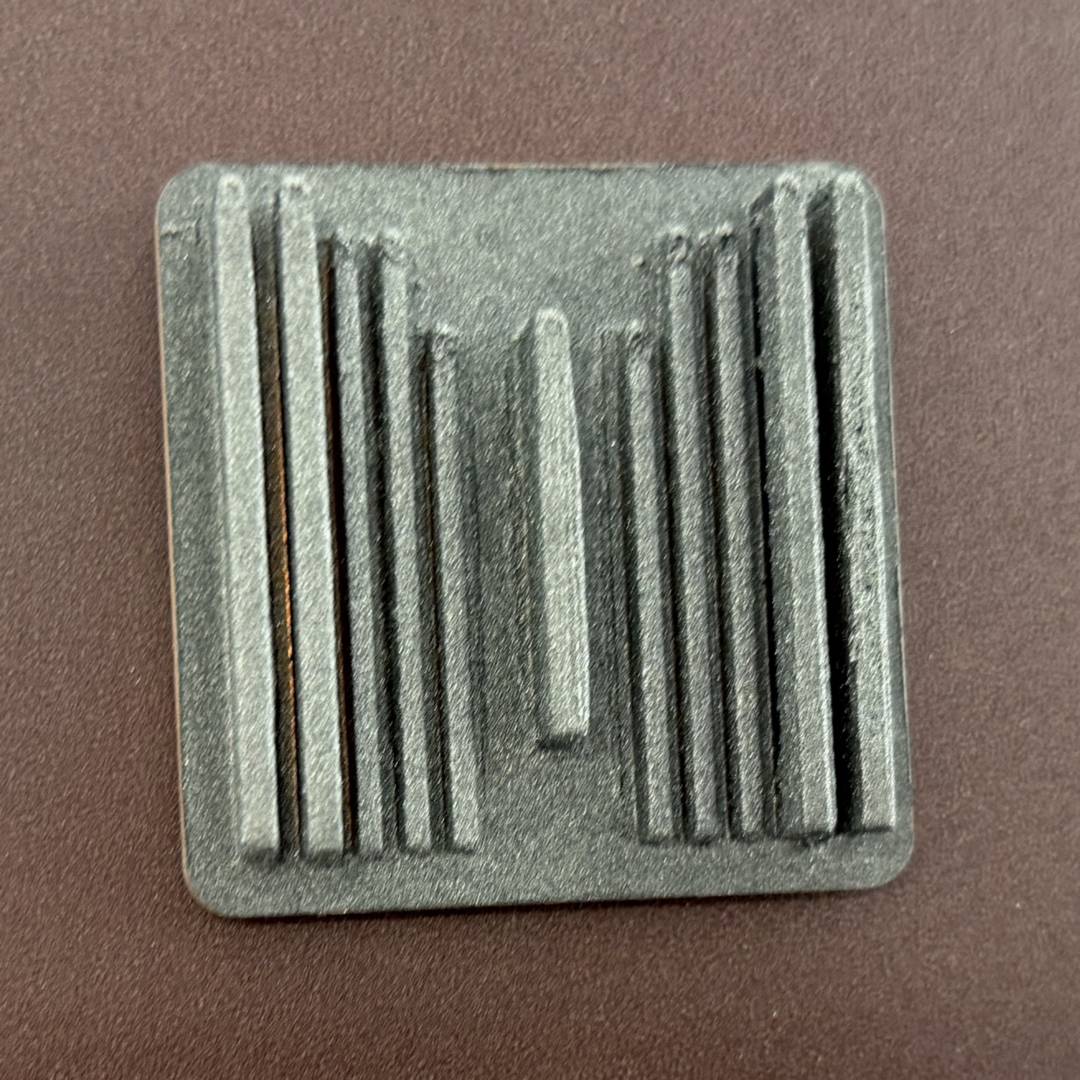

By removing the pump, Noctua’s thermosiphon aims for quieter operation and higher reliability, addressing two of the biggest complaints about standard AIOs. No pump means no pump whine, fewer vibrations, and fewer mechanical parts that can fail over time. The company is targeting a 10-year warranty for this thermosiphon cooler, with the pumpless design as a key argument for that confidence. According to Club386, Noctua has tested over 400 evaporator and 25 condenser prototypes in the past 12 months to refine vaporization efficiency, hotspot resistance, and condensation performance. Larger-diameter tubes help counter air permeation and potential air pocket formation, a known risk in sealed loops. While the current evaporator is still relatively bulky, Noctua expects the final product to use an evaporator around half the present size, making it easier to fit into dense high-end systems.
A Shift in Liquid Cooling Philosophy and What Comes Next
Noctua’s vaporization-based thermosiphon is more than an isolated prototype; it signals a change in how liquid cooling for CPUs can be built. By combining passive liquid cooling principles with tuned phase-change and radiator design, the Noctua vaporization cooler challenges the idea that pumps are mandatory for high-end thermal performance. The company has developed the system with Calyos, which brings experience from two-phase cooling in aviation and automotive, hinting at a broader push to adapt industrial thermal management to desktops. Although Noctua originally targeted a 2026 release, the thermosiphon CPU cooler has slipped from that roadmap and is now expected to debut around Q3 2027, giving time for further shrinkage and compatibility work. As it is teased ahead of Computex, the project underlines growing industry interest in AIO alternative cooling architectures that cut noise, reduce failure points, and still keep pace with the hottest flagship CPUs.
